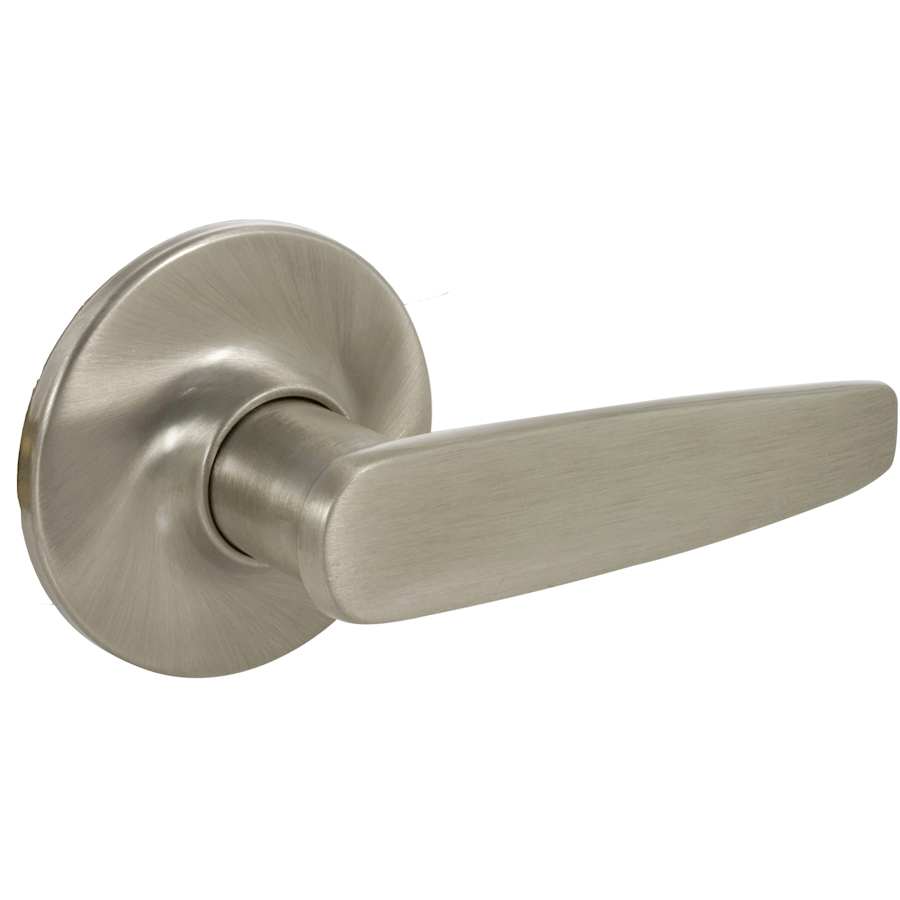

Note: Includes interior trim only. Exterior handleset required to complete installation.
Features:
Meets BHMA security grade 3 requirements
Made of durable zinc
Fully reversible handing for left or right handed applications
Designed for an easy one person installation
Comes standard with a round corner latch faceplate and 1/2″ throw
Includes a limited lifetime warranty on mechanical parts and a five year warranty on finish
Meets the requirements for the American’s with Disabilities Act (ADA) requirements
Product Technologies:
Interior Pack (Single Cylinder) Function: Single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Projection: 1-7/8″
Latch Faceplate: Round Corner
Cylinder: 5 Pin KW1
Concealed Screws: No
Material: Zinc
Additional Callan Links
Browse all Callan Products
Callan Asheville Collection
Specifications
| Thermostat | Modern |
| Material | Zinc |
| Handle Material | Metal |
| Handle Style | Lever |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner |
| Concealed Screws | No |
| Function | Keyed Entry |
| Rosette Shape | Round |
| Cylinder | 5 Pin KW1 |
| Cylinder Type | Single Cylinder |
| Keyway | KW1 |
| Shape | Flat |
| Removable Core | No |
| Approved for Commercial Use | No |
| Collection | Asheville |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| ADA | Yes |
| Certifications | ANSI |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 3 |
| Edge Bore | 1" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8" |
| Handle Projection | 1.875 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Cylinder Included | Yes |
| Color | Satin Nickel |
| Color Tone | Nickel Tones |
