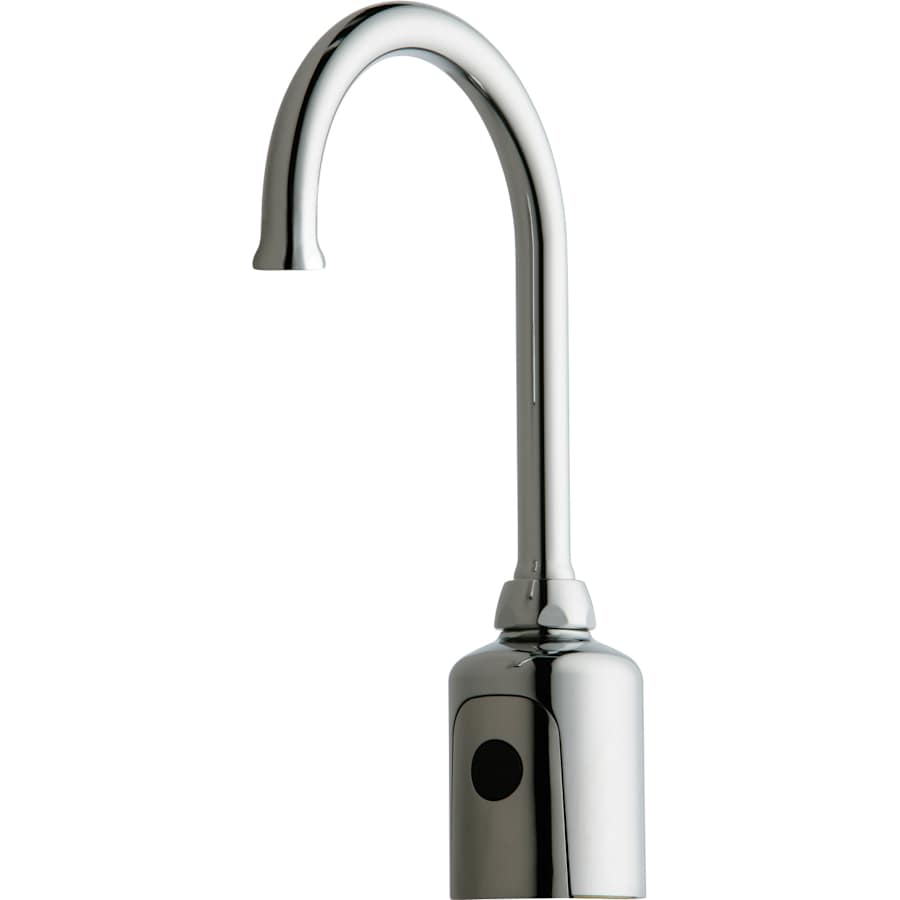

HyTronic Gooseneck sink faucet with dual beam infrared sensor for patient care application. Single hole application with a 2.5 GPM vandal resistant laminar inlet. It features dual supply for hot and cold water service and is powered by a 6-volt lithium CPR2 battery. It has a concealed temperature control mixer and field adjustable modes and ranges using the Commander handheld programming unit (not included).
Chicago Faucets 116.616.AB.1 Features:
Covered under Chicago Faucet’s limited lifetime warranty
Faucet body constructed of solid brass ECAST material
Coordinates with products from the HyTronic line seamlessly
Touchless, motion-activated faucet
Single hole installation
Valve not included
ADA compliant
Low lead compliant
Mounting hardware not included
Technologies and Benefits:
Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.
Chicago Faucets 116.616.AB.1 Specifications:
Height: 11-3/8″
Spout Height: 7-3/4″
Spout Reach: 5-1/4″
Flow Rate: 2.5 GPM (gallons-per-minute)
Faucet Holes: 1
Faucet Centers: single hole
Max Deck Thickness: 1-1/2″
Codes and Compliance:
ASME A112.18.1/CSA B125.1
California Health and Safety Code 116875 (AB 1953-2006)
Vermont Bill S. 152
Louisiana Low Lead Law HB. 471
NSF/ANSI 372 Low Lead Content
Certified to NSF/ANSI 61, Section 9 by CSA
ADA ANSI/ICC A117.1
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets HyTronic Gooseneck Collection
Specifications
| Height | 11.38 in. |
| Faucet Centers | 1 in. |
| Spout Reach | 5.25 in. |
| Water Connection | 3/8" |
| Flow Rate (GPM) | 2.5 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 7.75 in. |
| Thermostat | Basic |
| Material | Brass |
| Faucet Holes | 1 |
| Insulation Type | Deck Mounted |
| Mounting Type | Single Hole |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Type | Fixed |
| Valve Type | Metering |
| Water Efficient | Yes |
| Electronic | Yes |
| Bridge Faucet | No |
| Touchless Faucet | Yes |
| Battery Quantity | 1 |
| Power Source | Battery |
| Battery Size | CR-P2 |
| Collection | HyTronic Gooseneck |
| Certifications | ASSE, NSF, ANSI, ASME, CSA |
| ADA | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 3 Year Parts, Limited Lifetime Faucet, 1 Year Finish, 5 Year Mechanical |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | Yes |
| Made in America | Yes |
| Low Lead Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Installation Hardware Included | Yes |
| Soap Dispenser Included | No |
| Filtering | No |
| Handshower Included | No |
| Sidespray | No |
| Valve Included | No |
| Escutcheon Included | No |
| Color | Chrome |
| Color Tone | Silver Tones |
