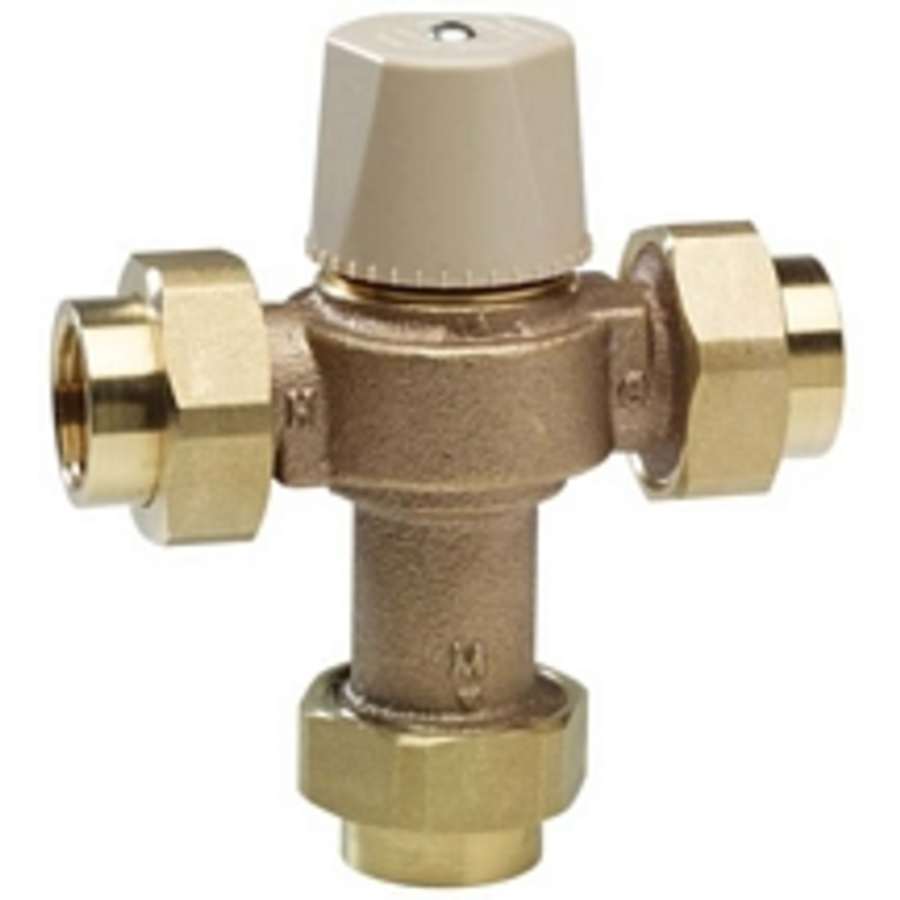

Chicago Faucets ECAST® Thermostatic Mixing Valve (for 1 to 8 fittings)

ECAST® Thermostatic Mixing Valve (for 1 to 8 fittings)

Features & Specifications

Standard 1/2″ NPT threaded inlet and outlet union connections
Integral inlet check valves to protect against cross-flow
Adjustment cap with locking feature
Bronze Body Construction
Double throttling design to control both hot and cold water supply to the mixed outlet
Corrosion resistant internal components
Solid wax hydraulic principle thermostat
Thermostat controls both hot and cold water
Installs between the stop valves and faucet
Inlet filter washers to filter out debris
Single use or multiple faucet installations
ECAST® construction with less than 0.25% lead content by weighted average

Codes & Standards

ASME A112.18.1/CSA B125.1
California Health and Safety Code 116875 (AB 1953-2006)
Vermont Bill S.152
NSF/ANSI 372 Low Lead Content
ASSE 1017
ASSE 1069
ASSE 1070
