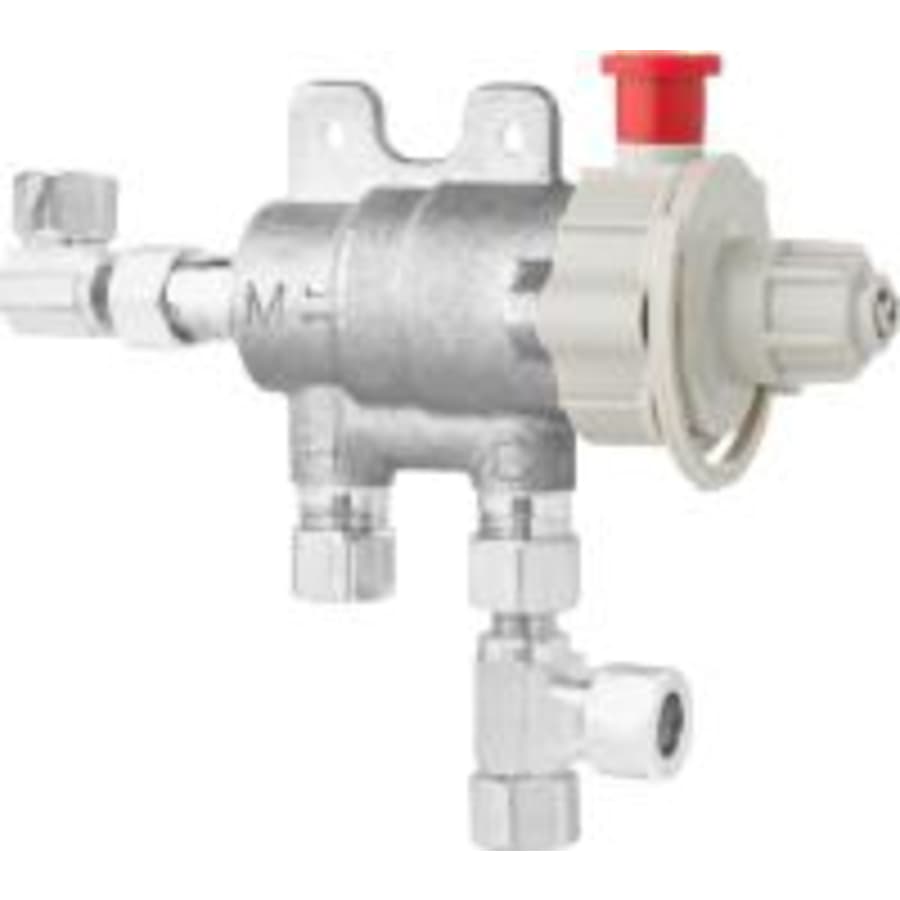

Chicago Faucets 131-CFMABRCF Features:
Standard 3/8″ compression inlets and outlets
Integral inlet check valves to protect against cross-flow
Adjustment cap with locking feature
ECAST design provides durable brass construction
Thermostatic wax element design
Thermostat controls both hot and cold water
Installs between the stop valves and the faucet
Single use or multiple faucet installations
Includes wall bracket
Chicago Faucets 131-CFMABRCF Specifications:
Minimum Flow Rate: .35 gpm
Maximum Flow Rate: 4.66 gpm
Minimum Supply Pressure: 30psi
Hot Inlet Temperature: 100°F-180°F
Temperature Out: 80°F to 120°F
Chicago Faucets 131-CFMABRCF Codes & Standards:
Certified to NSF/ANSI 61, Section 9 by CSA
ASSE 1070
California Health and Safety Code 116875 (AB1953-2006)
Vermont Bill S.152
NSF/ANSI 372 Low Lead Content
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets ECAST Collection
Specifications
| Thermostat | Modern |
| Material | Brass |
| Valve Type | Thermostatic |
| Certifications | ASSE, ANSI, CSA |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Low Lead Compliant | Yes |
| ASSE Code | 1070 |
| Flow Rate (GPM) | 4.66 |
| Water Connection | 3/8" |
