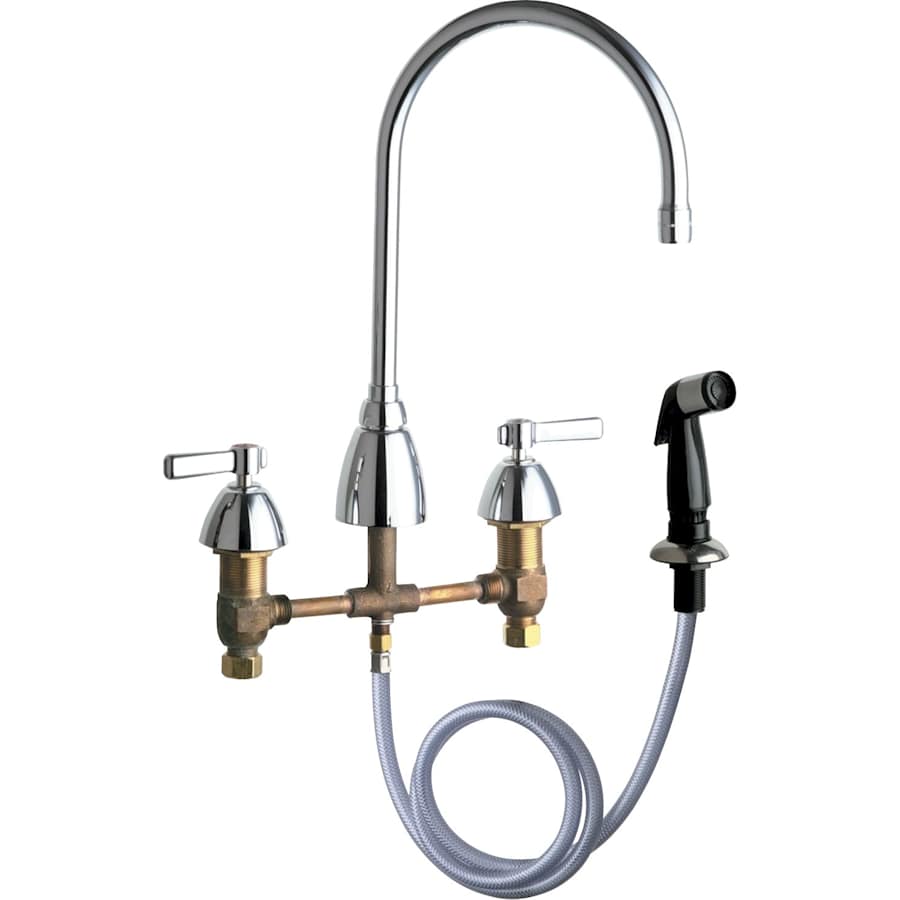

Chicago Faucets 200-AGN8AE35AB Features:
Faucet body constructed of brass
Covered under Chicago Faucet’s limited lifetime warranty for faucet/ 5 year limited warranty for cartridge/ 1 year limited warranty for finish
Premier finishing process – finishes will resist corrosion and tarnishing through everday use
Double handle operation – handles rest on 1/4 turn valves
Side spray with 48″ hose aids with a variety of kitchen tasks
Spout swivels 360-degrees providing greater access to more areas of the sink
High-arch gooseneck spout design provides optimal room under the faucet for any size task
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for faucets
1/2″ NPSM supply inlets and coupling nut for 3/8″ or 1/2″ flexible riser
Chicago Faucets 200-AGN8AE35AB Technologies / Benefits:
ECAST: Durable brass construction with total lead content equal to or less than 0.25% by weighted average
Quaturn: Rebuildable compression cartridge opens and closes 90°, closes with water pressure and features a square tapered stem
Chicago Faucets 200-AGN8AE35AB Specifications:
Overall Height: 13-1/8″ (measured from counter top to highest part of faucet)
Spout Height: 7-1/2″ (measured from counter top to spout outlet)
Spout Reach: 8″ (measured from center of faucet base to center of spout outlet)
Number of Holes Required for Installation: 4
Faucet Centers (Distance Between Handle Installation Holes): 8″
Flow Rate: 1.5 GPM (gallons-per-minute)
Maximum Deck Thickness: 1-1/8″
Two handles included with faucet
Designed for use with standard U.S. plumbing connections
All hardware needed for mounting is included with faucet
Codes and Compliances:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
ADA ANSI/ICC A117.1
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| Height | 13.125 in. |
| Faucet Centers | 8 in. |
| Flow Rate (GPM) | 1.5 |
| Spout Height | 7.5 in. |
| Spout Reach | 8 in. |
| Max Deck Thickness | 1.125 in. |
| Water Connection | 1/2", 3/8" |
| Material | Brass |
| Faucet Holes | 4 |
| Faucet Type | Kitchen Faucet |
| Handle Material | Metal |
| Handle Style | Lever |
| Insulation Type | Deck Mounted |
| Number Of Handles | 2 |
| Valve Type | Ceramic Disc |
| Pullout Spray | No |
| Water Connection Type | NPSM |
| Pre Rinse | No |
| ADA | Yes |
| Certifications | ANSI, ASME, NSF, CSA |
| Manufacturer Warranty | 5 Year Cartridge, Limited Lifetime, 1 Year Finish |
| CA Drought Compliant | Yes |
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ANSI Certification | A117.1 |
| Eco Friendly | No |
| Low Lead Compliant | Yes |
| CSA Code | B125.1 |
| ASSE Code | A112.18.1 |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Sidespray | Yes |
| Soap Dispenser Included | No |
| Filtering | No |
| Color | Chrome |
