Product Features:

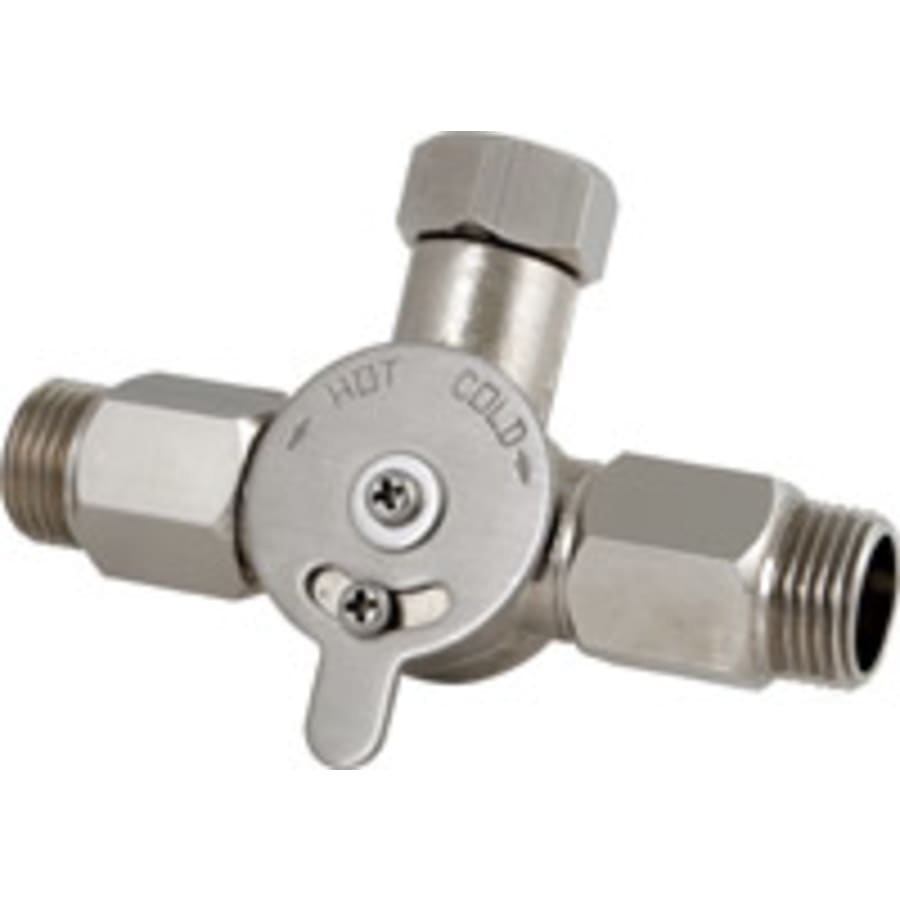

Concealed mechanical mixing valve
Engineered and assembled in the United States of America
Fully covered under Chicago Faucets 5-year mechanical warranty
Constructed from ECAST brass alloy
Inlet cone shaped filter washers
Intended for use in single faucet installations only
Delivers a minimum flow rate of 2.5 GPM (gallons-per-minute)
Includes a temperature adjusting screw
Features inlet check valves
Overall Height: 3-1/8″
Overall Width: 4-3/8″
1/2″ NPSM male thread inlets
1/2″ NPSM female thread outlet
Product Weight: 0.840 lbs
Technologies and Benefits:
ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.
Codes and Compliance:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
California Health and Safety Code 116875 (AB1953-2006)
Vermont Bill S.152
NSF/ANSI 372 Low Lead Content
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| Height | 3.125 in. |
| Product Weight | 0.84 lbs. |
| Water Connection | 1/2" |
| Width | 4.375 in. |
| Flow Rate (GPM) | 2.5 |
| Material | Brass |
| Valve Type | Ceramic Disc |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 5 Year Cartridge, 1 Year Finish, 5 Year Mechanical |
| Low Lead Compliant | Yes |
