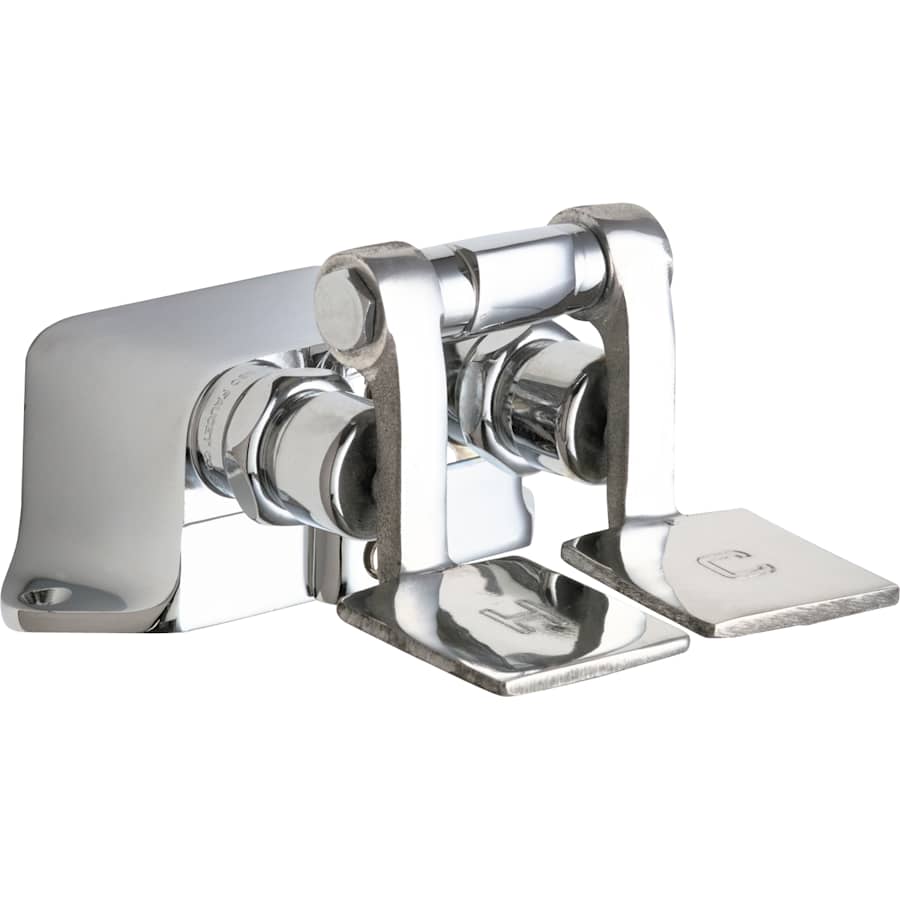

ECAST Combination Pedal Box with Two Short Pedals and NAIAD Self Closing Cartridges
This combination pedal box features two short pedals and our NAIAD™ Self Closing Cartridges.
Product Features:
ECAST design provides durable brass construction with total lead content less than 0.25% by weighted average
Short polished aluminum pedals indexed “H” and “C”
NAIAD™ self closing renewable cartridge, catalog #628-X
Two 1/2″ NPT female back inlets
One 3/8″ NPT female back outlet
Performance Specification:
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140° F
Warranty:
Lifetime Limited Faucet Warranty
5-Year Limited Cartridge Warranty
1-Year Limited Finish Warranty
Compliant To:
California Lead Plumbing Law (AB1953)
NSF 61, Sec. 9
ASME A112.18.1
CSA B125
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| ADA | No |
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.18.1M |
| Certifications | NSF, ASME, CSA |
| Low Lead Compliant | Yes |
| CSA Code | B125 |
| Width | 5.75 in. |
| Depth | 6.5 in. |
| Inside Diameter | .5 in. |
| Outside Diameter | .375 in. |
| Valve Included | Yes |
| Number Of Outlets | 1 |
| Number of Pedals | 2 |
| Color | Chrome |
| Color Tone | Silver Tones |
