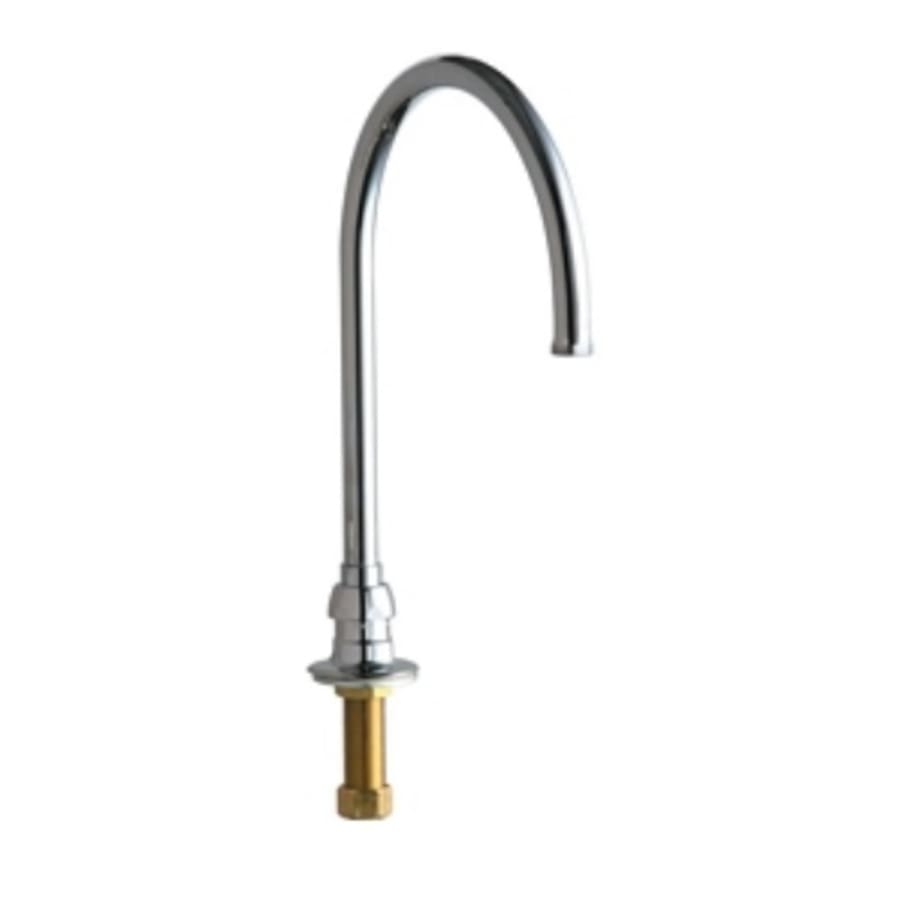

ECAST Low Lead Deck Mounted Single Hole Single Water Inlet Fitting with Gooseneck Spout
This single water inlet fitting features a gooseneck spout with a 1.6 GPM laminar flow control device in spout.
Product Features:
ECAST design provides durable brass construction with total lead content less than 0.25% by weighted average
Rigid/Swing gooseneck spout, catalog #GN8AFC
1.6 GPM (6.1 L/min) laminar flow control device at spout inlet
1/2″ NPSM supply inlet with coupling nut for 3/8″ or 1/2″ flexible risers
Mounting hardware included
Performance Specification:
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140° F
Warranty:
Lifetime Limited Faucet Warranty
5-Year Limited Cartridge Warranty
1-Year Limited Finish Warranty
Compliant To:
California Lead Plumbing Law (AB1953)
NSF 61, Sec. 9
ASME A112.18.1
CSA B125
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| Material | Brass |
| Faucet Holes | 1 |
| Insulation Type | Deck Mounted |
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | NSF, ASME, CSA |
| Low Lead Compliant | Yes |
| CSA Code | B125 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.18.1M |
| Flow Rate (GPM) | 1.6 |
| Spout Height | 7.125 in. |
| Spout Reach | 5.25 in. |
| Faucet Hole Size | .875 in. |
| Max Deck Thickness | 1.375 in. |
| Faucet Height | 12.125 in. |
| Drain Assembly Included | No |
| Valve Included | No |
| Color | Chrome |
| Color Tone | Silver Tones |
