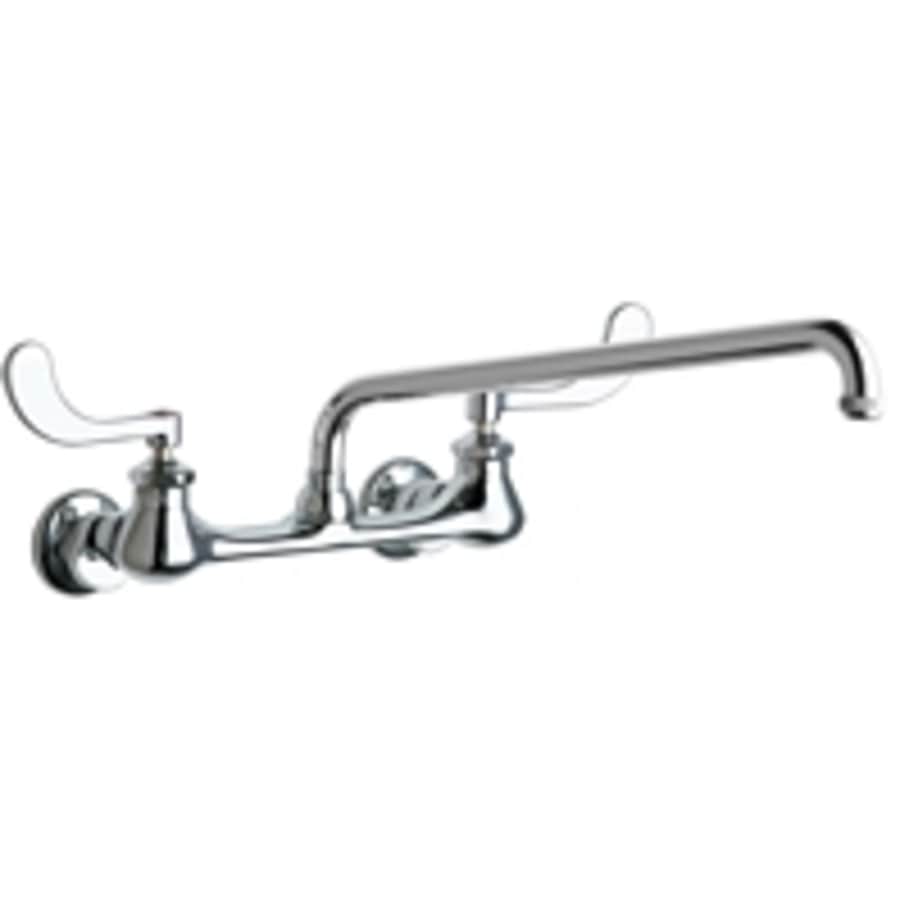

Chicago Faucets Wall Mounted Utility / Service Faucet with Wrist Blade Handles – Commercial Grade

Product Features:

Manufactured and assembled in the United States of America
Faucet body and handles are covered under Chicago Faucet’s
Constructed of solid brass ECAST material
High quality chrome plated finish – finishes are covered under warranty for a year
Double handle operation – handles rest on 1/4 turn valve seats
Quaturn compression operating cartridge – covered under warranty for 5 years
Wall mount installation saves valuable counter space
Spout swivels 180-degrees to allow for unobstructed access to the whole sink
ADA compliant
Mounting hardware not included

The Chicago Faucets Benefit:

Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
Quaturn Cartridge: The Quaturn cartridge was the industries first replaceable, completely self-contained valve cartridge. The cartridge allows the user to turn the water from full flow to off in just a quarter-turn. This unique cartridge was designed to close with the flow of the water rather than against it which reduces washer ware and virtually eliminates faucet drips. Although the Quaturn cartridge has been updated over the years to incorporate new technologies and materials it still holds true to its principals and is completely interchangeable with any Quaturn manufactured since 1913.

Product Specifications:

Overall Height: 5″ (measured from mounting surface to highest point on faucet)
Spout Height: 2-7/8″ (measured from mounting surface to spout outlet)
Spout Reach: 14″ (measured from center of faucet body to center of spout outlet)
Required Installation Holes: 2
Faucet Centers: 8″ (center-to-center distance between installation holes)
Flow Rate: 2.2 gallons-per-minute
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140 degrees Fahrenheit
2 handles included with faucet
1/2″ connection – designed for use with standard U.S. plumbing supply bibs

Codes and Compliances:

ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
ADA ANSI/ICC A117.1
