Product Features:

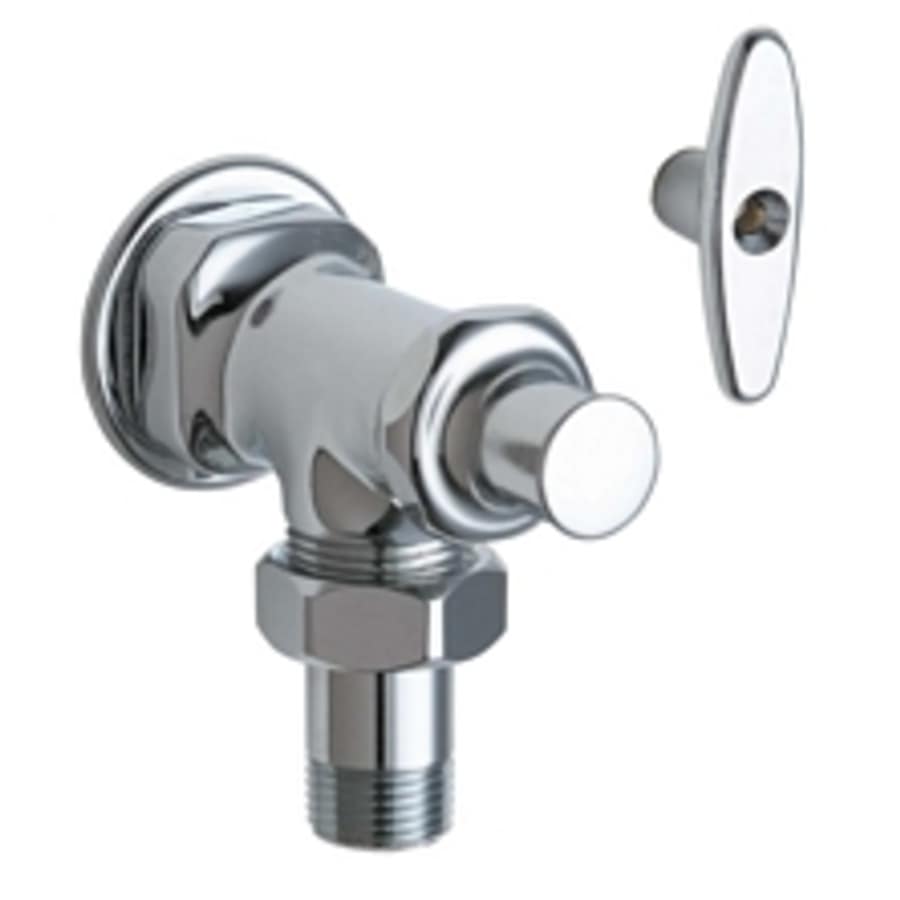

Angle stop fitting – loose key
Trim body and handles are covered under Chicago Faucet’s limited lifetime warranty
Constructed of solid brass ECAST material
High quality chrome plated finish – finishes are covered under warranty for a year
Includes slow compression cartridge (217-XTAB) – covered under 5-year warranty
Stops with 1/2″ inlet
Includes single 2-1/4″ tee handle (293-006)
1/2″ NPT female thread inlet
1/2″ NPT male thread outlet
Overall Length: 3-5/8″
Outlet Height: 2-5/8″
Product Weight: 1.0 lbs
Rated Operating Pressure: 20 – 125 PSI
Rated Operating Temperature: 40 – 140 degrees Fahrenheit
Technologies and Benefits:
Commercial Grade: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.
Codes and Compliance:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
California Health and Safety Code 116875 (AB1953-2006)
Vermont Bill S.152
NSF/ANSI 372 Low Lead Content
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| Approved for Commercial Use | Yes |
| ADA | No |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime, 1 Year Finish, 5 Year Cartridge |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Eco Friendly | No |
| Height | 3.75 in. |
| Length | 3.625 in. |
| Product Weight | 1 lbs. |
| Water Connection | 1/2" |
| Spout Reach | 3.625 in. |
| Insulation Type | Wall Mounted |
| Material | Brass |
| Faucet Holes | 1 |
| Number Of Handles | 1 |
| Valve Type | Ceramic Disc |
| Handle Material | Brass |
| Handle Style | Lever |
| Spout Type | Fixed |
| Handshower Included | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
