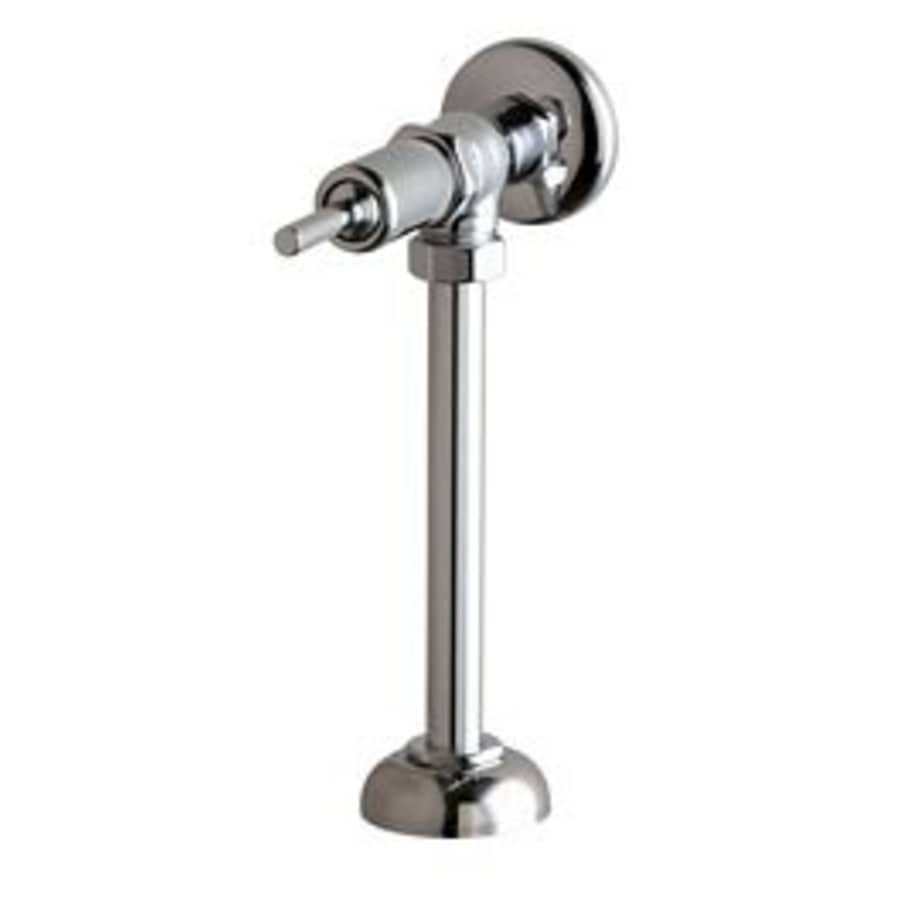

Angle Urinal Valve with Long Bonnet Non-Sag Oscillating Handle, Loose Wall Flange and Escutcheon Deck Assembly
Product Feature:
Solid brass body construction
Long bonnet non-sag oscillating handle, catalog #386-009
NAIAD™ adjustable slo-closing cartridge, catalog #386-XSLO
1/2″ NPT female inlet
3/4″ O.D. x 7″ tailpiece
Escutcheon deck assembly
Loose wall flange
Performance Specification:
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140° F
Warranty:
Lifetime Limited Faucet Warranty
5-Year Limited Cartridge Warranty
1-Year Limited Finish Warranty
Compliant To:
ASME A112.18.1M
CSA B125
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets Manual Collection
Specifications
Characteristics and Features
| Material | Brass |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Control Type | Manual |
| Handle Material | Metal |
| Spud Placement | Top |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| ADA | No |
| ASSE Code | A112.18.1M |
| Certifications | ASSE, ASME, CSA |
| CSA Code | B125 |
| Low Lead Compliant | No |
Included Components
| Escutcheon Included | Yes |
| Valve Included | Yes |
| Handshower Included | Yes |
| Flange | Yes |
Dimensions and Measurements
| Inside Diameter | 0.5 in. |
| Water Pressure (Max) | 125 PSI |
| Water Pressure (Min) | 20 PSI |
| Color | Chrome |
| Color Tone | Silver Tones |
