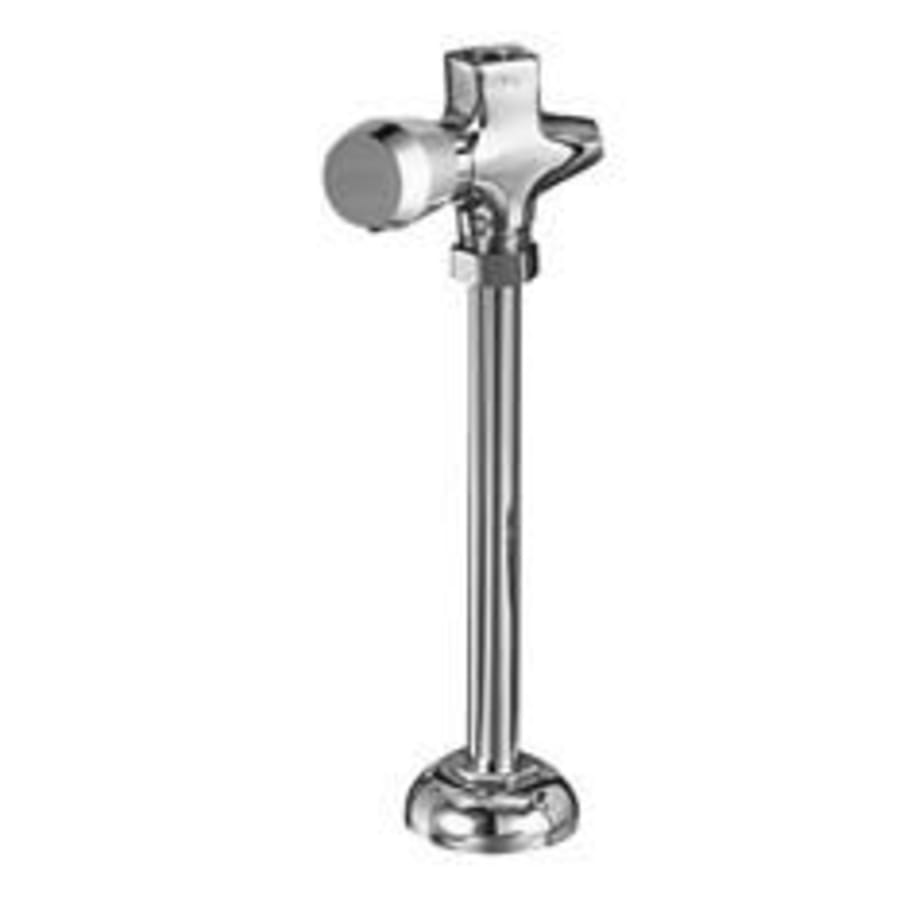

Straight Urinal Valve with Push Button and Escutcheon Deck Assembly
Product Feature:
Solid brass body construction
Tapered vandal resistant metering handle, catalog #665
MVP™ push button, adjustable slo-closing metering cartridge, catalog #671-X
1/2″ NPT female inlet
3/4″ O.D. x 7″ tailpiece
Escutcheon deck assembly
Performance Specification:
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140° F
Warranty:
Lifetime Limited Faucet Warranty
5-Year Limited Cartridge Warranty
1-Year Limited Finish Warranty
Compliant To:
ASME A112.18.1M
CSA B125
ADA
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets Manual Collection
Specifications
Dimensions and Measurements
| Height | 10.25 in. |
| Depth | 4.25 in. |
| Inside Diameter | 0.5 in. |
| Water Pressure (Max) | 125 PSI |
| Water Pressure (Min) | 20 PSI |
Warranty and Product Information
| ADA | No |
| Approved for Commercial Use | Yes |
| ASSE Code | A112.18.1M |
| Certifications | ASSE, ASME, CSA |
| Low Lead Compliant | No |
| CSA Code | B125 |
Characteristics and Features
| Material | Brass |
| Handle Style | Push Button |
| Number Of Handles | 1 |
| Valve Type | Metering |
| Spud Placement | Top |
Included Components
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
