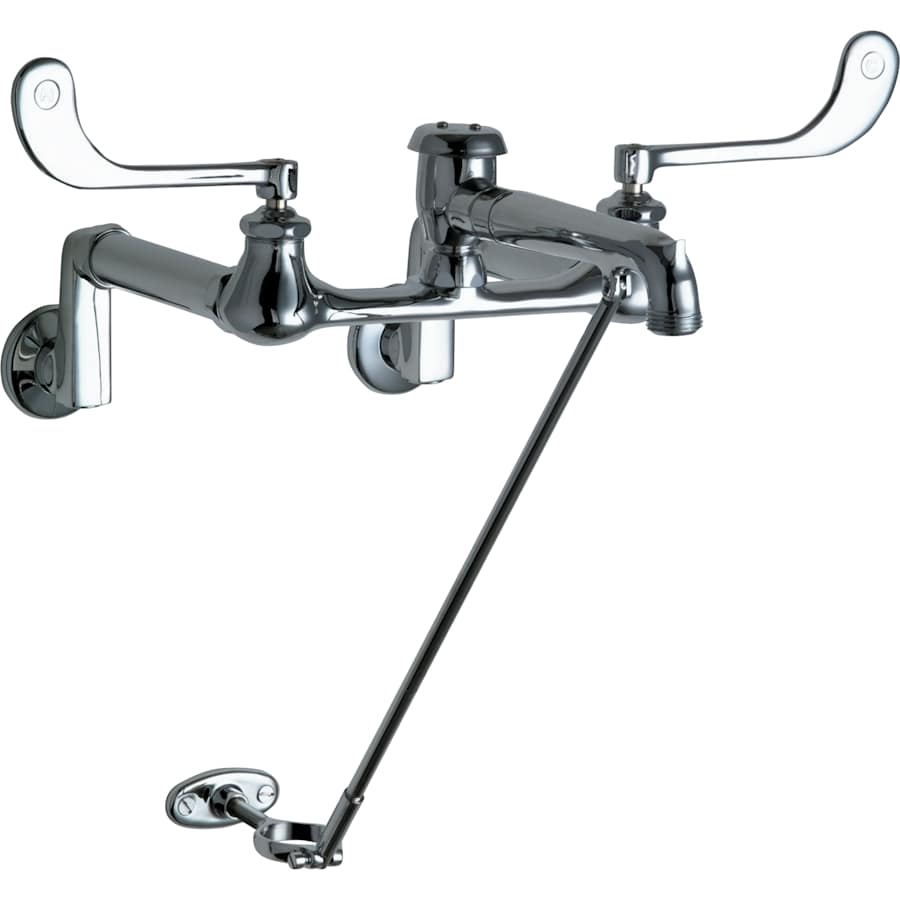

Flushing Rim Utility Faucet with Atmospheric Vacuum Breaker Spout, Pail Hook, Flush Valve Pipe Support and Elbow Blade Handles
Product Feature:
Solid brass body construction
5 5/8″ – 12 5/8″ adjustable centers
Atmospheric vacuum breaker spout with pail hook and flush valve pipe support, catalog #815-SVB
3/4″ Male garden hose thread outlet
6″ Elbow blade metal handles with eight point tapered broach and secured color coded index buttons, catalog #319
Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog #1-100XT and #1-099XT
Inlet extension, catalog #EX5
1/2″ NPT female adjustable supply arms with integral service stops and wall flange, catalog #R
Performance Specification:
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140° F
Warranty:
Lifetime Limited Faucet Warranty
5-Year Limited Cartridge Warranty
1-Year Limited Finish Warranty
Compliant To:
ASME A112.18.1
CSA B125
ADA
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets Manual Collection
Specifications
| Material | Brass |
| Faucet Holes | 4 |
| Handle Style | Wrist Blade |
| Number Of Handles | 2 |
| Pullout Spray | No |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Certifications | ASME, CSA |
| ASSE Code | A112.18.1 |
| Low Lead Compliant | No |
| CSA Code | B125 |
| Faucet Centers | 8 in. |
| Spout Reach | 7.5 in. |
| Water Pressure (Max) | 125 PSI |
| Water Pressure (Min) | 20 PSI |
| Drain Assembly Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | No |
| Sidespray | No |
| Soap Dispenser Included | No |
| Vacuum Breaker | Yes |
| Flange | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
