Product Features:

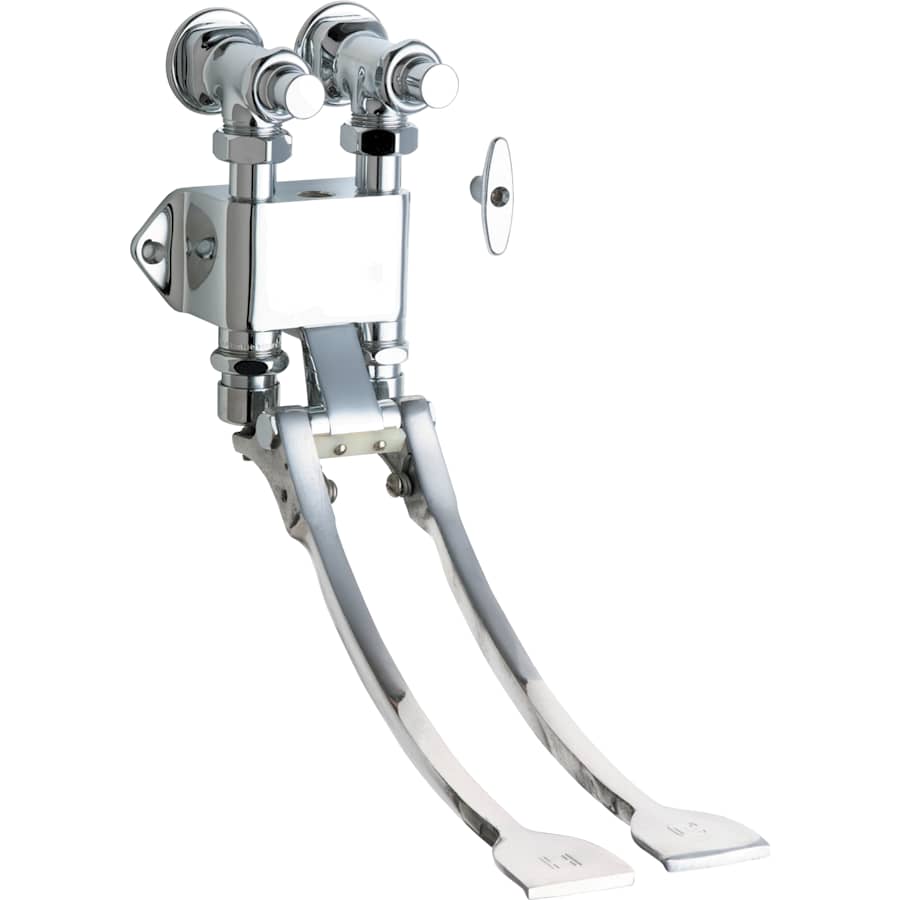

Hot and cold water pedal box and extended pedals
Trim body and pedals are covered under Chicago Faucet’s limited lifetime warranty
Constructed of solid brass ECAST material
High quality chrome plated finish – finishes are covered under warranty for a year
Includes NAIAD metering adjustable cycle time closure cartridge (625-XSLOAB) – covered under 5-year warranty
Locking feature keeps pedals in raised position
Overall Height: 17″
Overall Length: 14″
Overall Width: 5-11/16″
1/2″ NPT female thread inlets
3/8″ NPT female thread outlet
Product Weight: 7.60 lbs
Rated Operating Pressure: 20 – 125 PSI
Rated Operating Temperature: 40 – 140 degrees Fahrenheit
Technologies and Benefits:
Commercial Grade: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.
Codes and Compliance:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
California Health and Safety Code 116875 (AB1953-2006)
Vermont Bill S.152
NSF/ANSI 372 Low Lead Content
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| Product Weight | 7.6 lbs. |
| Height | 17 in. |
| Width | 5.687 in. |
| Length | 14 in. |
| Water Connection | 1/2", 3/8" |
| Material | Brass |
| Insulation Type | Wall Mounted |
| Number Of Handles | 2 |
| Valve Type | Solenoid |
| Handle Material | Brass |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime, 5 Year Cartridge, 1 Year Finish |
| Approved for Commercial Use | Yes |
| ADA | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Handshower Included | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
