Product Features:
Manufactured and assembled in the United States of America
Faucet body and handles are covered under Chicago Faucet’s limited lifetime warranty
Constructed of solid brass
High quality chrome plated finish – finish covered under warranty for a year

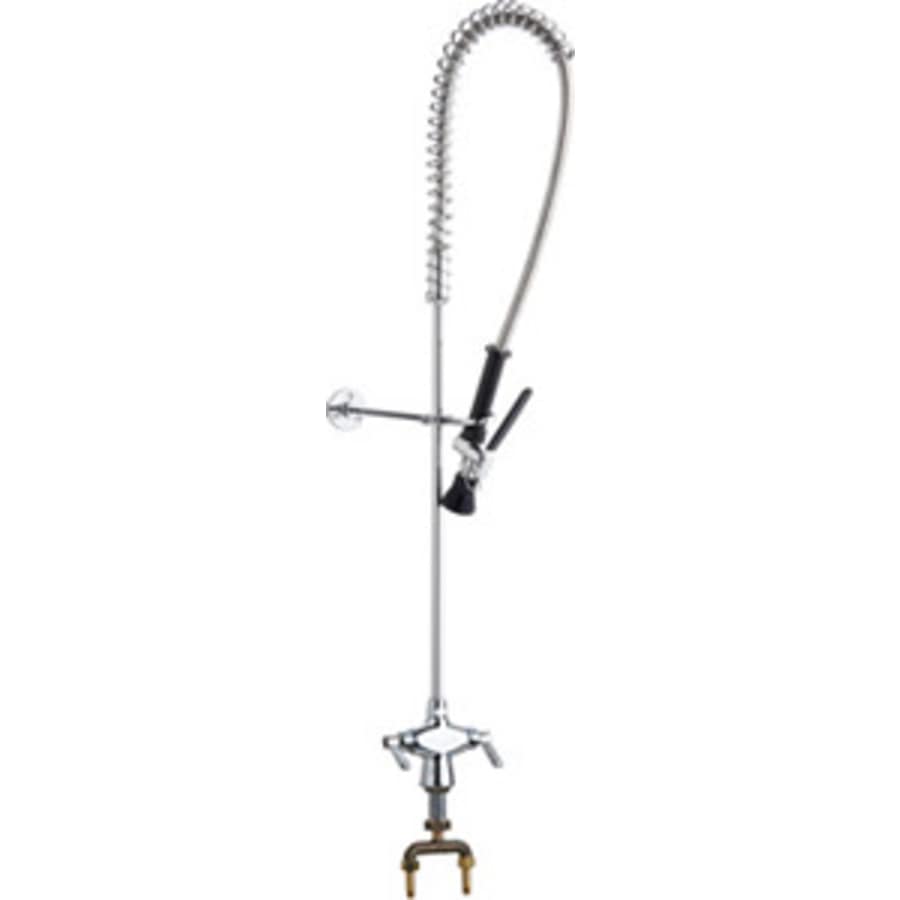

Adapta-Faucet features a coil spring pre-rinse fitting
Double handle operation turns water flow on – separate trigger handle and valve controls water flow independently
Quaturn compression operating cartridge – covered under 5-year warranty
High-arch spout design provides increased workspace under the faucet
Pre-rinse fitting is ideal for a restaurant application or a semi-professional kitchen
ADA compliant
Mounting hardware not included
The Chicago Faucets Benefit:
Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
Quaturn Cartridge: The Quaturn cartridge was the industries first replaceable, completely self-contained valve cartridge. The cartridge allows the user to turn the water from full flow to off in just a quarter-turn. This unique cartridge was designed to close with the flow of the water rather than against it which reduces washer ware and virtually eliminates faucet drips. Although the Quaturn cartridge has been updated over the years to incorporate new technologies and materials it still holds true to its principals and is completely interchangeable with any Quaturn manufactured since 1913.
Product Specifications:
Overall Height: 43-3/4″ (measured from mounting surface to highest point on faucet)
Spout Height: 13-7/8″ (measured from mounting surface to spout outlet)
Spout Reach: 11-1/2″ (measured from center of faucet body to center of spout outlet)
Required Installation Holes: 1
Installation Type: Deck Mounted
Flow Rate: 1.0 gallons-per-minute
Maximum Deck Thickness: 1-5/8″
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140 – degrees Fahrenheit
2-3/8″ handles included with faucet
Codes and Compliance:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets Food Service Collection
Specifications
| Material | Brass, Steel |
| Insulation Type | Deck Mounted |
| Handle Material | Metal |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Valve Type | Ceramic Disc |
| Pullout Spray | No |
| Faucet Type | Food Service Faucet |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| ASSE Code | A112.18.1M |
| Certifications | ASSE, ASME, CSA |
| CSA Code | B125 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
| Drain Assembly Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | No |
| Sidespray | No |
| Soap Dispenser Included | No |
| Faucet Hole Size | 1.063 in. |
| Spout Height | 13.87 in. |
| Spout Reach | 11.5 in. |
| Color | Chrome |
| Color Tone | Silver Tones |
