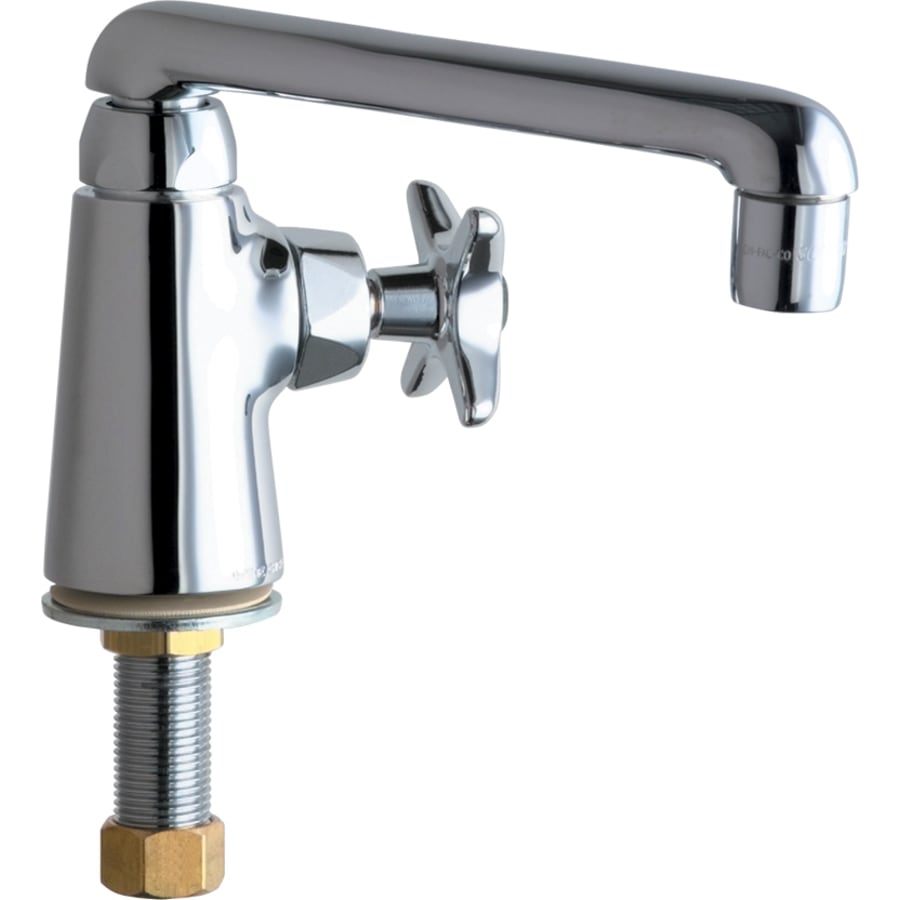

Product Features:
Manufactured and assembled in the United States of America
Faucet body and handles are covered under Chicago Faucet’s
Constructed of solid brass ECAST material
High quality chrome plated finish – finishes are covered under warranty for a year
Single handle operation
Quaturn compression operating cartridge – covered under warranty for 5 years
Deck mount installation – mounts directly to sink or counter top
Spout swivels 180-degrees to allow for unobstructed access to the whole sink
Mounting hardware not included
The Chicago Faucets Benefit:
Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
Quaturn Cartridge: The Quaturn cartridge was the industries first replaceable, completely self-contained valve cartridge. The cartridge allows the user to turn the water from full flow to off in just a quarter-turn. This unique cartridge was designed to close with the flow of the water rather than against it which reduces washer ware and virtually eliminates faucet drips. Although the Quaturn cartridge has been updated over the years to incorporate new technologies and materials it still holds true to its principals and is completely interchangeable with any Quaturn manufactured since 1913.
Product Specifications:
Overall Height: 4-7/8″ (measured from mounting surface to highest point on faucet)
Spout Height: 3-1/4″ (measured from mounting surface to spout outlet)
Spout Reach: 6″ (measured from center of faucet body to center of spout outlet)
Required Installation Holes: 1
Flow Rate: 2.2 gallons-per-minute
Max Deck Thickness: 1-3/8″
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140 degrees Fahrenheit
1 handle included with faucet
1/2″ connection – designed for use with standard U.S. plumbing supply bibs
Codes and Compliances:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
LEAD LAW WARNING: This product is NOT lead free and can only be installed in non-potable applications. It is illegal to install products that are not “lead free” in accordance with US Federal or other applicable law in potable water systems anticipated for human consumption.
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets Laboratory Collection
Specifications
| Height | 4.875 in. |
| Flow Rate (GPM) | 2 |
| Faucet Hole Size | .875 in. |
| Max Deck Thickness | 1.375 in. |
| Spout Height | 3.25 in. |
| Spout Reach | 6 in. |
| Material | Brass |
| Faucet Holes | 1 |
| Insulation Type | Deck Mounted |
| Valve Type | Slow Compression |
| Handle Material | Metal |
| Handle Style | Cross |
| Number Of Handles | 1 |
| Pullout Spray | No |
| ADA | No |
| Approved for Commercial Use | Yes |
| Certifications | NSF, ANSI, ASME, CSA |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Low Lead Compliant | Yes |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Color | Chrome |
| Color Tone | Silver Tones |
