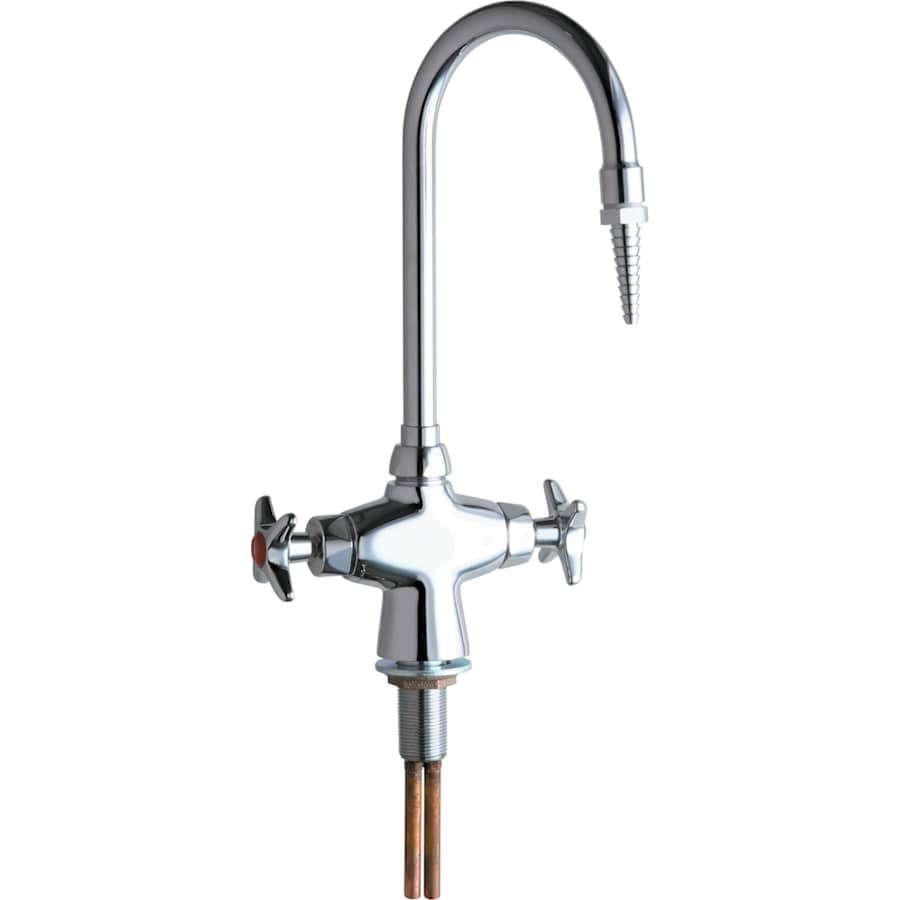

Product Features:
Manufactured and assembled in the United States of America
Faucet body and handles are covered under Chicago Faucet’s limited lifetime warranty
Constructed of solid brass
High quality chrome plated finish – finish covered under warranty for a year
Deck mounted hot and cold water mixing faucet
Double handle operation – handles rest on 1/4 turn valves seats
Full flow classic laboratory needle spout outlet
Ceramic 1/4 turn operating cartridge – covered under 5-year warranty
High-arch spout design provides increased workspace under the faucet
Spout swivels 360-degrees to allow for unobstructed access to the whole sink
Mounting hardware not included
The Chicago Faucets Benefit:
Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
Product Specifications:
Overall Height: 13-3/8″ (measured from mounting surface to highest point on the faucet)
Spout Height: 6-3/4″ (measured from mounting surface to spout outlet)
Spout Reach: 5-3/8″ (measured from center of faucet body to center of spout outlet)
Required Installation Holes: 1
Maximum Deck Thickness: 1-5/8″
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140 – degrees Fahrenheit
2-1/2″ handles included with faucet
1/2″ connection – designed for use with standard U.S. plumbing supply bibs
Codes and Compliance:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets Laboratory Collection
Specifications
| Height | 13.375 in. |
| Faucet Hole Size | 1.063 in. |
| Max Deck Thickness | 1.625 in. |
| Spout Height | 6.75 in. |
| Spout Reach | 5.375 in. |
| ADA | No |
| Approved for Commercial Use | Yes |
| ASSE Code | A112.18.1 |
| Certifications | ASME, CSA |
| Low Lead Compliant | No |
| CSA Code | B125 |
| Material | Brass |
| Insulation Type | Deck Mounted |
| Faucet Holes | 1 |
| Handle Material | Metal |
| Handle Style | Cross |
| Number Of Handles | 2 |
| Valve Type | Slow Compression |
| Pullout Spray | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Sidespray | No |
| Soap Dispenser Included | No |
| Color | Chrome |
| Color Tone | Silver Tones |
