Product Features:
Manufactured and assembled in the United States of America
Faucet body and handles are covered under Chicago Faucet’s limited lifetime warranty
Constructed of solid brass
High quality chrome plated finish – finishes are covered under warranty for a year

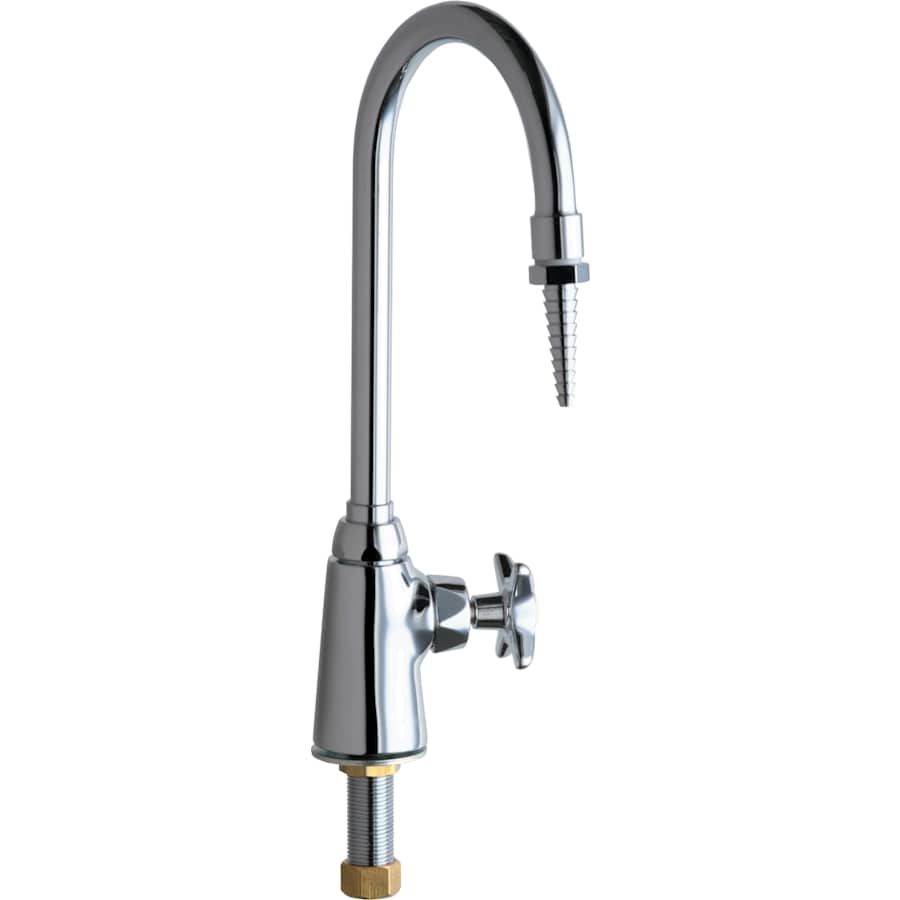

Deck mounted hot and cold water mixing faucet
Single handle operation
Full flow classic laboratory needle spout outlet
Ceramic 1/4 turn operating cartridge – covered under warranty for 5 years
High arch design provides increased workspace under the faucet
Spout swivels 360-degrees to allow for unobstructed access to the whole sink
Mounting hardware not included
Technologies and Benefits:
Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
Product Specifications:
Overall Height: 13″ (measured from mounting surface to highest point on faucet)
Spout Height: 6-3/8″ (measured from mounting surface to spout outlet)
Spout Reach: 5-3/8″ (measured from center of faucet body to center of spout outlet)
Required Installation Holes: 1
Maximum Deck Thickness: 1-3/8″ (cannot install on decks thicker without extention kit)
Rated Operating Pressure: 20 – 125 PSI
Rated Operating Temperature: 40 – 140 degrees Fahrenheit
1 Cross handle included with faucet
1/4″ connection – designed for use with standard U.S. plumbing supply bibs
Codes and Compliance:
ASME A112.18.1/CSA B125.1
Certified to NSF/ANSI 61, Section 9 by CSA
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| Width | 2, 4.125 in. |
| Height | 13 in. |
| Product Weight | 3.4 lbs. |
| Faucet Centers | 0 in. |
| Max Deck Thickness | 1.375 in. |
| Spout Height | 6.375, 7 in. |
| Spout Reach | 5.375 in. |
| Spout Swivel | 360 Degrees |
| Water Connection | 1/4" |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Faucet Holes | 1 |
| Mounting Type | Single Hole |
| Handle Style | Cross |
| Number Of Handles | 1 |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Handle Material | Brass, Metal |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime, 1 Year Finish, 5 Year Cartridge |
| ADA | No |
| Eco Friendly | No |
| Low Lead Compliant | No |
| Application | Lab, Shop |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Valve Included | Yes |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | No |
| Soap Dispenser Included | No |
| Color | Chrome |
| Color Tone | Silver Tones |
