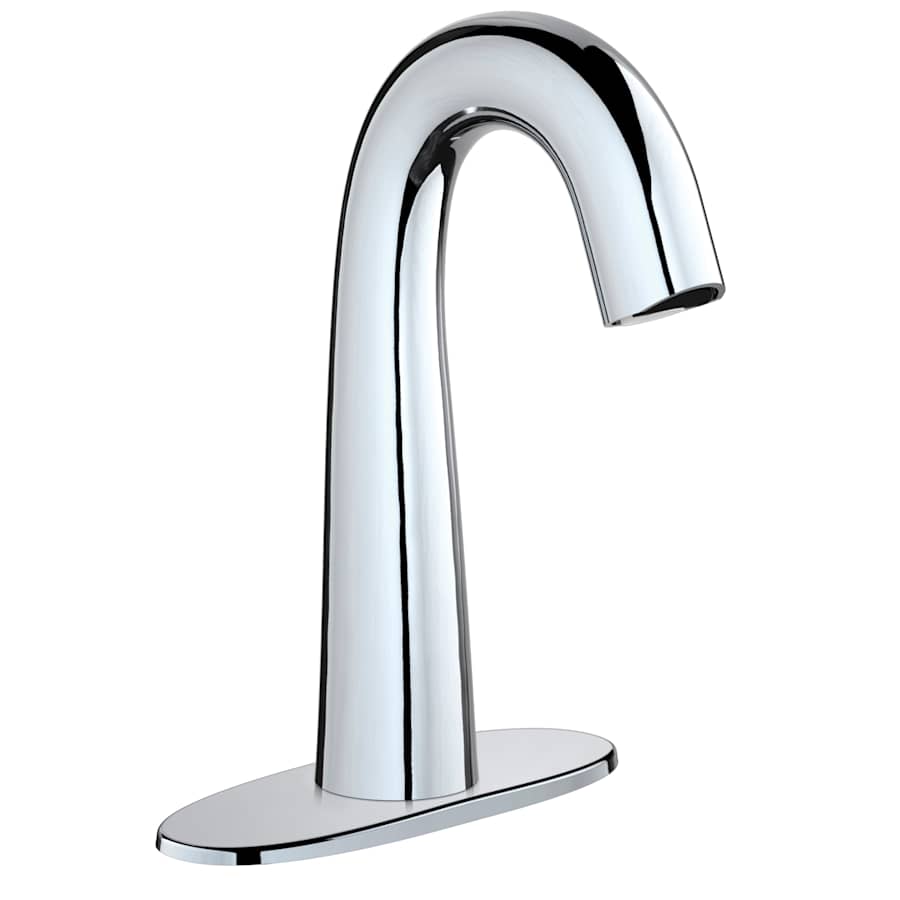

EQ series high arc lavatory sink faucet with hands free infrared detection, electronic integral cast spout, 4″ fixed centers, single supply with no mixer and 0.5 GPM vandal proof pressure compensating Econo-flo non-aerating spray, 20 second standard maximum run time. Comes with 6 volt signal from 4 “AA” alkaline batteries (included) with up to 5 year battery life.
Chicago Faucets EQ-C12A-11AB Features:
Covered under Chicago Faucet’s limited lifetime warranty
Faucet body constructed of solid brass ECAST material
Coordinates with products from the EQ line seamlessly
Touchless, motion-activated faucet
Centerset installation – 1 hole one-piece faucet with 4″ fixed centers
Valve not included
ADA compliant
Low lead compliant
Mounting hardware not included
Technologies and Benefits:
Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.
Chicago Faucets EQ-C12A-11AB Specifications:
Height: 9-7/8″
Spout Height: 6-1/2″
Spout Reach: 4-1/2″
Flow Rate: 0.5 GPM (gallons-per-minute)
Faucet Holes: 1
Faucet Centers: 4″ fixed
Max Deck Thickness: 1-1/2″
Codes and Compliance:
ASME A112.18.1/CSA B125.1
California Health and Safety Code 116875 (AB 1953-2006)
Vermont Bill S. 152
Louisiana Low Lead Law HB. 471
NSF/ANSI 372 Low Lead Content
Certified to NSF/ANSI 61, Section 9 by CSA
ADA ANSI/ICC A117.1
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets EQ High Arc Collection
Specifications
| Manufacturer Warranty | 3 Year Parts, 1 Year Finish, 5 Year Mechanical, Limited Lifetime Faucet |
| Collection | EQ High Arc |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| ADA | Yes |
| Certifications | CSA, ASSE, NSF, ANSI, ASME |
| Made in America | Yes |
| CA Drought Compliant | Yes |
| Low Lead Compliant | Yes |
| Height | 9.88 in. |
| Faucet Centers | 4 in. |
| Flow Rate (GPM) | 0.5 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6.5 in. |
| Spout Reach | 4.5 in. |
| Water Connection | 3/8" |
| Insulation Type | Deck Mounted |
| Material | Brass |
| Thermostat | Basic |
| Faucet Holes | 1 |
| Mounting Type | Centerset |
| Pre Rinse | No |
| Spout Type | Fixed |
| Valve Type | Metering |
| Water Efficient | Yes |
| Bridge Faucet | No |
| Electronic | Yes |
| Touchless Faucet | Yes |
| Pullout Spray | No |
| Battery Quantity | 4 |
| Power Source | Battery |
| Battery Size | AA |
| Installation Hardware Included | Yes |
| Escutcheon Included | No |
| Handshower Included | No |
| Valve Included | No |
| Soap Dispenser Included | No |
| Filtering | No |
| Sidespray | No |
| Color | Chrome |
| Color Tone | Silver Tones |
