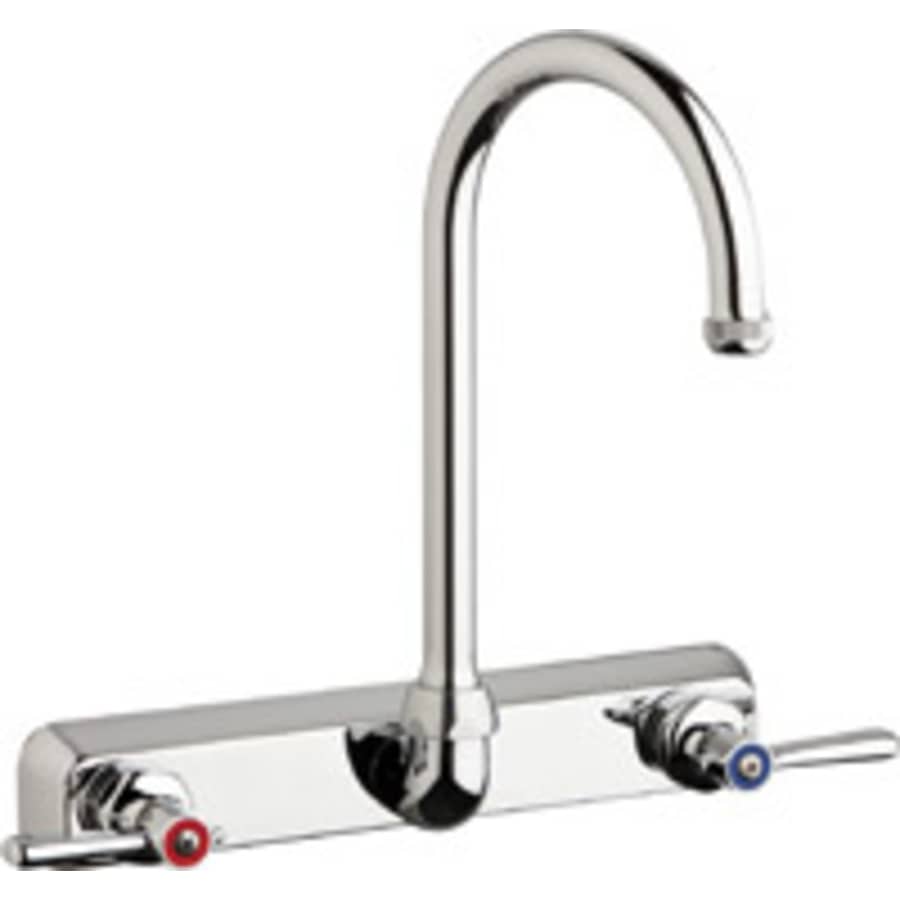

Product Features:
Manufactured and assembled in the United States of America
Faucet body and handles are covered under Chicago Faucet’s limited lifetime warranty
Constructed of solid brass
High quality chrome plated finish – finishes are covered under warranty for a year
Double handle operation – handles rest on 1/4 turn valve seats
Quaturn compression operating cartridge – covered under warranty for 5 years
ADA compliant
Low lead compliant – meeting federal and state regulations for lead content
Mounting hardware not included
The Chicago Faucets Benefit:
Commercial Grade Faucet: When a product is marked as “commercial grade” it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry’s highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.
Product Specifications:
Overall Height: 10 1/2″ (measured from mounting surface to highest point on faucet)
Spout Height: 6 5/8″ (measured from mounting surface to spout outlet)
Spout Reach: 5 1/4″ (measured from center of faucet body to center of spout outlet)
Required Installation Holes: 3
Flow Rate: 2.2 gallons-per-minute
Maximum Deck Thickness: 1/4″
Rated Operating Temperature: 40 – 140 degrees
Rated Operating Pressure: 20 – 125 PSI
2 handles included with faucet
1/2″ Connection – designed for use with standard U.S. plumbing supply bibs
Codes and Compliances:
ASME A112.18.1/CSA B125.1
California Health and Safety Code 116875 (AB 1953-2006)
Vermont Bill S.152
Louisiana Low Lead Law HB.471
NSF/ANSI 372 Low Lead Content
Certified to NSF/ANSI 61, Section 9 by CSA
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Specifications
| Height | 10.5 in. |
| Product Weight | 3.71 lbs. |
| Flow Rate (GPM) | 2.2 |
| Faucet Centers | 8 in. |
| Spout Height | 6.625 in. |
| Spout Reach | 5.25 in. |
| Water Connection | 1/2" |
| Max Deck Thickness | .25 in. |
| Material | Brass |
| Valve Type | Ceramic Disc |
| Faucet Holes | 3 |
| Insulation Type | Wall Mounted |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Handle Material | Metal |
| Mounting Type | Wall Mounted |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Country Of Origin | USA |
| Certifications | NSF, ANSI, ASME, CSA |
| Low Lead Compliant | Yes |
| CSA Code | B125.1 |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Eco Friendly | No |
| ASSE Code | A112.18.1 |
| Drain Assembly Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
