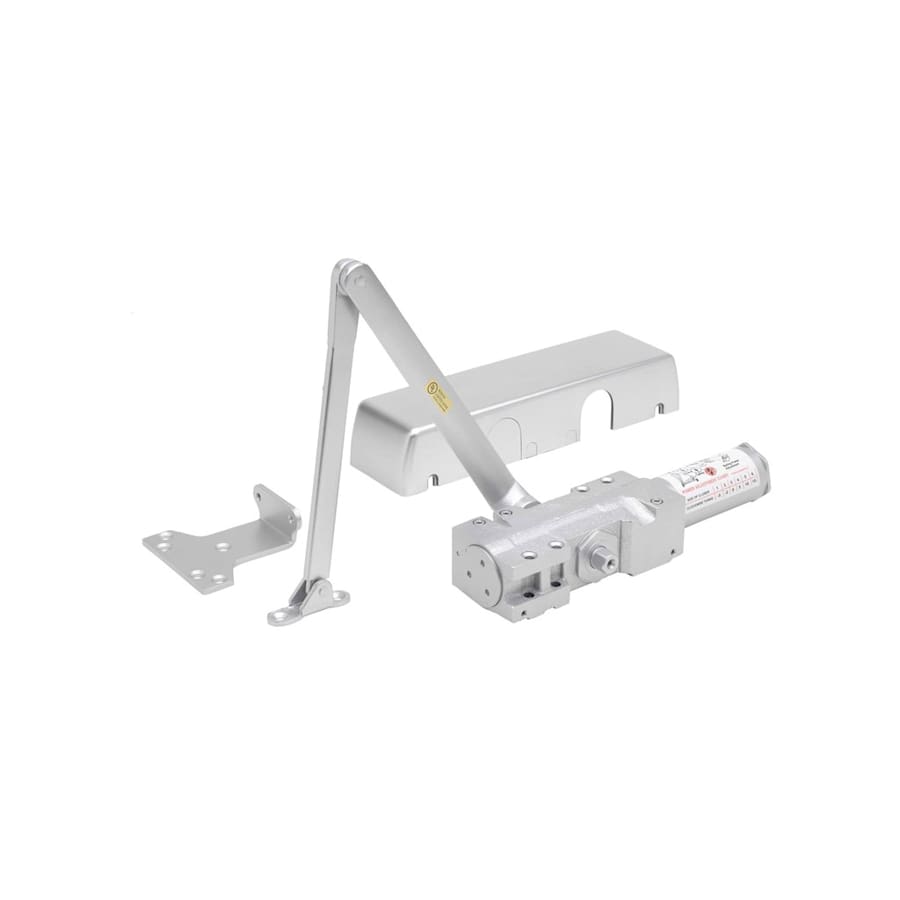

Features:
Exceeds criteria for BHMA Grade 1
All metal construction for enhanced durability and security
Adjustable spring size from 1 to 6
Barrier free construction complies with standards of the Americans with Disabilities Act (ADA)
Tri-packed for standard, top jamb or parallel arm installation
Covered under Copper Creek’s limited lifetime mechanical and 2 year finish warranties
Specifications:
Max Door Opening Angle: 120 Degrees
Door Weight: 33lbs. to 330lbs.
Handing: Reversible, left or right
Door Thickness: 1-3/8″ to 2-1/4″
Closer Height: 3-1/2″
Closer Body Projection: 2-1/4″
Closer Body Length: 12-1/4″
Additional Copper Creek Links
View the Manufacturer Warranty
Browse all Copper Creek Products
Copper Creek 8000 Series Collection
Specifications
Dimensions and Measurements
| Height | 3.5 in. |
| Product Weight | 12.4 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/4", 2-1/8" |
| Projection | 2.25 in. |
| Max Door Weight | 330 lbs. |
| Closer Body Length | 12.25 in. |
| Closer Size | 1-6 |
| Horizontal Mounting Holes | 5 in. |
| Max Door Opening | 120 Degrees |
| Vertical Mounting Holes | 2.25 in. |
Characteristics and Features
| Material | Brass, Steel, Zinc |
| Handshower | Left, Reversible, Right |
| Barrier Free | Yes |
| Adjustable Backcheck | No |
| Adjustable Spring | Yes |
| Delay Action | No |
| Hold Open | No |
| Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Bulldog |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | 2 Year Finish, Limited Lifetime Mechanical |
| ADA | No |
| Certifications | ANSI, UL |
| ANSI Certification | A156.4 |
| Fire Rated | Yes |
| Usage Level | Heavy Duty |
| BHMA Certification | Grade 1 |
Included Components
| Cushion Stop | No |
Electrical and Operational Information
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Duro-Bronze |
| Color Tone | Bronze Tones, Neutrals |
