Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

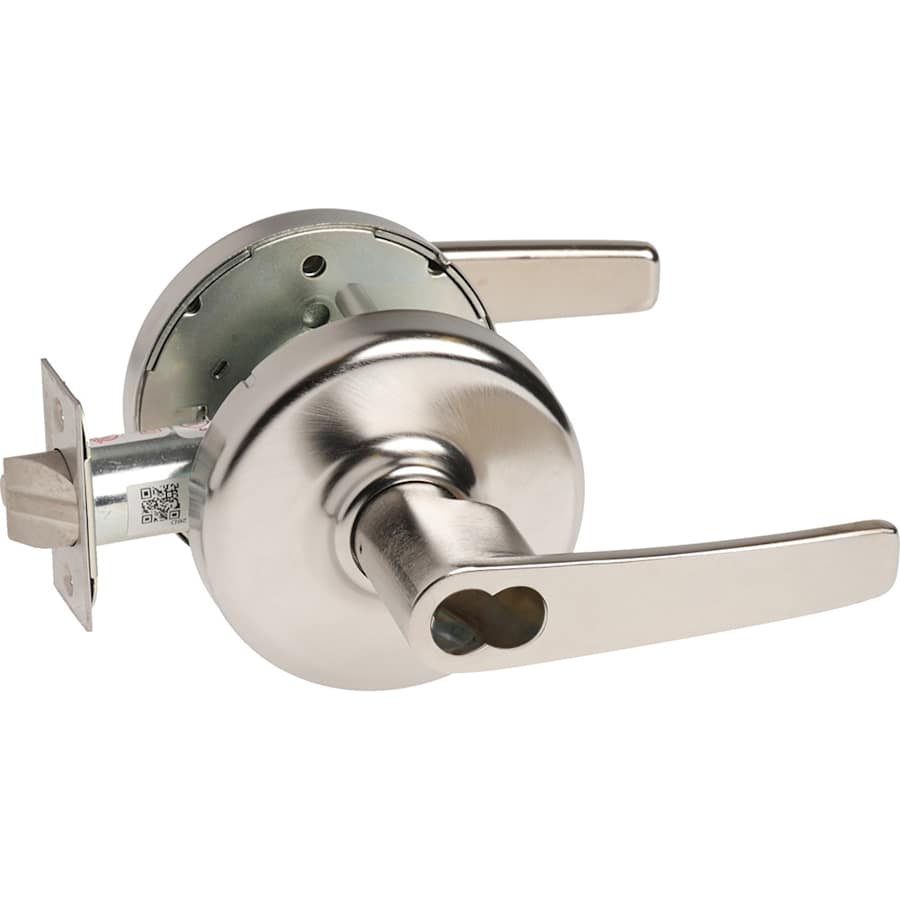

Lock Function:
Latchbolt operated by handle either side, unless key outside locks outside
Outside handle unlocked by key outside
Inside handle always free
Handle is free-wheeling in locked position
Allows for free egress
Features:
Exceeds criteria for BHMA Grade 1
All metal construction for enhanced durability and security
Reversible handing for easy installation
Includes a 7 year limited warranty
UL listed 3 hour rating
Compliant with Americans with Disabilities Act (ADA)
Specifications:
Backset: 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Handing: Reversible, Left or Right
Door Thickness: 1-3/4″ to 2″
Handle Length: 4″
Trim Projection: 2-13/16″
Trim Width: 3-1/2″
Trim Height: 3-1/2″
Interchangeable Core: Yes
Interchangeable Core Type: FSIC
Cylinder Included: No
Latch Faceplate: Square Corner
Product Weight: 5.3 lbs.
Material: Brass, Steel, Zinc
Additional Corbin Russwin Links
View the Manufacturer Warranty
Browse all Corbin Russwin Products
Corbin Russwin CL3300 Collection
Specifications
| Product Weight | 5.3 lbs. |
| Door Thickness | 1-3/4", 1-7/8", 2" |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.8125 in. |
| Handle Length | 4 in. |
| Material | Brass, Steel, Zinc |
| Thermostat | Transitional |
| Function | Keyed Entry, Classroom |
| Handshower | Left, Reversible, Right |
| Cylinder Type | Single Cylinder |
| Latch Faceplate | Square Corner |
| Concealed Screws | Yes |
| Panic Proof | Yes |
| Rosette Shape | Round |
| Lever Shape | Straight |
| Interchangeable Core Type | FSIC |
| Certifications | ANSI, UL |
| Collection | Armstrong |
| Country Of Origin | USA |
| Manufacturer Warranty | 7 Year Limited |
| Approved for Commercial Use | Yes |
| Series | CL3300 |
| ADA | Yes |
| Made in America | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Interchangeable Core | Yes |
| Cylinder Included | No |
| 28 Degree Latch | No |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
