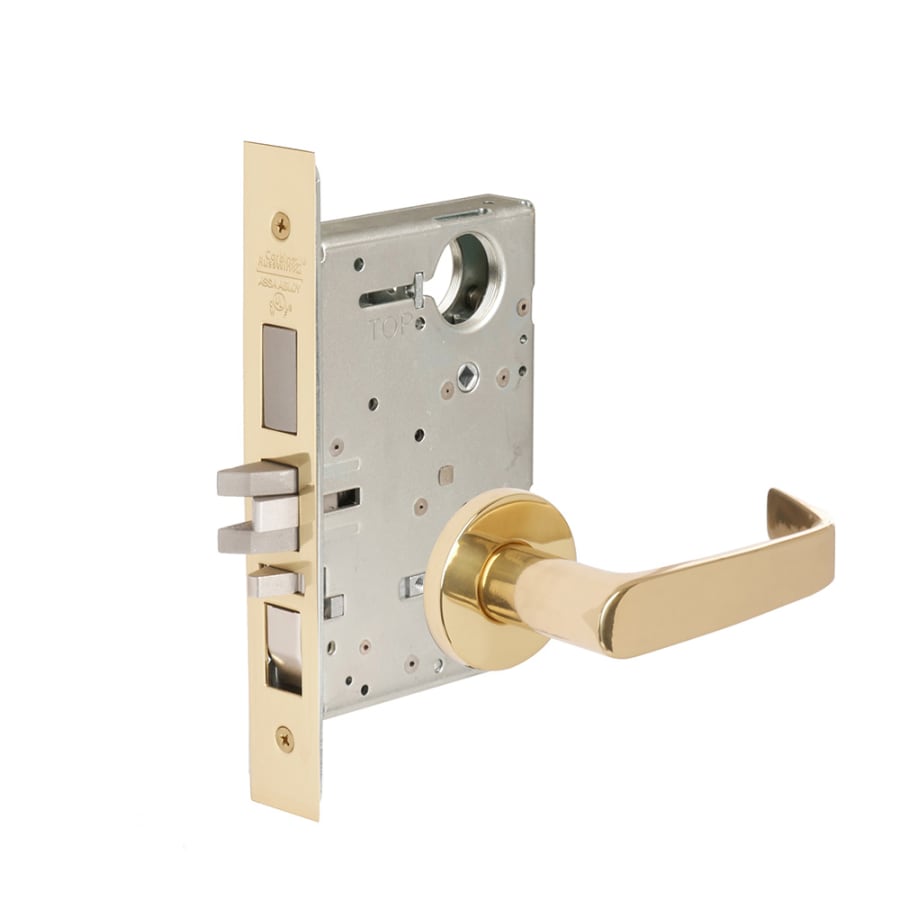

Corbin Russwin Commercial Fire Rated Panic Proof Grade 1 Keyed Entry Single Cylinder Mortise Lever Set with NSA Trim and Stop – Less Cylinder

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Lock Function:

Latchbolt operated by handle either side, unless outside handle is locked by toggle-action stop or by projection of deadbolt
Outside handle unlocked by toggle-action stop
Inside handle simultaneously retracts latchbolt and deadbolt; outside handle remains locked
Deadbolt thrown or retracted by key outside or by thumbturn inside
Auxiliary latch deadlocks the latchbolt
Allows for free egress

Features:

Exceeds criteria for BHMA Grade 1
All metal construction for enhanced durability and security
Reversible handing for easy installation
Includes a 10 year limited warranty
UL listed 3 hour rating
Compliant with Americans with Disabilities Act (ADA)

Specifications:

Backset: 2-3/4″
Handing: Left, Left Hand Reverse, Right, Right Hand Reverse
Door Thickness: 1-3/4″
Handle Length: 4-13/16″
Trim Projection: 2-5/8″
Trim Width: 2-1/4″
Trim Height: 2-1/4″
Cylinder Included: No
Latch Faceplate: Square Corner
Product Weight: 6.25 lbs.
Material: Brass, Stainless Steel, Steel
