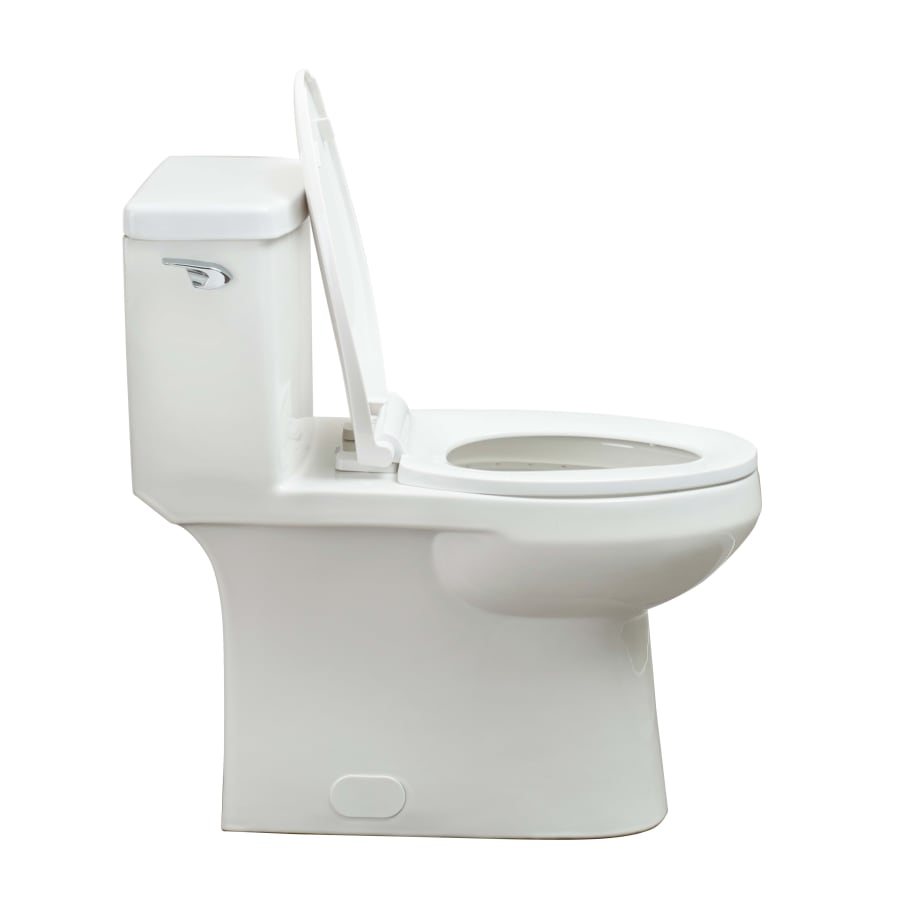

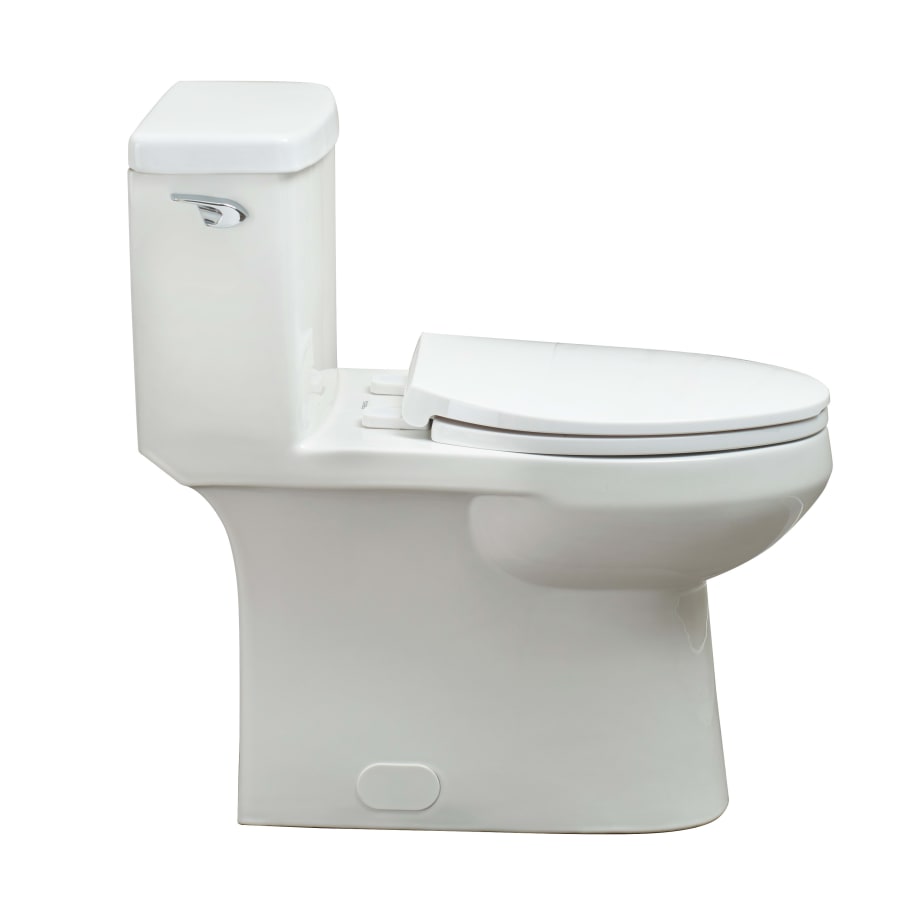

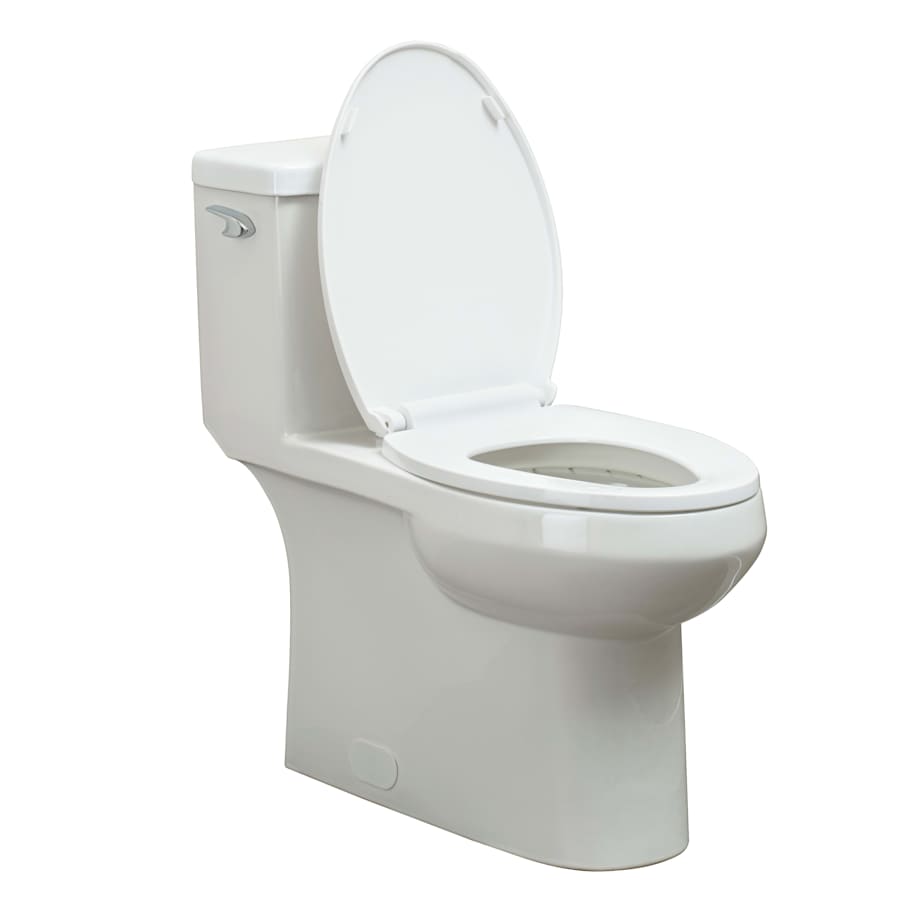

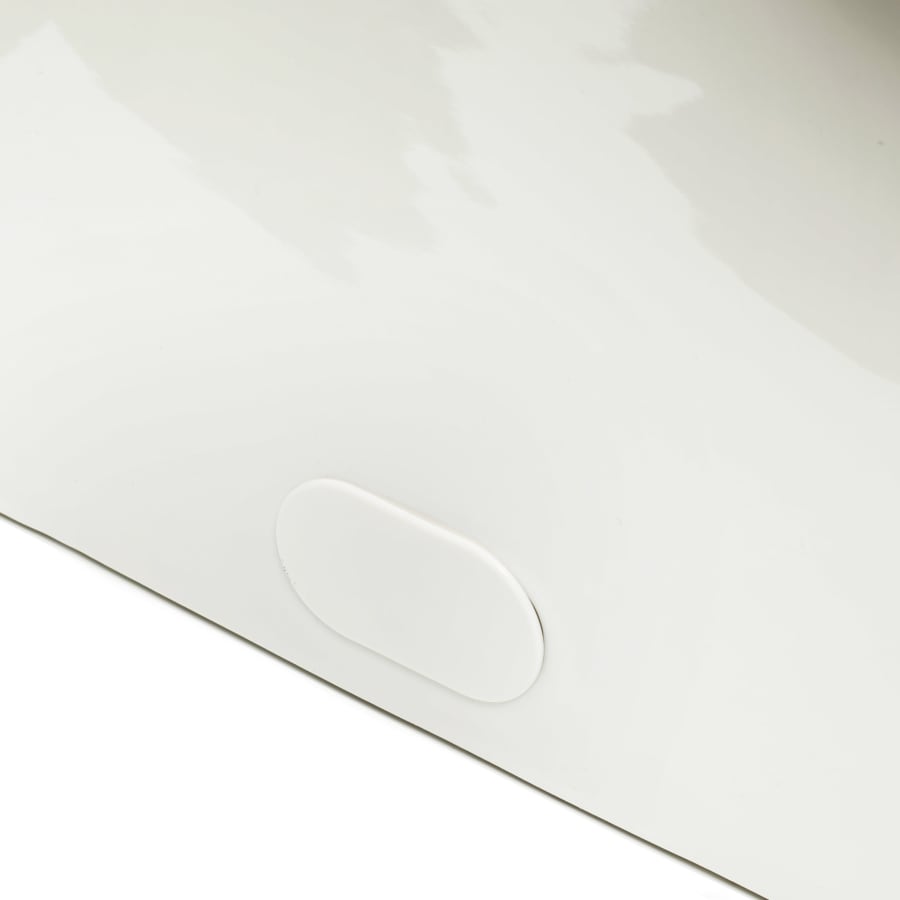

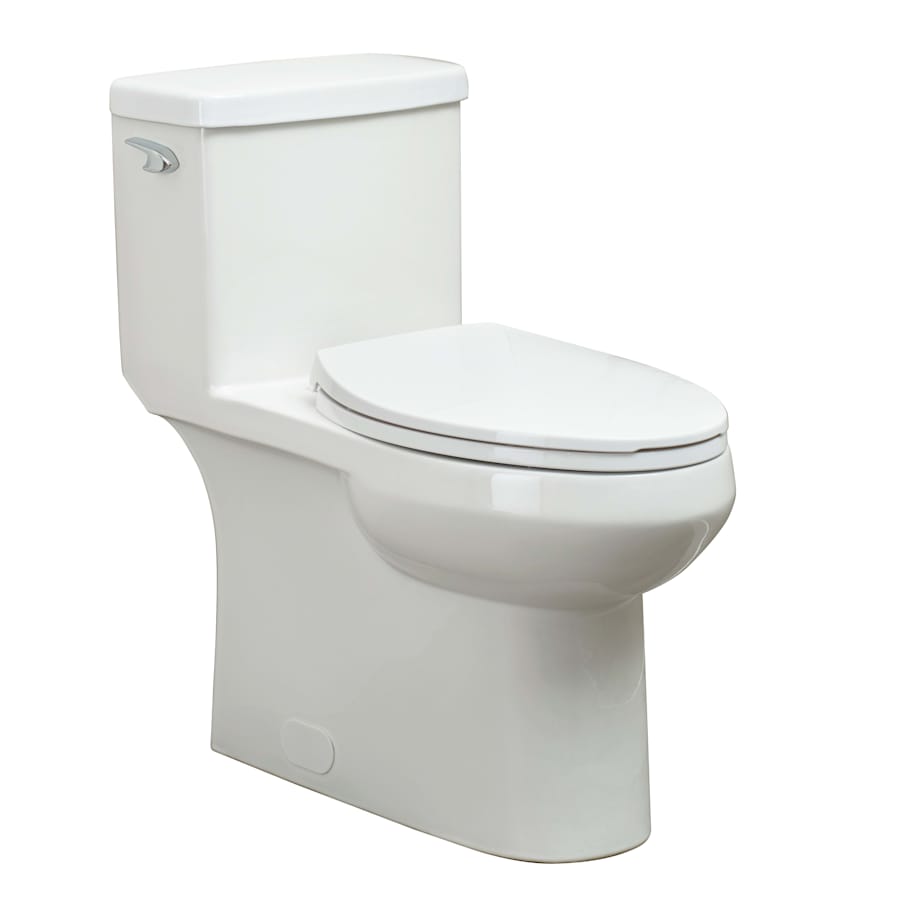

This elongated toilet’s stylish and sleek one-piece design has an ultra-contemporary feeling while delivering high performance. With an efficient 1.28 GPF, it can save as much as 16,500 gallons of water per year – more than double of a typical 3.5 Gal. toilet. The all-in-one packaging includes everything needed for a quick installation: a wax ring, floor bolts, oval side bolt caps, a streamlined polished chrome tank lever and plastic slow-closing seat. The chair-height seat meets ADA standards, and an elongated bowl shape providing comfort.
CRAFT + MAIN TL-8423HC-E-FM Features:
One-piece configuration provides a uniform look and simplifies installation
Installs in a floor mounted configuration

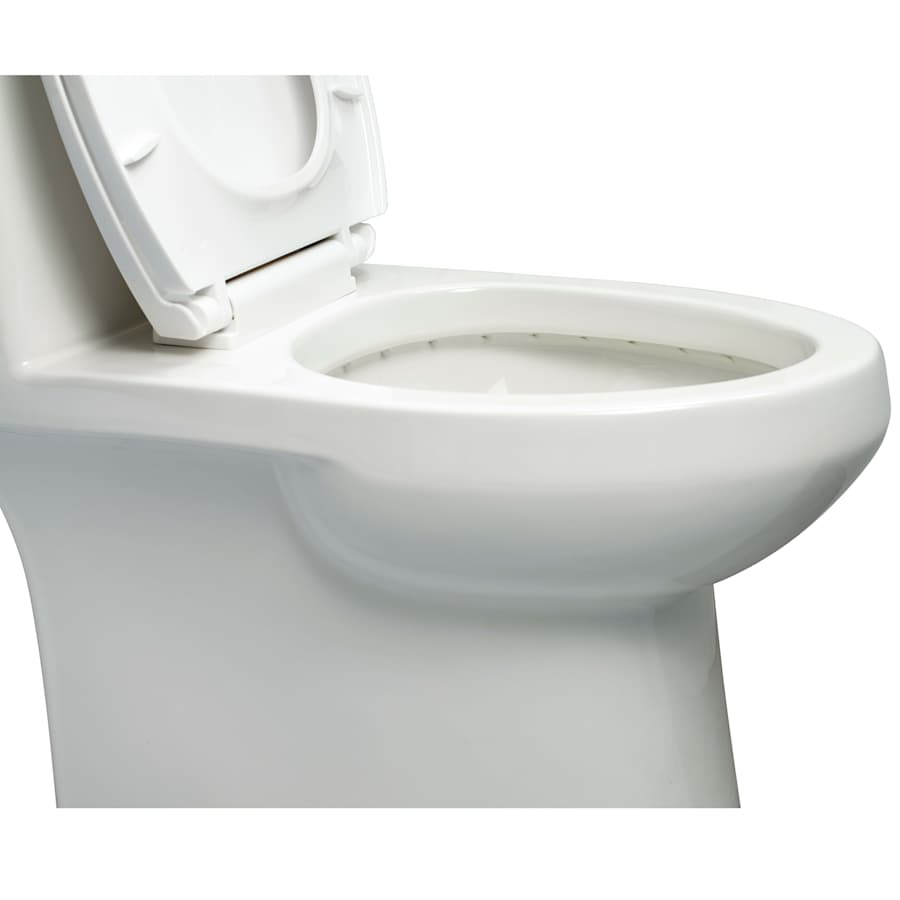

Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration

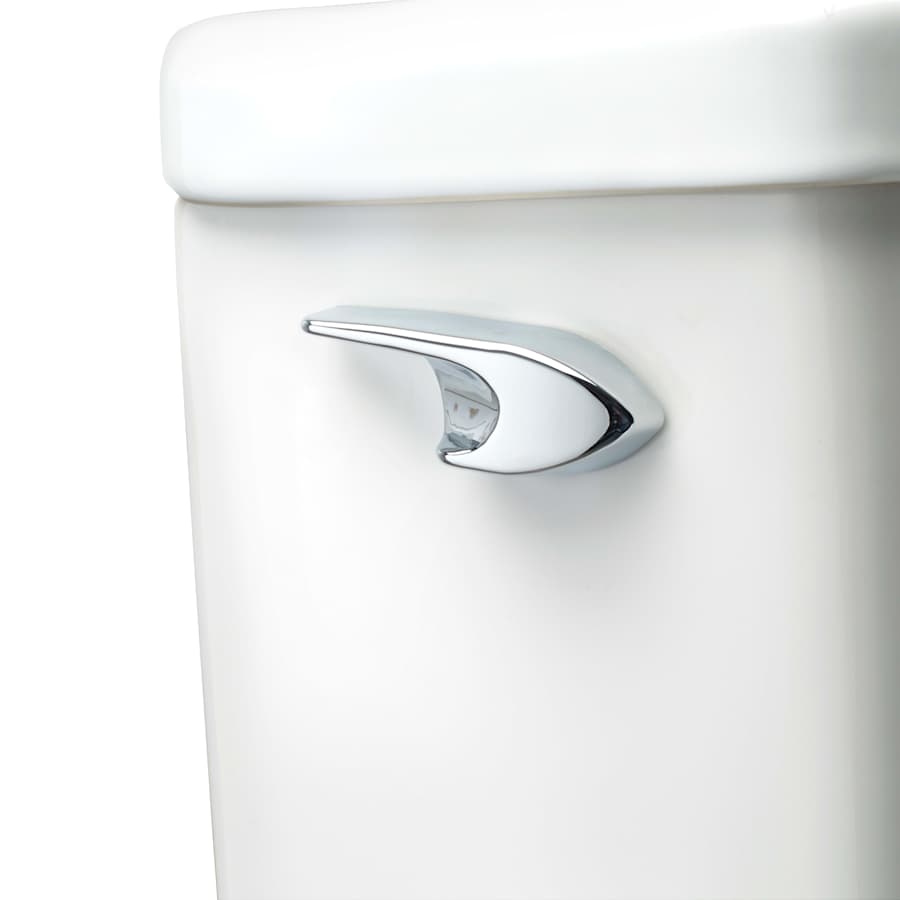

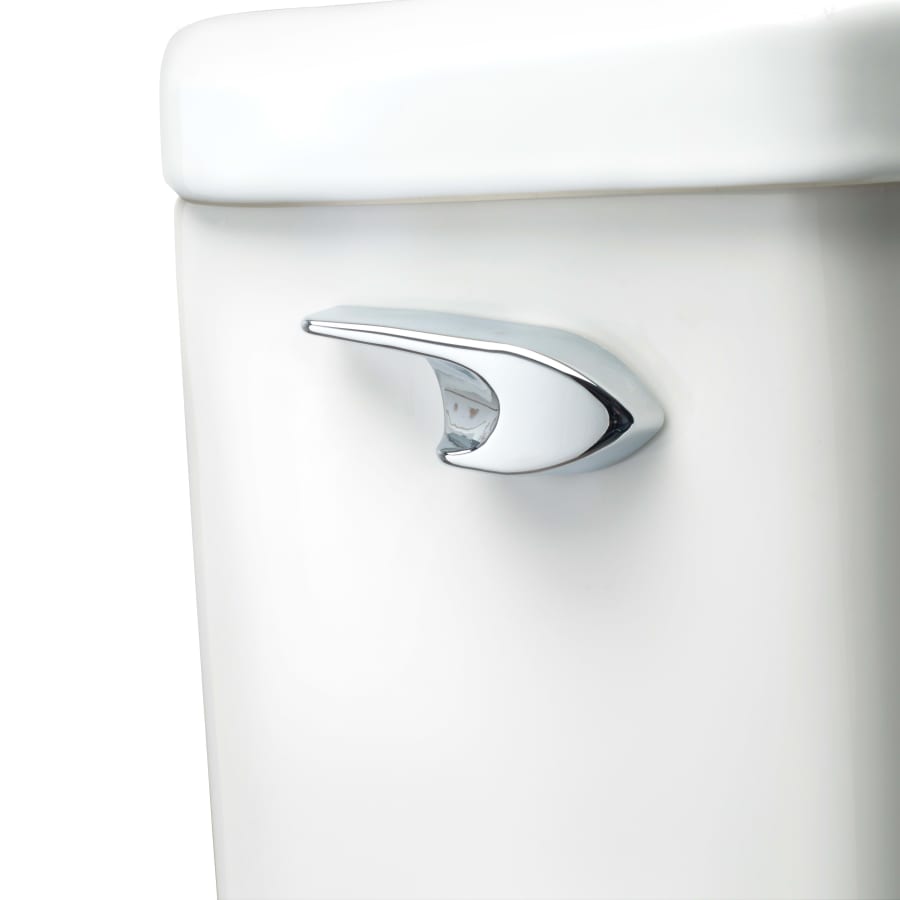

Left hand trip lever placement
Constructed of vitreous china ensuring dependability and durability
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use

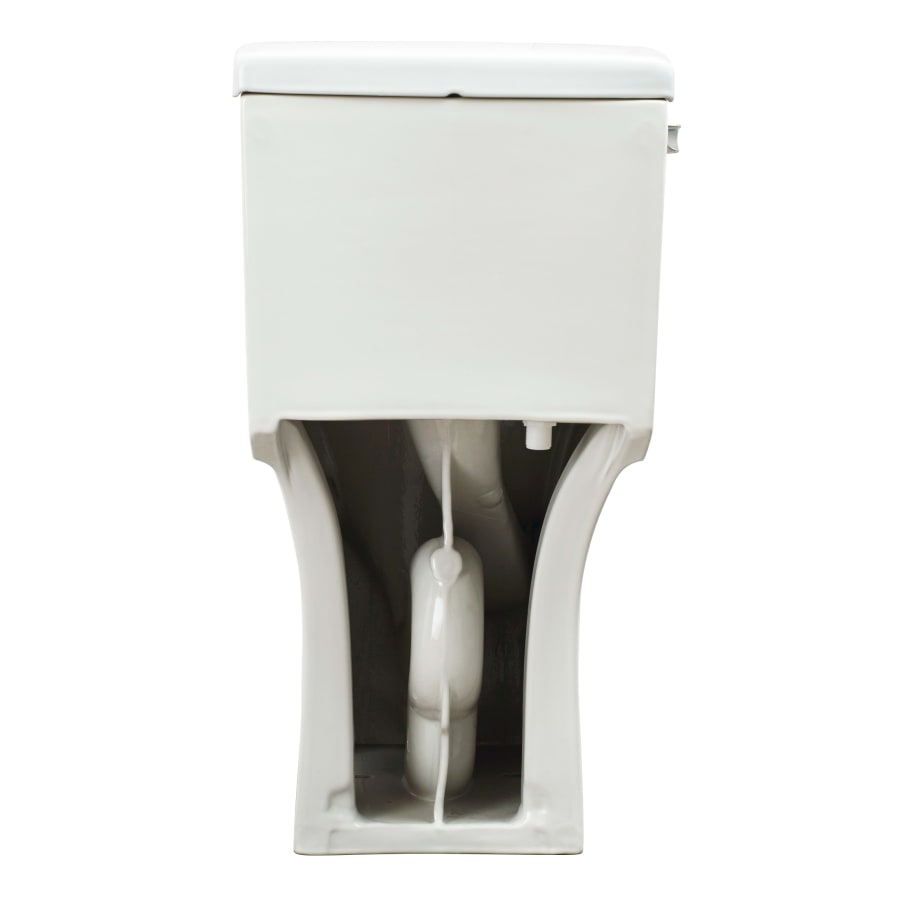

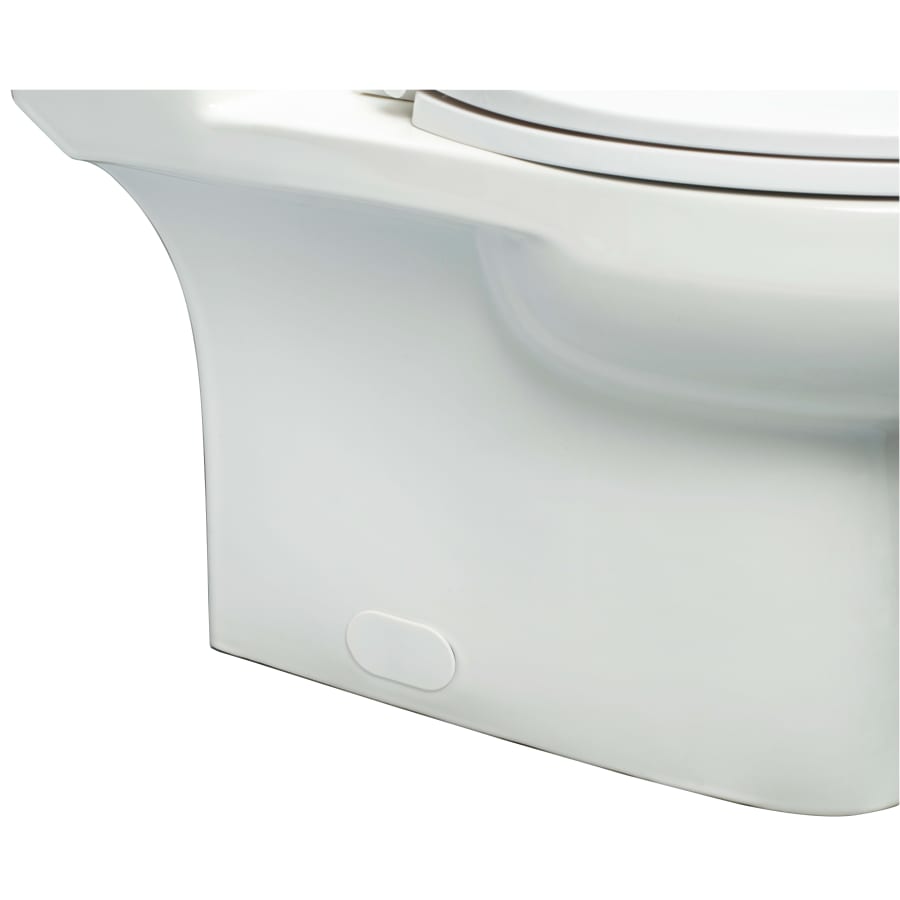

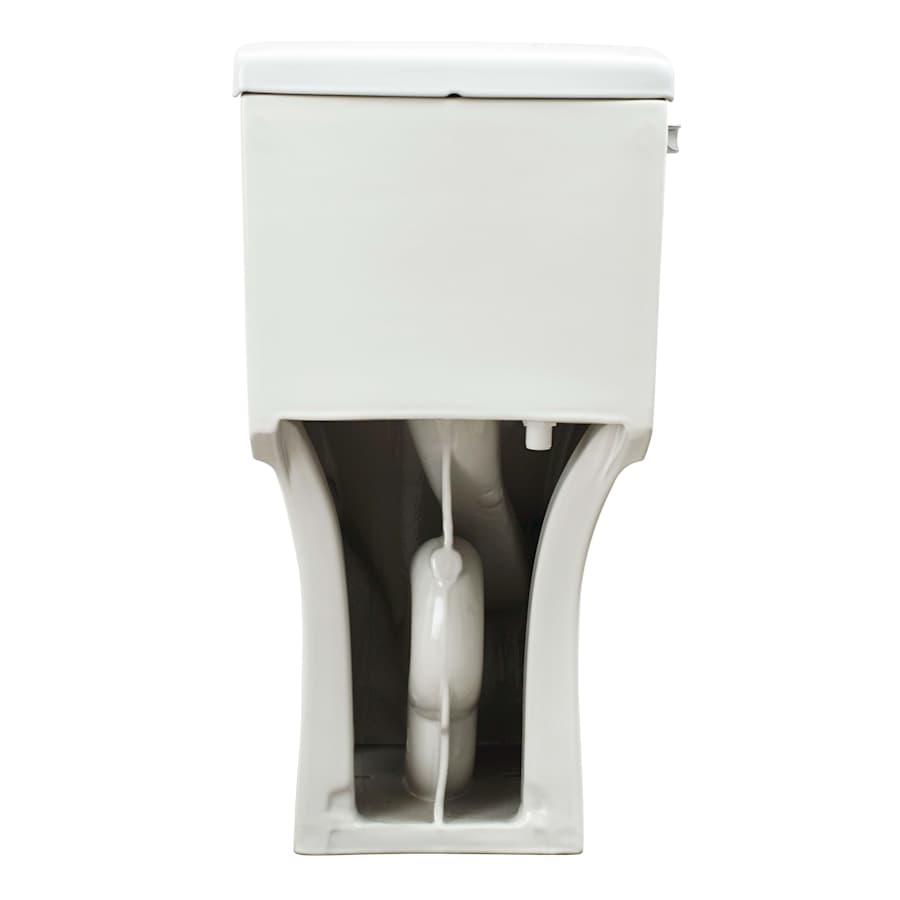

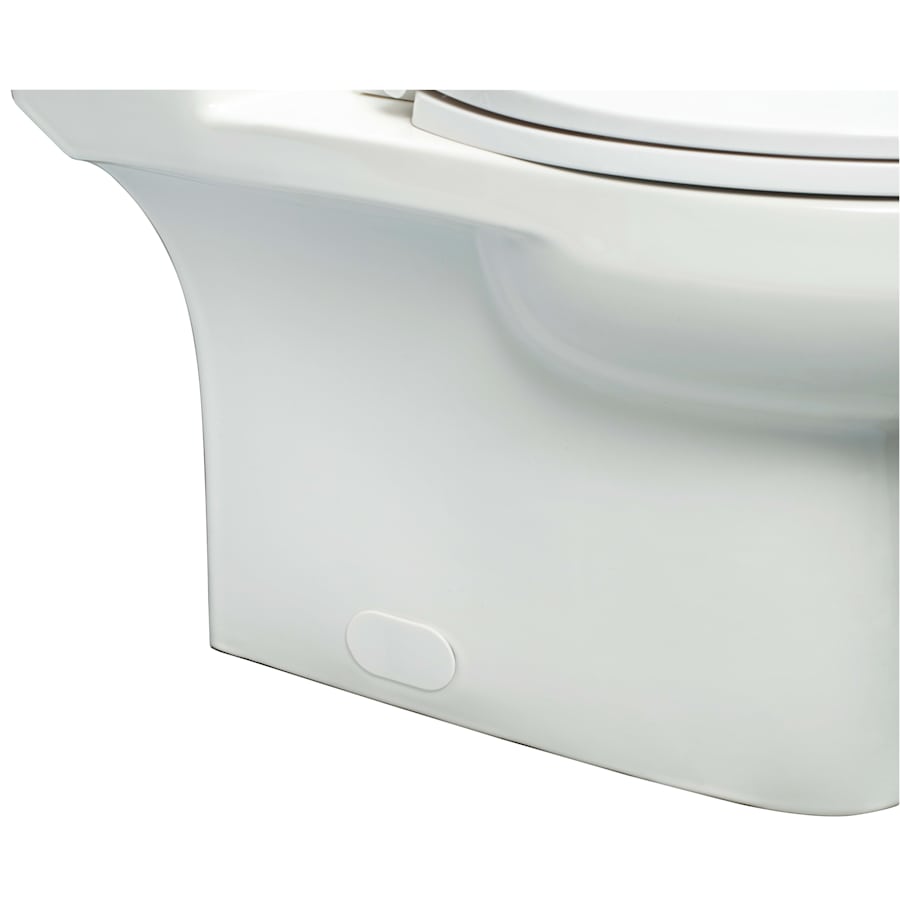

Concealed trapway – provides a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view
Toilet seat included with this product
WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance
All hardware required for installation is included
ADA compliant
CRAFT + MAIN TL-8423HC-E-FM Specifications:
Overall Height: 30-1/8” (bottom of the base to the highest point on the toilet)
Overall Depth: 28-1/2” (furthest point back to front of toilet)
Overall Width: 14-7/8” (furthest point left to furthest point right)
Bowl Height: 17” (floor to the top of the bowl)
Flow Rate: 1.28 gallons-per-flush
Tank Width: 14-7/8″ (left to right of tank)
Trapway (Discharge Passageway) Size: 2”
Rough-In: 12”
Distance Between Toilet Seat Installation Holes: 5-1/2”
Additional CRAFT + MAIN Links
Browse all CRAFT + MAIN Products
Specifications
| Depth | 28.5 in. |
| Height | 30.1 in. |
| Product Weight | 151 lbs. |
| Width | 14.9 in. |
| Hinge Center to Center | 5.5 in. |
| Gallons Per Flush | 1.28 |
| Flush Valve Size | 3 in. |
| Bowl Height | 17 in. |
| Rough In | 12 in. |
| Trapway | 2 in. |
| Insulation Type | Floor Mounted |
| Thermostat | Contemporary |
| Material | Vitreous China |
| Water Efficient | Yes |
| Configuration | One Piece |
| Electronic | No |
| Bowl Shape | Elongated |
| Design Features | Concealed Trapway, Chair Height |
| Seat Front | Closed |
| Flush Type | Siphon Jet |
| Trip Lever Placement | Left |
| ADA | Yes |
| CA Drought Compliant | Yes |
| Country Of Origin | China |
| Certifications | ASME, UPC |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| WaterSense Certified | Yes |
| TX Drought Compliant | Yes |
| Bidet Seat Included | No |
| Seat Included | Yes |
| Color | White |
| Color Tone | Whites |
