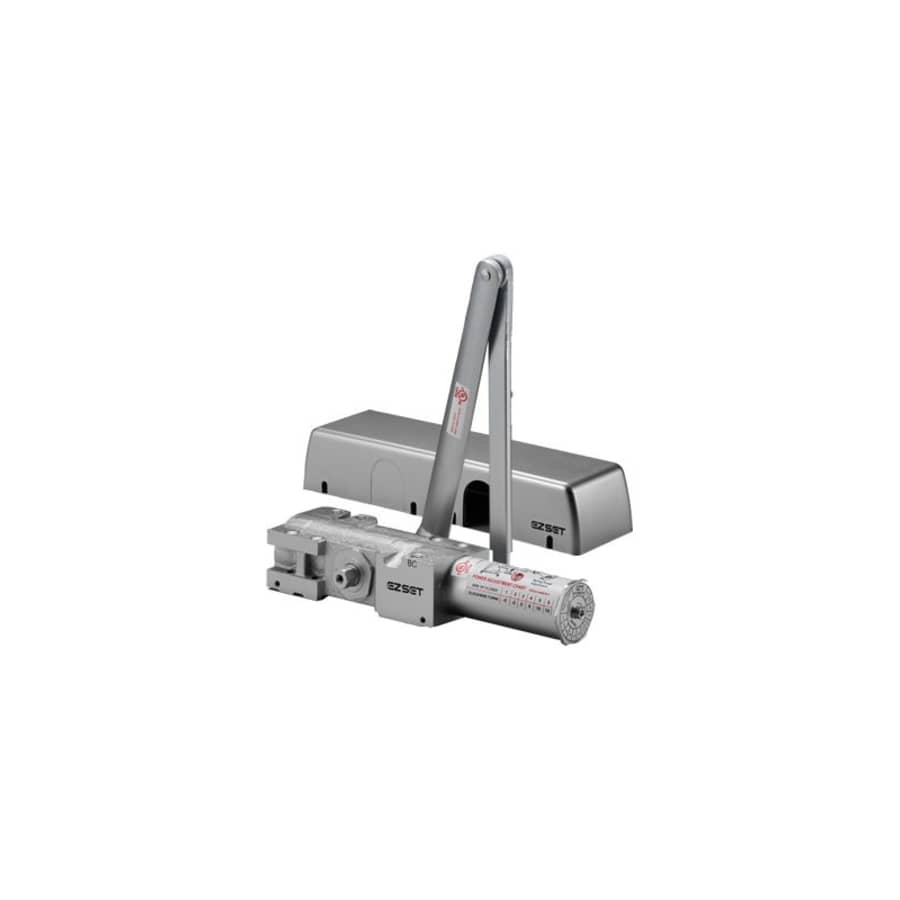

8000 Series Heavy Duty Commercial Door Closer with Delay Action
Delaney commercial door closers bring you both safety and function in a single package. With several options to choose from, and a line of accessories to customize your equipment, Delaney makes it simple to obtain the perfect hardware for any job. Whether dealing with heavy traffic or light, these surface-mounted door closers are sure to impress.
Delaney’s 8000 Series heavy duty commercial door closer is the perfect choice for managing heavy traffic areas. Available in both Aluminum and Duro Bronze finishes.
Features:
ANSI 156.4 Grade 1
UL Listed 3 Hour Fire Rating
ADA Compliant
Fully Adjustable Power Size (Factory Preset Size 3)
Heavy Duty Rack and Pinion with Heat Treated High Tension Piston
Equipped with Delay Action Feature (20 Second Minimum Hold Open Delay Adjustable up to 1 Minute)
High Lubricity Hydraulic Fluid to Ensure Smooth Operation
Independent Latch, Sweep and Backcheck Intensity Valve
Standard Arm and Parallel Bracket Included with 180 Degree Door Swing
Heavy Duty Cast Iron Closer Body
Additional Delaney Links
Browse all Delaney Products
Delaney 8000 Collection
Specifications
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 10 Year |
| Certifications | ANSI, UL10C, UL |
| Collection | 8000 |
| Series | 8000 |
| ADA | Yes |
| ANSI Certification | A156.4 |
| Fire Rated | Yes |
| BHMA Certification | Grade 1 |
| Usage Level | Heavy Duty |
| Height | 2.75 in. |
| Projection | 2 in. |
| Product Weight | 13 lbs. |
| Max Door Weight | 330 lbs. |
| Closer Body Length | 11 in. |
| Closer Size | 1-6 |
| Horizontal Mounting Holes | 5 in. |
| Max Door Opening | 180 Degrees |
| Max Door Width | 60 in. |
| Vertical Mounting Holes | 5 in. |
| Material | Cast Iron |
| Handshower | Right, Left, Reversible |
| Adjustable Backcheck | No |
| Adjustable Spring | Yes |
| Arm Type | Hold Open |
| Barrier Free | Yes |
| Delay Action | Yes |
| Hold Open | Optional |
| Mounting | Top Jamb, Parallel, Tri-Pack, Regular |
| Operation Mode | Hydraulic |
| Shell Material | Cast Iron |
| Cushion Stop | Optional |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum |
| Color Tone | Neutrals |
