Delta Commercial Steam Shower Generator Kit 24kW 208v 1ph

Delta 5COM24-PAC-624-208-01 Features:

Covered under Delta’s 1 year limited warranty

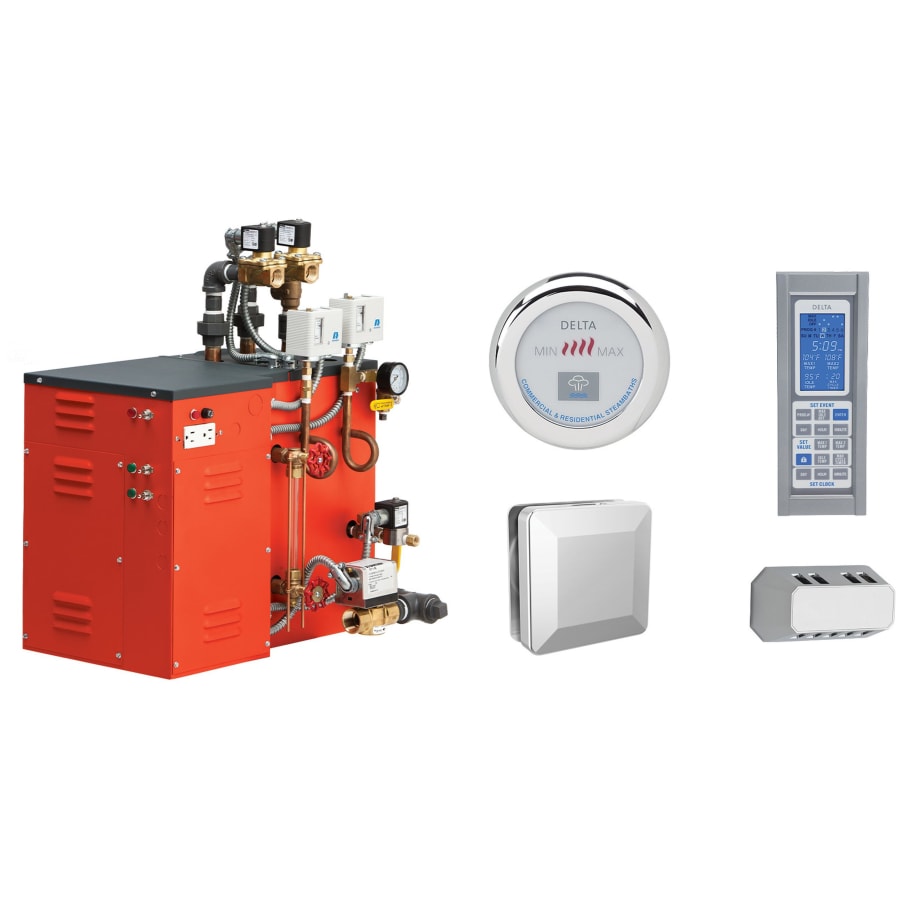

Package includes: microprocessor boiler control with two relays prewired for the aromatherapy pump, digital command center and cable, user bypass control and cable, room sensor and cable, steam solenoid pre-assembled to the steam generator, and chrome transitional steam head
Allows programming of steam room settings from up to 100 ft. distance from generator (50 ft. cables ship standard)
Idle setback feature allows efficient tailoring of operations during off-peak hours and each day of the week can be programmed individually
Provides maximum energy saving “idle” temperature
When installed with second room package, two steam rooms can be programmed with one generator
ASME code compliant
UL listed
Steam Head 3/4″ NPT, includes silicone cover
US Customer Support and Service
NOTE: The user bypass control should be installed outside the steam room to allow the user to change settings within programmed temperature range

Steam Shower Generator Specifications:

Height: 26″ (top to bottom of generator)
Length: 22″(left to right)
Width: 19″ (front to back)
Maximum Room Volume: 1000 cubic feet
Voltage: 208v
Maximum Amperage: 115
Electrical Phases: Single
Kilowatts: 24
Operating Pressure: Max. 15 PSI
Water Feed: 1/2″ NPT
Steam Output: 3/4″ NPT

About Delta Commercial Steam Generators:

Our Commercial Generator comes with everything you need to get your steam room started. The generator is designed for round-the-clock operation for spaces up to 2000 cubic feet! This package also features two controls for the ultimate management and client experiences. Our digital command center allows management to program temperature ranges to account for idle and peak hours, our user bypass control allows clients to adjust steam output within the preset range, the room sensor provides accurate temperature readings to the generator, and steam head outputs the steam with 360-degree dispersion. We also offer a complete selection of accessories to comply with local codes or enhance your client’s experience.
