Delta 5P-EST04 Features:
Covered under Delta’s limited lifetime warranty
Lumicoat Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners

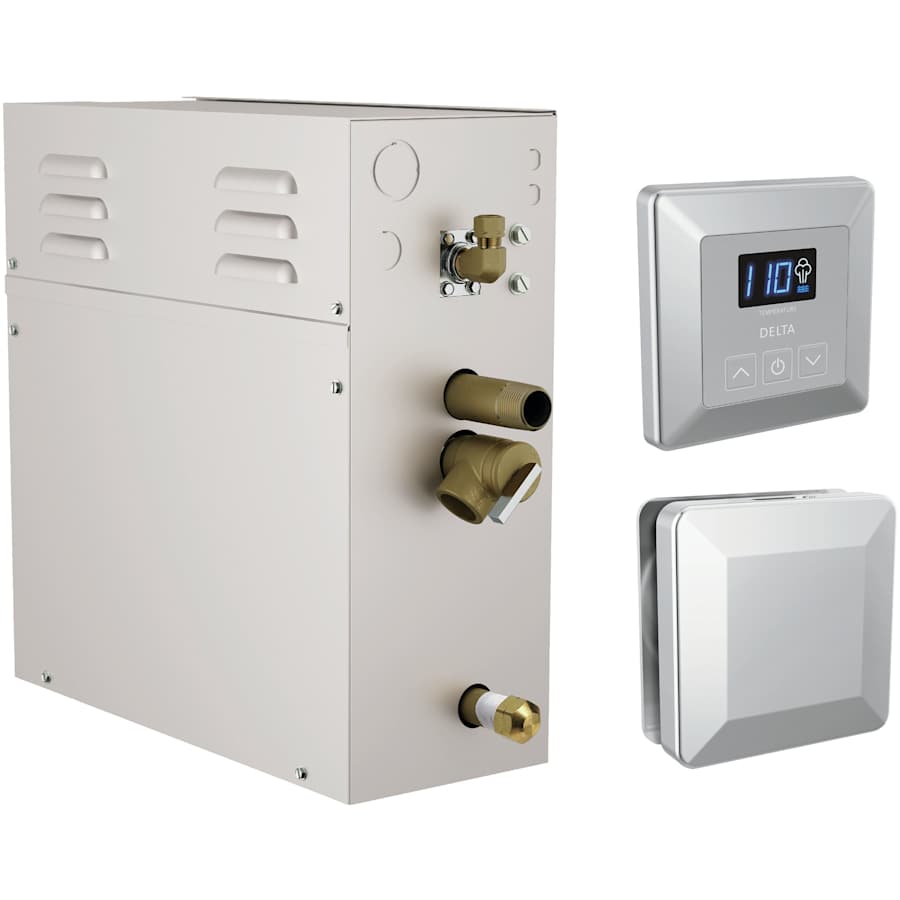

Kit includes the SimpleSteam Generator, SimpleSteam Square Control and Square Steam Head
Compact design permits generator installation in a vanity, closet, or insulated attic or basement
Includes 35 ft. cable (alternative length extension cable sold separately)
Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately
Stainless steel tank
Control turns system off and on and adjusts temperature and duration
Control must be installed inside the shower area
Steam Head 3/4″ NPT, includes silicone cover
Essential oil reserve on top of steam head

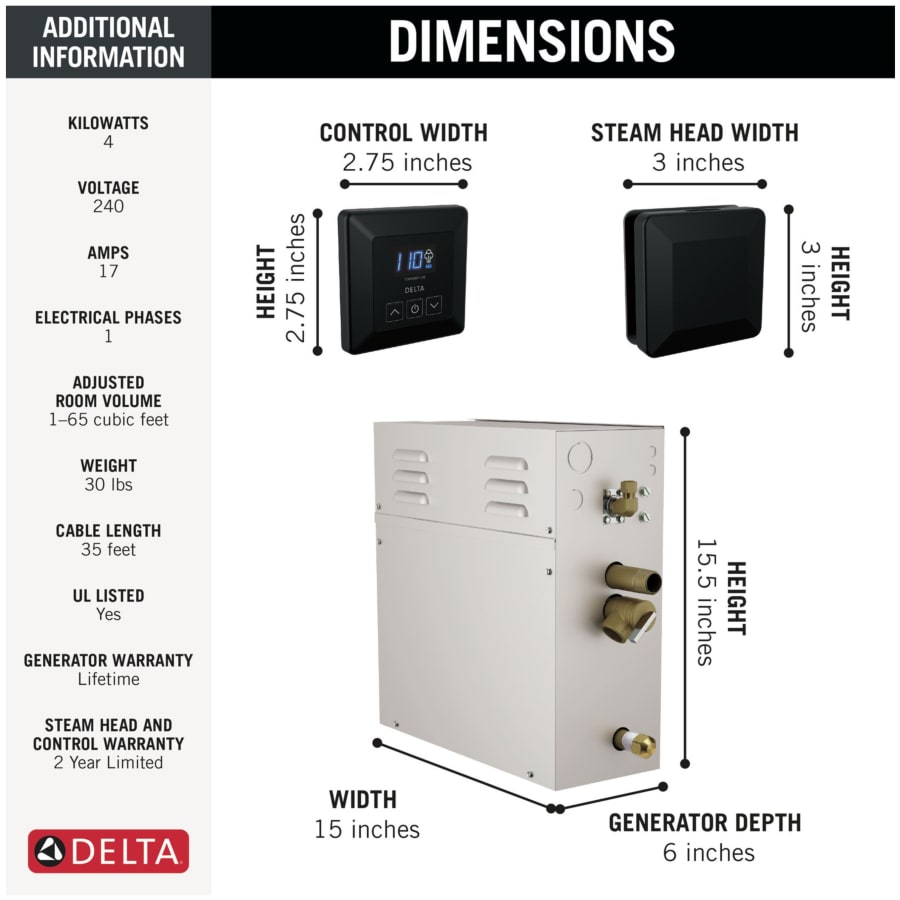

Steam Shower Generator Specifications:
Height: 15-1/2″ (top to bottom of generator)
Length: 15″(left to right)
Width: 6″ (front to back)
Maximum Room Volume: 75 cubic feet
Voltage: 240v
Maximum Amperage: 25
Electrical Phases: One
Kilowatts: 4.5

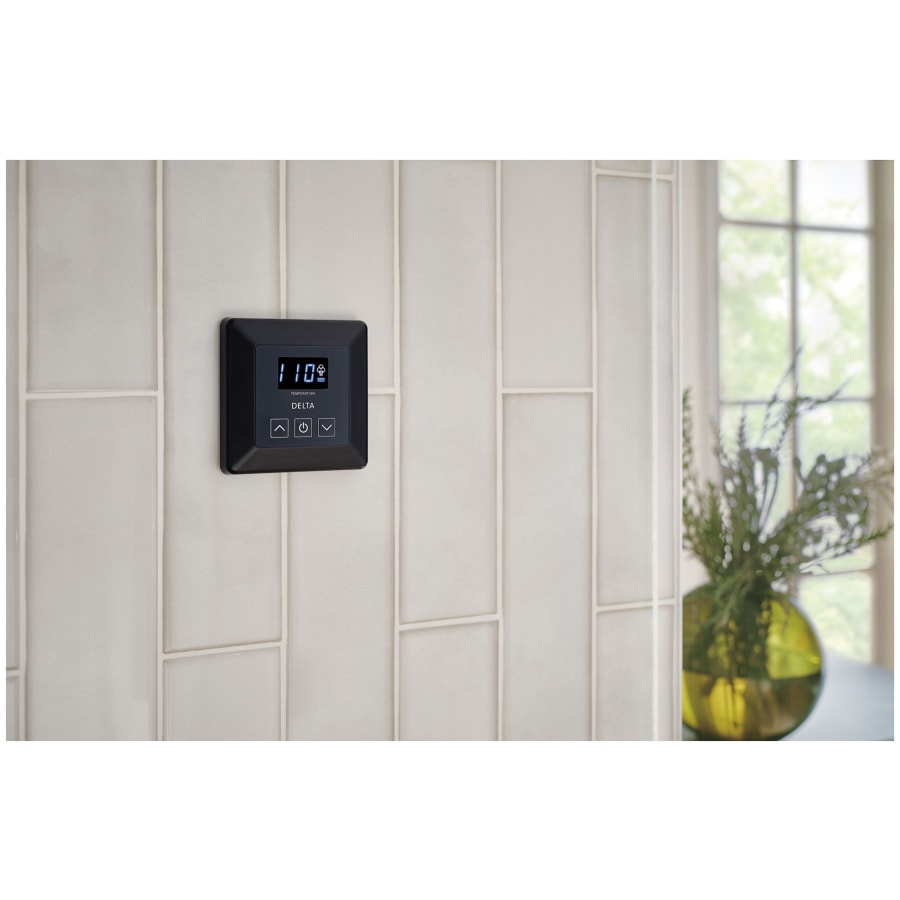

Control Unit Specifications:
Length: 2-3/4″
Width: 3″
Depth: 5/8″
Hole Size: 1-1/2″

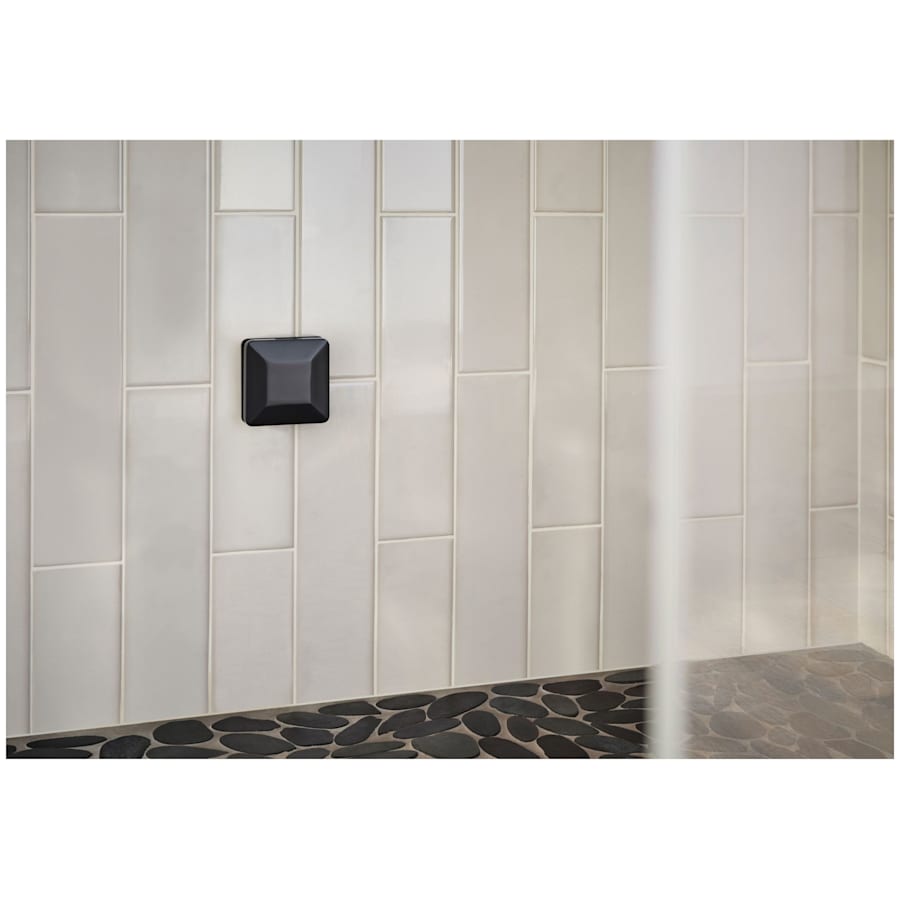

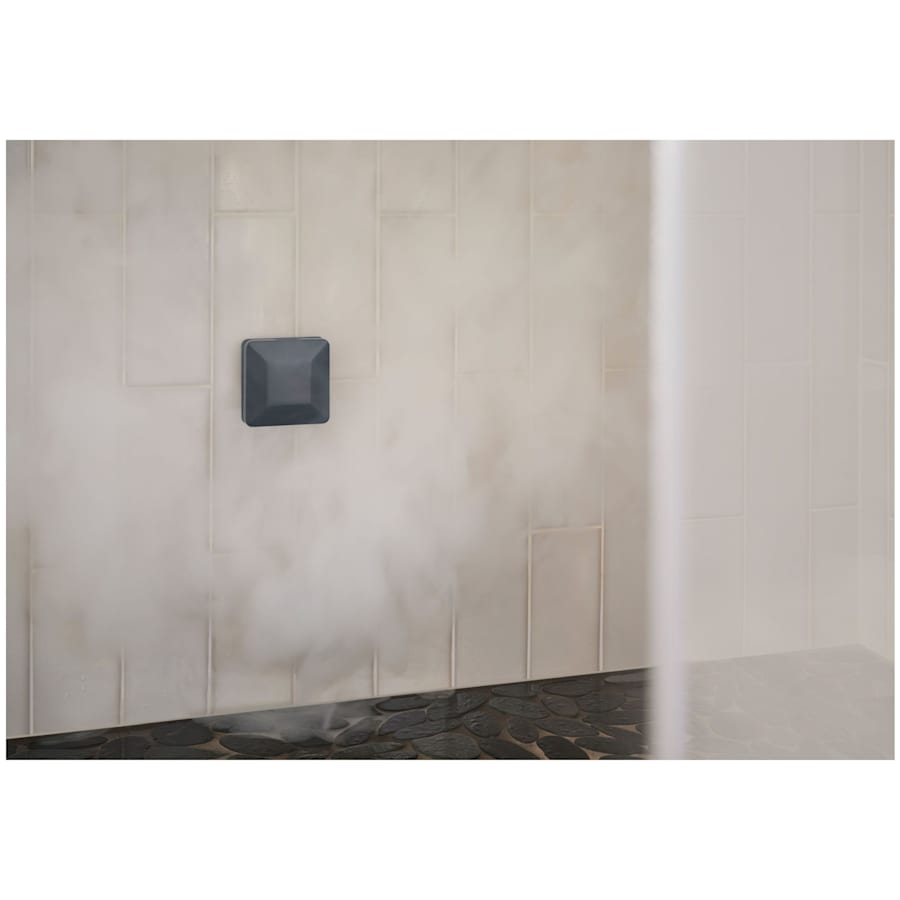

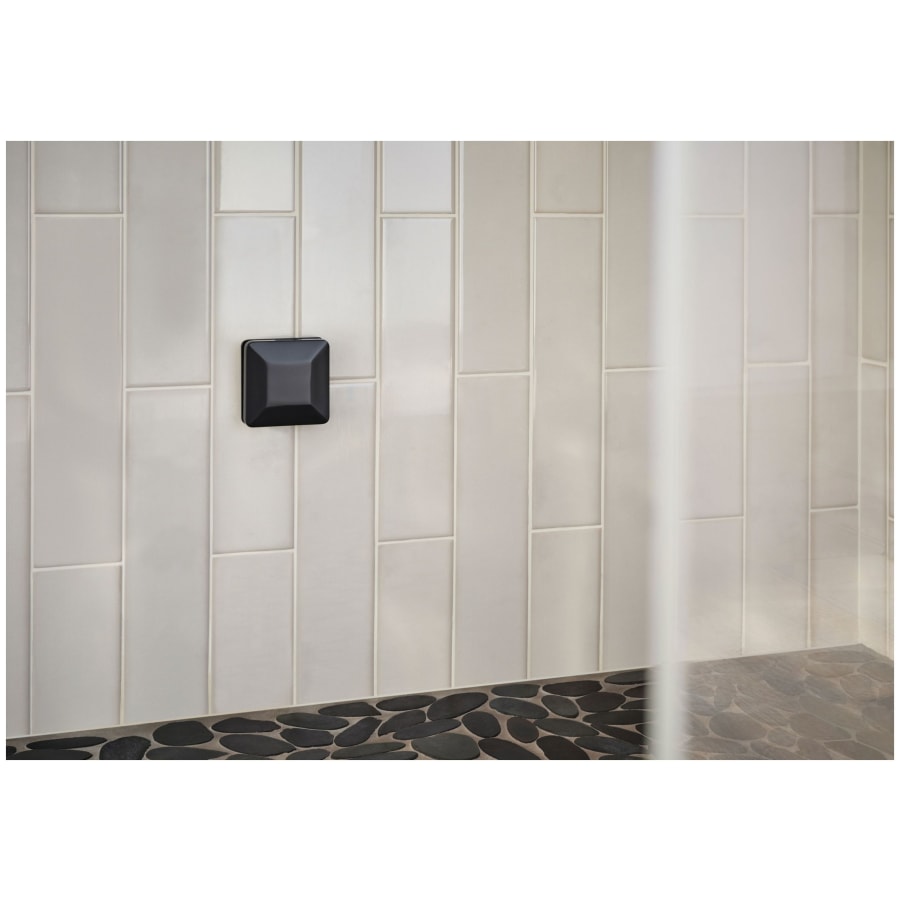

Steam Head Specifications:
Length: 3″
Width: 3″
Depth: 1″
Hole Size: 1-1/2″
About Delta SimpleSteam:
Simple to order and simple to use, the SimpleSteam™ Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water.
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta SimpleSteam Collection
Specifications
| Depth | 15 in. |
| Height | 15.5 in. |
| Width | 6 in. |
| Length | 15 in. |
| Wire Length | 420 in. |
| Water Connection | 3/8" |
| Drain Connection | 0.5 in. |
| Hole Size | 1.5 in. |
| Max Room Volume | 75 cu. ft. |
| Light Included | No |
| Control Unit Included | Yes |
| Steamhead Included | Yes |
| AutoFlush Included | No |
| Includes Drip Pan | No |
| Material | Stainless Steel |
| Thermostat | Contemporary |
| Insulation Type | Free Standing, Wall Mounted |
| Control Type | Electronic |
| Programmable Timer | Yes |
| Number of Steam Heads | 1 |
| Collection | SimpleSteam |
| Approved for Commercial Use | No |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Made in America | Yes |
| Voltage | 240 |
| Wattage | 4000 |
| Amperage | 25 |
| Frequency | 60 Hertz |
| Auto Shut Off | Yes |
| Electrical Phases | 1 |
| Breaker Needs | 19 Amps |
| Kilowatts | 4.5 |
| Color | Lumicoat Chrome |
