Delta 5P-EST15 Features:
Covered under Delta’s limited lifetime warranty
Lumicoat Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners

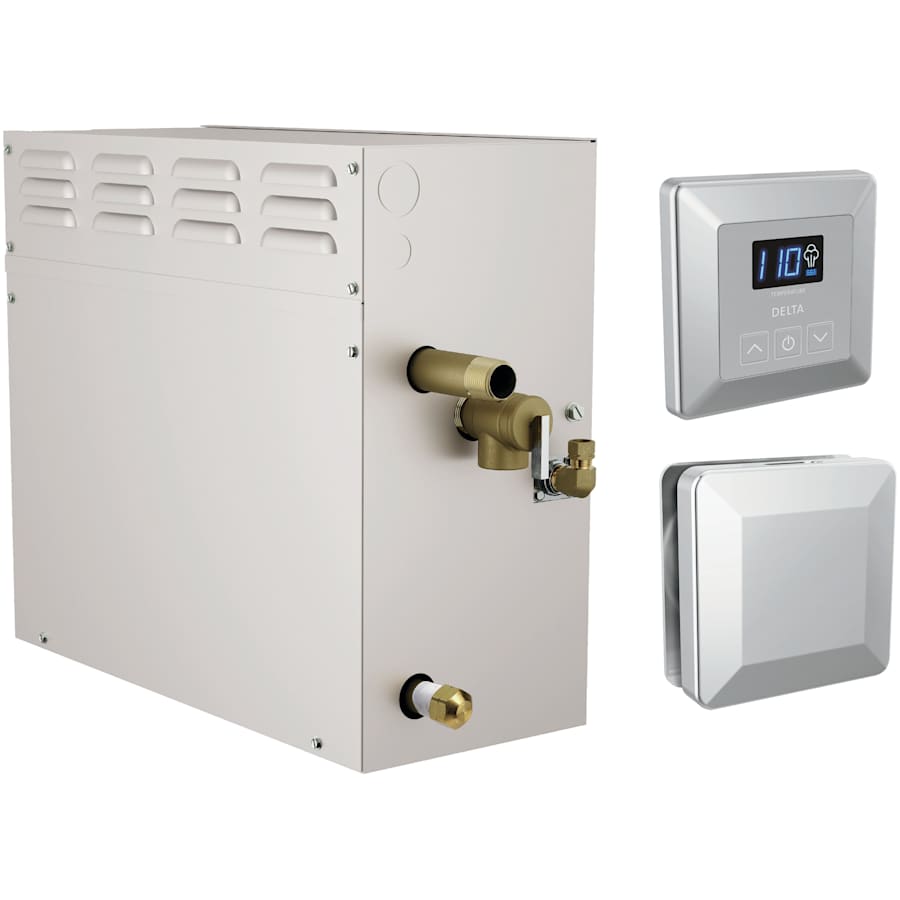

Kit includes the SimpleSteam Generator, SimpleSteam Square Control and Square Steam Head
Compact design permits generator installation in a vanity, closet, or insulated attic or basement
Includes 35 ft. cable (alternative length extension cable sold separately)
Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately
Stainless steel tank

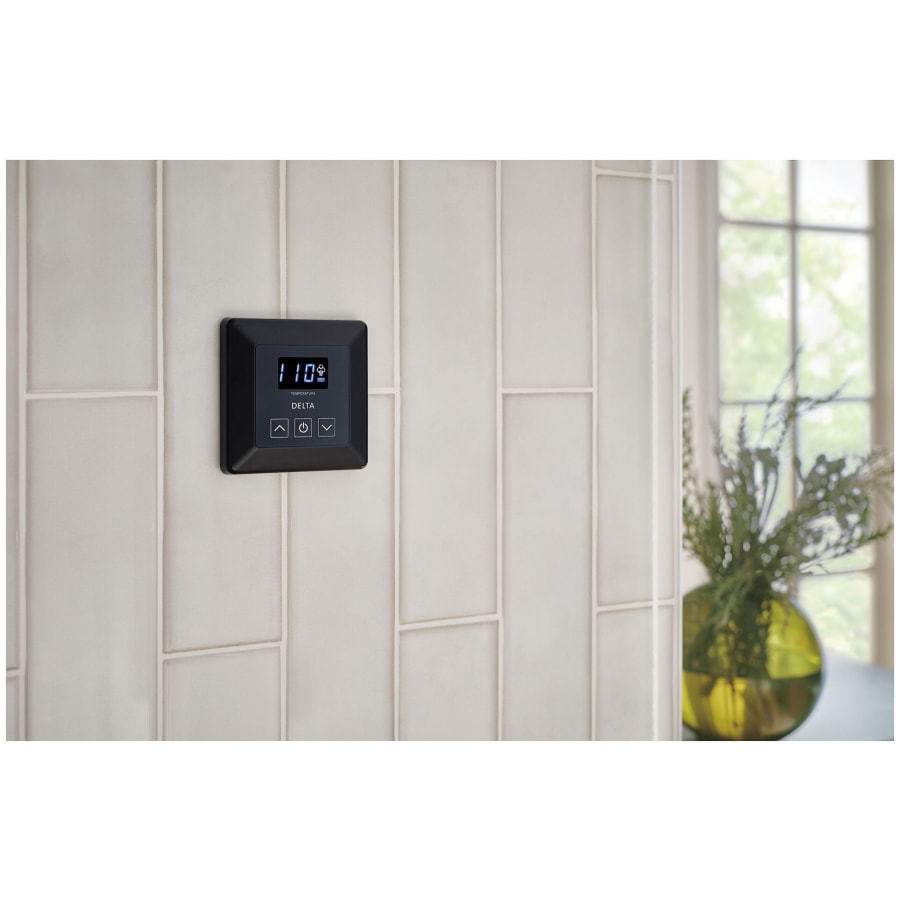

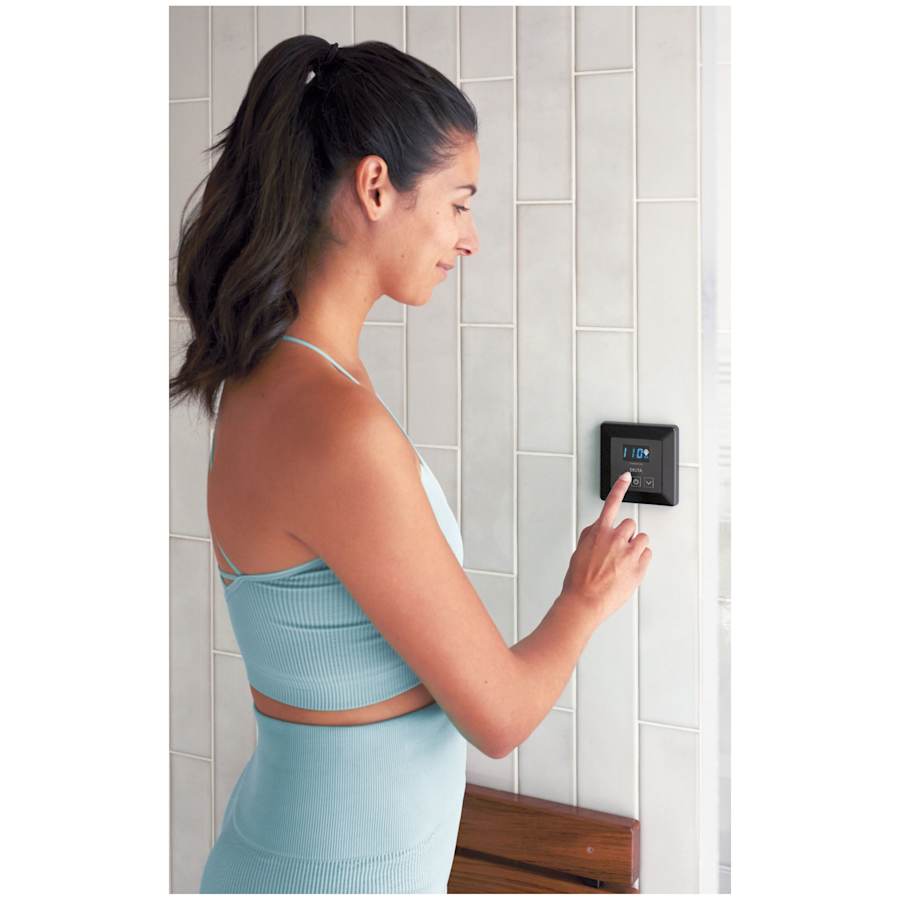

Control turns system off and on and adjusts temperature and duration
Control must be installed inside the shower area

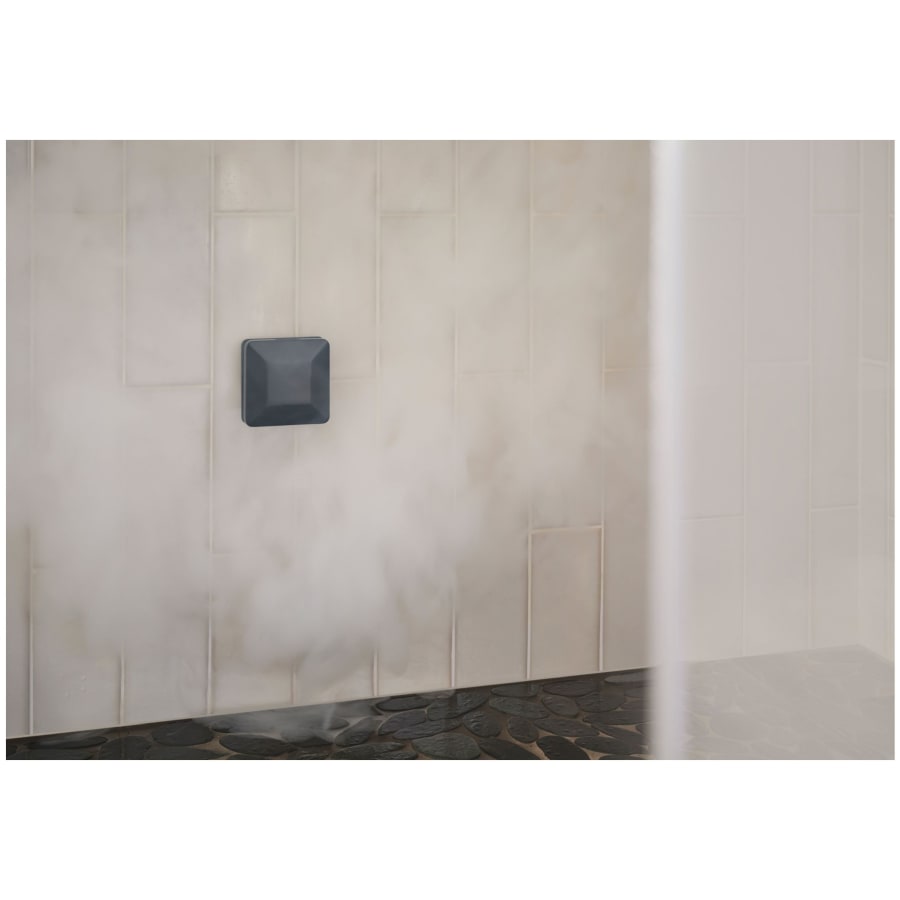

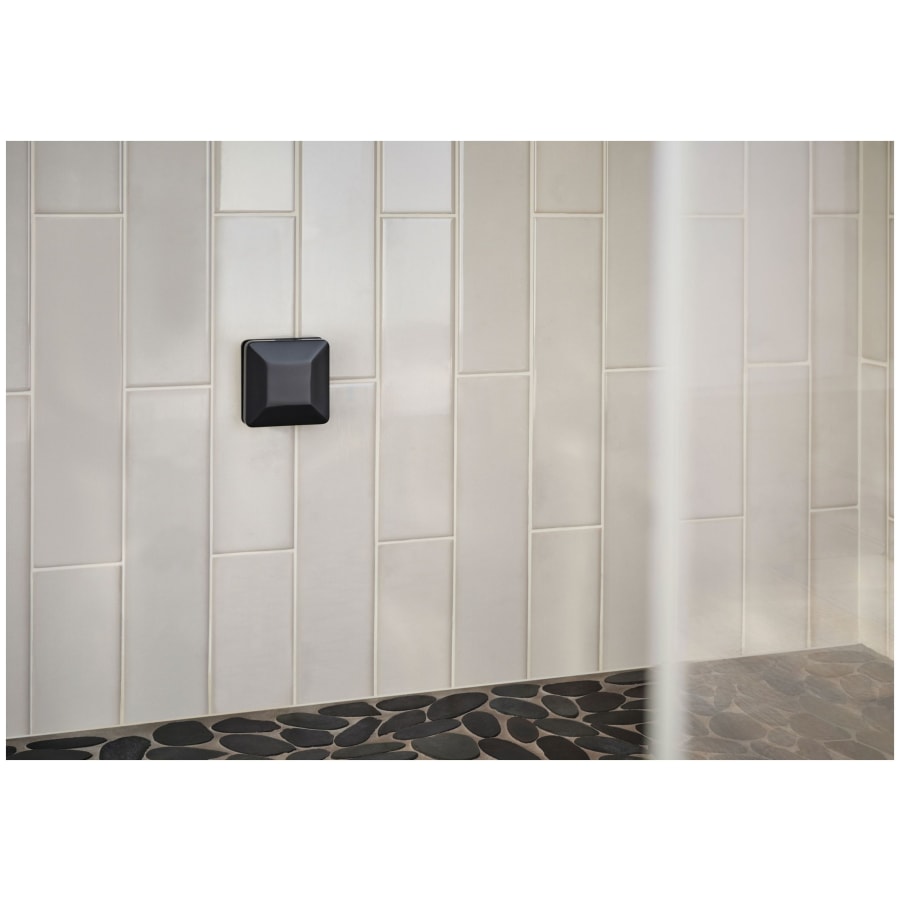

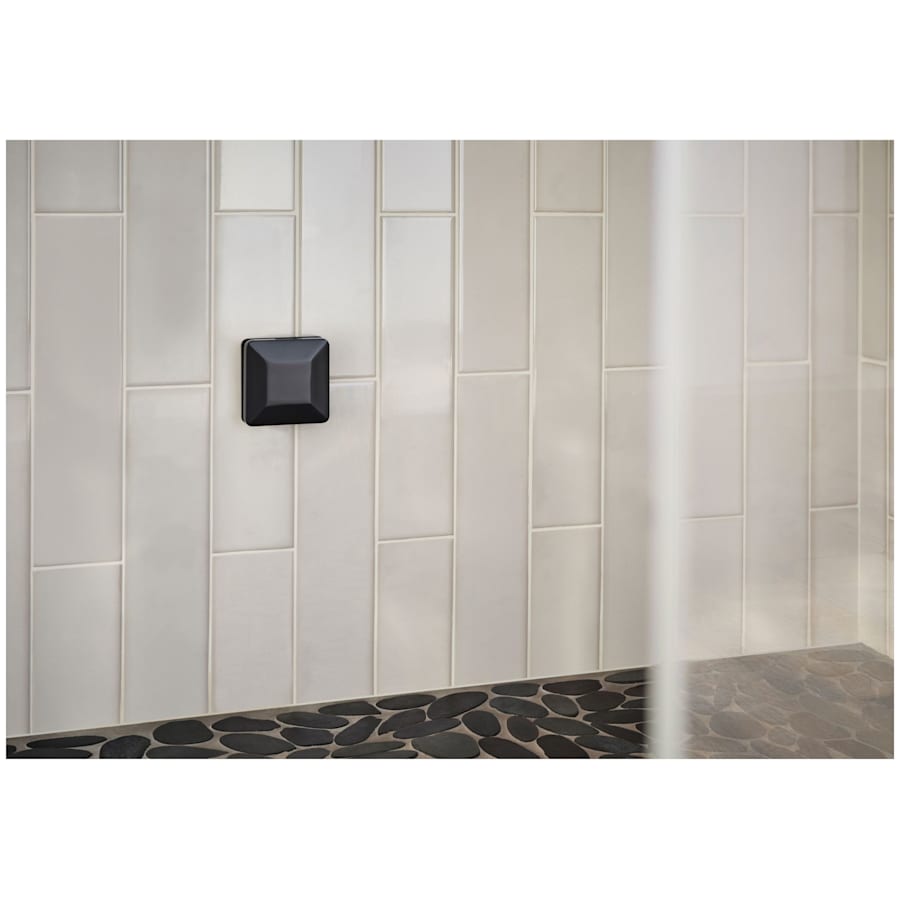

Steam Head 3/4″ NPT, includes silicone cover
Essential oil reserve on top of steam head

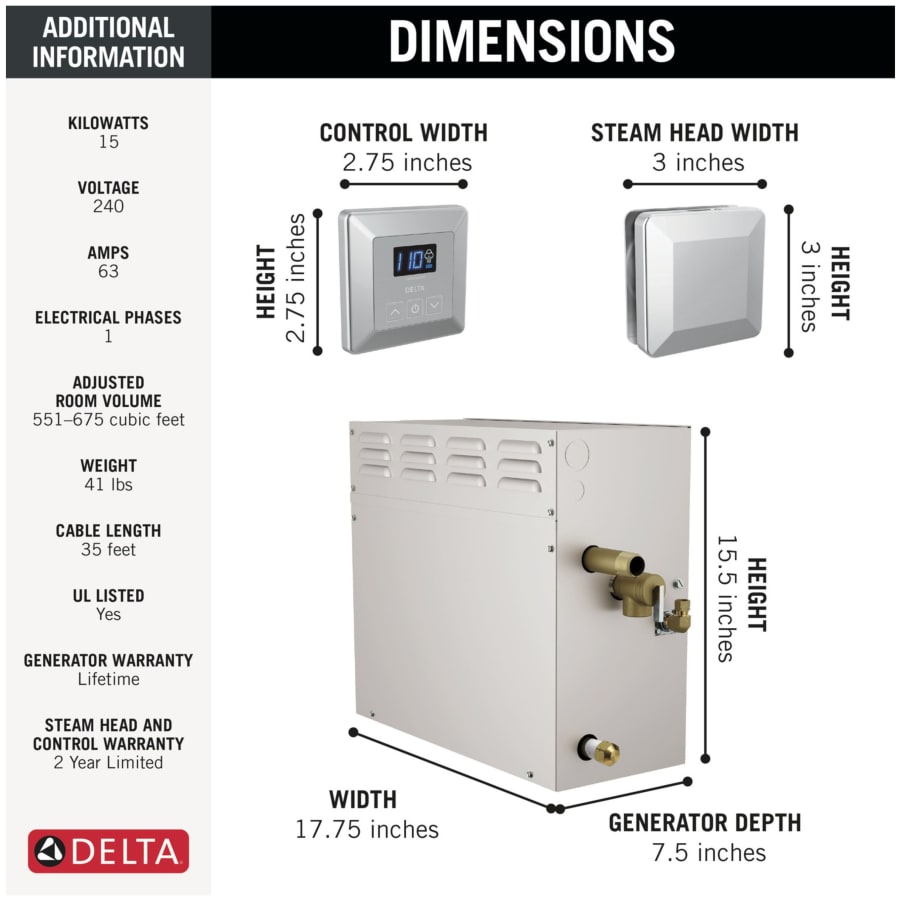

Steam Shower Generator Specifications:
Height: 15-1/2″ (top to bottom of generator)
Length: 17-3/4″(left to right)
Width: 7-1/2″ (front to back)
Maximum Room Volume: 650 cubic feet
Voltage: 240v
Maximum Amperage: 80
Electrical Phases: One
Kilowatts: 15
Control Unit Specifications:
Length: 2-3/4″
Width: 3″
Depth: 5/8″
Hole Size: 1-1/2″
Steam Head Specifications:
Length: 3″
Width: 3″
Depth: 1″
Hole Size: 1-1/2″
About Delta SimpleSteam:
Simple to order and simple to use, the SimpleSteam™ Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water.
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta SimpleSteam Collection
Specifications
| Material | Stainless Steel |
| Thermostat | Contemporary |
| Insulation Type | Free Standing, Wall Mounted |
| Control Type | Electronic |
| Programmable Timer | Yes |
| Number of Steam Heads | 1 |
| Approved for Commercial Use | No |
| Collection | SimpleSteam |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | USA |
| Made in America | Yes |
| Height | 15.5 in. |
| Depth | 17.75 in. |
| Width | 7.5 in. |
| Water Connection | 3/8" |
| Wire Length | 420 in. |
| Length | 17.75 in. |
| Drain Connection | 0.5 in. |
| Max Room Volume | 650 cu. ft. |
| Hole Size | 1.5 in. |
| Voltage | 240 |
| Wattage | 15000 |
| Amperage | 80 |
| Frequency | 60 Hertz |
| Breaker Needs | 63 Amps |
| Kilowatts | 15 |
| Auto Shut Off | Yes |
| Electrical Phases | 1 |
| Light Included | No |
| AutoFlush Included | No |
| Includes Drip Pan | No |
| Control Unit Included | Yes |
| Steamhead Included | Yes |
| Color | Lumicoat Chrome |
| Color Tone | Silver Tones |
