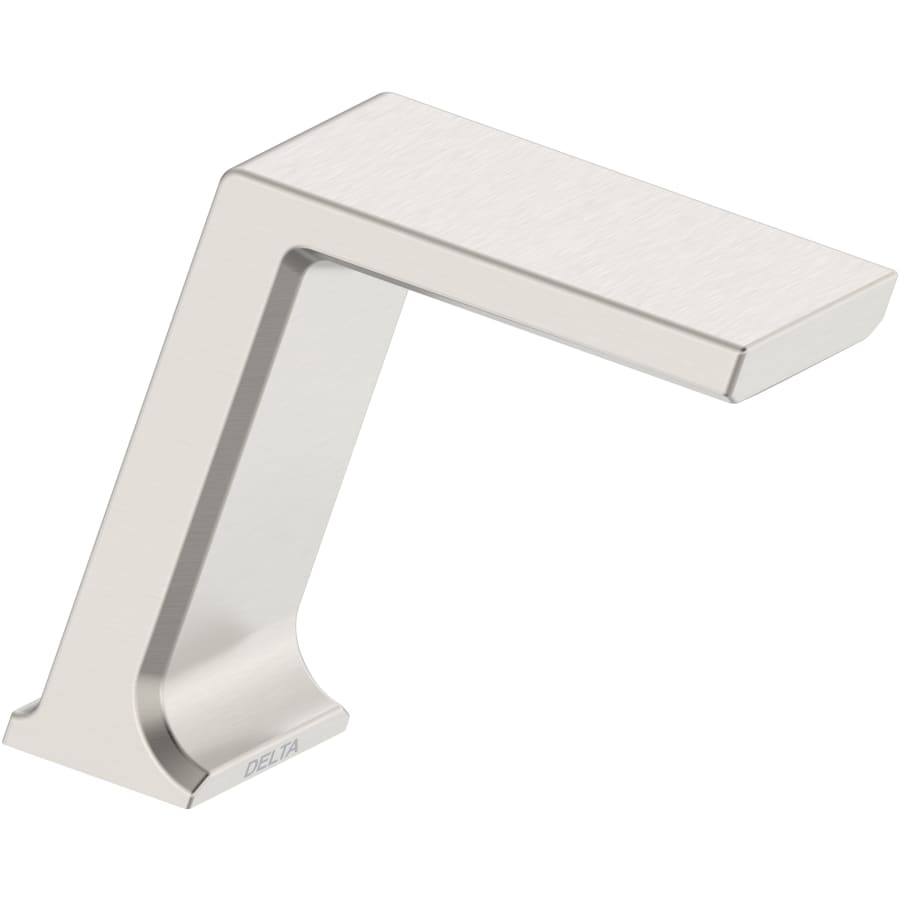

Delta 820DPA 0.5 GPM Single Hole Bathroom Faucet – Electronic Hardwire Operated

Delta 820DPA50 Features:

Covered by Delta’s 5 year limited commercial warranty
Faucet body constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Electronic hardwire operated deckmount faucet
Adjustable sensing range and timeout
Solenoid and Controller in Surface Mount Housing
Single tempered water supply Serviceable filter screen upstream of the solenoid valve
AC Filter and Transformer required 063267A –
AC Filter & Transformer for up to 5 valves (order separately)
Mixing valve required (order separately)
Optional 4″ Cover plate – 061305CZ (order separately
Vandal Resistant Laminar, Aerated, and Mikado Spray Outlets included at 0.5 gpm (1.9 L/min) flow rate
Designed for routine 180°F (82°C) disinfection cycles up to 30 mins

Delta 820DPA50 Technologies and Benefits:

Proximity™ Sensing: The next generation in responsive hands-free functionality. This unique technology transforms the entire faucet into a sensor, automatically responding when approached.

Delta 820DPA50 Specifications:

Height: 5-7/8″ (deck to top of faucet)
Spout Height: 5-1/16″ (deck to spout outlet)
Spout Reach: 5-3/8″ (faucet base to spout outlet)
Flow Rate: 0.5 gallons-per-minute
Faucet Hole Size: 1-1/4″
Faucet Holes: 1 (minimum number of holes required for installation)

Operations:

Hands free (touchless) operation
No visible sensor, the spout is the sensor
Adjustable sensing distance factory set to 3″ (76 mm) Adjustable auto shut off feature
Factory set to 45 seconds
Periodic rinse feature, time adjustable in 6 hour increments up to 2 days
Selectable rinsing lengths from 10 to 180 seconds. Factory set off
Metering mode with selectable flow times of 7 seconds to 4 minutes, factory set off
