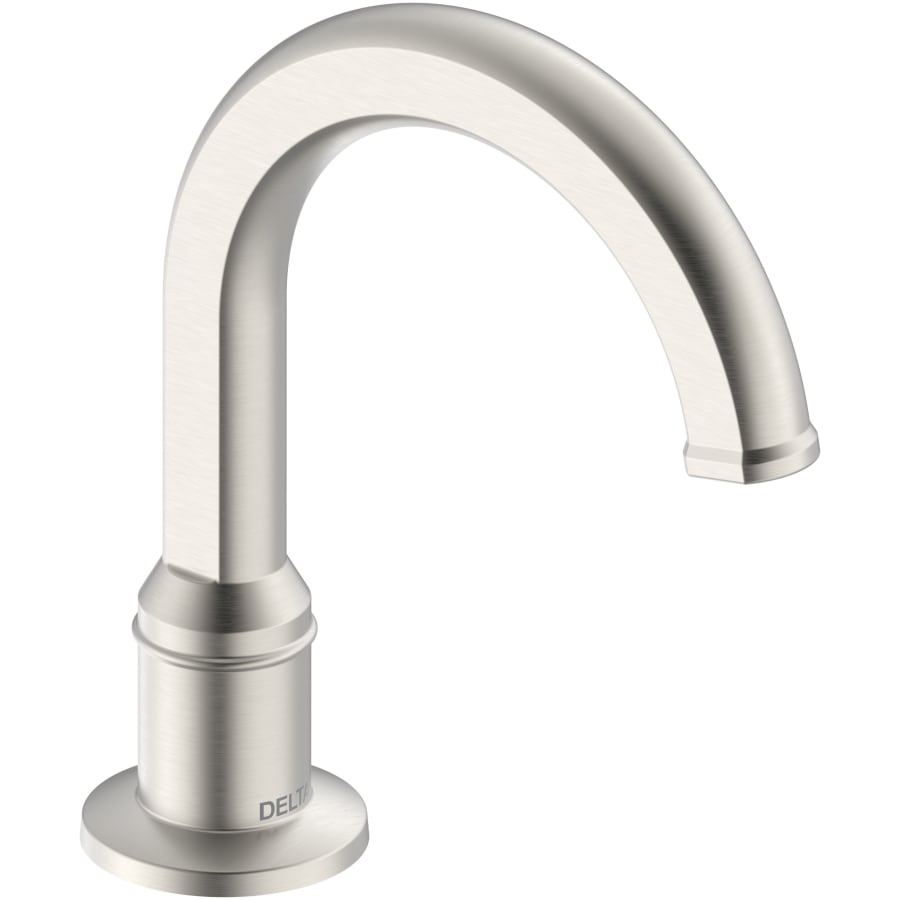

Delta 831DPA90 Features:
Covered by Delta’s 5 year limited commercial warranty
Faucet body constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Electronic battery operated deckmount faucet
Adjustable sensing range and timeout
Solenoid and Controller in Surface Mount Housing
Single tempered water supply
Serviceable filter screen upstream of the solenoid valve
Mixing valve required (order separately)
Optional 4″ Cover plate – 061305CZ (order separately)
Vandal Resistant Laminar, Aerated, and Mikado Spray Outlets included at 0.35 gpm (1.3 L/min) flow rate
Designed for routine 180°F (82°C) disinfection cycles up to 30 mins
Delta 831DPA90 Technologies and Benefits:
Proximity™ Sensing: The next generation in responsive hands-free functionality. This unique technology transforms the entire faucet into a sensor, automatically responding when approached.
Delta 831DPA90 Specifications:
Height: 8-9/16″ (deck to top of faucet)
Spout Height: 5-1/2″ (deck to spout outlet)
Spout Reach: 5-1/2″ (faucet base to spout outlet)
Flow Rate: 0.35 gallons-per-minute
Faucet Hole Size: 1-1/4″
Faucet Holes: 1 (minimum number of holes required for installation)
Operations:
Hands free (touchless) operation
No visible sensor, the spout is the sensor
Adjustable sensing distance factory set to 3″ (76 mm) Adjustable auto shut off feature
Factory set to 45 seconds
Periodic rinse feature, time adjustable in 6 hour increments up to 2 days
Selectable rinsing lengths from 10 to 180 seconds. Factory set off
Metering mode with selectable flow times of 7 seconds to 4 minutes, factory set off
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta 800DPA Collection
Specifications
| Faucet Centers | 0 in. |
| Height | 8.59 in. |
| Flow Rate (GPM) | 0.35 |
| Spout Height | 5.5 in. |
| Spout Reach | 5.5 in. |
| Faucet Hole Size | 1.25 in. |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | No |
| Valve Included | No |
| Faucet Holes | 1 |
| Insulation Type | Deck Mounted |
| Thermostat | Transitional |
| Material | Brass |
| Faucet Type | Bathroom Sink Faucet |
| Mounting Type | Single Hole |
| Spout Type | Fixed |
| Electronic | Yes |
| Touchless Faucet | Yes |
| Waterfall Faucet | No |
| Battery Quantity | 4 |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | Yes |
| Collection | 830DPA |
| Country Of Origin | Canada |
| Low Lead Compliant | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.18.1 |
| Commercial Warranty | 5 Year Limited |
| CSA Code | B125.1 |
| Power Source | Battery |
| Battery Size | C |
| Battery Type | Alkaline |
| Color | Brilliance Stainless, Champagne Bronze, Chrome, Matte Black |
| Color Tone | Blacks, Bronze Tones, Silver Tones, Stainless Steel |
