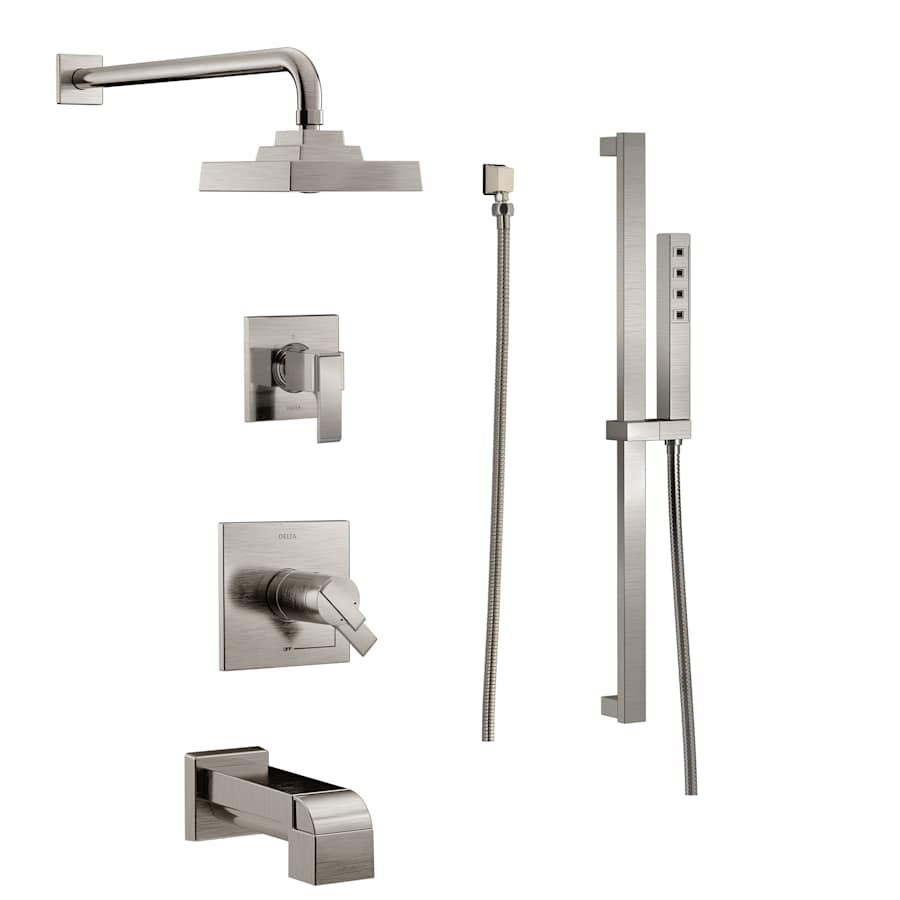

Delta TempAssure 17T Series Thermostatic Tub and Shower System with Volume Control, Shower Head, Hand Shower, and Slide Bar – Includes Rough-In Valves

Delta DSS-Ara-17T04 Shower System Includes:

Ara 17T Series Tub and Shower Set (T17T467)
Ara 3 Setting Diverter (T11867)
Hand Shower Set with 24″ Slide Bar and 60″ – 82″ Hose (51567)
Wall Supply Elbow / Wall Union (50570)
Mixing Rough-In Valve (R10000-UNWS)
Diverter Rough-in Valve (R11000)

Do you like this Delta shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Delta shower.

Delta DSS-Ara-17T04 Shower System Features:

Covered under Delta’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Premier finishing process – finish will resist rust and corrosion through everyday use
Single function H2Okinetic shower head
Dual function cartridge – separate volume and temperature controls
Thermostatic valve cartridge with scald guard
3 setting 2 port diverter: 2 individual positions and 1 shared position
Note: the RIGHT side diverter port MUST be capped
Designed for use with standard 1/2″ or 3/4″ U.S. plumbing connections
All necessary mounting hardware is included

Delta DSS-Ara-17T04 Product Technologies / Benefits:

H2Okinetic®: Delta’s proprietary H2Okinetic® technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2Okinetic® showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.
TempAssure®: Delta’s higher-end dual function TempAssure® thermostatic valve cartridges work like a thermostat. They use a wax and spring configuration to measure and monitor the temperature of the water and automatically adjust the hot/cold mix to precisely maintain water temperatures within a safe +/- 3°F.
MultiChoice® Valve: Flexibility is the big benefit of the MultiChoice® Universal Valve. Once the MultiChoice® rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.
Independent Volume Control: Dual-control valve trims are what separate Delta showers from the competition. The top, smaller handle controls temperature, while the bottom, larger dial controls the water volume (flow rate). The distinct advantage to this is that you can set the temperature control to a temperature you like, and then leave it, turning the shower on and off each time with the volume control. You’ll never have to fuss with the temperature again.

Delta DSS-Ara-17T04 Shower Valve Trim / Diverter Trim Specifications:

Temperature control includes pre-set safety stop with override
Three function diverter with 2 individual positions, 1 shared position
Valve trim features integrated volume control handle
Valve Trim Dimensions: 6-1/2″ H x 6-1/2″ W
Diverter Trim Dimensions: 5-1/4″ H x 4-1/2″ W
Extra secure mounting assemblies
All necessary mounting hardware and valves are included

Delta DSS-Ara-17T04 Hand Shower / Slide Bar Specifications:

Single function hand shower with H2Okinetic® spray pattern
Dual check valves prevent and protect from backflow
Wall supply is included with hand shower and slide bar
Flow Rate: 1.75 gallons-per-minute
Hand Shower Height: 8-1/2″
Slide Bar Length: 24″
Overall Slide Bar Length: 26-15/16″
Hose Length: 60″ – 82″
All necessary mounting hardware included

Delta DSS-Ara-17T04 Shower Head Specifications:

Single function H2Okinetic® shower head with H2Okinetic® spray pattern
Shower Head Dimensions: 5-5/16″ W x 5-5/16″ L
Shower Head Height: 2-3/4″
Flow Rate: 1.75 gallons-per-minute
Shower Arm Reach: 16″
All necessary mounting hardware included

Delta DSS-Ara-17T04 Tub Spout Specifications:

Features a classic pull-up integrated diverter
Unrestricted flow rate allows for rapid filling of tub
Tub Spout Reach: 6-1/4″
All necessary mounting hardware included

Why Buy Delta DSS-Ara-17T04 Custom Shower System From Us:

We are a Delta Preferred Authorized Online Dealer for Guaranteed Warranty Coverage
Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
A Showroom Experience from the Comfort of Your Home or Office
