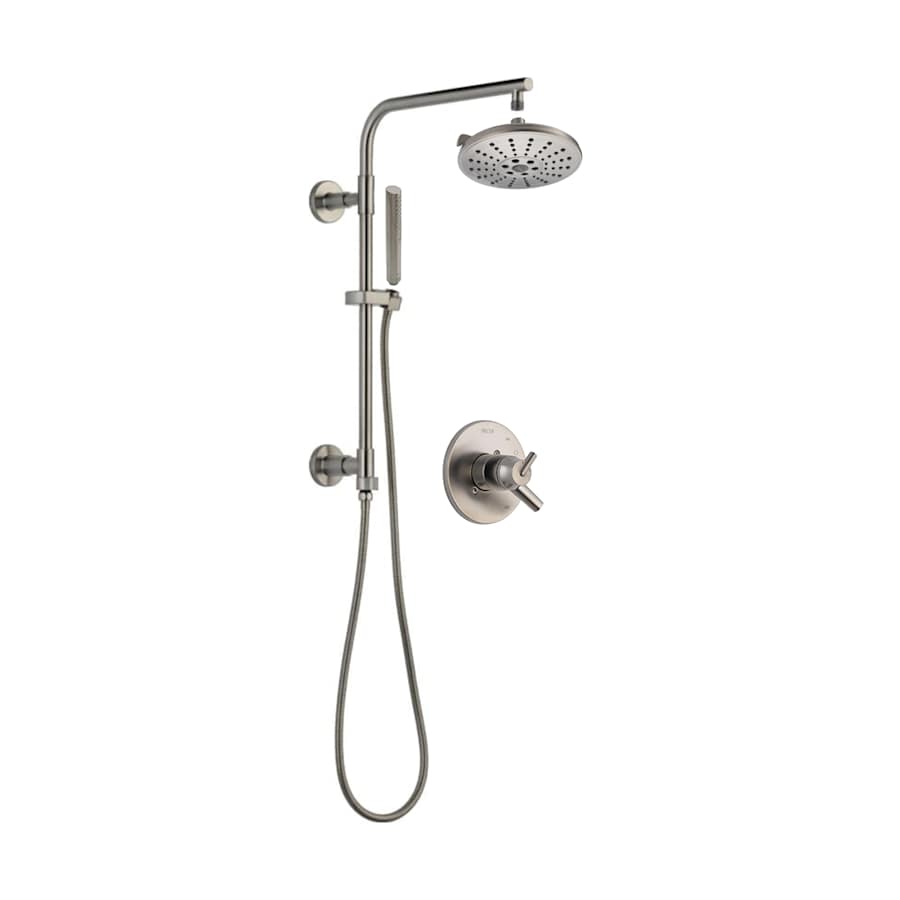

Delta DSS-Emerge-18R-1701 Features:
Shower Package Includes: Emerge shower column, shower head, hand shower, shower trim and rough-in valve
Covered under Delta’s limited lifetime warranty
Pressure balanced valve trim – dual cartridges control the water temperature and volume independently
2 lever style handles
Integrated diverter
Matching hand shower with 82″ hose
Pressure balanced rough-in valve
High quality finish – will resist rust and corrosion through everyday use
Valve Trim Specifications:
Features an integrated volume control
Features a pressure balanced valve
Integrated diverter is located on the shower column
Rough-in valve is included with this package
Valve Trim Height: 6-1/2″ (top to bottom)
Valve Trim Width: 6-1/2″ (left to right)
Shower Head Specifications:
Multi function shower head constructed of ABS with 3 separate spray settings
Shower Head Flow Rate: 1.75 gallons-per-minute
Shower Head Height: 3-7/16″ (top to bottom)
Shower Head Width: 7-11/16″ (left to right)
Shower Arm Length: 15″
Hand Shower Specifications:
Hose Length: 82″
Hand Shower Flow Rate: 1.75 gallons-per-minute
Hand Shower Type: Single Function
Shower system includes integrated hand shower supply
Shower Column Specifications:
3-way diverter allows for single or shared operation of the shower head and hand shower
No need for an additional supply elbow with the integrated hose supply
15″ integrated overhead shower arm
Sliding hand shower mount adjusts the height and angle of the hand shower
Should not be used as a grab bar
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Trinsic Collection
Specifications
| Manufacturer Warranty | Limited Lifetime |
| Collection | Trinsic |
| ADA | No |
| Certifications | CSA |
| CA Drought Compliant | No |
| CSA Code | B125.1 |
| Insulation Type | Wall Mounted |
| Material | Metal, Plastic |
| Thermostat | Modern |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Spray Settings | 1, 3 |
| Valve Type | Pressure Balanced |
| Water Connection Type | IPS |
| Water Efficient | No |
| Faucet Type | Shower System |
| Showerhead | Multi Function |
| Diverter Location | Shower Panel |
| Showerhead Shape | Round |
| Handshower | Single Function |
| Pause Control | Yes |
| Shell Material | ABS |
| Valve Trim Material | Metal |
| Flow Rate (GPM) | 1.75 |
| Water Connection | 1/2" |
| Shower Arm Reach | 15 in. |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Width | 7.6875 in. |
| Valve Trim Height | 6.5 in. |
| Valve Trim Width | 6.5 in. |
| Hose Length | 82, 60 in. |
| Showerhead Height | 3.4375 in. |
| Handshower Flow Rate | 1.75 |
| Valve Included | Yes |
| Handshower Included | Yes |
| Diverter Included | Yes |
| Shower Arm Included | Yes |
| Shower Head Included | Yes |
| Valve Trim Included | Yes |
| Volume Control | Yes |
| Hose Included | Yes |
| Integrated Diverter | Yes |
| Slide Bar Included | Yes |
| Bodysprays Included | No |
| Includes Exposed Pipe Riser | Yes |
| Wall Supply Included | Yes |
| Color | Brilliance Stainless |
| Color Tone | Stainless Steel |
