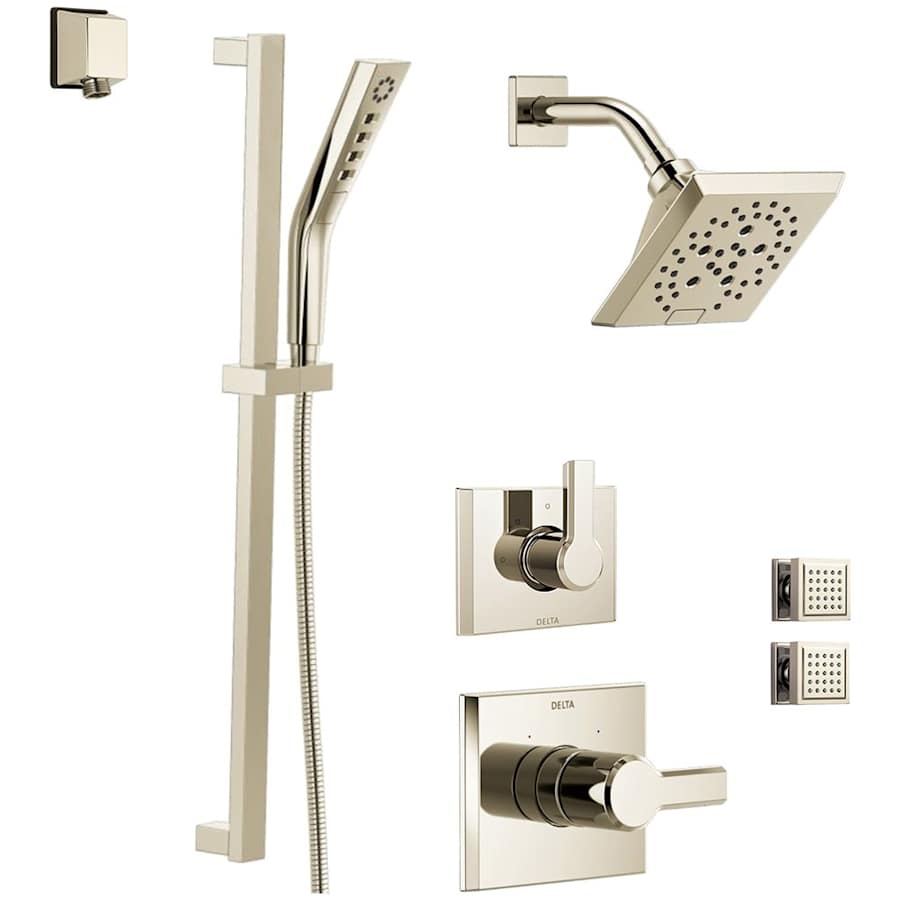

Delta DSS-Pivotal-1403 Shower System Includes:
Pivotal 14Â Series Shower Set (T14299)
Pivotal 6 Setting Diverter (T11999)
Body Sprays Qty 2Â (50150)
Hand Shower Set with 24″ Slide Bar and 69″ Hose (51799)
Wall Supply Elbow / Wall Union (50570)
Mixing Rough-In Valve (R10000-UNWSHF)Â Shower Only NO Tub Outlet
Diverter Rough-in Valve (R11000)
Delta DSS-Pivotal-1403 Features:
Covered under Delta’s limited lifetime residential and 5 year limited commercial warranty
Single Function Pressure Balanced Valve Cartridge
Single Metal Lever Handle for Ease of Temperature Control
Monitor Scald-Guard Valve Keeps Water Temperature to +/-3°F
6 Setting 3 Port Diverter: 3 Individual Positions, 3 Shared Positions
Optional non shared cartridge available RP71718
Touch-Clean Body Sprays with 30 Degree Up and Down Adjustment
Multi Function Hand Shower
24″ Slide Bar with Adjustable Slide Hand Shower Holder
69″ Long UltraFlex Hose in Matching Finish
Square Wall Elbow (1/2″ IPS Inlet, 1/2″ IPS Outlet)
Integrated Service Stops on Mixing Rough-In Valve
Delta DSS-Pivotal-1403 Technologies and Benefits:
MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.
Touch-Clean: The Delta soft, rubber Touch-Clean Spray Holes make it easy to wipe away unsightly calcium and lime buildup with the touch of a finger, helping prevent your product from developing a mineral blockage which could reduce water flow. While other kitchen faucets, shower heads and hand showers may require chemical cleaners and soaking time to dissolve mineral buildup, Delta products featuring Touch-Clean Spray Holes can be simply wiped clean for improved performance and an instantly refreshed look.
H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.
Valve Trim Specifications:
Features a pressure balanced valve with Delta MultiChoice technology
Swinging temperature dial allows for pin-point water control
Rough-in valve is included with this package
Valve Trim Height: 5-1/2″ (bottom to top)
Valve Trim Width: 7″ (left to right)
Shower Head Specifications:
Multi function shower head featuring full spray, massage, full spray with massage, pause control, and H2Okinetic spray patterns
Shower Head Flow Rate: 1.75 gallons-per-minute
Shower Head Height: 3-3/4″ (spray nozzles to connection outlet)
Shower Head Width: 5-3/4″ (left to right)
Hand Shower Specifications:
Hose Length: 60″ – 82″
Hand Shower Flow Rate: 1.75 gallons-per-minute
Shower system includes wall supply for hand shower
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Pivotal Collection
Specifications
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ASME, CSA |
| Collection | Pivotal |
| ADA | No |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | No |
| CSA Code | B125.1 |
| Low Lead Compliant | No |
| WaterSense Certified | No |
| Installation Hardware Included | Yes |
| Valve Included | Yes |
| Handshower Included | Yes |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Wall Supply Included | Yes |
| Diverter Included | Yes |
| Integrated Diverter | No |
| Volume Control | No |
| Valve Trim Included | Yes |
| Shower Arm Included | Yes |
| Shower Head Included | Yes |
| Tub Spout Included | No |
| Bodysprays Included | Yes |
| Insulation Type | Wall Mounted |
| Material | Brass, Plastic, Zinc |
| Thermostat | Modern |
| Faucet Type | Shower System |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Valve Type | Pressure Balanced |
| Water Connection Type | NPSM, NPT |
| Spray Settings | 5 |
| Scald Guard | Yes |
| Showerhead | Multi Function |
| Spray Pattern | Pause, Drench, Full, Massage |
| Showerhead Shape | Square |
| Water Efficient | No |
| Diverter Location | Wall Mounted |
| Pause Control | Yes |
| Number Of Bodysprays | 2 |
| Flow Rate (GPM) | 1.75 |
| Hose Length | 82, 60 in. |
| Water Connection | 1/2" |
| Handshower Flow Rate | 1.75 |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Width | 5.75 in. |
| Valve Trim Height | 5.5 in. |
| Valve Trim Width | 7 in. |
| Slide Bar Height | 26.9375 in. |
| Showerhead Height | 3.75 in. |
| Bodyspray Flow Rate (GPM) | 1.75 |
| Bowl Height | 2.6875 in. |
| Bodyspray Width | 2.6875 in. |
| Color | Brilliance Polished Nickel |
| Color Tone | Nickel Tones |
