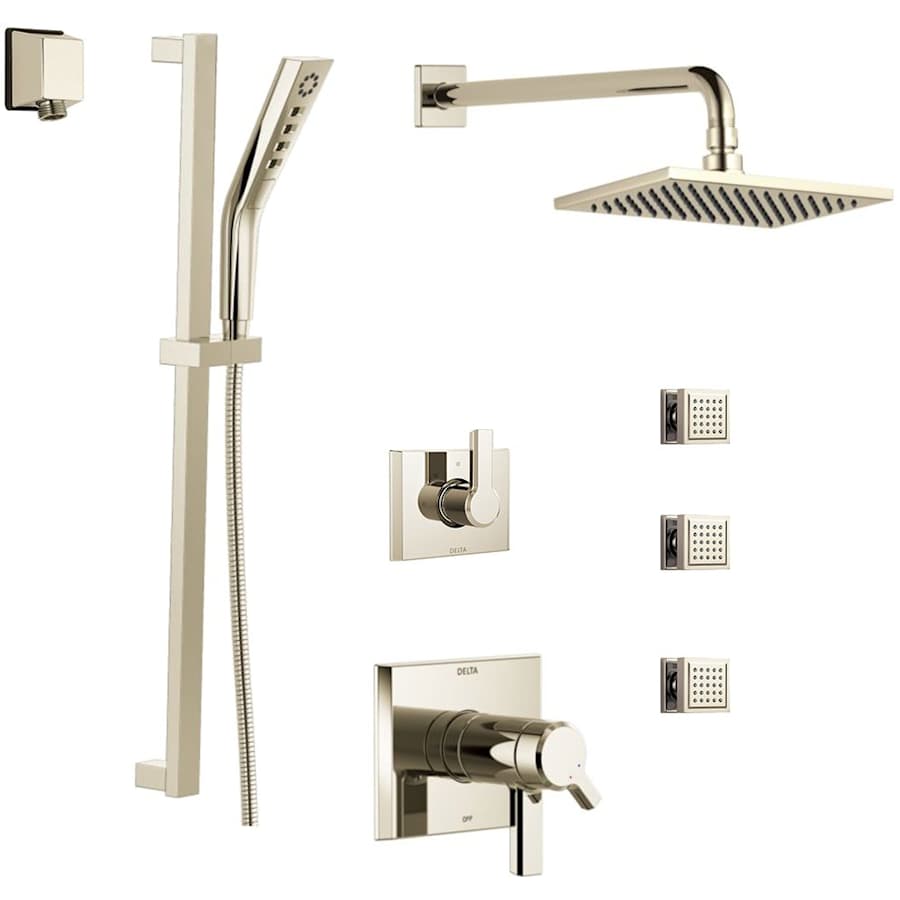

Delta DSS-Pivotal-17T03 Shower System Includes:
Pivotal 17TÂ Series Shower Set (T17T299)
Pivotal 6 Setting Diverter (T11999)
Body Sprays Qty 3Â (50150)
Hand Shower Set with 24″ Slide Bar and 69″ Hose (51799)
Wall Supply Elbow / Wall Union (50570)
Mixing Rough-In Valve (R10000-UNWSHF)Â Shower Only NO Tub Outlet
Diverter Rough-in Valve (R11000)
Delta DSS-Pivotal-17T03 Features:
Covered under Delta’s limited lifetime residential and 5 year limited commercial warranty
Thermostatic Operation for Precise Temperature Control
Dual Function: Handle Adjusts Volume; Dial on Handle Controls Temperature
TempAssure Valve Keeps Water Temperature to +/-3°F
6 Setting 3 Port Diverter: 3 Individual Positions, 3 Shared Positions
Optional non shared cartridge available RP71718
Touch-Clean Body Sprays with 30 Degree Up and Down Adjustment
Multi Function Hand Shower
24″ Slide Bar with Adjustable Slide Hand Shower Holder
69″ Long UltraFlex Hose in Matching Finish
Square Wall Elbow (1/2″ IPS Inlet, 1/2″ IPS Outlet)
Integrated Service Stops on Mixing Rough-In Valve
Delta DSS-Pivotal-17T03 Technologies and Benefits:
MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.
Touch-Clean: The Delta soft, rubber Touch-Clean Spray Holes make it easy to wipe away unsightly calcium and lime buildup with the touch of a finger, helping prevent your product from developing a mineral blockage which could reduce water flow. While other kitchen faucets, shower heads and hand showers may require chemical cleaners and soaking time to dissolve mineral buildup, Delta products featuring Touch-Clean Spray Holes can be simply wiped clean for improved performance and an instantly refreshed look.
H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.
TempAssure: All Delta tub and shower faucets are engineered to keep the water temperature within a safe ±3.6° F (±1.7° C)*. This technology makes sure your family doesn’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
Valve Trim Specifications:
Features integrated volume control
Features a thermostatic valve with Delta MultiChoice technology
Swinging temperature dial allows for pin-point water control
Rough-in valve is included with this package
Valve Trim Height: 5-1/2″ (bottom to top)
Valve Trim Width: 7″ (left to right)
Shower Head Specifications:
Single function shower head with full spray pattern
Shower Head Flow Rate: 2.5 gallons-per-minute
Shower Head Width: 5-11/16″ (left to right)
Shower Arm Length: 16″
Hand Shower Specifications:
Hose Length: 60″ – 82″
Hand Shower Flow Rate: 1.75 gallons-per-minute
Shower system includes wall supply for hand shower
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Pivotal Collection
Specifications
| Flow Rate (GPM) | 2.5 |
| Water Connection | 1/2" |
| Showerhead Width | 5.7032 in. |
| Hose Length | 60, 82 in. |
| Valve Trim Height | 5.5 in. |
| Valve Trim Width | 7 in. |
| Handshower Flow Rate | 1.75 |
| Shower Arm Reach | 16 in. |
| Showerhead Flow Rate (GPM) | 2.5 |
| Bowl Height | 2.6875 in. |
| Bodyspray Width | 2.6875 in. |
| Bodyspray Flow Rate (GPM) | 1.75 |
| Slide Bar Height | 26.9375 in. |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Pivotal |
| Certifications | ASME, CSA |
| Country Of Origin | China |
| CA Drought Compliant | No |
| ADA | No |
| WaterSense Certified | No |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Low Lead Compliant | No |
| Handle Style | Lever |
| Number Of Handles | 3 |
| Insulation Type | Wall Mounted |
| Material | Brass, Plastic, Zinc |
| Thermostat | Modern |
| Pause Control | No |
| Showerhead Shape | Rectangular |
| Spray Settings | 1 |
| Spray Pattern | Full, Rain |
| Water Efficient | No |
| Faucet Type | Shower System |
| Valve Type | Thermostatic |
| Number Of Bodysprays | 3 |
| Diverter Location | Wall Mounted |
| Scald Guard | Yes |
| Water Connection Type | NPSM, NPT |
| Installation Hardware Included | Yes |
| Slide Bar Included | Yes |
| Wall Supply Included | Yes |
| Handshower Included | Yes |
| Hose Included | Yes |
| Valve Included | Yes |
| Valve Trim Included | Yes |
| Diverter Included | Yes |
| Integrated Diverter | No |
| Bodysprays Included | Yes |
| Shower Head Included | Yes |
| Tub Spout Included | No |
| Volume Control | Yes |
| Shower Arm Included | Yes |
| Color | Brilliance Polished Nickel |
| Color Tone | Nickel Tones |
