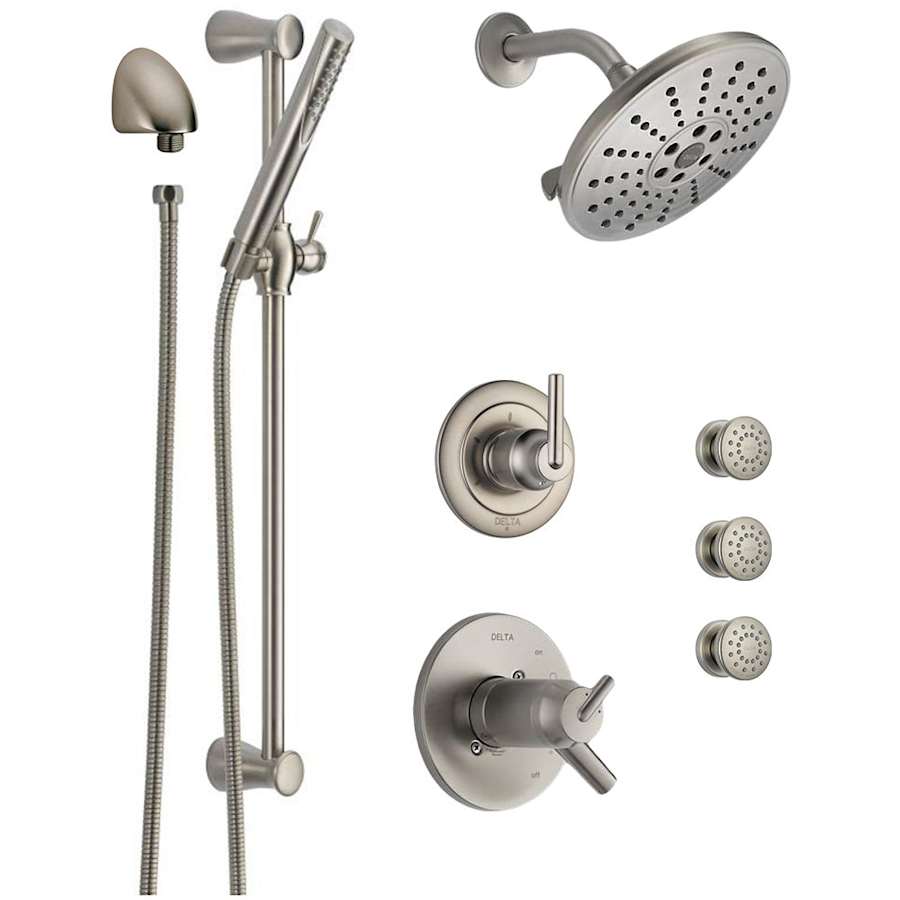

Delta Trinsic DSS-Trinsic-17T03Â Shower System Includes:
Trinsic 17T Series Shower Set (T17T259)
Trinsic 6Â Setting Diverter (T11959)
Body Sprays Qty 3 (50102)
Hand Shower Set with 24″ Slide Bar and 69″ Hose (57085)
Wall Supply Elbow / Wall Union (50560)
Mixing Rough-In Valve (R10000-UNWSHF)Â Shower Only NO Tub Outlet
Diverter Rough-in Valve (R11000)
Delta DSS-Trinsic-17T03 Features:
Covered under Delta’s limited lifetime residential and 5 year limited commercial warranty
Thermostatic Operation for Precise Temperature Control
Dual Function: Handle Adjusts Volume; Dial on Handle Controls Temperature
TempAssure Valve Keeps Water Temperature to +/-3°F
6 Setting 3 Port Diverter: 3 Individual Positions, 3 Shared Position
Optional non shared cartridge available RP71718
Multi function shower headÂ
Touch-Clean Body Sprays with 30 Degree Up and Down Adjustment
H2Okinetic Single Function Hand Shower
24″ Slide Bar with Adjustable Slide Hand Shower Holder
60″ – 82″ Long Stretchable Metal Hose in Matching Finish
Wall Elbow (1/2″ IPS Inlet, 1/2″ IPS Outlet)
Integrated Service Stops on Mixing Rough-In Valve
Delta DSS-Trinsic-17T03 Technologies and Benefits:
MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.
Touch-Clean: The Delta soft, rubber Touch-Clean Spray Holes make it easy to wipe away unsightly calcium and lime buildup with the touch of a finger, helping prevent your product from developing a mineral blockage which could reduce water flow. While other kitchen faucets, shower heads and hand showers may require chemical cleaners and soaking time to dissolve mineral buildup, Delta products featuring Touch-Clean Spray Holes can be simply wiped clean for improved performance and an instantly refreshed look.
H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.
TempAssure: All Delta tub and shower faucets are engineered to keep the water temperature within a safe ±3.6° F (±1.7° C)*. This technology makes sure your family doesn’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
Valve Trim Specifications:
Features integrated volume control
Features a thermostatic valve with Delta MultiChoice technology
Swinging temperature dial allows for pin-point water control
Rough-in valve is included with this package
Valve Trim Height: 6-1/2″ (bottom to top)
Valve Trim Width: 6-1/2″ (left to right)
Shower Head Specifications:
Multi function shower head features full spray, pauce control, and H2Okinetic spray patterns
Shower Head Flow Rate: 1.75 gallons-per-minute
Shower Head Height: 3-1/2″ (spray nozzles to connection outlet)
Shower Head Width: 7-3/4″ (left to right)
Hand Shower Specifications:
Hose Length: 60″ – 82″
Hand Shower Flow Rate: 2 gallons-per-minute
Shower system includes wall supply for hand shower
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Trinsic Collection
Specifications
| Material | Brass, Plastic, Zinc |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Faucet Type | Shower System |
| Handle Style | Lever |
| Number Of Handles | 3 |
| Valve Type | Thermostatic |
| Diverter Location | Wall Mounted |
| Showerhead | Multi Function |
| Showerhead Shape | Round |
| Spray Pattern | Pause, Full, Drench |
| Spray Settings | 3 |
| Water Efficient | No |
| Pause Control | Yes |
| Water Connection Type | NPSM, NPT |
| Number Of Bodysprays | 3 |
| Scald Guard | Yes |
| Collection | Trinsic |
| Certifications | ASME, CSA |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | No |
| CSA Code | B125.1 |
| Low Lead Compliant | No |
| WaterSense Certified | No |
| Installation Hardware Included | Yes |
| Valve Included | Yes |
| Diverter Included | Yes |
| Volume Control | Yes |
| Shower Arm Included | Yes |
| Handshower Included | Yes |
| Integrated Diverter | No |
| Shower Head Included | Yes |
| Tub Spout Included | No |
| Valve Trim Included | Yes |
| Bodysprays Included | Yes |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Wall Supply Included | Yes |
| Flow Rate (GPM) | 1.75 |
| Water Connection | 1/2" |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Height | 3.5 in. |
| Showerhead Width | 7.75 in. |
| Valve Trim Height | 6.5 in. |
| Valve Trim Width | 6.5 in. |
| Hose Length | 60, 82 in. |
| Bodyspray Flow Rate (GPM) | 1.75 |
| Bowl Height | 2.4375 in. |
| Bodyspray Width | 2.4375 in. |
| Handshower Flow Rate | 1.75 |
| Slide Bar Height | 24 in. |
| Color | Brilliance Stainless, Champagne Bronze, Chrome, Venetian Bronze |
| Color Tone | Bronze Tones, Silver Tones, Stainless Steel |
