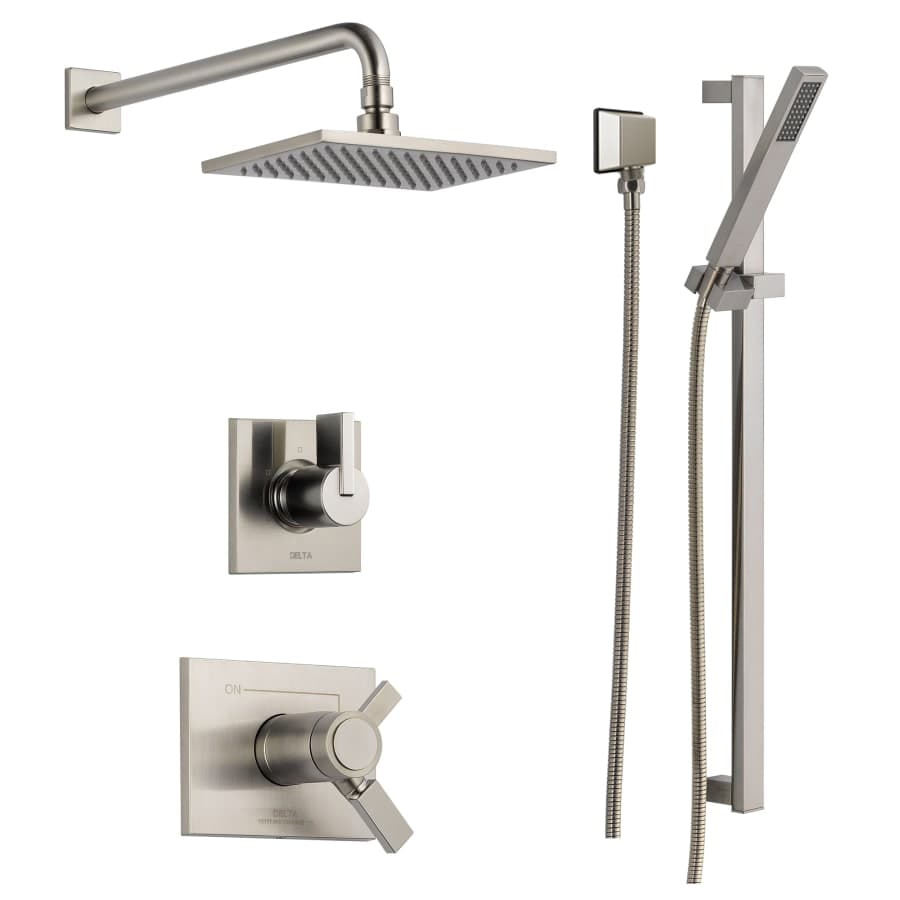

Delta Vero DSS-Vero-17T01 Shower System Includes:
Vero 17T Series Shower Set (T17T253)
Vero 3 Setting Diverter (T11853)
Hand Shower Set with 24″ Slide Bar and 69″ Hose (57530)
Wall Supply Elbow / Wall Union (50570)
Mixing Rough-In Valve (R10000-UNWSHF) Shower Only NO Tub Outlet
Diverter Rough-in Valve (R11000)
Do you like this Delta shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Delta shower.
Delta Vero DSS-Vero-17T01 Shower System Features:
Covered under Delta’s Limited Lifetime Faucet and Finish Warranty
Thermostatic Operation for Precise Temperature Control
Dual Function: Handle Adjusts Volume; Dial on Handle Controls Temperature
TempAssure Valve Keeps Water Temperature to +/-3°F
3 Setting 2 Port Diverter: 2 Individual Positions, 1 Shared Position
Note: the RIGHT side diverter port MUST be capped
Touch-Clean Full Body Spray Raincan Showerhead
Touch-Clean Single Function Hand Shower
24″ Slide Bar with Adjustable Slide Hand Shower Holder
69″ Long UltraFlex Hose in Matching Finish
Square Wall Elbow (1/2″ IPS Inlet, 1/2″ IPS Outlet)
Integrated Service Stops on Mixing Rough-In Valve
Delta DSS-Vero-17T01 Delta Shower System Specifications:
Shower Trim Dimensions: 7-3/32″W x 5-19/32″H
Diverter Trim Dimensions: 4-1/2″W x 4-1/2″H
Hand Shower Dimension: 7-7/8″H
Shower Head Dimension: 8-5/8″W
Slide Bar Dimensions: 24″H x 1-3/8″D
Wall Elbow Dimensions: 2-1/8″W x 2-1/8″H x 1-1/16″D
Shower Arm Flange Dimensions: 2″W x 2″H
Shower Arm Dimension: 16″
Shower Head Flow Rate: 2.5 gpm @ 80psi
Hand Shower Flow Rate: 1.75 gpm @ 80 psi
Rough-In Valve Flow Rate: 9.4 gpm @ 60 psi
Why Buy Delta Vero DSS-Vero-17T01 From Us:
We are a Delta Preferred Authorized Online Dealer for Guaranteed Warranty Coverage
Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
A Showroom Experience from the Comfort of Your Home or Office
Delta Vero DSS-Vero-17T01 Shower Systems Technologies / Benefits:
Touch Clean: Delta offers showers equipped with Touch Clean soft, rubber nubbins (spray holes) that allow you to easily wipe away calcium and lime build-up with the touch of a finger. This is particularly helpful for areas with hard water.
TempAssure: Delta’s higher-end dual function TempAssure thermostatic valve cartridges work like a thermostat. They use a wax and spring configuration to measure and monitor the temperature of the water and automatically adjust the hot/cold mix to precisely maintain water temperatures within a safe +/- 3°F.
MultiChoice Valve:Â Flexibility is the big benefit of the MultiChoice Universal Valve. Once the MultiChoice rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.
Integrated Volume Control: This Smart Feature provides separate controls for the temperature and volume on one trim plate, allowing you to set the temperature and keep it consistent shower after shower.
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Vero Collection
Specifications
| Manufacturer Warranty | Limited Lifetime Residential |
| Approved for Commercial Use | Yes |
| Collection | Vero |
| ADA | Yes |
| CA Drought Compliant | No |
| Material | Brass |
| Thermostat | Modern |
| Handle Material | Metal |
| Handle Style | Lever |
| Faucet Type | Shower System |
| Insulation Type | Wall Mounted |
| Number Of Handles | 3 |
| Valve Type | Thermostatic |
| Showerhead | Single Function |
| Showerhead Shape | Square |
| Spray Settings | 1 |
| Handshower | Single Function |
| Pause Control | No |
| Scald Guard | Yes |
| Spray Pattern | Full |
| Flow Rate (GPM) | 2.5 |
| Hose Length | 69 in. |
| Shower Arm Reach | 16 in. |
| Showerhead Width | 8.656 in. |
| Valve Included | Yes |
| Diverter Included | Yes |
| Volume Control | Yes |
| Handshower Included | Yes |
| Bodysprays Included | No |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Wall Supply Included | Yes |
| Shower Head Included | Yes |
| Color | Brilliance Stainless, Champagne Bronze, Chrome, Venetian Bronze |
