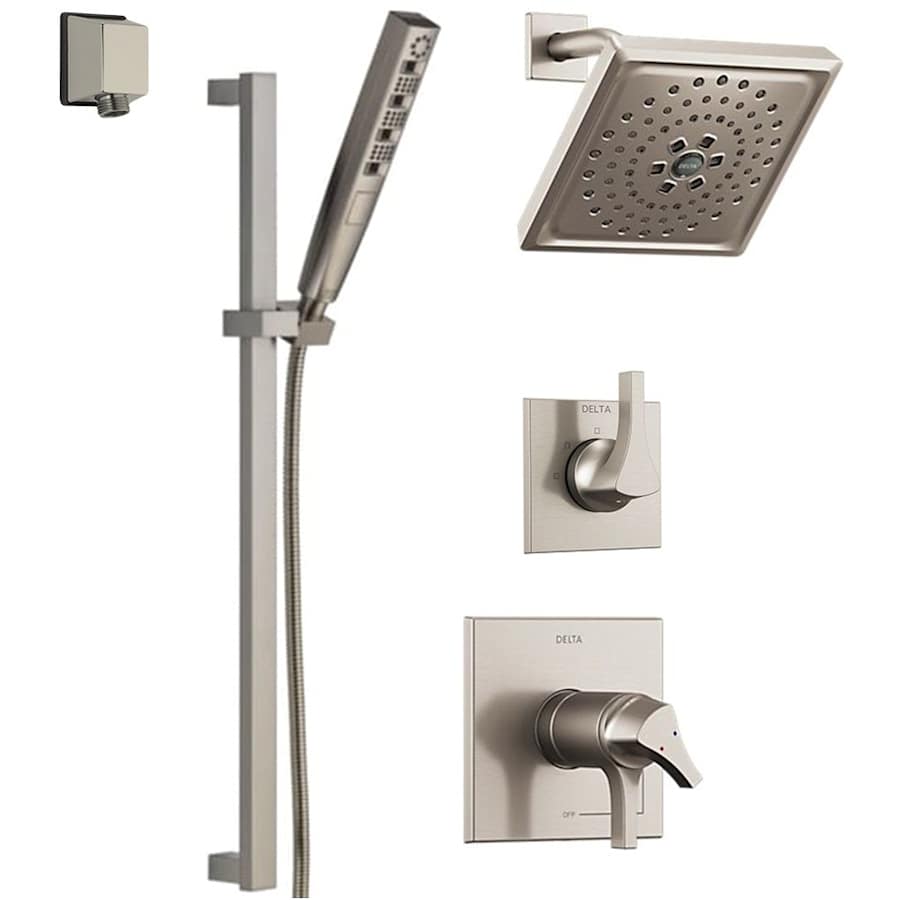

Delta DSS-Zura-1701 Shower System Includes:
Zura 17Â Series Shower Set (T17274)
Zura 3Â Setting Diverter (T11874)
Hand Shower Set with 24″ Slide Bar and 69″ Hose (51140)
Wall Supply Elbow / Wall Union (50570)
Mixing Rough-In Valve (R10000-UNWSHF)Â Shower Only NO Tub Outlet
Diverter Rough-in Valve (R11000)
Delta DSS-Zura-1701 Features:
Covered under Delta’s limited lifetime residential and 5 year limited commercial warranty
Dual Function Pressure Balanced Valve Cartridge
Separate Metal Lever Volume and Temperature Controls for Maximum Comfort
Handle Adjusts Volume; Dial on Handle Controls Temperature
Monitor Scald-Guard Valve Keeps Water Temperature to +/-3°F
3 Setting 2 Port Diverter: 2 Individual Positions, 1 Shared Position
Optional non shared cartridge available RP71717
Note: the RIGHT side diverter port MUST be capped
26-15/16″ slide bar included
Matching hand shower with pause control and 60″ – 82″ hose
Thermostatic rough-in valve with scald guard
High quality finish – will resist rust and corrosion through everyday use
Delta DSS-Zura-1701 Technologies and Benefits:
MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.
H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.
Valve Trim Specifications:
Features integrated volume control
Features a pressure balanced valve with Delta MultiChoice technology
Swinging temperature dial allows for pin-point water control
Rough-in valve is included with this package
Valve Trim Height: 6-9/16″ (bottom to top)
Valve Trim Width: 6-9/16″ (left to right)
Shower Head Specifications:
Multi function shower head features full spray, pauce control, and H2Okinetic spray patterns
Shower Head Flow Rate: 1.75 gallons-per-minute
Shower Head Height: 3-3/16″ (spray nozzles to connection outlet)
Shower Head Width: 7-5/8″ (left to right)
Hand Shower Specifications:
Hose Length: 60″ – 82″
Hand Shower Flow Rate: 1.75 gallons-per-minute
Shower system includes wall supply for hand shower
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Zura Collection
Specifications
| Material | ABS, Brass, Plastic |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Handle Material | Metal |
| Diverter Location | Wall Mounted |
| Handle Style | Lever |
| Number Of Handles | 3 |
| Valve Type | Pressure Balanced |
| Spray Pattern | Full, Drench, Pause, Massage |
| Spray Settings | 3 |
| Water Efficient | No |
| Water Connection Type | NPSM, NPT |
| Faucet Type | Shower System |
| Showerhead | Multi Function |
| Showerhead Shape | Square |
| Pause Control | Yes |
| Scald Guard | Yes |
| Certifications | ASME, CSA |
| Collection | Zura |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| CA Drought Compliant | No |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| WaterSense Certified | No |
| Low Lead Compliant | No |
| Installation Hardware Included | Yes |
| Diverter Included | Yes |
| Integrated Diverter | No |
| Valve Included | Yes |
| Volume Control | Yes |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Shower Arm Included | Yes |
| Handshower Included | Yes |
| Shower Head Included | Yes |
| Tub Spout Included | No |
| Valve Trim Included | Yes |
| Bodysprays Included | No |
| Wall Supply Included | Yes |
| Flow Rate (GPM) | 1.75 |
| Hose Length | 82, 60 in. |
| Water Connection | 1/2" |
| Handshower Flow Rate | 1.75 |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Width | 7.625 in. |
| Valve Trim Height | 6.5625 in. |
| Valve Trim Width | 6.5625 in. |
| Showerhead Height | 3.1875 in. |
| Slide Bar Height | 26.9375 in. |
| Color | Brilliance Polished Nickel |
