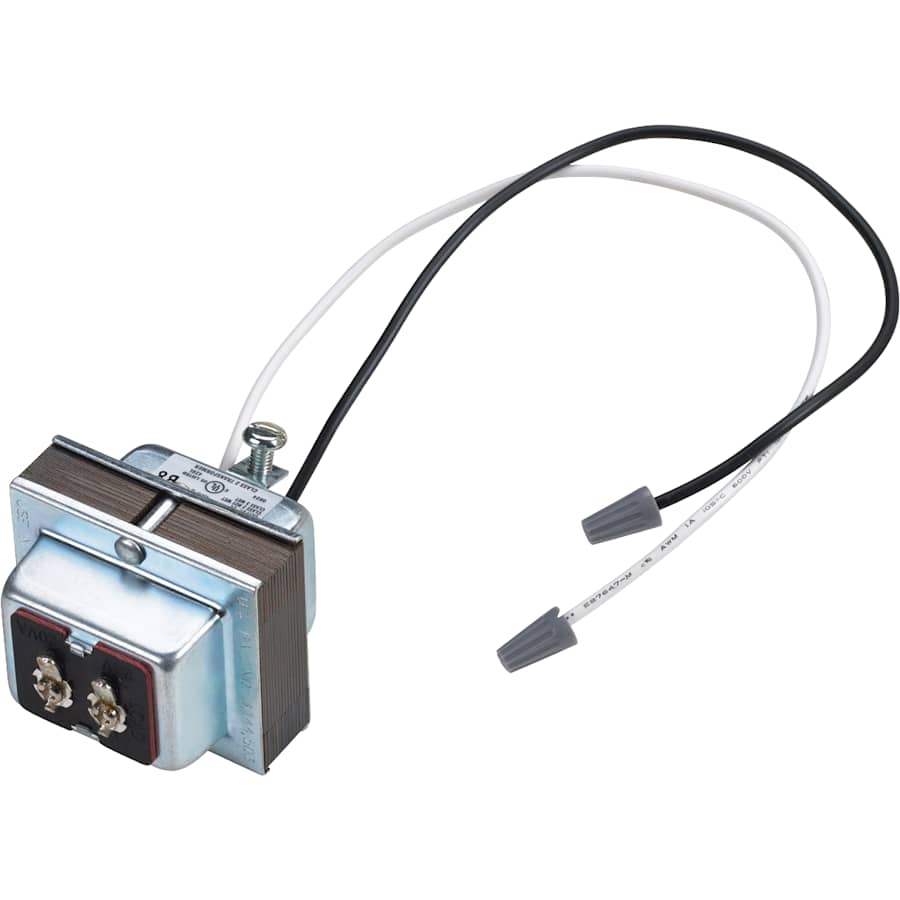

Delta 20 V Hardwire Transformer for Electronic Hardwire Faucets from the Commercial Series

20 V Hardwire Transformer for Electronic Hardwire Faucets from the Commercial Series
20VA Hard Wire Transformer for up to two 1000T or 2000T series Electronic Valves, OR up to ten 590 series Electronic Hard Wire Faucets OR up to ten 81THW series Electronic Flush Valves, OR up to five 3000T series
110/24 VAC Class II General: Supplies power for up to 10 Delta 500 Series electronic units already converted to hard wire
Input Voltage: 120 VAC @60 Hz
Output Voltage (unloaded): 24 VAC ±3%@20 VA
Current Draw: 800 MA
Operating Temperature Range: 130 °C Maximum Temperature
Physical Connections: Universal Mounting Clip
Wire Size: #18 AWG
Wire Length: 11.75″
Wire Ends: Stripped (Black/White)
Terminals: Screw Type #6 Universal Pan Head
