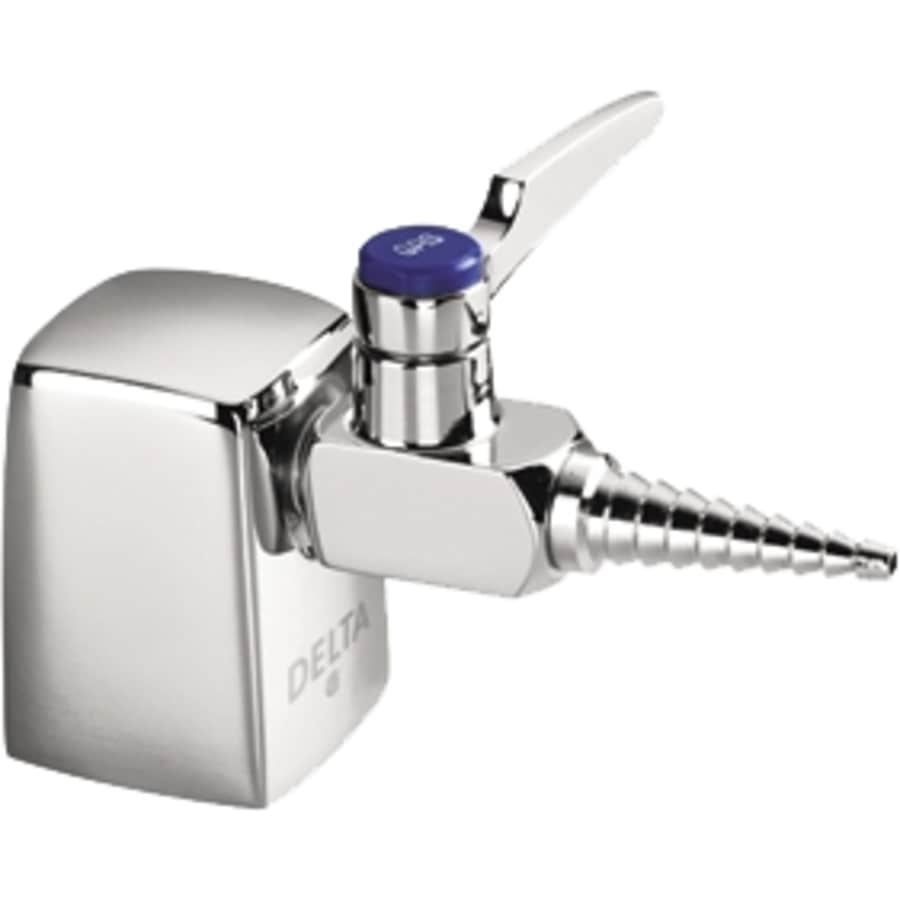

Delta 3/8 Inch 90 Degree Single Ball Valve with GAS Indexed Handle for Natural Gas from the Commercial Series

3/8″ 90 Degree Single Ball Valve with GAS Indexed Handle for Natural Gas from the Commercial Series
Ball valve hose cock (s)
Floating ball-type design
Universal 10 serration vandal resistant nozzle with 3.2mm (1/8″) outlet -removable with flat on one side
Forged brass non-removable vandal resistant handle (ADA compliant) -obvious on/off positions
O-ring seals
Check piston located in nozzle to prevent contamination of service lines and valve sealing surfaces (with exception of vacuum service)
Rated to maximum 125 psi testing pressure
Colored index button to suit desired service
Maintenance free- no need to regrease sealing surfaces or take valve apart
10 year warranty-every ball valve carries its date of manufacture on the underside of the body
Use of this ball valve above 40 psi requires special clamping procedures by others to ensure that any hoses attached to nozzle do not blow off
Single ball valve, 3/8″ M.I.P. inlet
Chrome Finish
