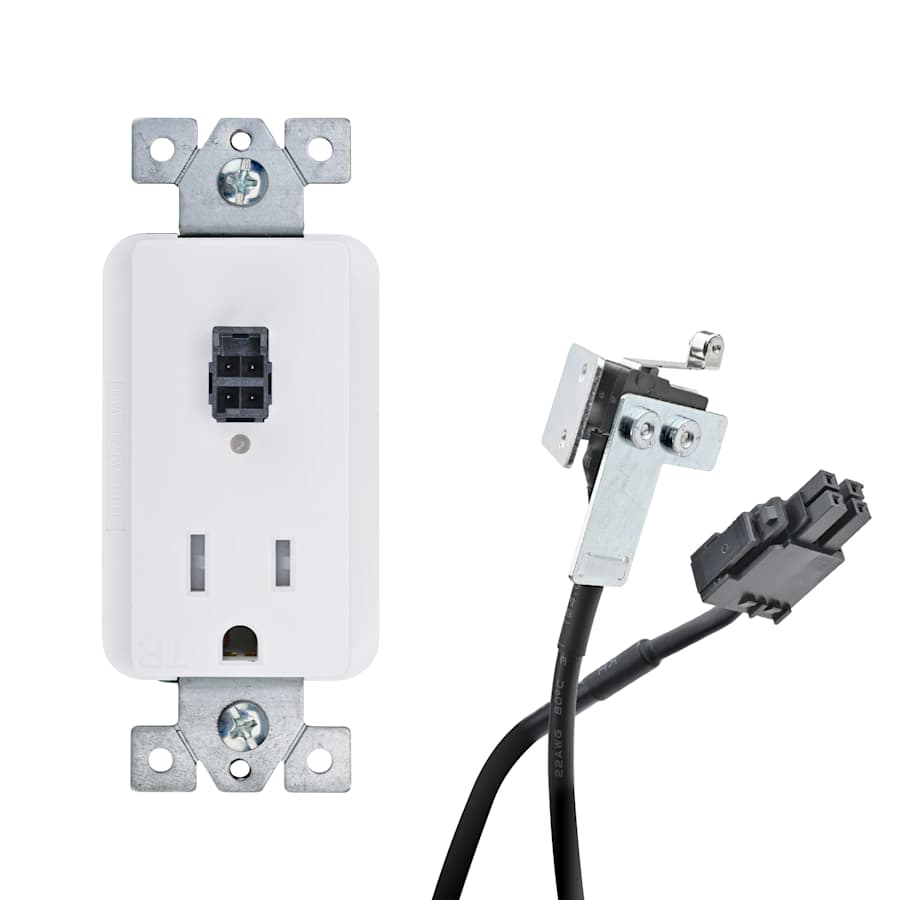

Docking Drawer Safety Interlock Outlet with Blade Limit Drawer Switch 15A

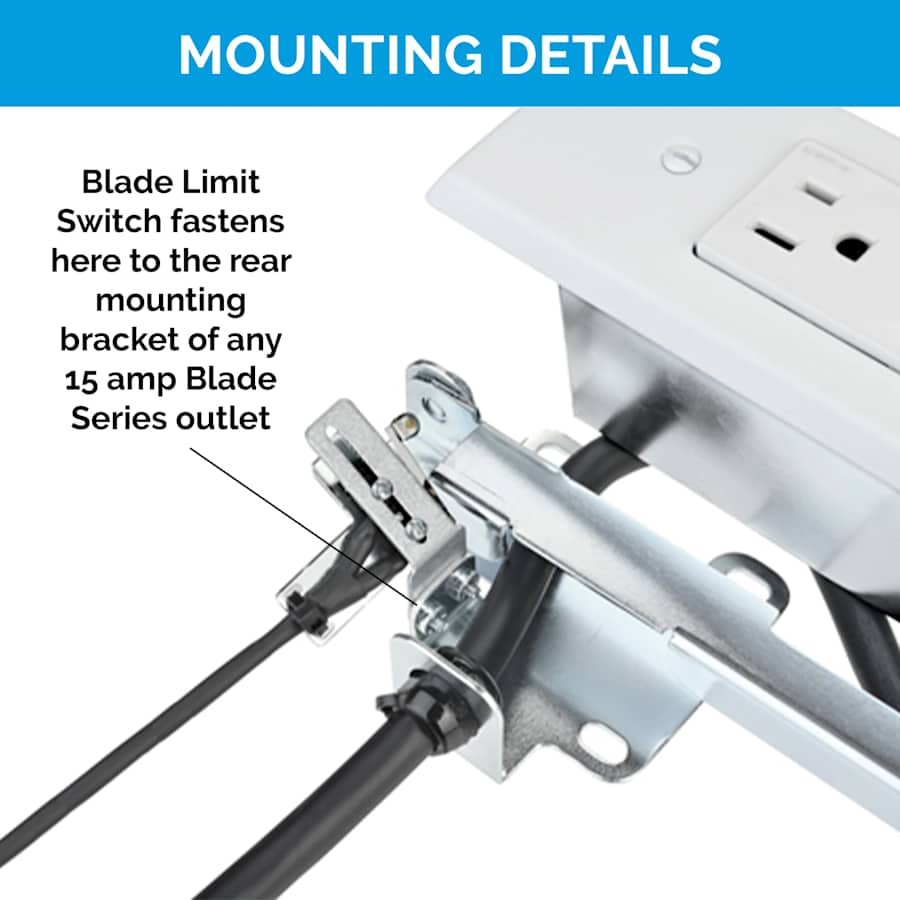

The Blade Series Limit Switch mounts to any 15 amp Docking Drawer Blade Series outlet to detect the drawer position and will de-energize the outlet when the drawer starts to close, adding an extra layer of safety to installations in the US and satisfying the requirements of the Canadian Electrical Code.

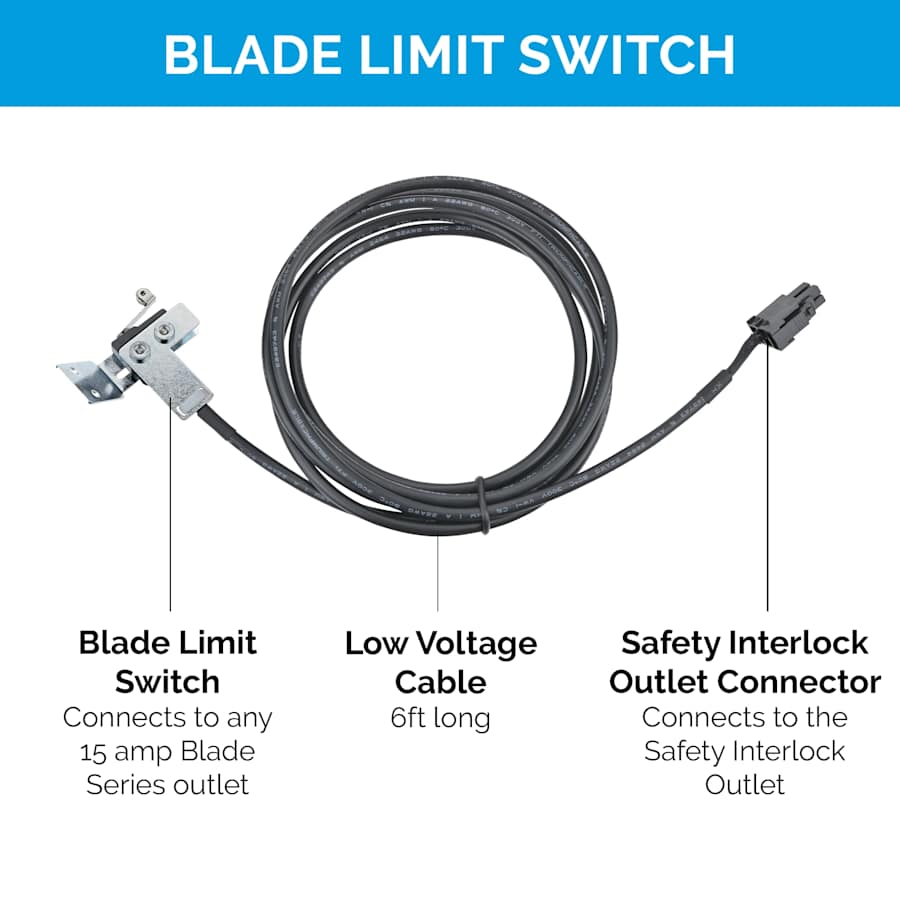

Blade Series Limit Switch mounts to any 15 amp Docking Drawer Blade Series outlet to detect the drawer position and will de-energize the outlet when the drawer starts to close.
Works with all 15amp Docking Drawer Blade Duo and Blade series in-drawer outlets
Input – 100 – 125 VAC, 50/60 Hz
AC Output – 15A@125VAC, 1875 VA MAX
DC Output – 24VDC @ 100mA MAX
Conformance – UL60730, UL498, EN 61558, EN60730, EN62386
Tamper Resistant
ETL Listed for use in the US and Canada and satisfies the requirements of the Canadian Electrical code.
