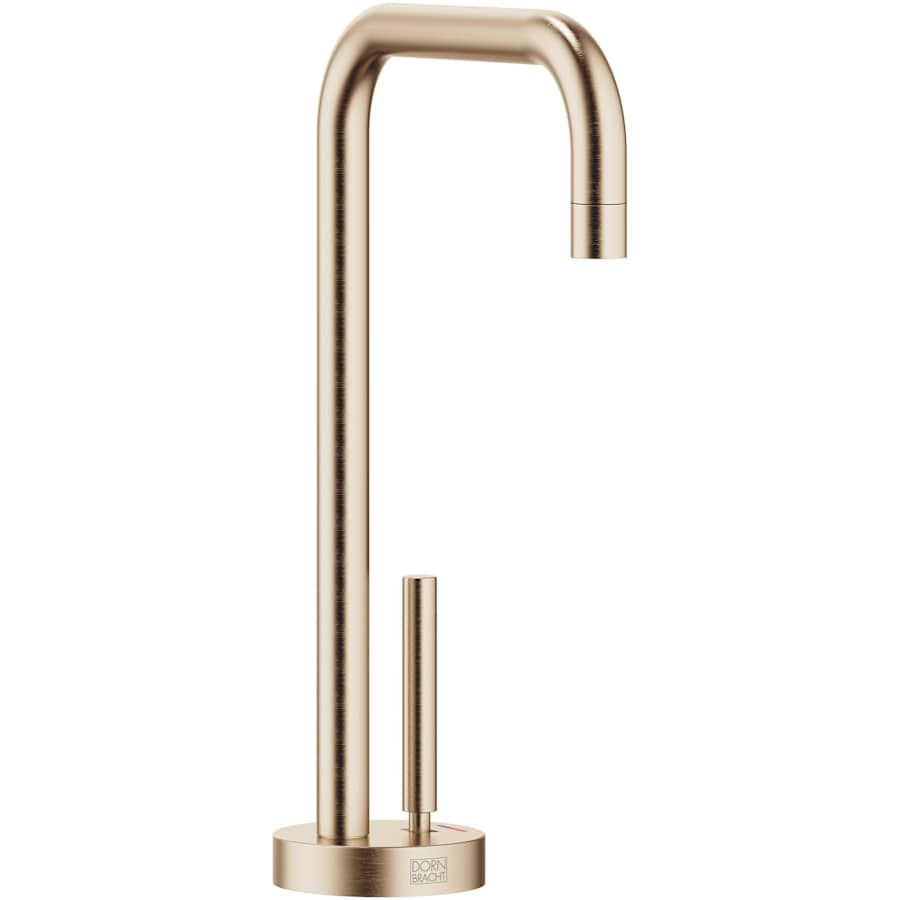

Dornbracht 17861625 Features:
Laminar stream
Rigid, thermally insulated spout
Coordinates with products from the Meta Square line
Compatible with Insinkerator hot water tank
It is recommend replacing the filter cartridge every six months
Installation must be above a kitchen sink
Fixed spout will remain in only one position with no movement
Single lever handle controls the flow and temperature of water
Electronic valve
Plug in power supply included with country specific adaptor set
Includes cartridge
Provides filtered hot water with 199 degree max temperature
Provides filtered, cold water (not chilled)
Low lead compliant
Dornbracht 17861625 Specifications:
Height: 9-3/4″ (deck to top of faucet)
Spout Height: 7-1/4″ (deck to spout outlet)
Spout Reach: 5-3/4″ (center of faucet body to center of spout outlet)
Flow Rate: 0.5 gallons-per-minute
Faucet Holes: Single Hole
Faucet Hole Size: 1-3/8″
Max Deck Thickness: 2″ (from deck bottom to top of deck)
Additional Dornbracht Links
View the Manufacturer Warranty
Browse all Dornbracht Products
Dornbracht Meta Square Collection
Specifications
| Thermostat | Modern |
| Valve Type | Solenoid |
| Handle Material | Metal |
| Handle Style | Lever |
| Faucet Holes | 1 |
| Number Of Handles | 1 |
| Spout Type | Fixed |
| Dispenser Type | Hot and Cold |
| Height | 9.75 in. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 0.5 |
| Faucet Hole Size | 1.375 in. |
| Max Deck Thickness | 2 in. |
| Spout Height | 7.25 in. |
| Spout Reach | 5.75 in. |
| Country Of Origin | Germany |
| Collection | Meta Square |
| ANSI Certification | 372, 61 |
| Certifications | AMSE, ANSI, CSA, NSF |
| ADA | Yes |
| Low Lead Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Handshower Included | Yes |
| Valve Included | Yes |
| Filtering | Yes |
| Color | Brushed Champagne (22kt Gold), Brushed Chrome, Brushed Dark Platinum, Brushed Durabrass (23kt Gold), Brushed Platinum, Champagne (22kt Gold), Chrome, Dark Chrome, Durabrass (23KT Gold), Matte Black, Platinum |
| Color Tone | Blacks, Brass Tones, Gold Tones, Silver Tones |
