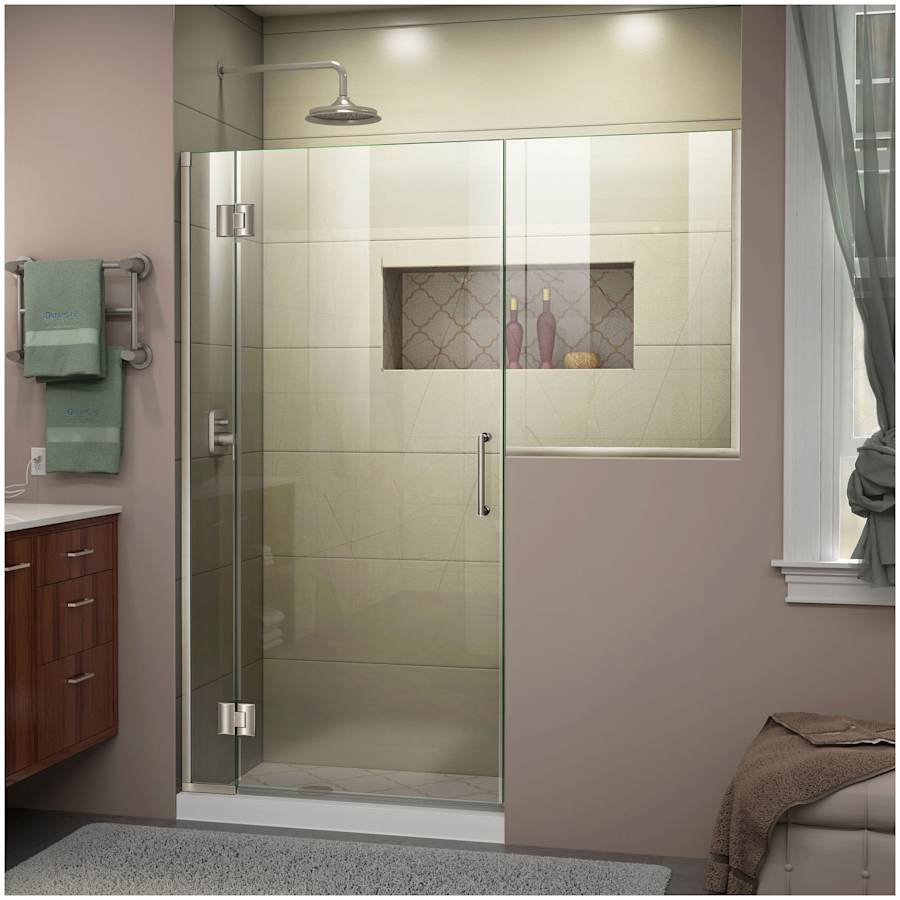

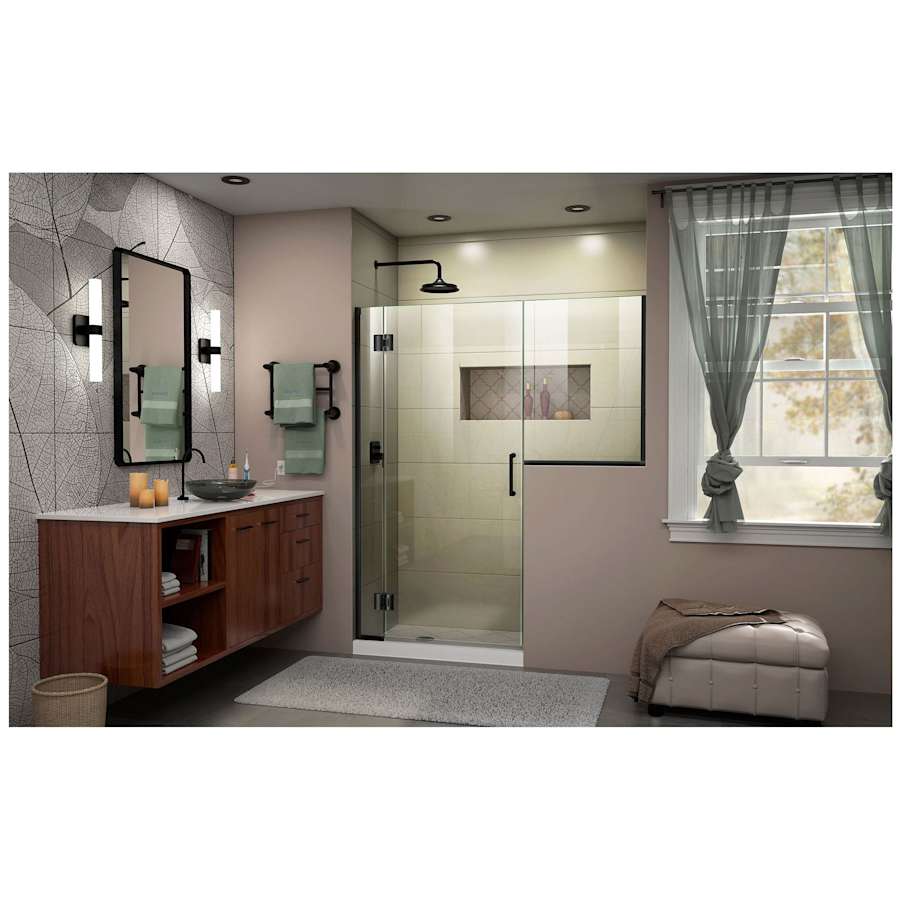

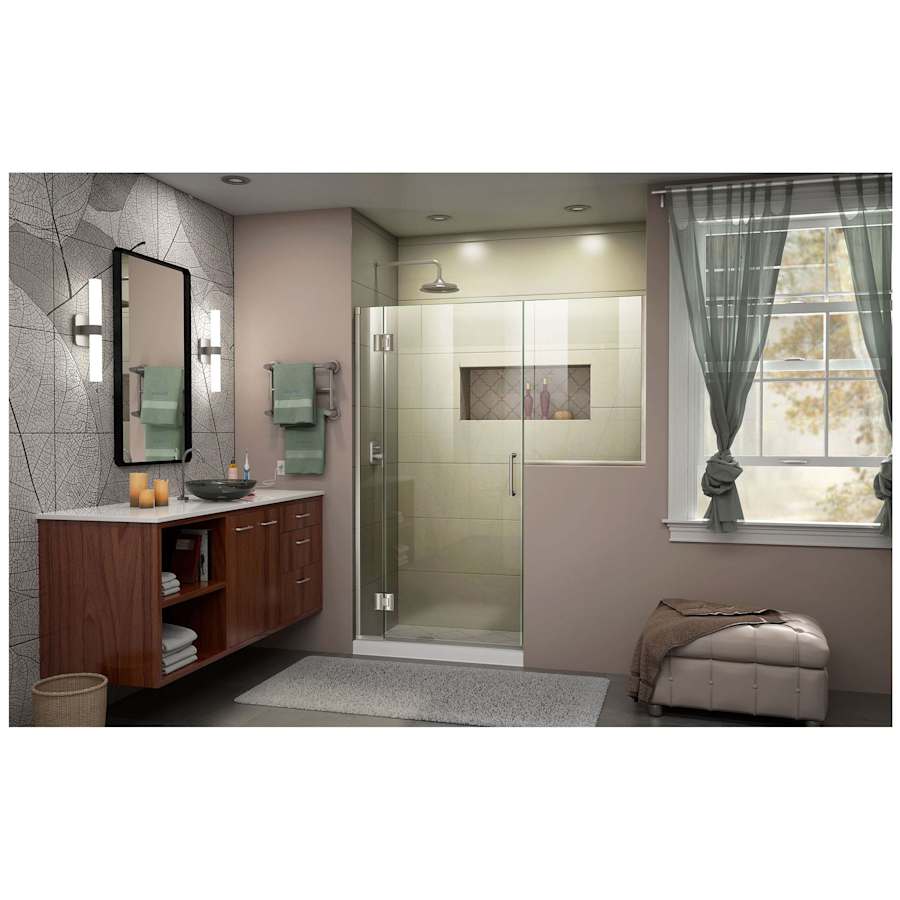

The DreamLine Unidoor-X is a frameless shower door, tub door or enclosure that features a luxurious modern design, complementing the architectural details, tile patterns and the composition of your bath space. Unidoor-X showcases sleek, clean lines to enhance any shower space, creating a stunning appearance. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor-X is part of DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market.
DreamLine D1233636 Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Premium 3/8″ (10 mm) thick clear tempered glass for a luxurious look
Frameless glass design to give an open and airy feel to your shower space

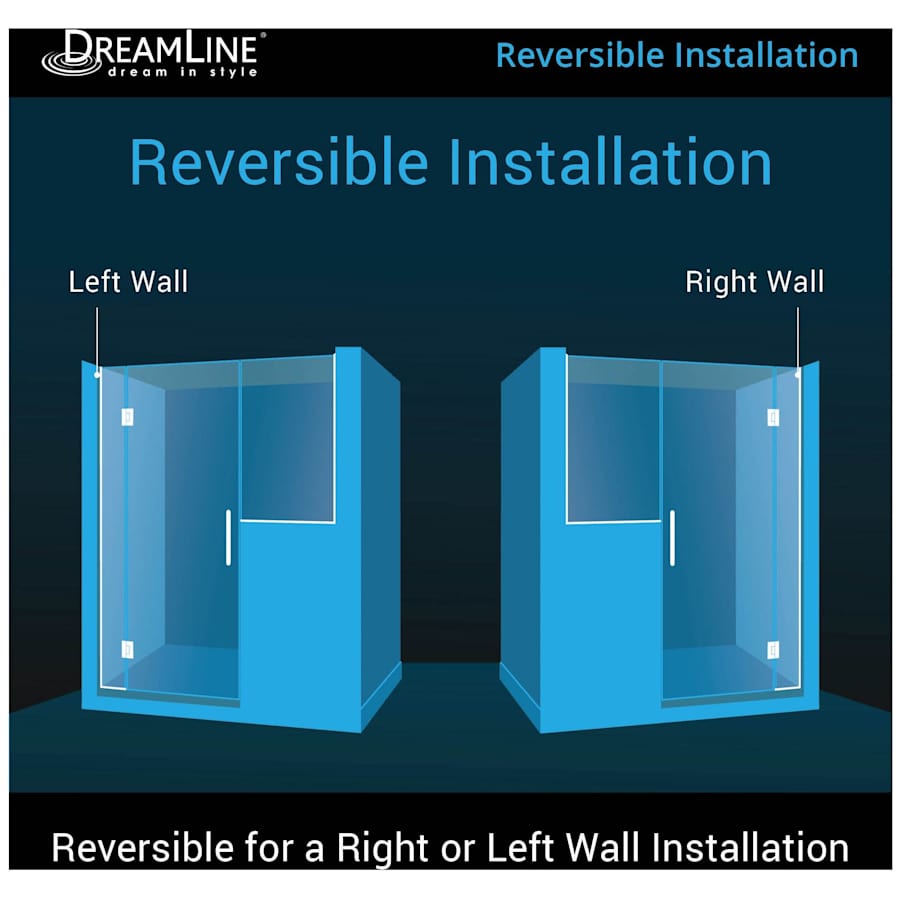

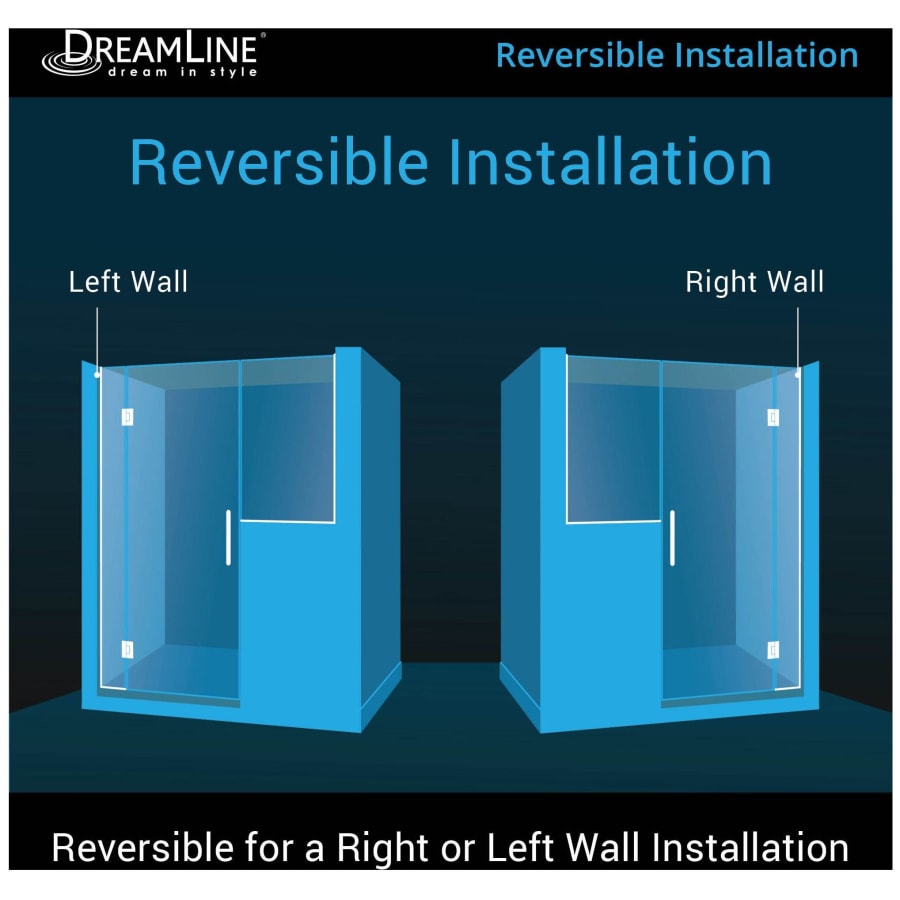

Reversible for left or right wall installation to fit your specific layout
Solid brass glass-to-glass self-closing hinges
Configuration: Hinged panel with attached shower door and inline buttress panel
Model Size: 65 – 65-1/2″ W x 72″ H
Door Walk-In: 22″
Hinged Panel: 6″
Inline Buttress Panel Width: 36″
Glass panels available for buttress wall heights of 36″

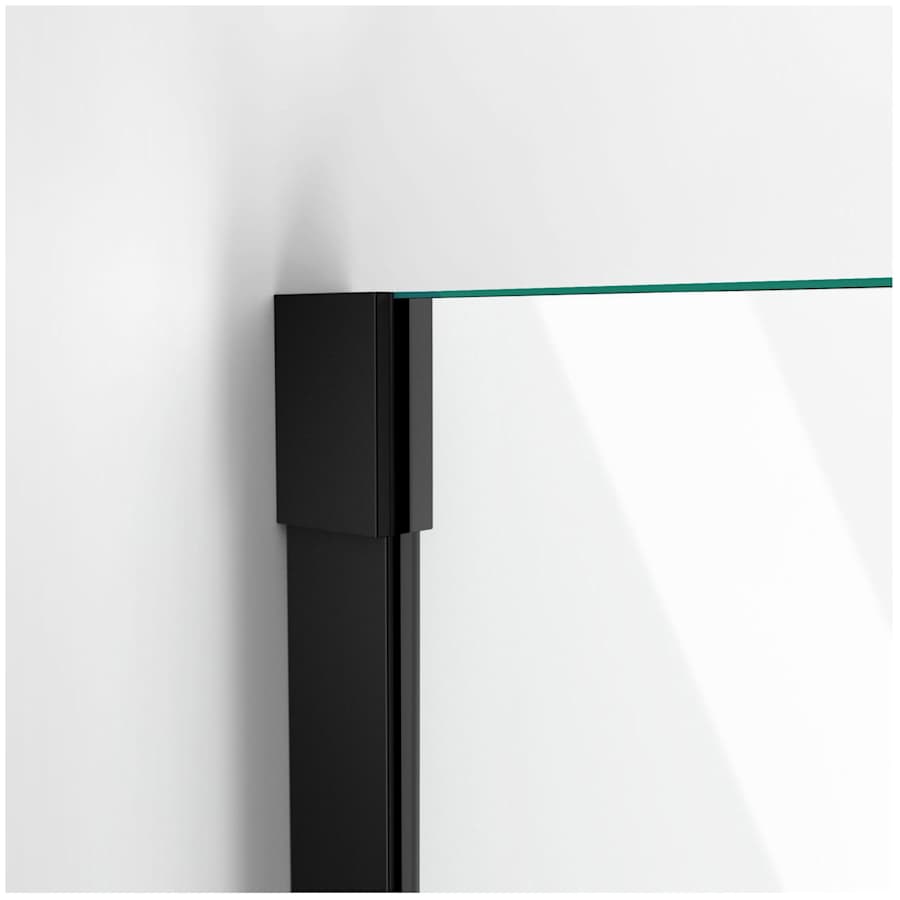

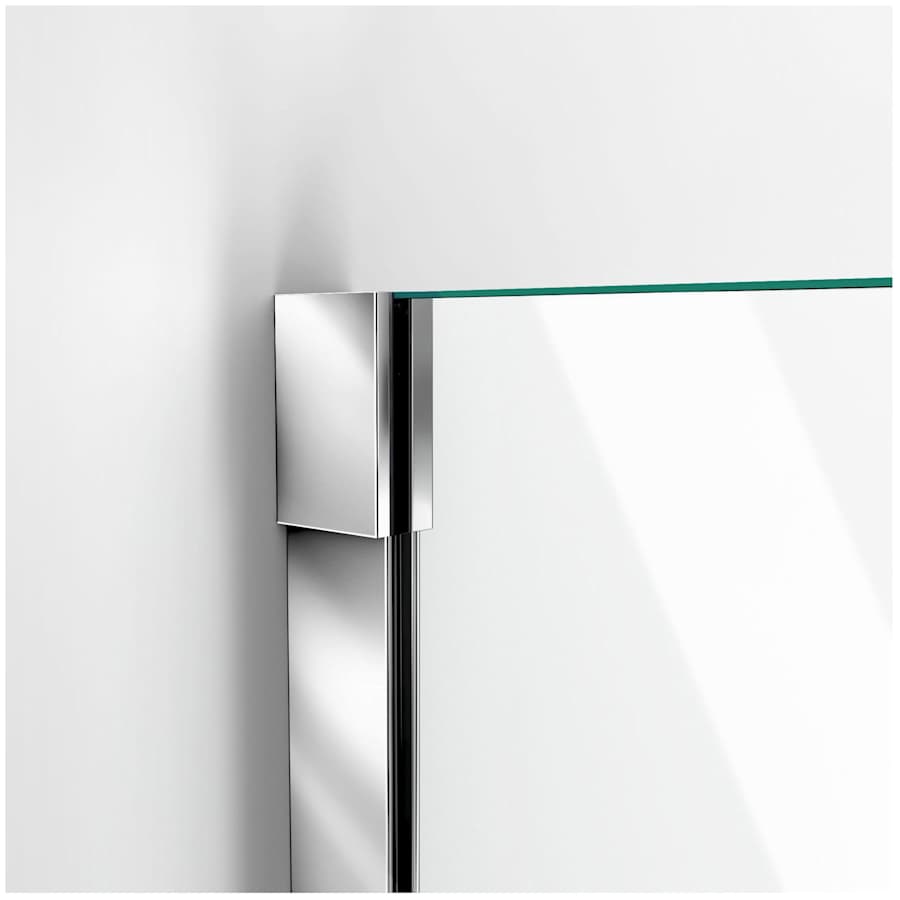

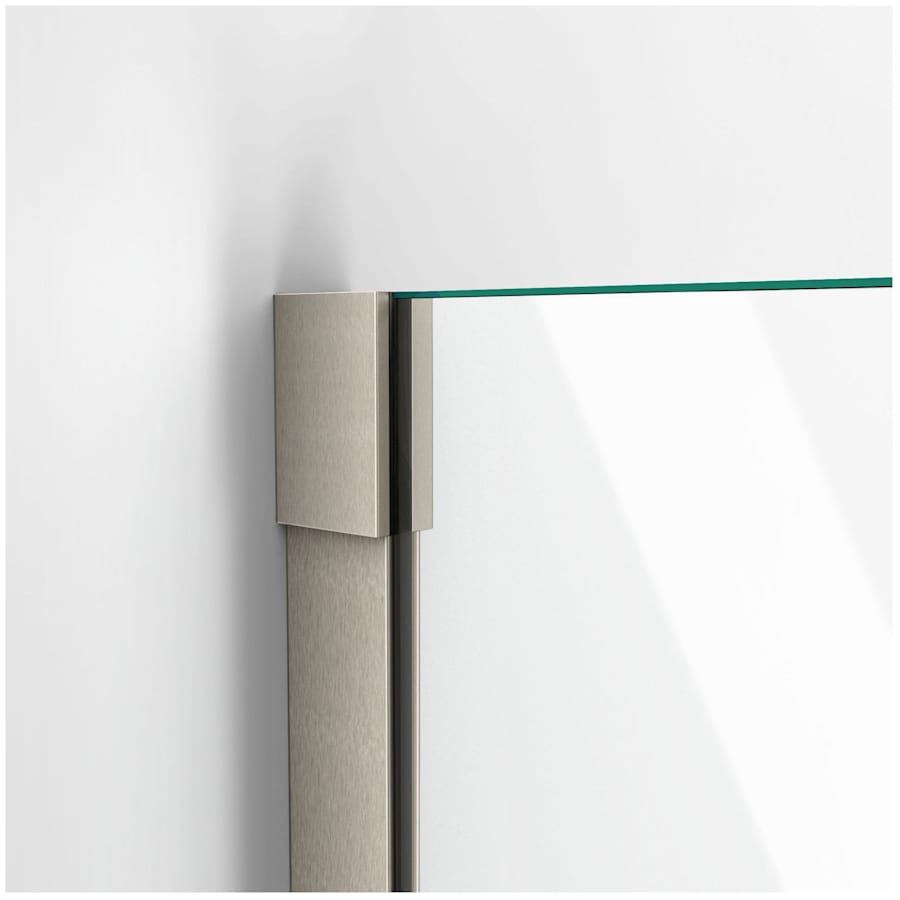

Hinged and inline panels are installed to the wall by 1″ anodized aluminum adjustable U-channel

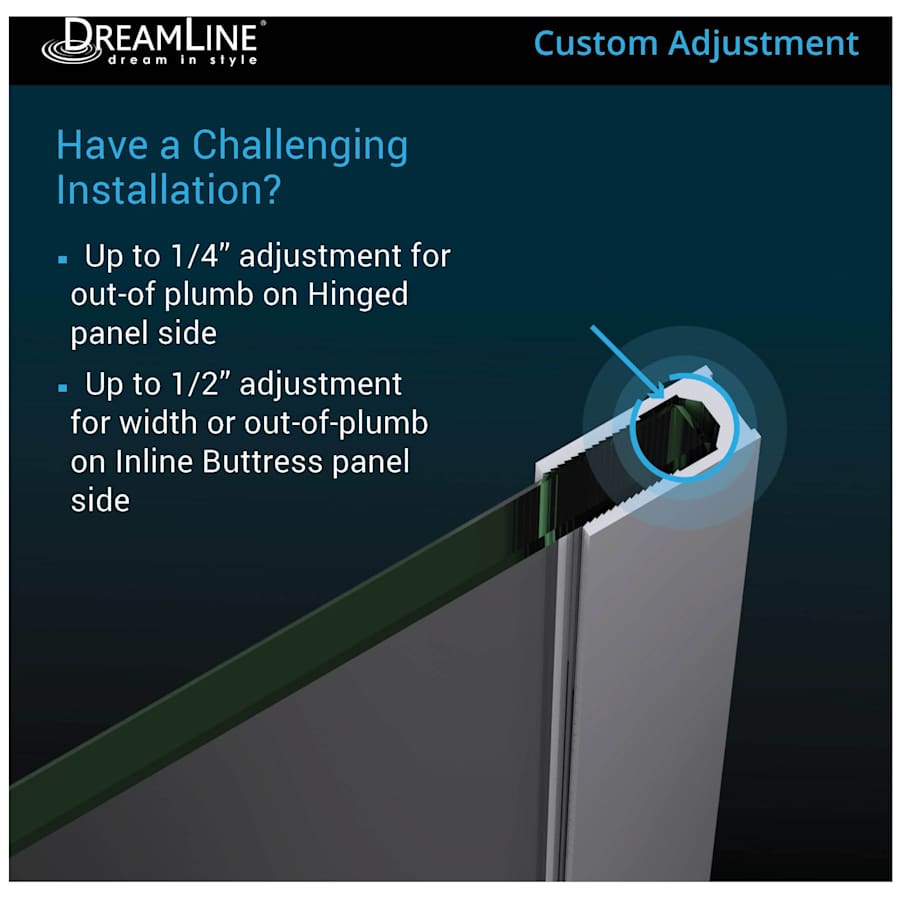

1/4″ out-of-plumb adjustment available on hinged panel side
1/2″ width or out-of-plumb adjustment available on inline panel side
Professional installation recommended
Limited lifetime manufacturer warranty
Warranty for any hardware in oil rubbed bronze finish is limited to 1 (one) year
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor-X Collection
Specifications
| Height | 72 in. |
| Width | 65.5 in. |
| Nominal Width | 65.5 in. |
| Product Weight | 139.77 lbs. |
| Door Width | 22 in. |
| Glass Thickness | .375 in. |
| Maximum Width | 65.5 in. |
| Minimum Width | 65 in. |
| Shower Door Width | 22 in. |
| Panel Width | 36, 6 in. |
| Material | Brass, Tempered Glass |
| Thermostat | Modern |
| Insulation Type | Three Wall Alcove |
| Configuration | Shower Door |
| Door Swing | Reversible, Left, Right |
| Door Type | Hinged |
| Frame Type | Frameless |
| Glass Features | Clear Glass |
| Number Of Doors | 1 |
| Shape | Rectangular |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Collection | Unidoor-X |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| Certifications | ANSI |
| Commercial Warranty | 1 Year Limited |
| Manufacturer Warranty | Limited Lifetime |
| Base Included | No |
| Installation Hardware Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
