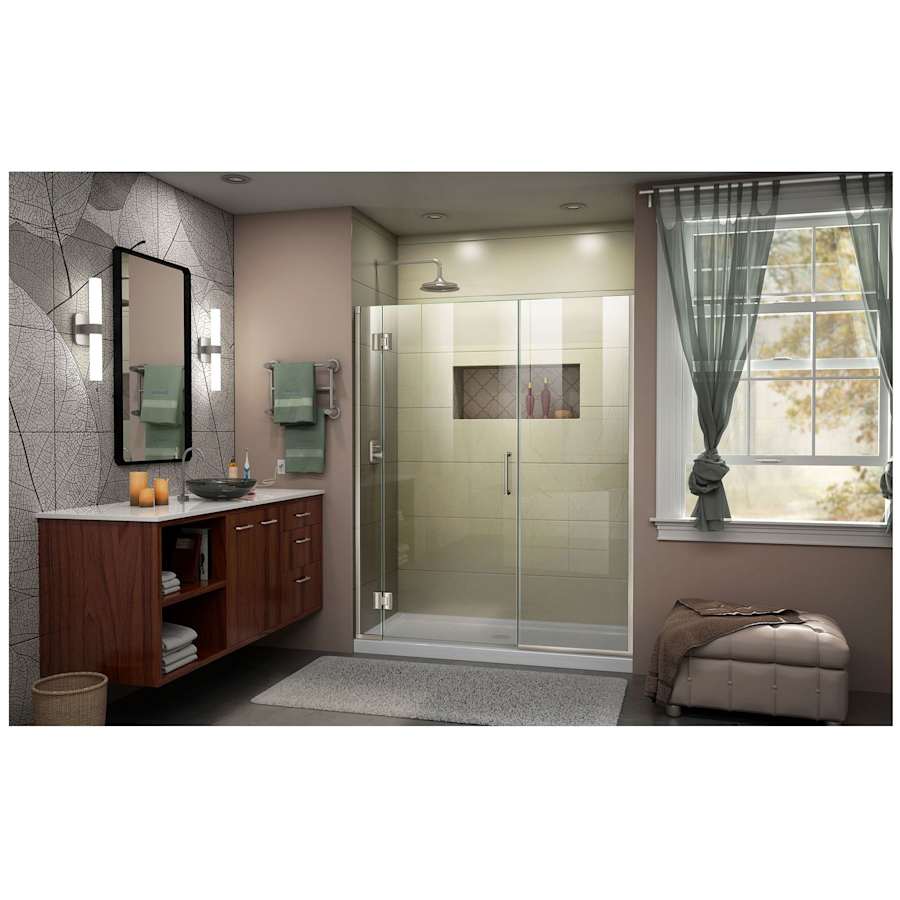

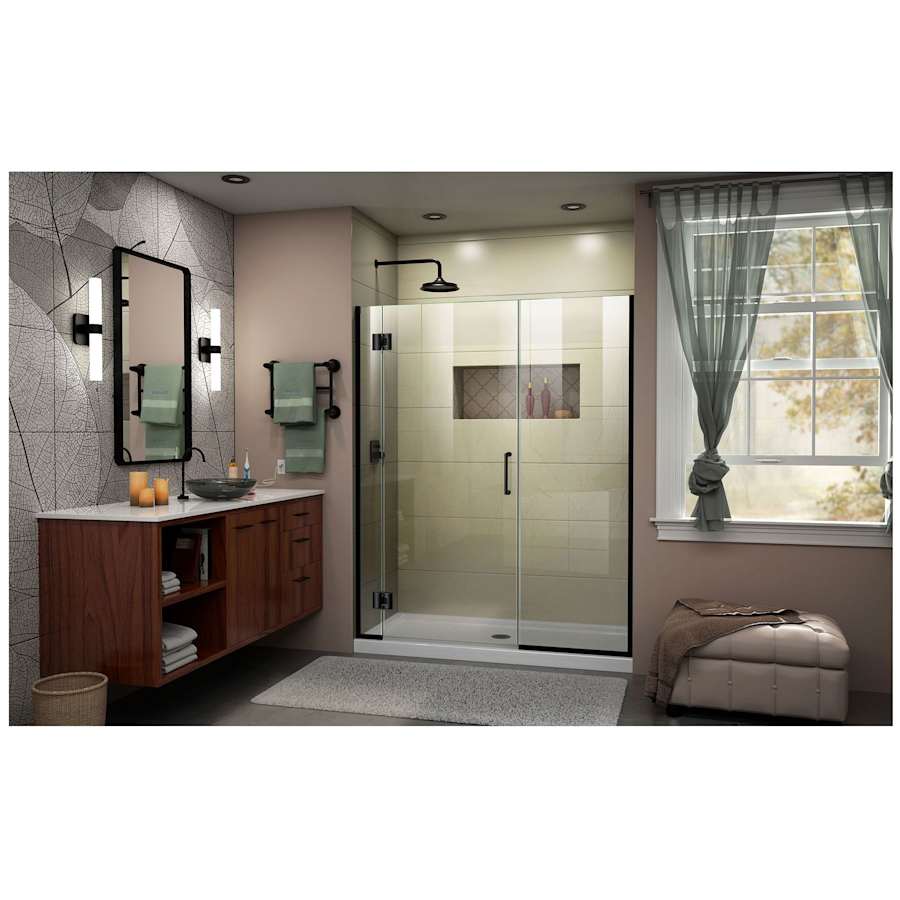

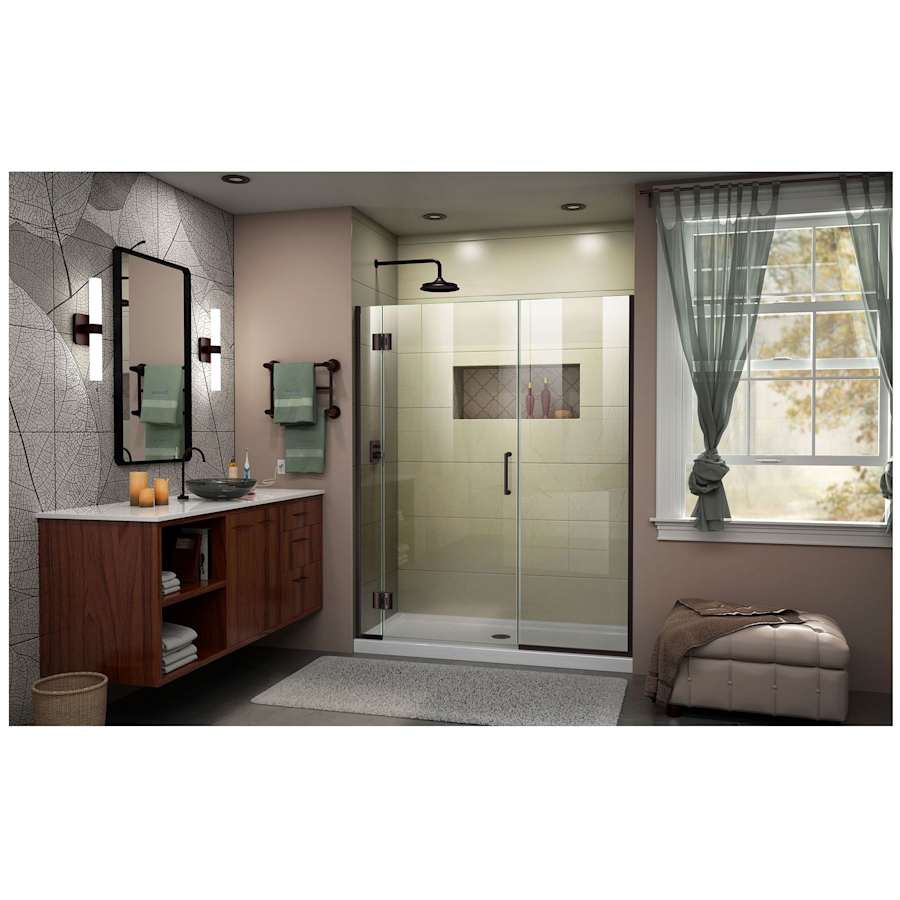

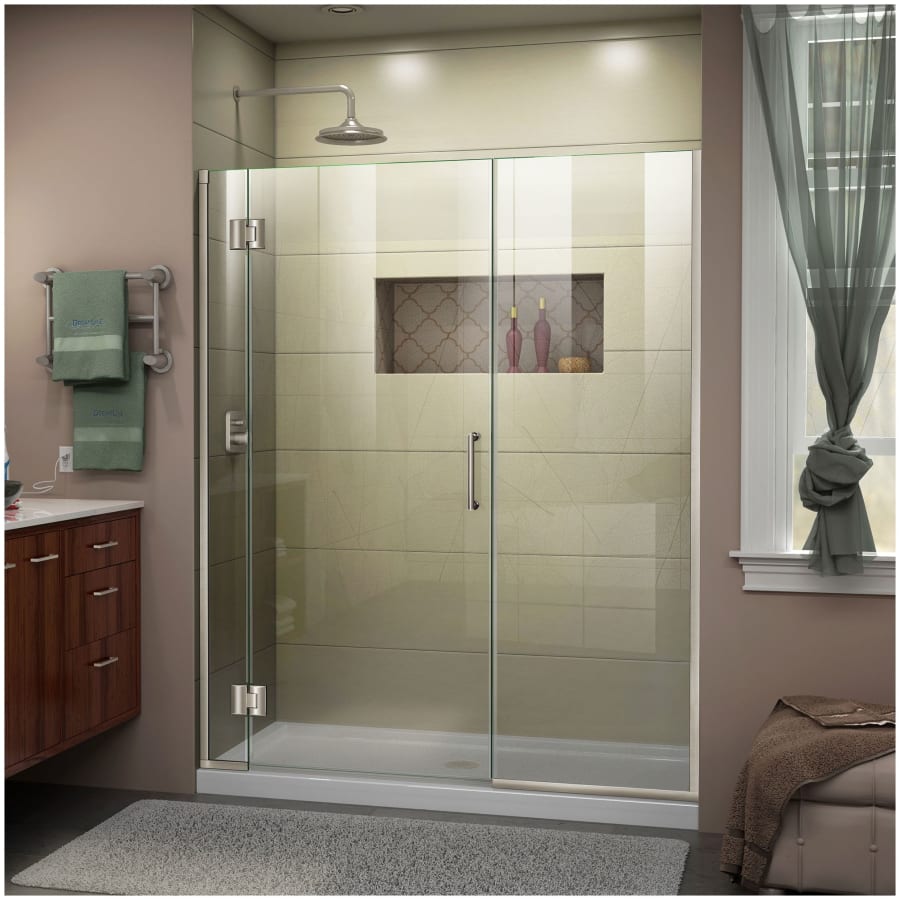

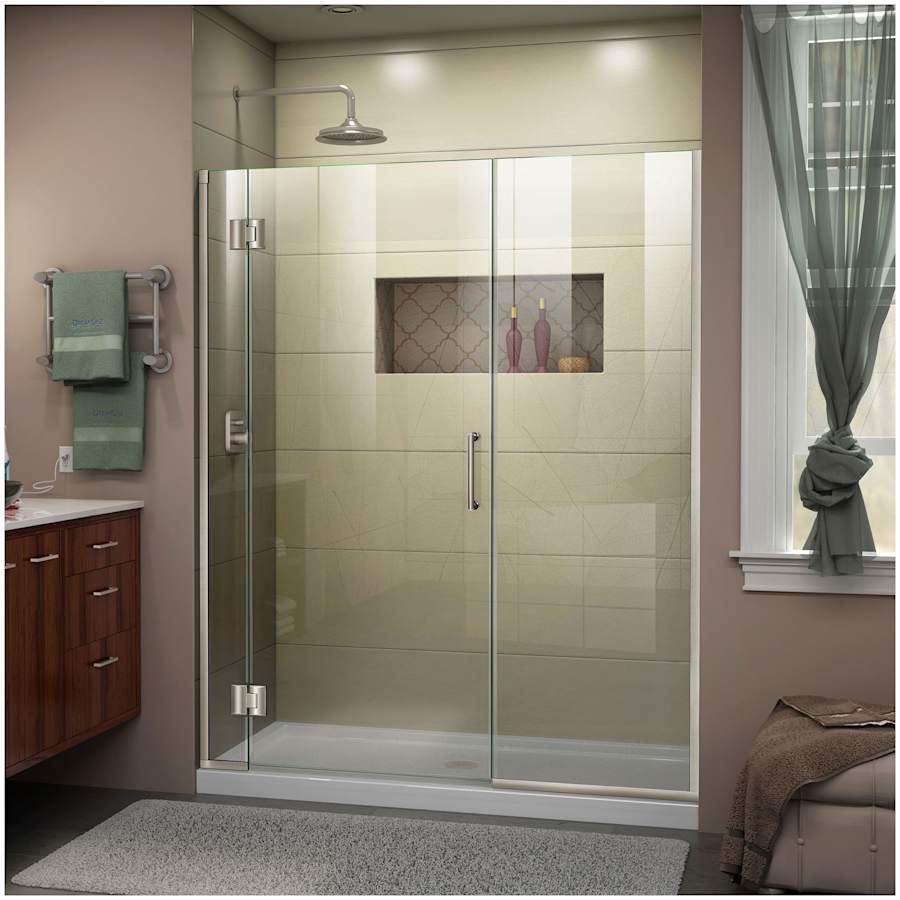

The DreamLine Unidoor-X is a frameless shower door, tub door or enclosure that features a luxurious modern design, complementing the architectural details, tile patterns and the composition of your bath space. Unidoor-X showcases sleek, clean lines to enhance any shower space, creating a stunning appearance. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor-X is part of DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market.
DreamLine D12922572 Features:
Model Size: 57 1/2 – 58 in. W x 72 in. H
Walk-in opening: 28 in.
Configuration: 6 in. Hinged panel with attached Shower Door and 22 1/2 in. Inline panel
Hinged and Inline panels are attached to the wall by 1 in. anodized aluminum U-channel
1/2 in. width or out-of-plumb adjustment available within U-channel on Inline panel side
1/4 in. out-of-plumb adjustment available within U-channel on Hinged panel side

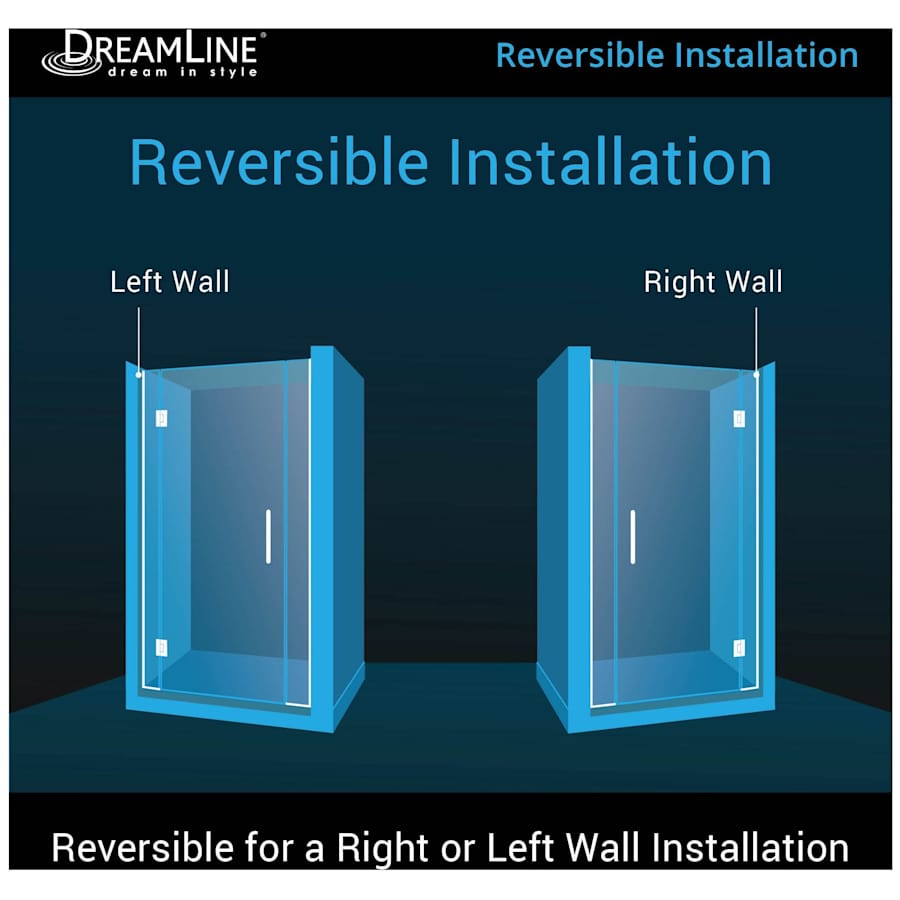

Reversible for a right or left door opening to fit your specific layout
Premium 3/8 in. (10 mm) thick certified clear tempered glass for a luxurious look
DreamLine exclusive ClearMax water and stain resistant glass coating
Frameless glass design to give an open and airy feel to your shower space
Solid brass glass-to-glass self-closing hinges
Pictured SlimLine shower base is not included

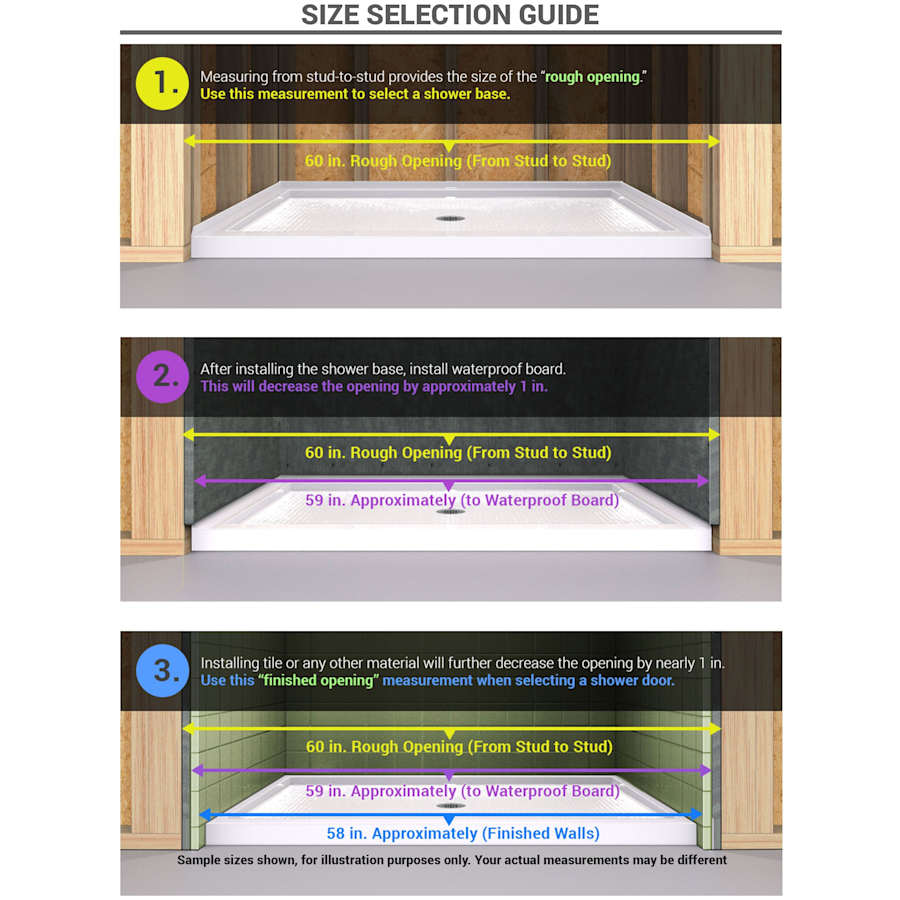

IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)
Professional installation recommended
Lifetime limited manufacturer warranty and three (3) year all hardware finishes warranty
Drilling into the threshold is required for installation of this product
DreamLine D12922572 Specifications:
Overall Height: 72″ (bottom to top of door fixture)
Overall Width: 58″ (left to right of door fixture)
Enclosure Width Range: 57-1/2″ to 58″ (range of enclosure sizes door will accommodate)
Maximum Door Opening: 28″ (assuming door is not trimmed)
Opening Direction: Reversible
Glass Thickness: 3/8″
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor-X Collection
Specifications
| Height | 72 in. |
| Width | 58 in. |
| Nominal Width | 58 in. |
| Product Weight | 166.23 lbs. |
| Glass Thickness | 0.375 in. |
| Maximum Width | 58 in. |
| Minimum Width | 57.5 in. |
| Door Width | 28 in. |
| Shower Door Width | 28 in. |
| Panel Width | 22.5, 6 in. |
| Insulation Type | Three Wall Alcove |
| Material | Brass, Tempered Glass |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Configuration | Shower Door |
| Frame Type | Frameless |
| Shape | Rectangular |
| Door Swing | Left, Reversible, Right |
| Door Type | Hinged |
| Number Of Doors | 1 |
| Number of Thresholds | 1 |
| Number Of Curbs | 1 |
| Curb Location | Front |
| Collection | Unidoor-X |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI |
| Installation Hardware Included | Yes |
| Base Included | No |
| Color | Brushed Nickel, Oil Rubbed Bronze, Chrome, Matte Black |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
