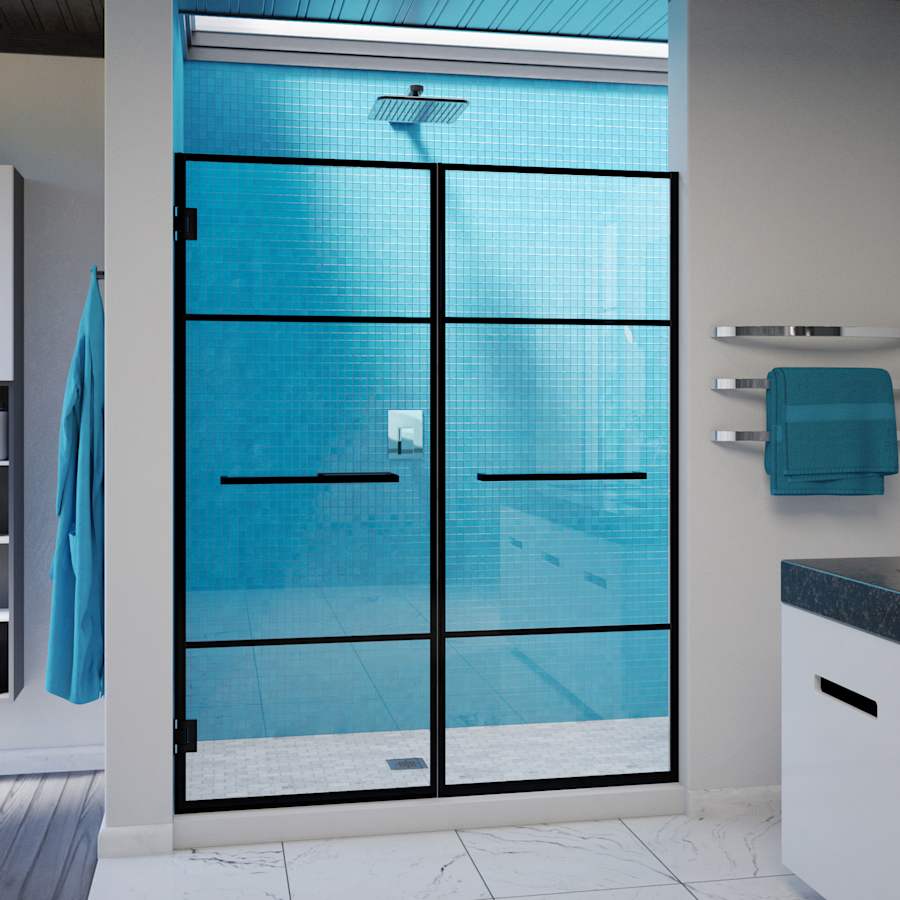

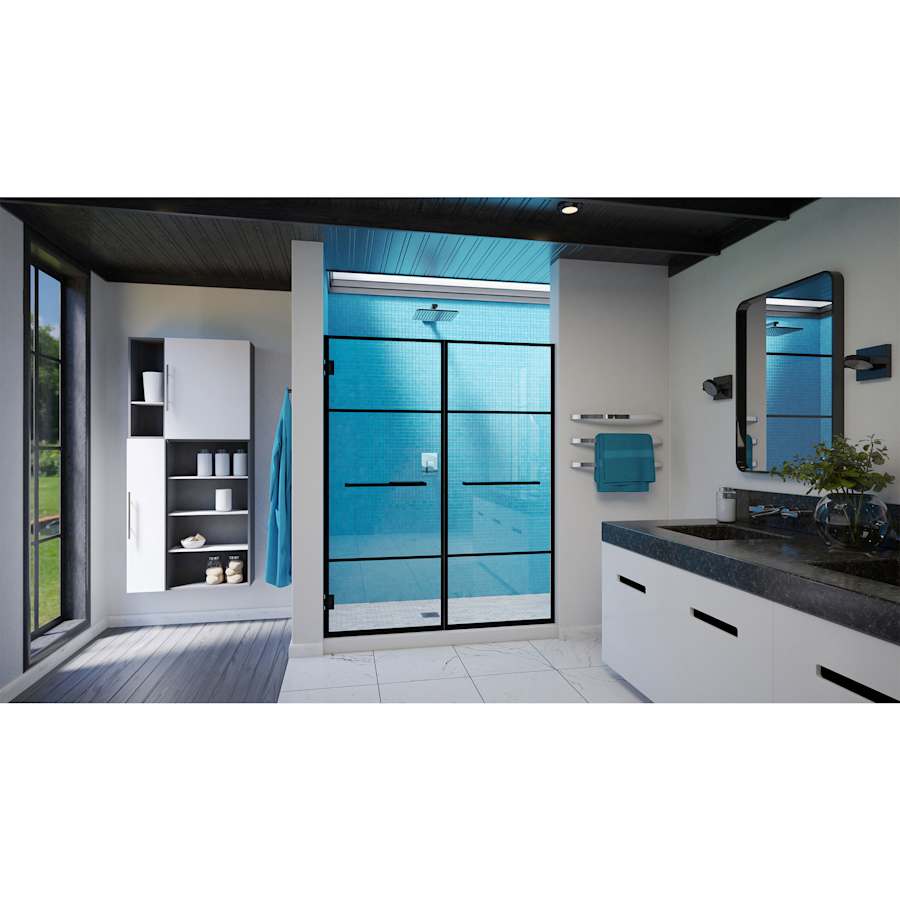

The DreamLine Unidoor Madrid is a frameless swing shower door designed in step with modern market trends. The Madrid features a stylish, minimalist design, with a matte black finish that is bold and striking in any bathroom. The glass pattern is made using an application of JetGlaze durable paint, offering a unique style without metal framing for easy maintenance. DreamLine exclusive ClearMax water-repellant and stain-resistant glass coating adds superior protection from stains and is nearly maintenance-free. With clean lines, modern accents, and an upscale look, the Unidoor Madrid adds timeless style to any bathroom space.
DreamLine D245872MB01 Features:
Model Size: 58 – 58 1/2 in. W x 72 in. H; Walk-in Opening: 27 5/8 in.
Configuration: Shower Door with Inline panel

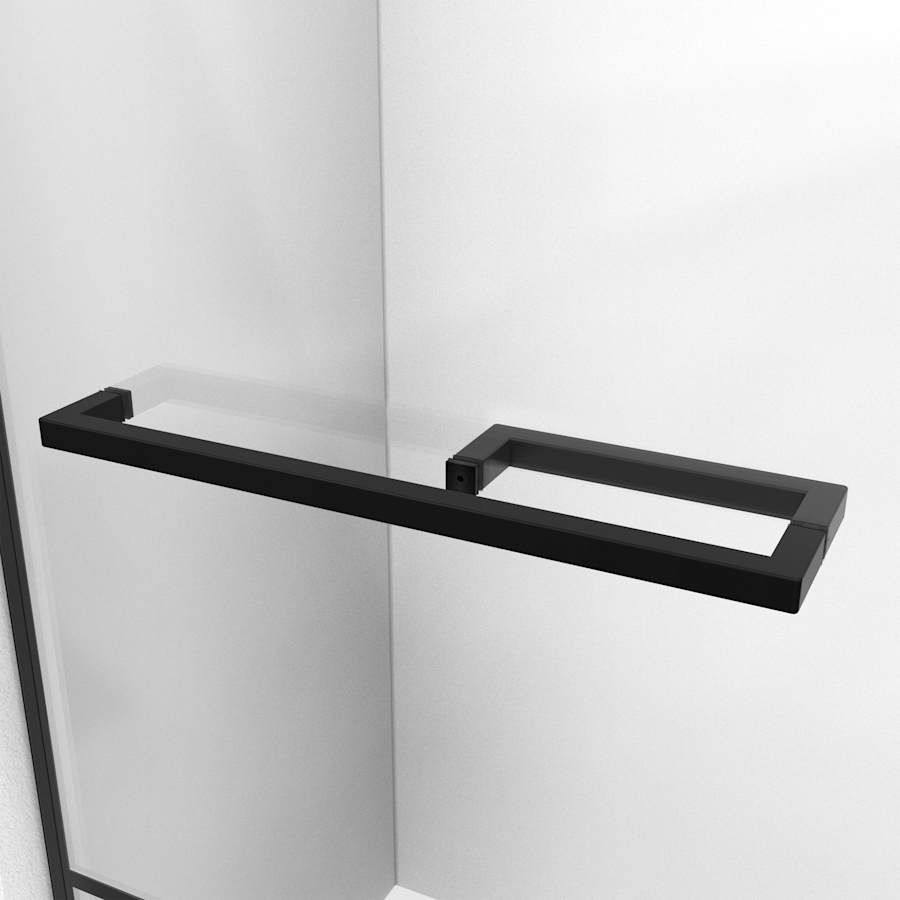

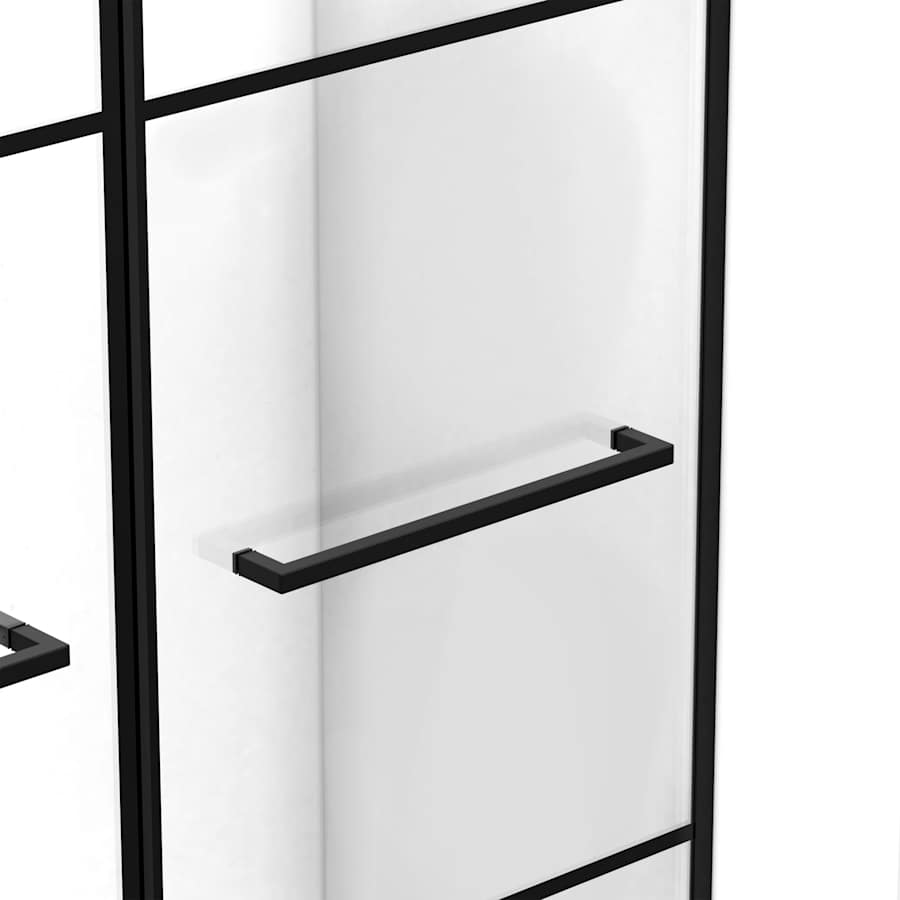

Convenient towel bar on each panel is integrated into the design for a modern look

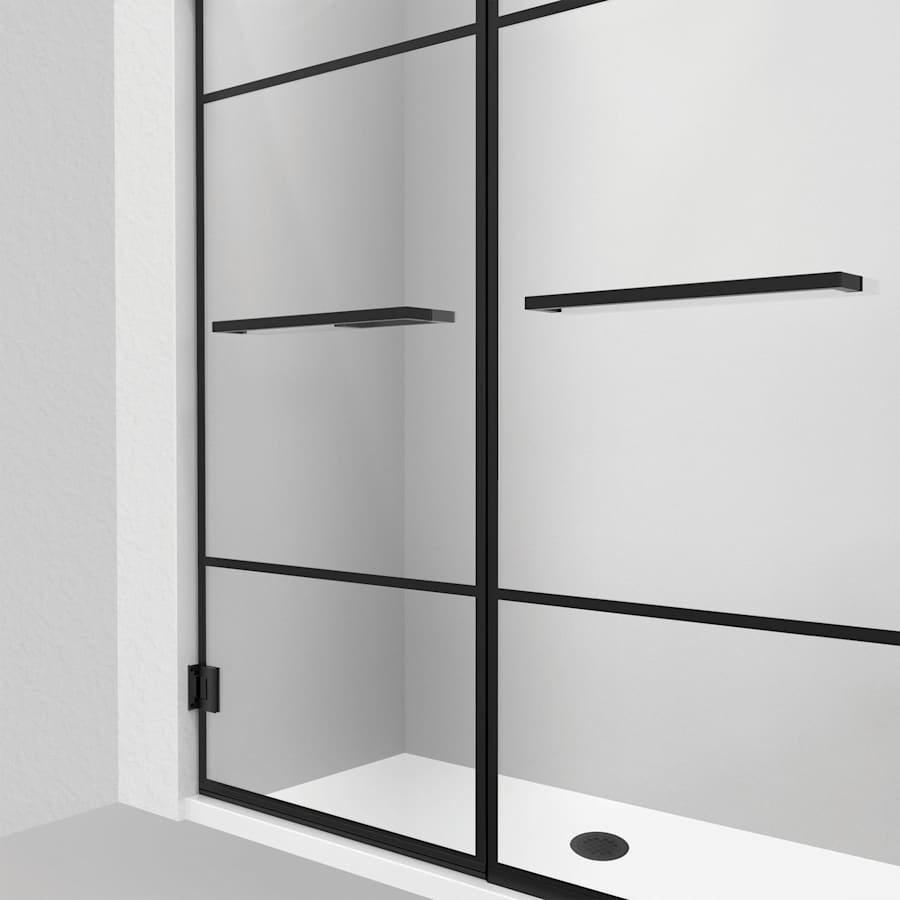

JetGlaze glass pattern offers a unique mullion look without the metal framing
Premium 3/8 in. (10mm) thick certified tempered glass
DreamLine exclusive ClearMax water and stain resistant glass coating
Frameless glass design to give an open and airy feel to your shower space
Reversible for a right or left door opening to fit your specific layout

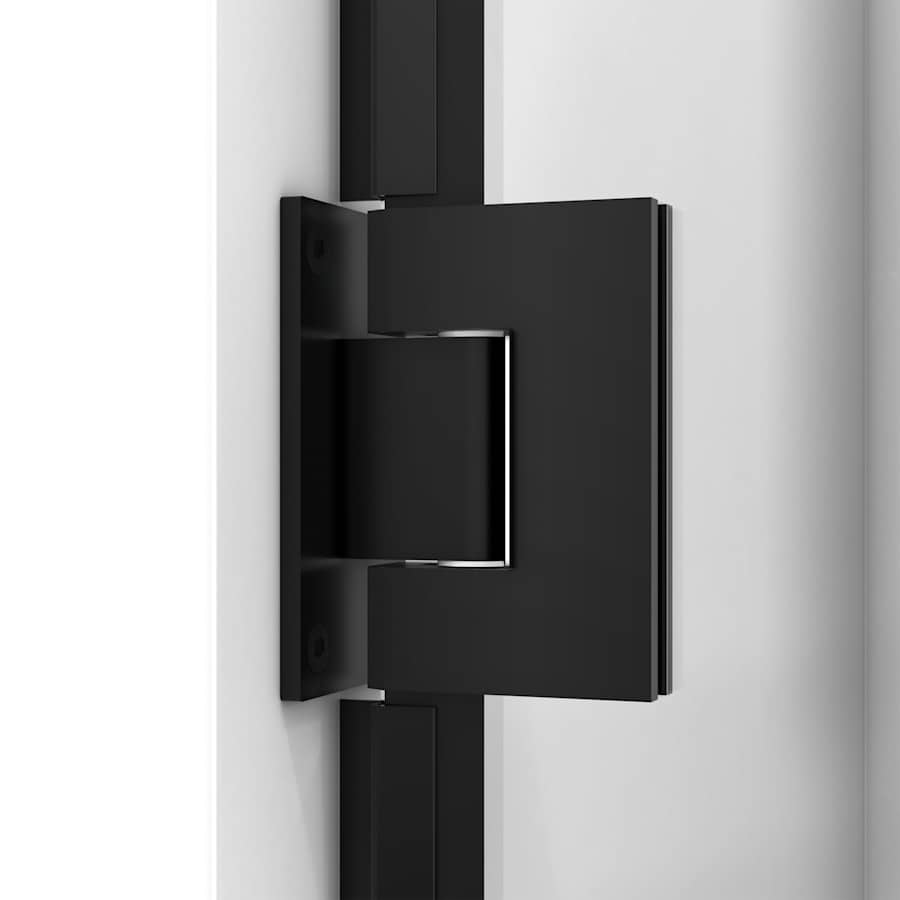

Solid brass wall-to-glass self-closing hinges
Inline panel is attached to the wall by anodized aluminum U-channel
1/2 in. width or out-of-plumb adjustment available on Inline panel side
Glass Pattern: Madrid
Matches any single threshold SlimLine shower base 60 in. W (sold separately)
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)
Wall studs or other reinforcement behind finished walls required for hinge installation
Professional installation recommended
Lifetime limited manufacturer warranty, three (3) year all hardware finishes warranty, and three (3) year all hardware finishes Warranty
DreamLine D245872MB01 Specifications:
Overall Height: 72″ (bottom to top of door fixture)
Overall Width: 58-1/2″ (left to right of door fixture)
Enclosure Width Range: 58″ to 58-1/2″ (range of enclosure sizes door will accommodate)
Maximum Door Opening: 29″ (assuming door is not trimmed)
Opening Direction: Reversible
Glass Thickness: 3/8″
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor Madrid Collection
Specifications
| Material | Glass |
| Glass Features | Clear Glass |
| Thermostat | Modern |
| Configuration | Shower Door |
| Door Swing | Reversible |
| Frame Type | Frameless |
| Door Type | Hinged |
| Number Of Doors | 2 |
| Collection | Unidoor Madrid |
| Country Of Origin | China |
| ADA | No |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Height | 72 in. |
| Nominal Width | 58.5 in. |
| Product Weight | 179 lbs. |
| Width | 58.5 in. |
| Door Width | 29 in. |
| Glass Thickness | 0.38 in. |
| Maximum Width | 58.5 in. |
| Minimum Width | 58 in. |
| Installation Hardware Included | Yes |
| Base Included | No |
| Color | Matte Black |
| Color Tone | Blacks |
