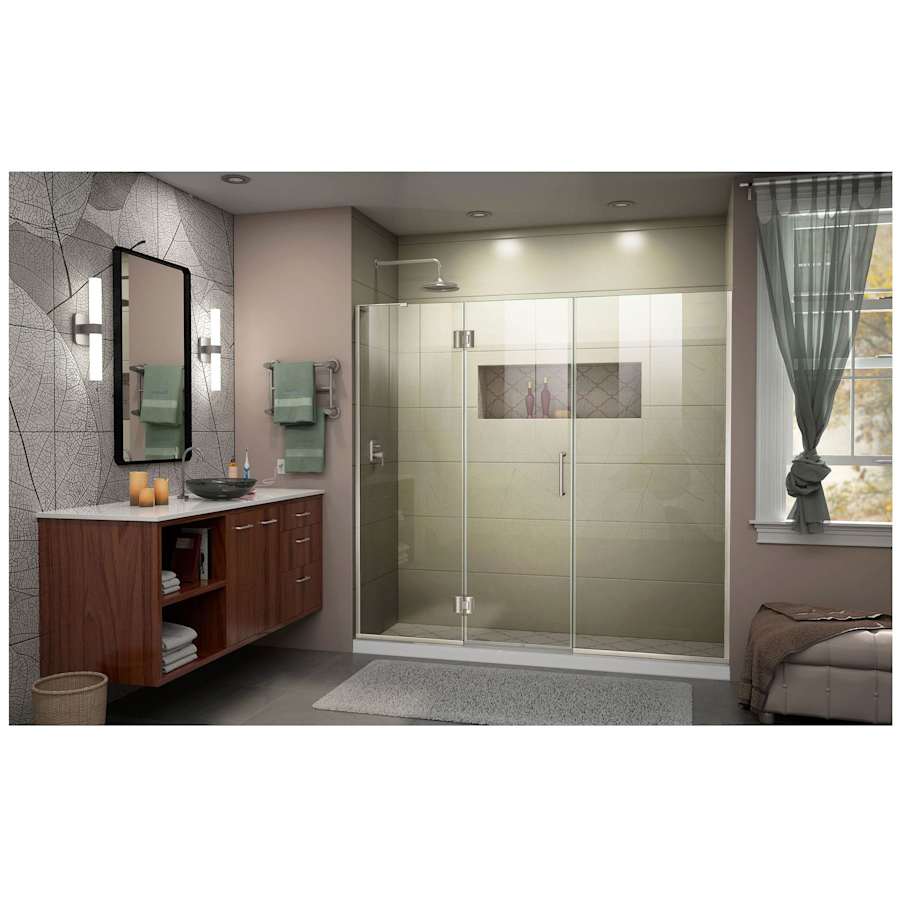

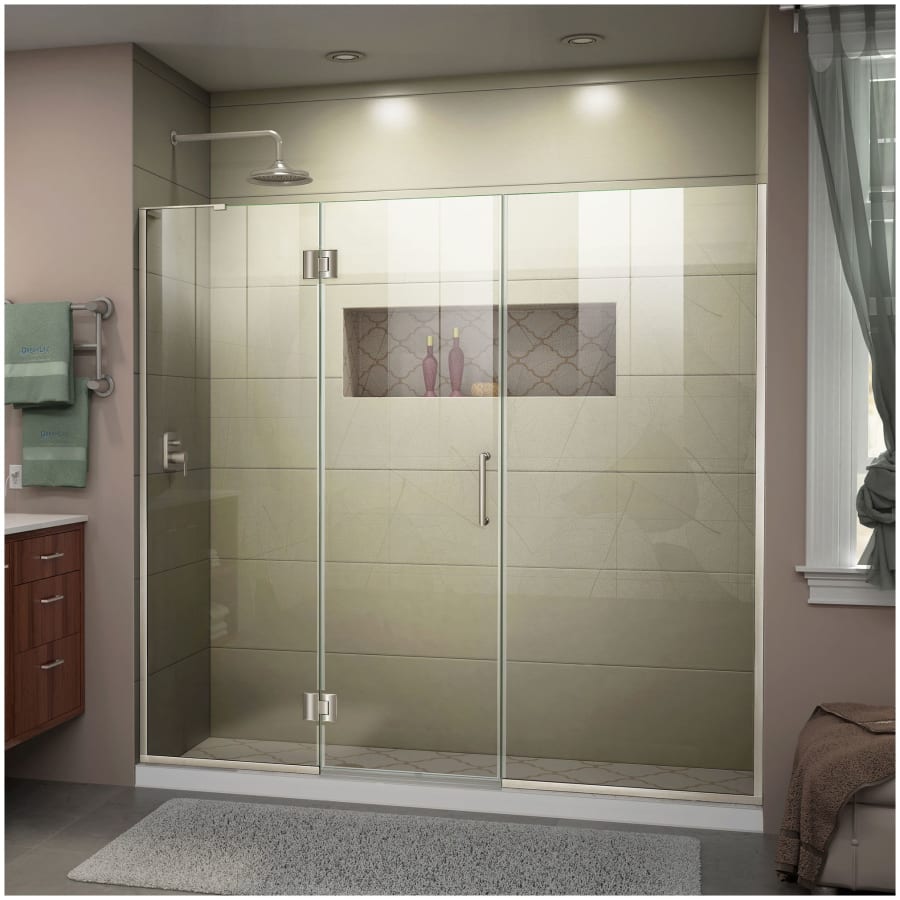

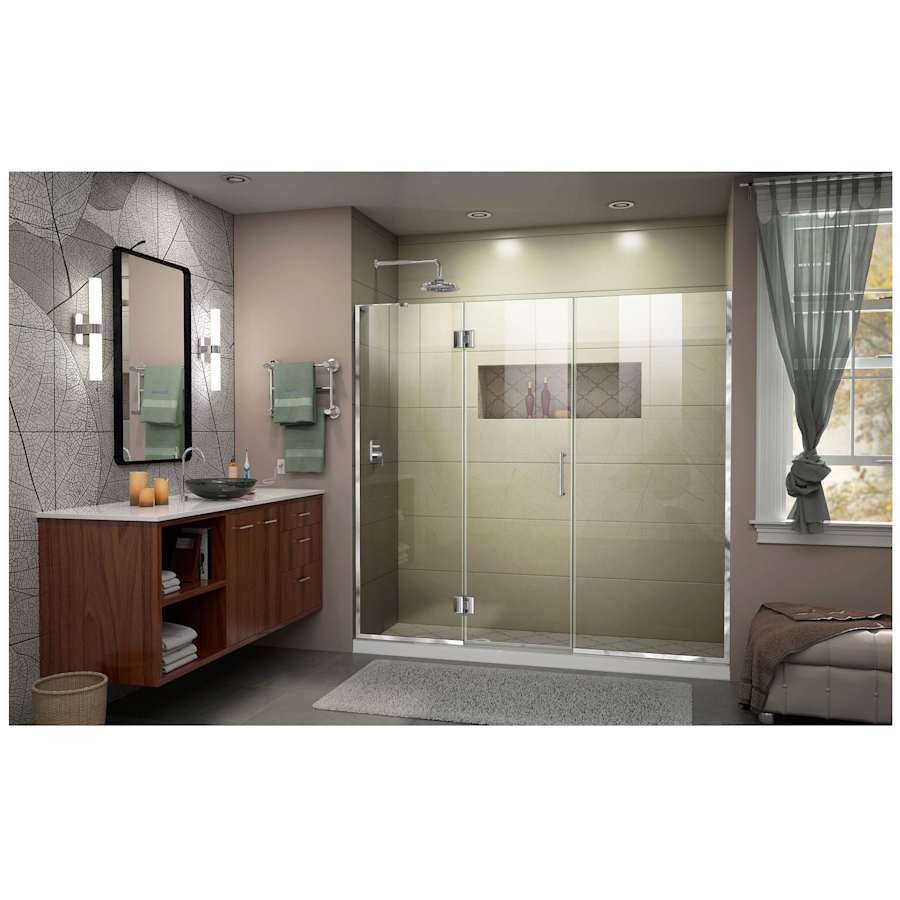

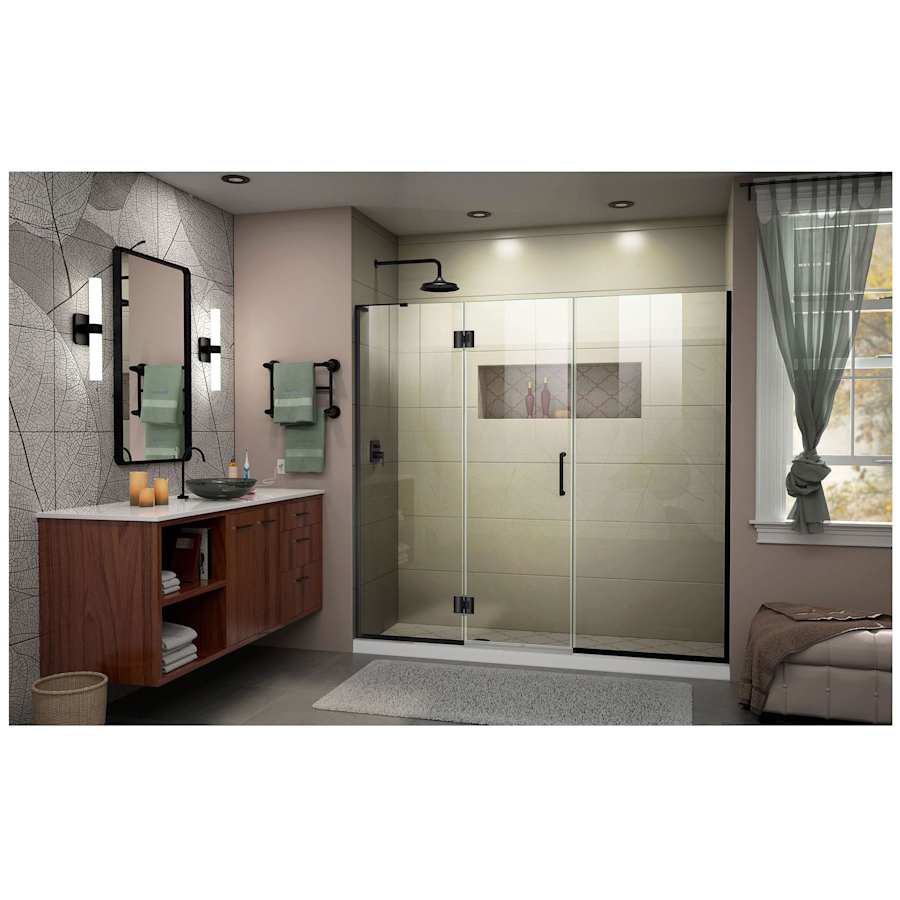

The DreamLine Unidoor-X is a frameless shower door, tub door or enclosure that features a luxurious modern design, complementing the architectural details, tile patterns and the composition of your bath space. Unidoor-X showcases sleek, clean lines to enhance any shower space, creating a stunning appearance. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor-X is part of DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market.
DreamLine D3301472L Features:

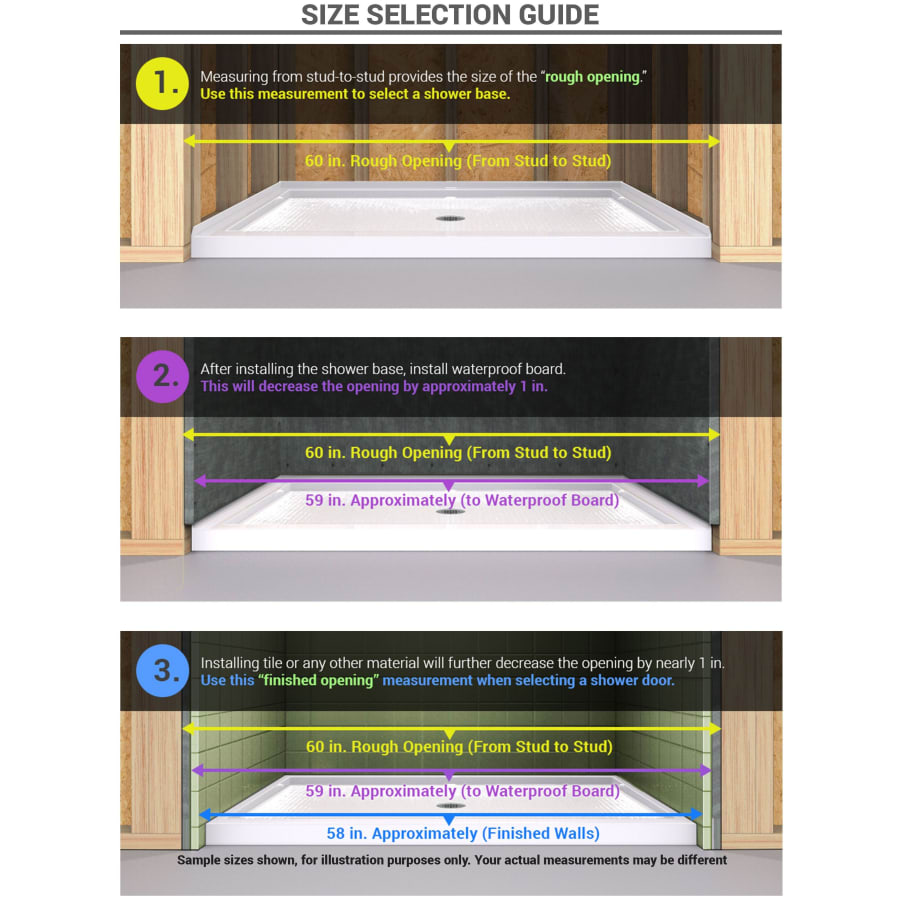

IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Premium 3/8″ (10 mm) thick clear tempered glass for a luxurious look
Frameless glass design to give an open and airy feel to your shower space
Solid brass glass-to-glass self-closing hinges
Configuration: Hinged panel with attached shower door and inline panel
Model Size: 68 – 68-1/2″ W x 72″ H
Door Walk-In: 29″
Stationary Panel: 14″
Hinged Panel: 24″
Hinged and inline panels are installed to the wall by 1″ anodized aluminum adjustable U-channel
1/4″ out-of-plumb adjustment available on hinged panel side
1/2″ width or out-of-plumb adjustment available on inline panel side

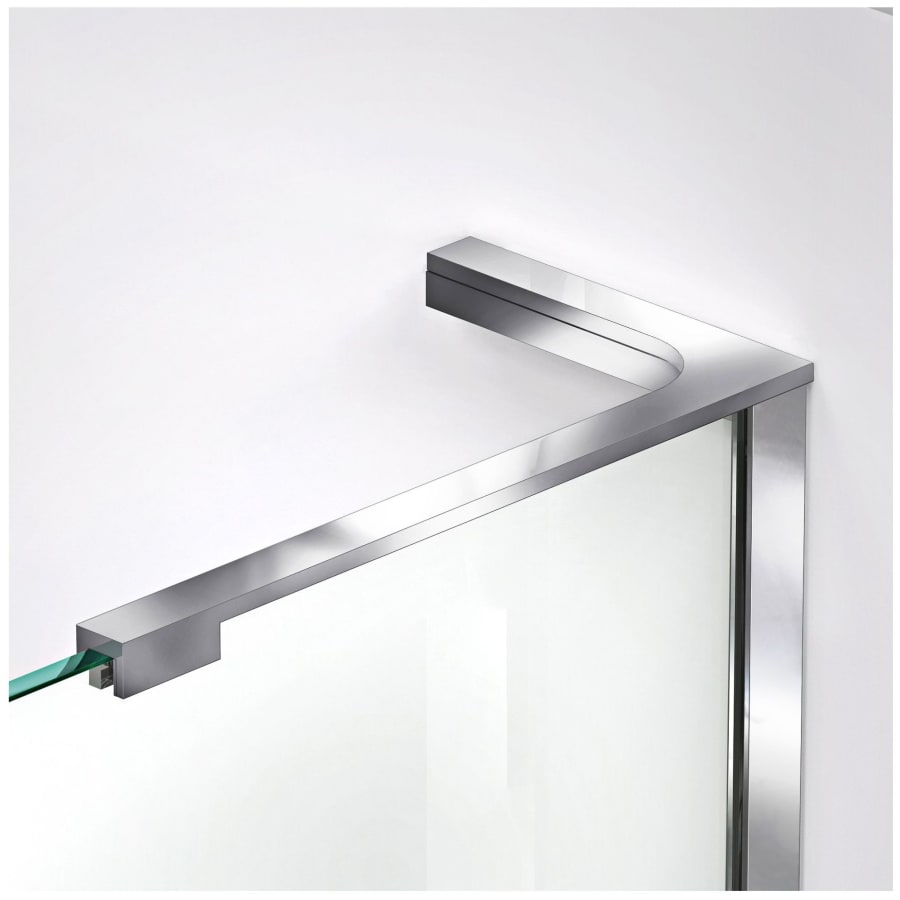

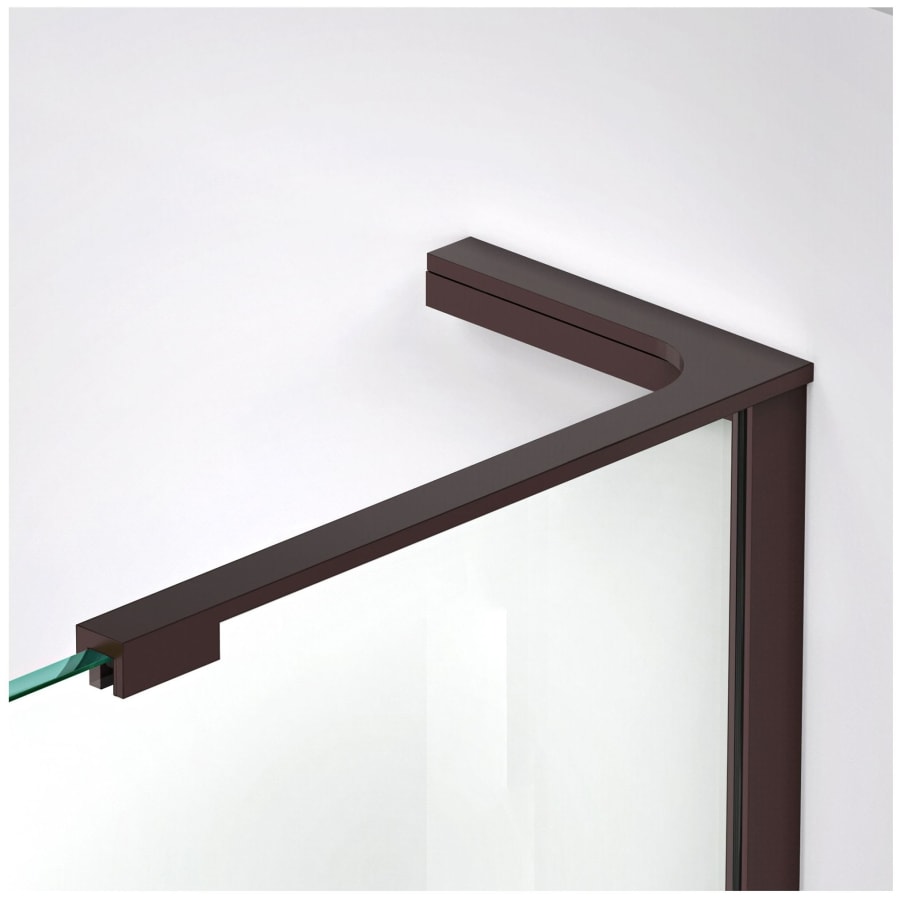

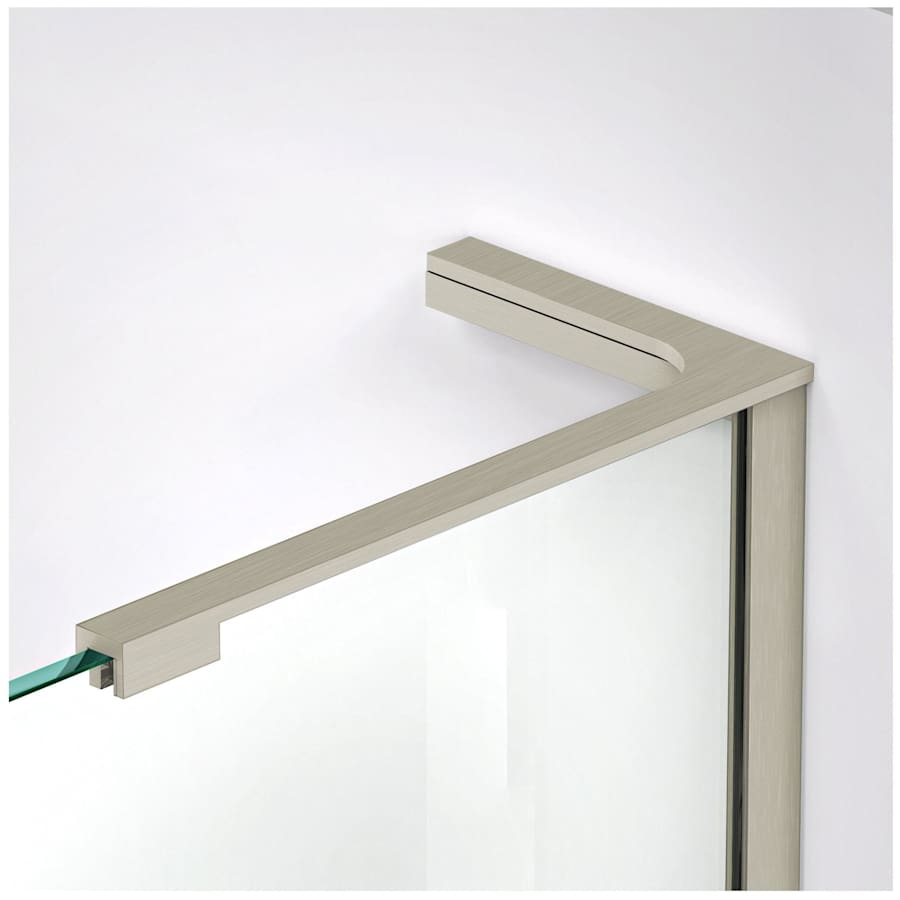

L-shape support bracket provides an unobstructed look

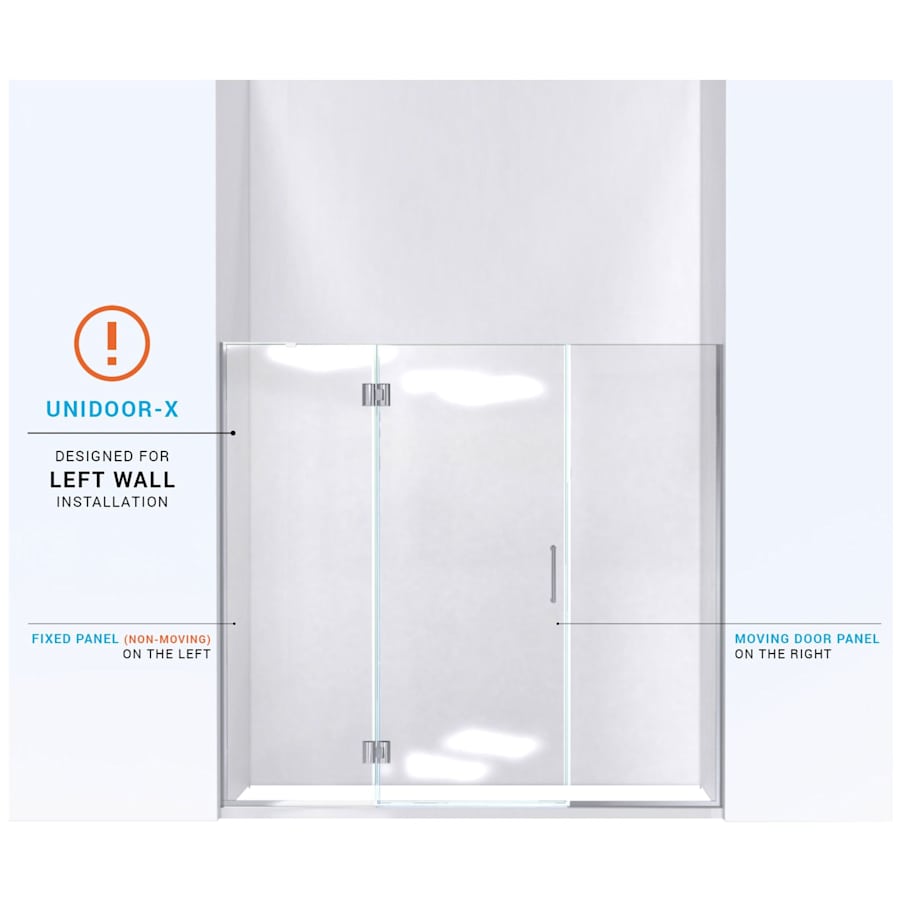

Left or right wall installation available to fit your specific layout. Not reversible
Professional installation recommended
Limited lifetime manufacturer warranty
Warranty for any hardware in oil rubbed bronze finish is limited to 1 (one) year
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Unidoor-X Collection
Specifications
| Height | 72 in. |
| Product Weight | 190.26 lbs. |
| Width | 68.5 in. |
| Nominal Width | 68.5 in. |
| Glass Thickness | .375 in. |
| Door Width | 29 in. |
| Maximum Width | 68.5 in. |
| Minimum Width | 68 in. |
| Panel Width | 14, 24 in. |
| Shower Door Width | 29 in. |
| Installation Hardware Included | Yes |
| Base Included | No |
| Insulation Type | Three Wall Alcove |
| Material | Brass, Tempered Glass |
| Shape | Rectangular |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Frame Type | Frameless |
| Door Swing | Left |
| Number Of Doors | 1 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Configuration | Shower Door |
| Door Type | Hinged |
| Approved for Commercial Use | Yes |
| Collection | Unidoor-X |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI |
| Commercial Warranty | 1 Year Limited |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
