The DreamLine Prism Lux is a fully frameless neo-angle corner shower enclosure with a modern design to transform any shower into a glass oasis. A perfect match to any bathroom space, the Prism Lux shines with obstruction-free style and luxury hardware. Maximize your shower space with the outstanding style of Prism Lux without the cost of custom glass. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. The coordinating SlimLine shower base incorporates a low profile design for an unobtrusive modern look. Choose DreamLine for the ultimate solution for your shower project.
DreamLine DL-6051 Features:
Kit Includes: Prism Lux Shower Enclosure and SlimLine™ Base
Kit Size: 38″ x 38″ x 74 3/4″ H
Walk-In Opening: 23 5/8″
Premium 3/8″ (10mm) thick tempered glass for an upscale feel
DreamLine® exclusive ClearMax™ water repellant and stain resistant coating
Fully Frameless design for an open and spacious feeling
Solid brass glass-to-glass self-closing hinges

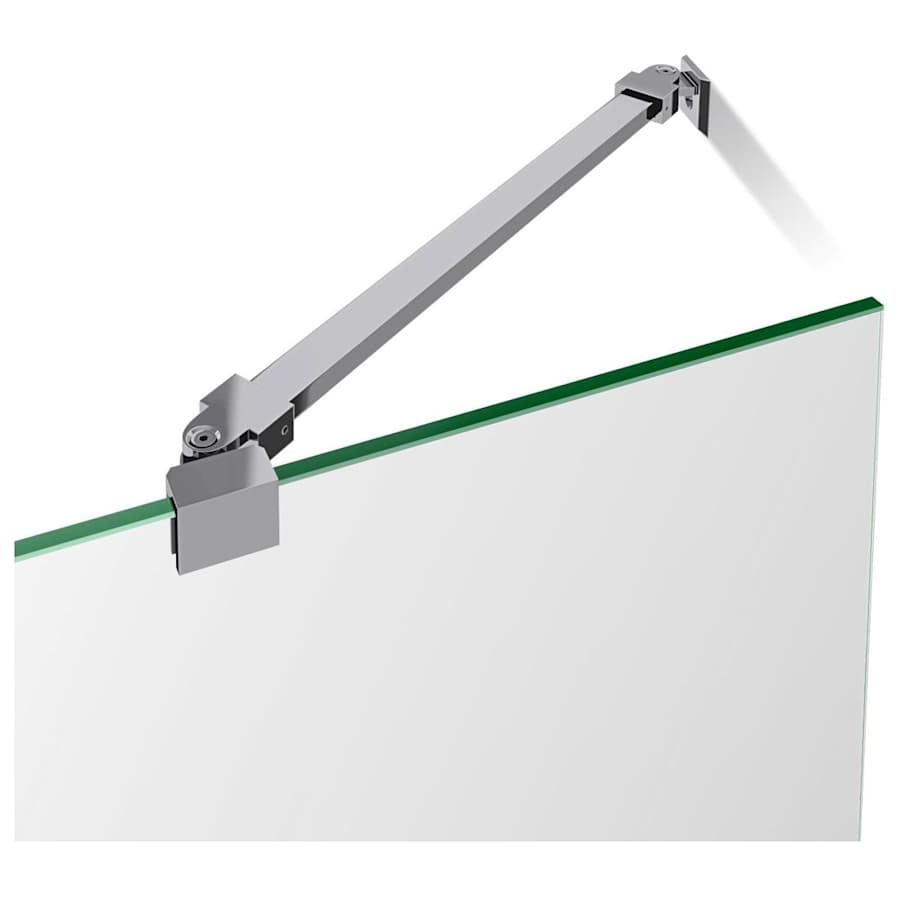

Side panels are attached to wall by solid brass brackets and feature Support Arms for stability
Reversible for a right or left door opening to fit your specific layout
ATTENTION! This model has NO adjustment for out-of-plumb (uneven walls)
SlimLine™ Neo-Angle Shower Base: Low profile threshold design for easy entry and exit
Slip-resistant textured floor pattern for safe showering
Glossy acrylic finish is scratch and stain resistant
Direct to stud installation
Integrated tile flange for water leak prevention
Reinforced with fiberglass for durability
Drain opening fits any standard 2″ compression fitted drain (Drain not included)
cUPC certified
Plumbing codes vary by state(DreamLine is not responsible for code compliance)
Professional installation recommended
Limited Lifetime Manufacturer Warranty. (Oil Rubbed Bronze and Matte Black finishes limited to 1 (one) year warranty)
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Prism Lux Collection
Specifications
| Height | 74.75 in. |
| Product Weight | 203.27 lbs. |
| Width | 38 in. |
| Depth | 38 in. |
| Length | 38 in. |
| Nominal Width | 38 in. |
| Door Width | 23.625 in. |
| Glass Thickness | 0.375 in. |
| Panel Width | 38 in. |
| Shower Door Width | 23.625 in. |
| Glass Features | Clear Glass |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Thermostat | Modern |
| Insulation Type | Corner |
| Drain Placement | Corner |
| Shape | Neo-Angle |
| Door Swing | Reversible, Right, Left |
| Frame Type | Frameless |
| Number Of Doors | 1 |
| Configuration | Shower Enclosure |
| Curb Location | Front |
| Number Of Curbs | 3 |
| Number of Thresholds | 3 |
| Door Type | Hinged |
| Number of Tile Flanges | 2 |
| Certifications | UPC, ANSI |
| Collection | Prism Lux |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime, 1 Year Limited |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Base Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
