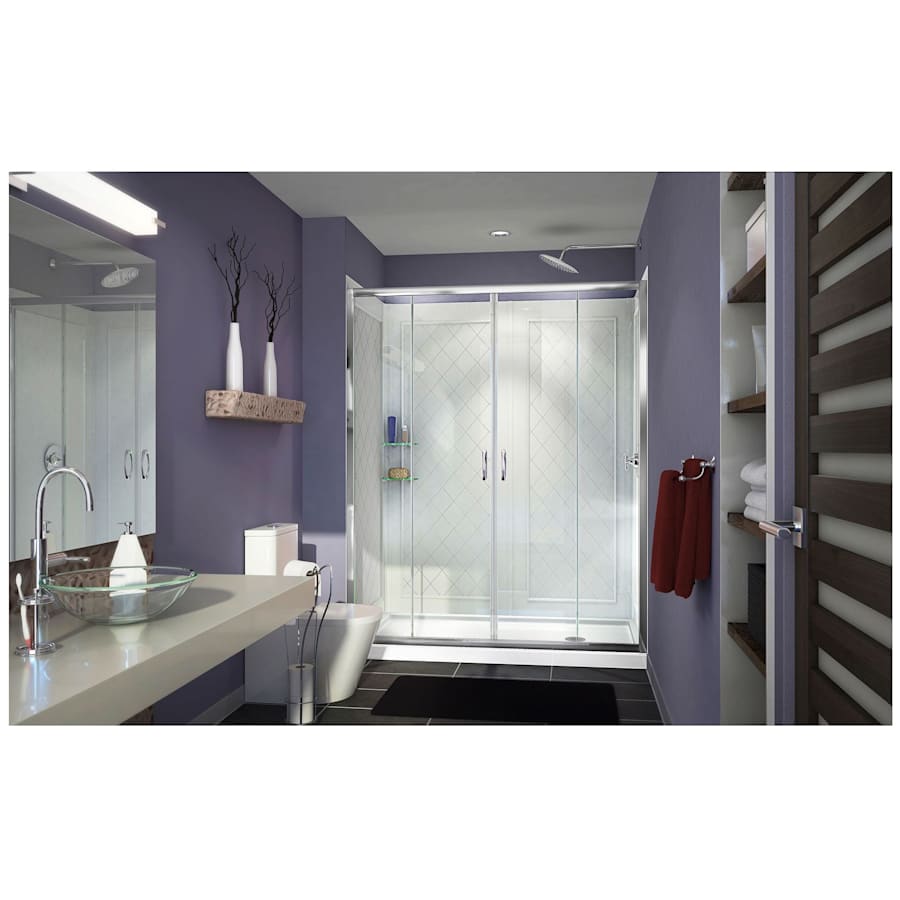

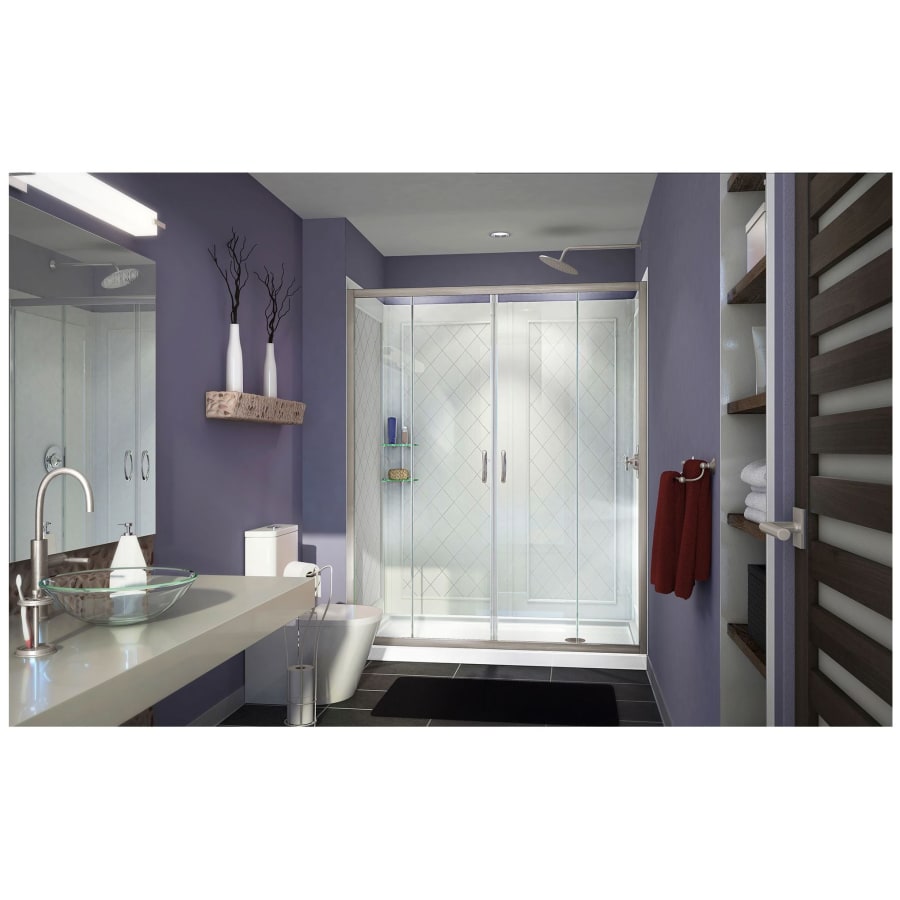

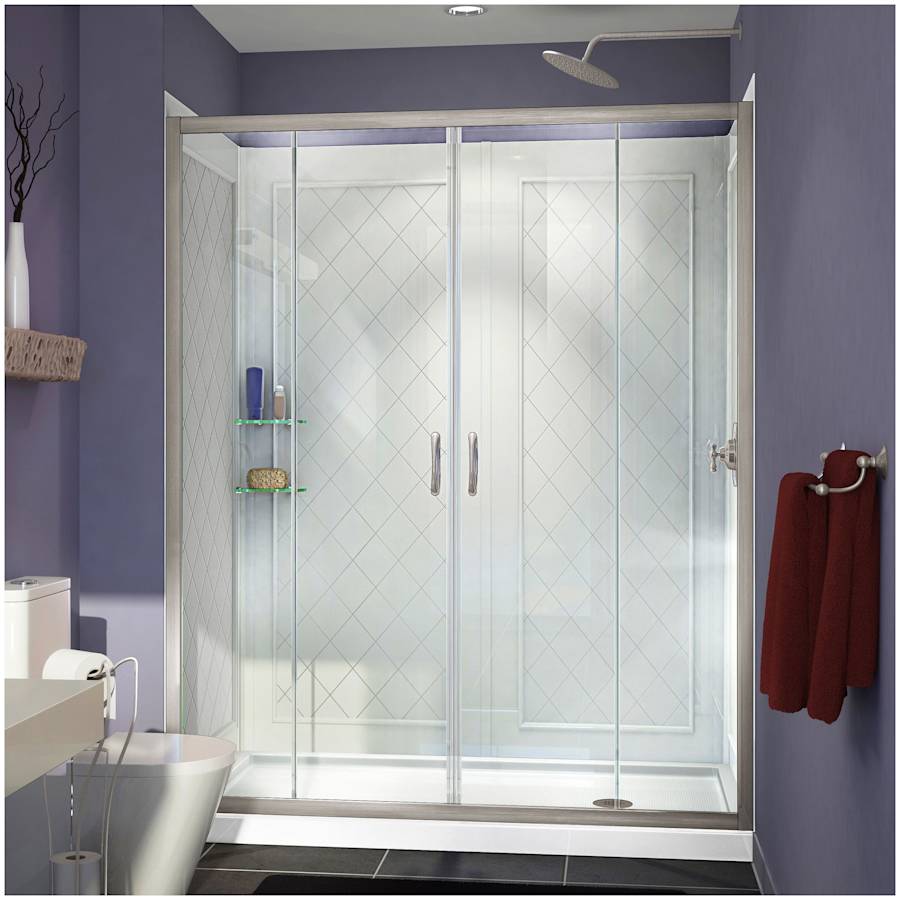

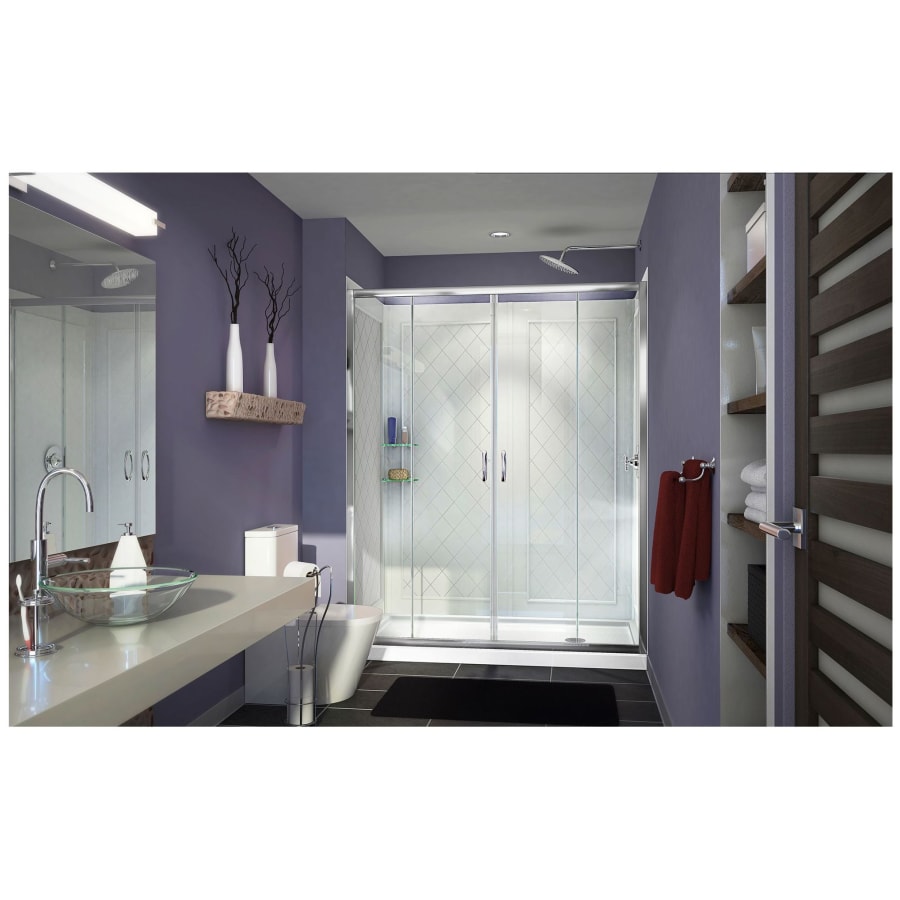

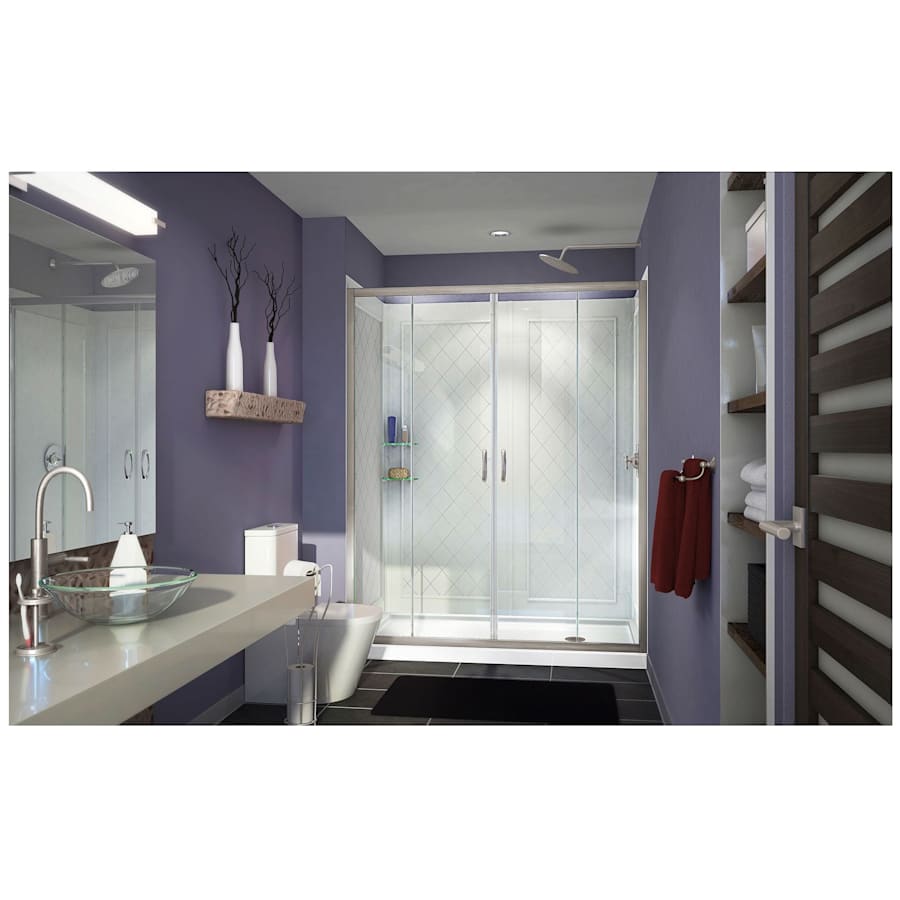

The DreamLine Visions shower or tub door offers breathtaking style for your shower area. Visions features a unique design with two stationary glass panels and two sliding glass panels that open to create an ample center point of entry. Fast release wheels make cleaning the glass and track a cinch.
DreamLine DL-6112R-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Visions Shower Door, 30″ x 60″ Single Threshold Shower Base and QWALL-5 Shower Backwall Kit
Overall Kit Dimensions: 30″ D x 60″ W x 76-3/4″ H
Visions Shower Door:
56 – 60″ W x 72″ H
Frameless glass design

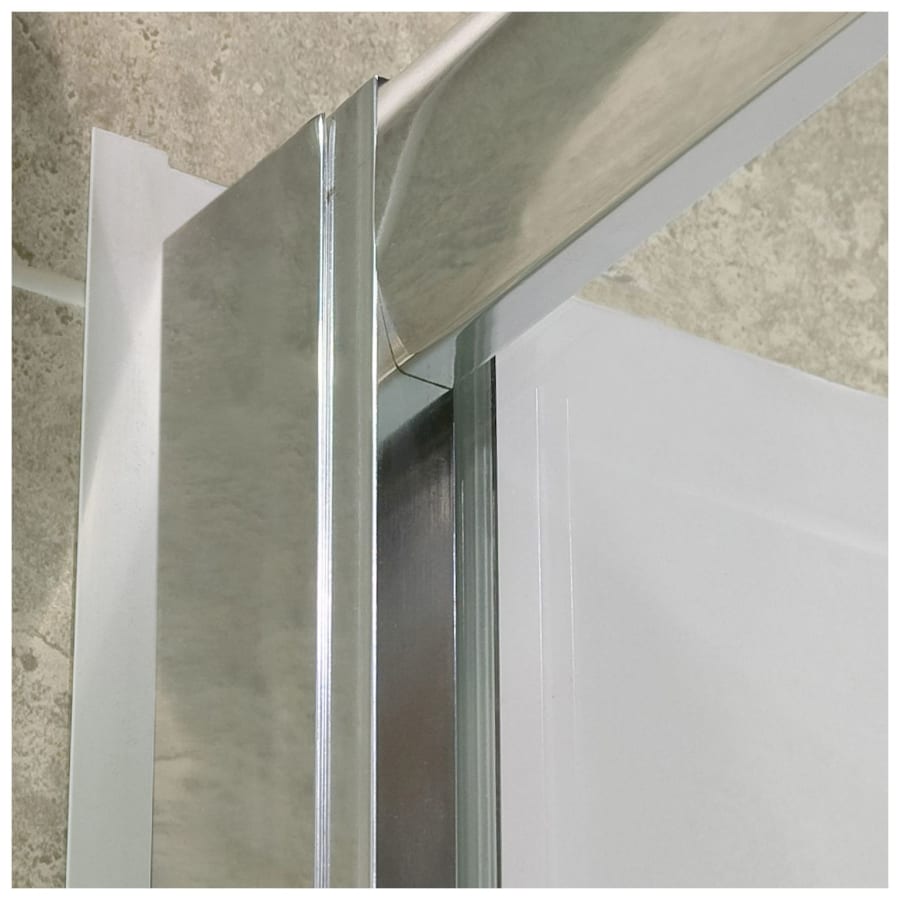

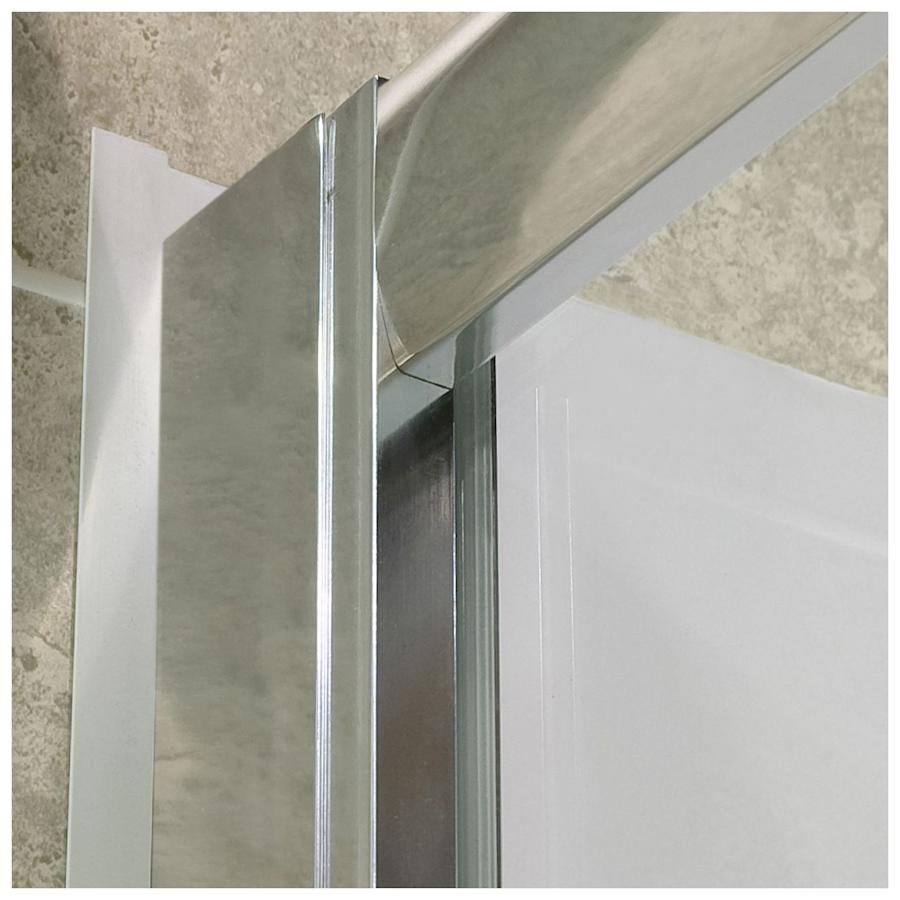

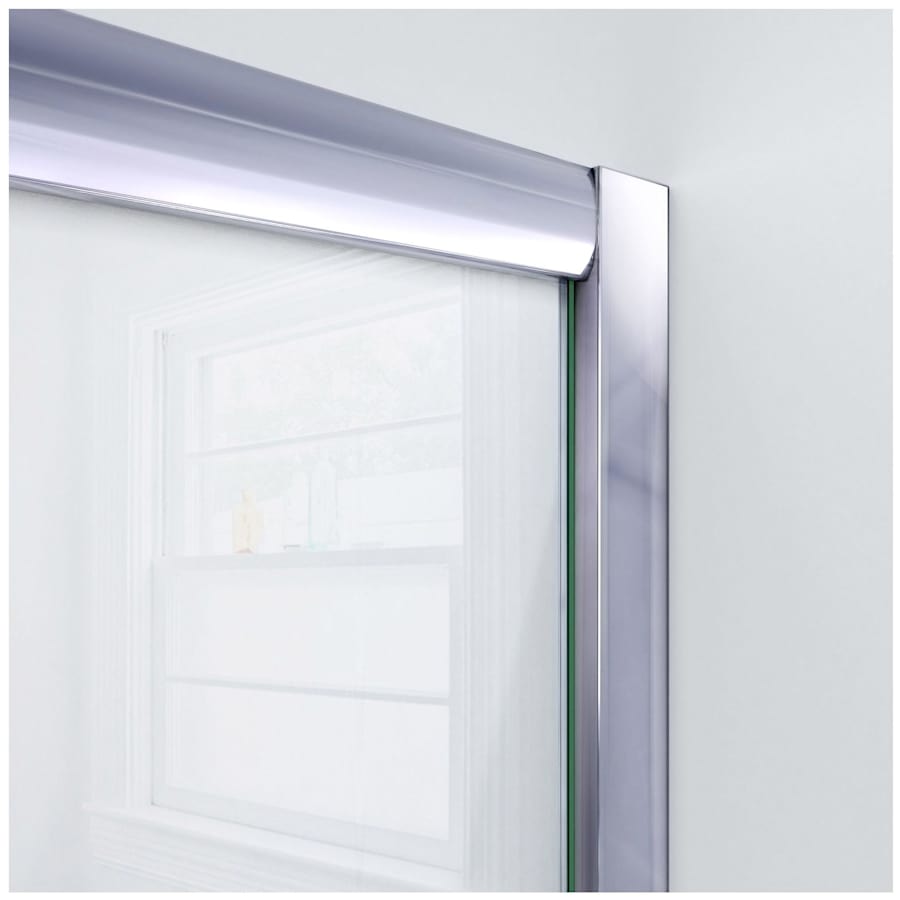

Anodized aluminum wall profiles allow up to 1″ out-of-plumb (vertical) adjustment on each side

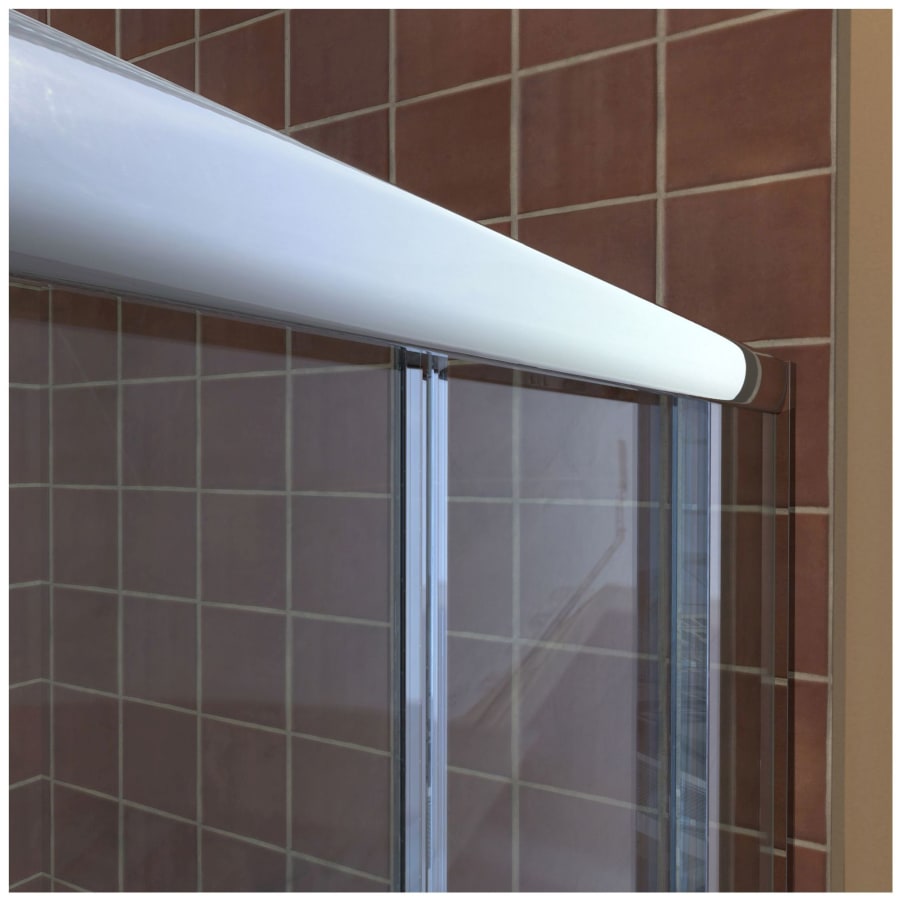

Anodized aluminum top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment
Two sliding panels flanked by two stationary panels create a center walk-in opening
1/4″ (6mm) thick clear tempered glass
Door Walk-In: 22 – 26″
Stationary Panel: Two 12-3/4″ panels
Professional installation recommended
Limited lifetime manufacturer warranty

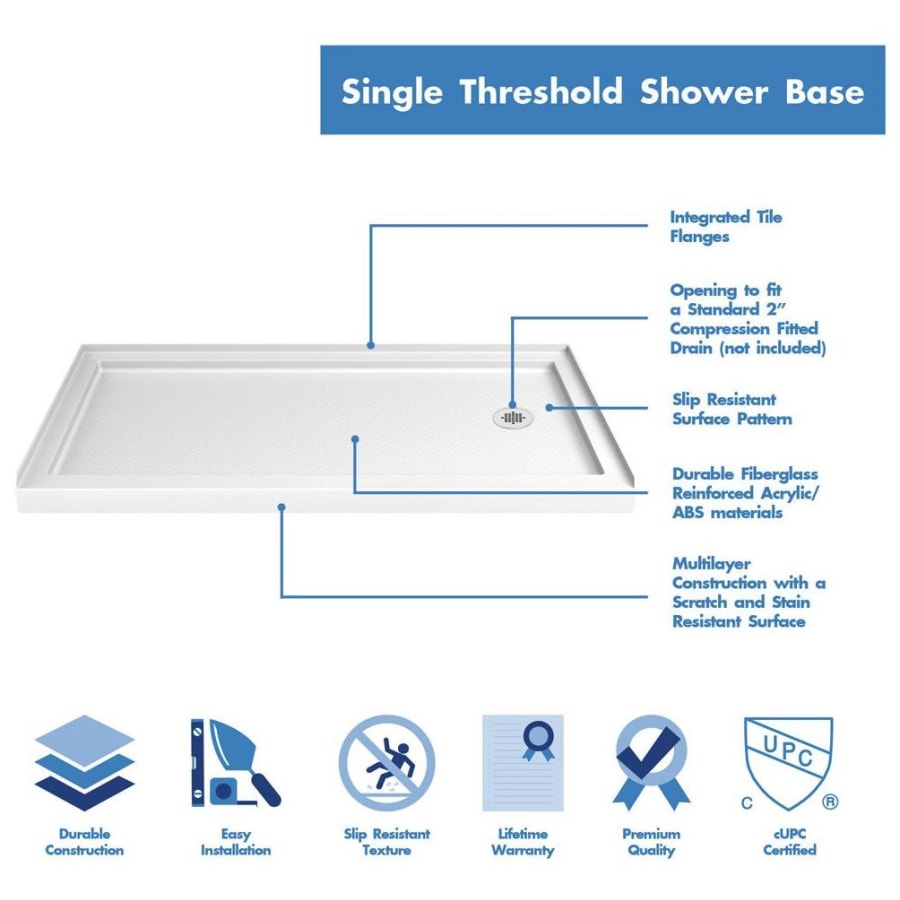

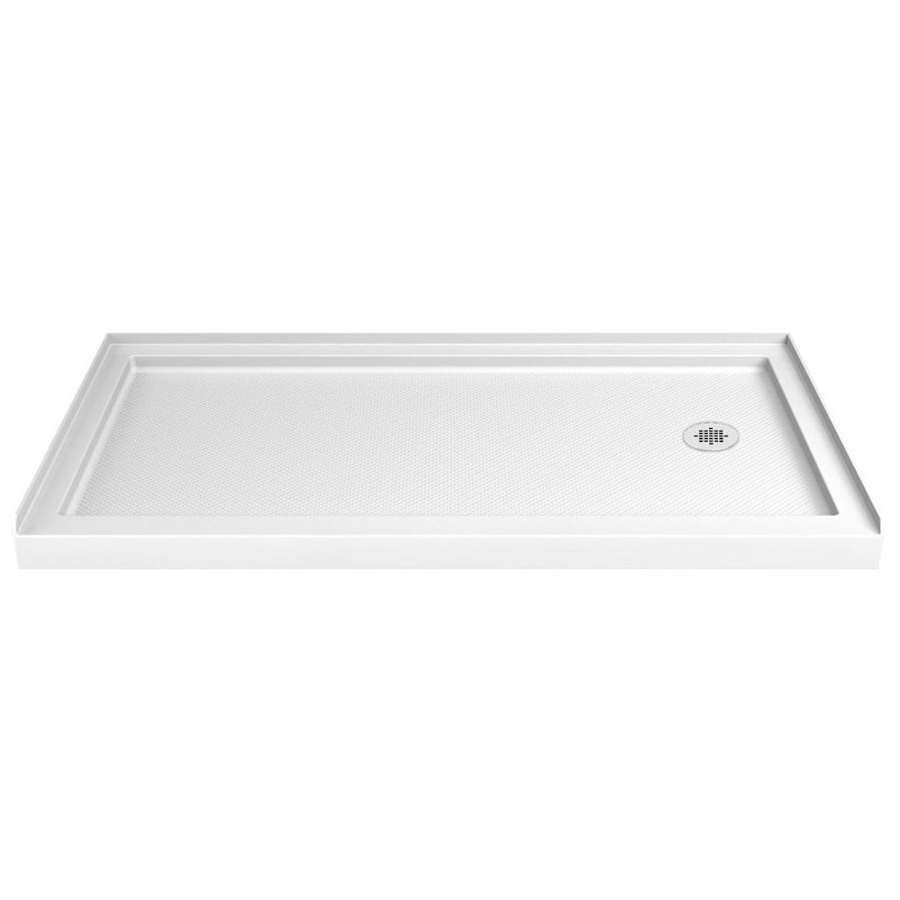

30″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

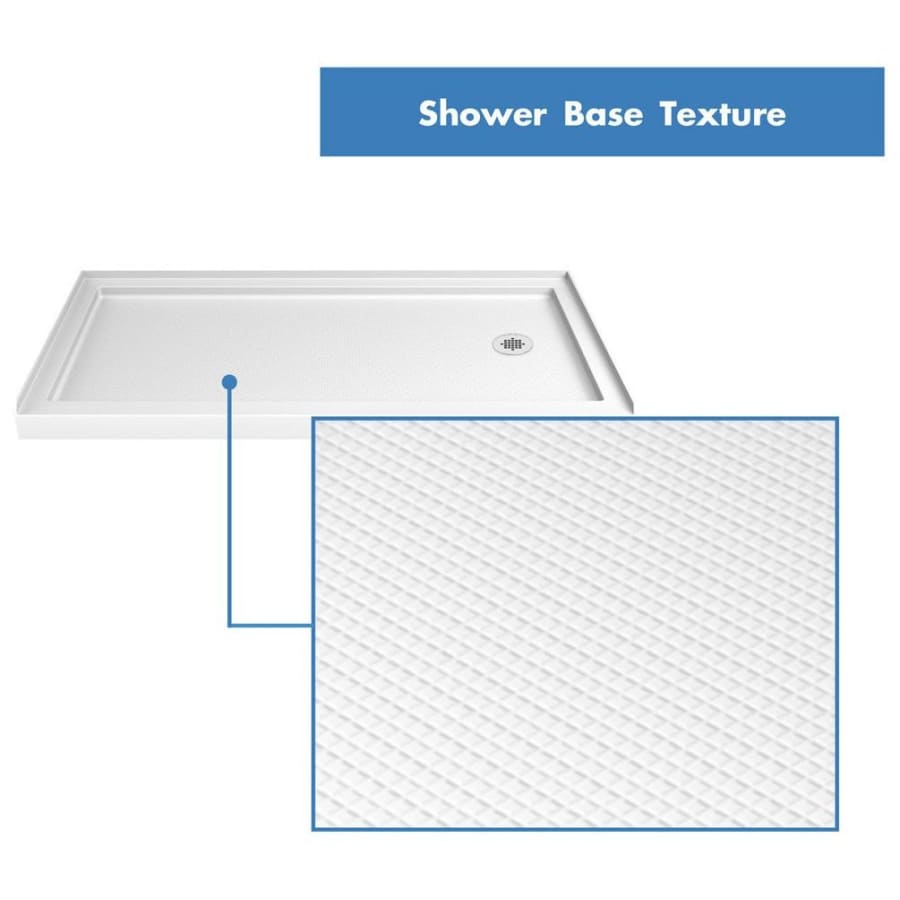

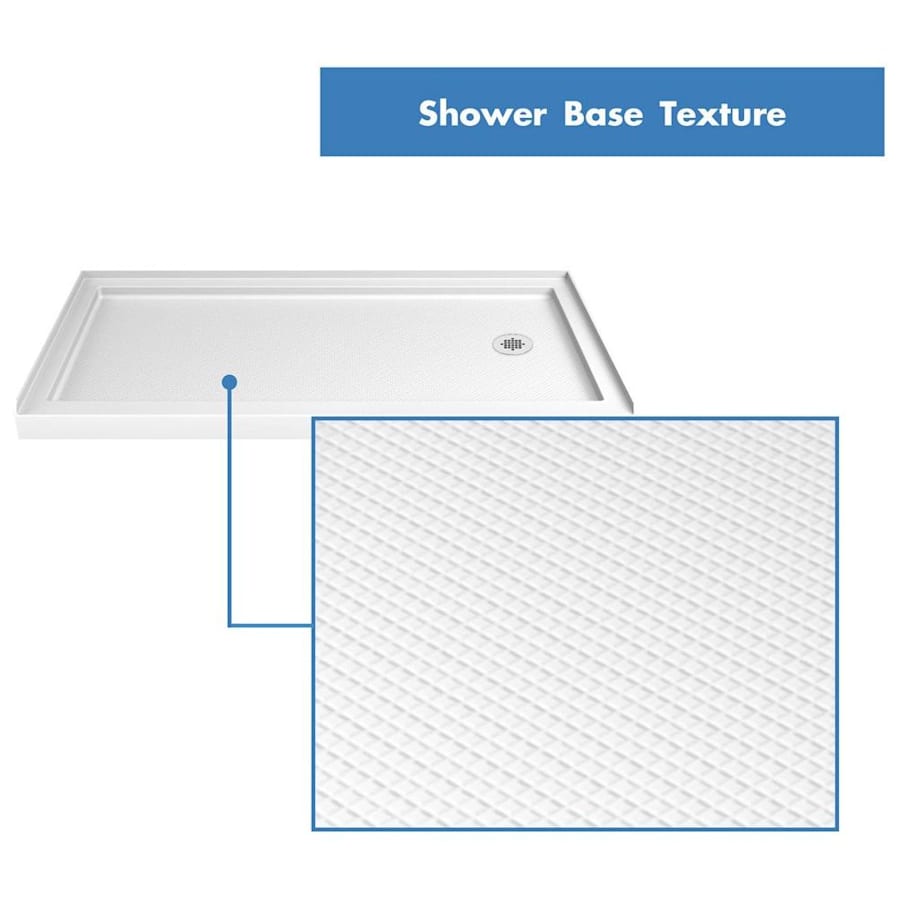

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

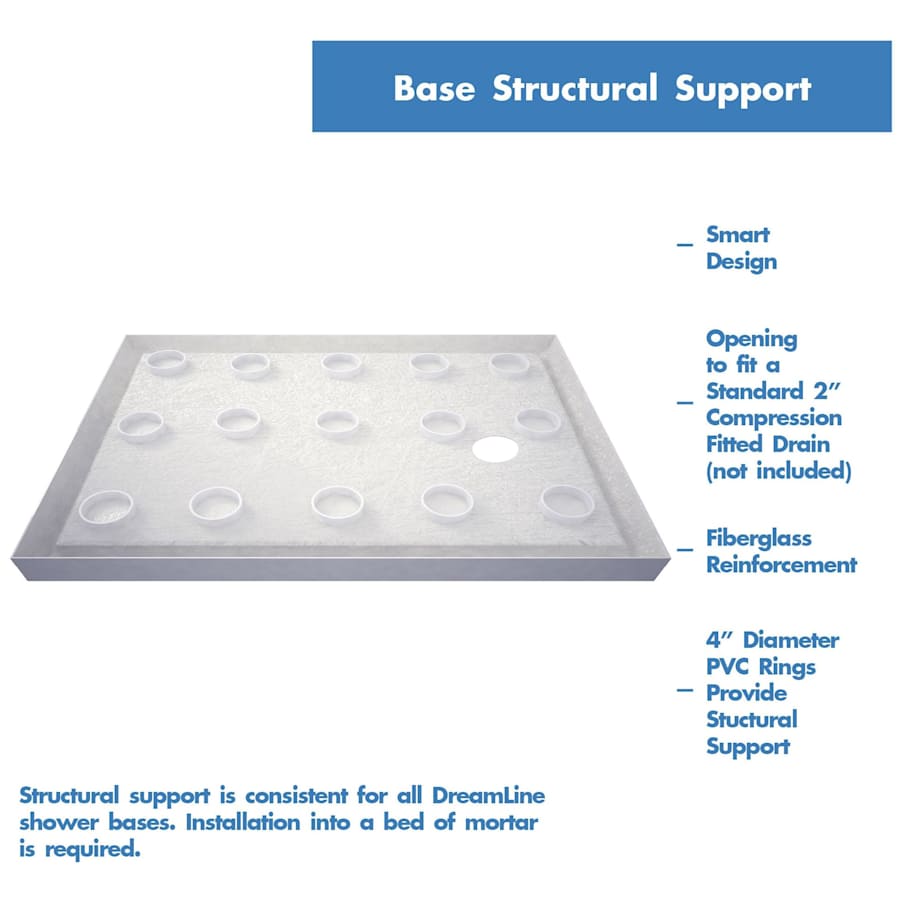

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

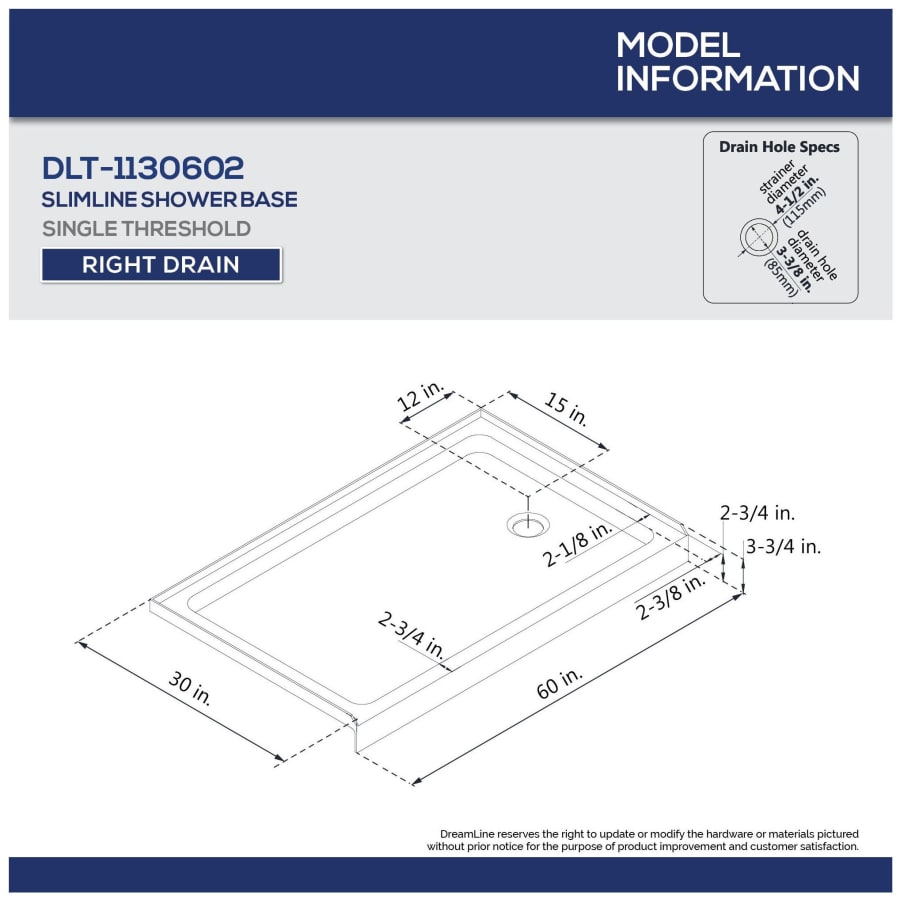

Right drain configuration. Please review the technical drawing for exact drain location

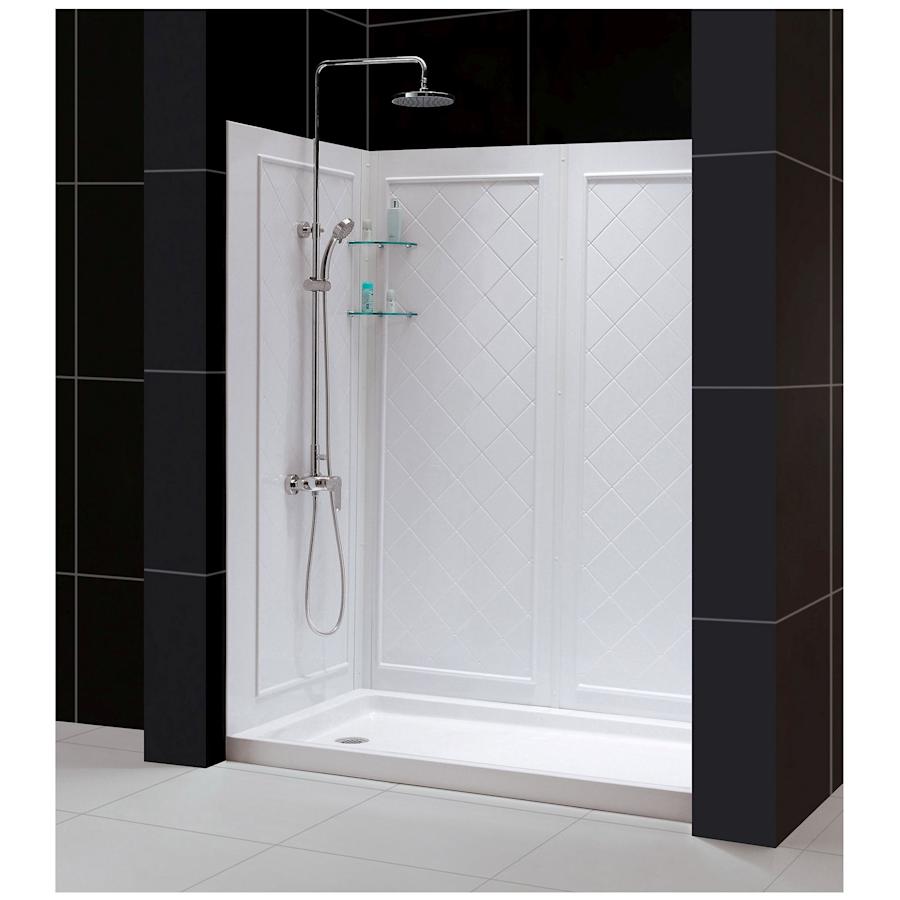

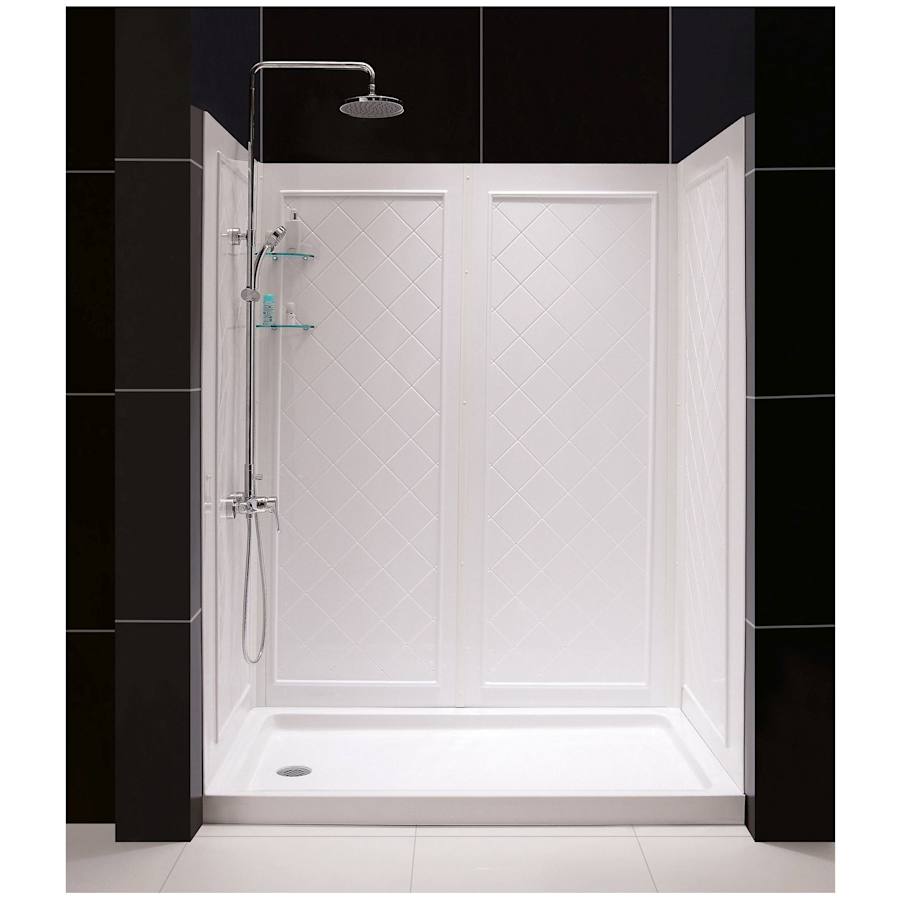

QWALL-5 Shower Backwall Kit:
Color: White
Assembly required

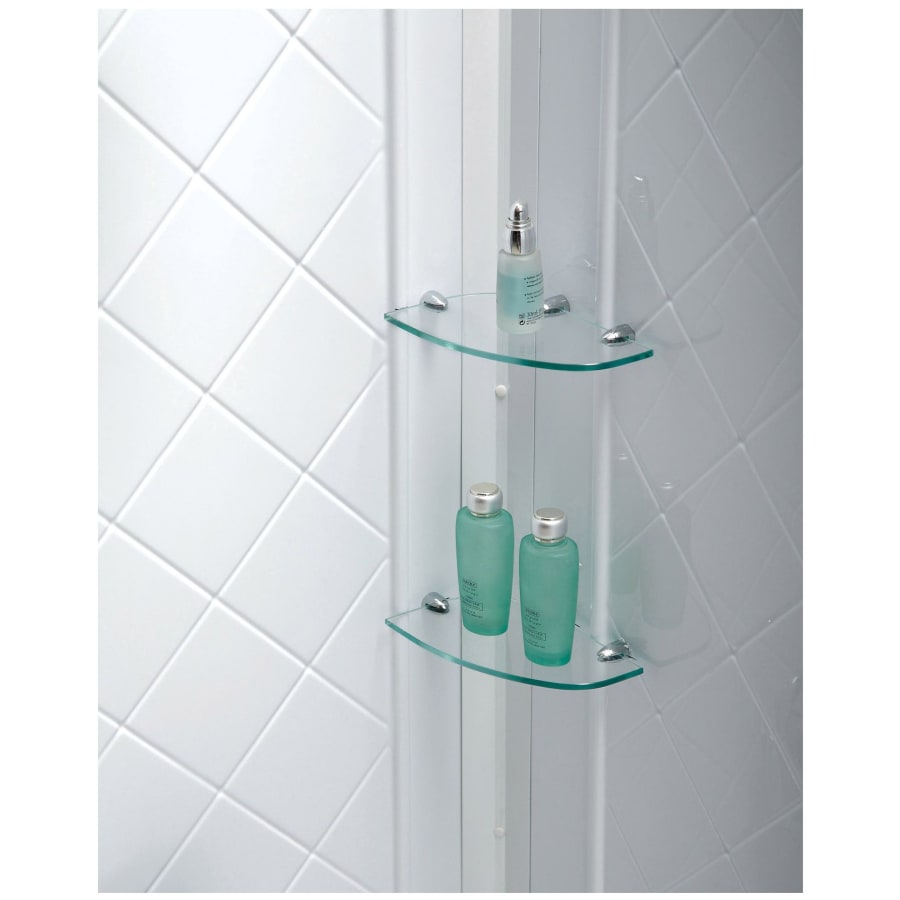

Includes 2 glass corner shelves
Attractive tile pattern
Unique water tight connection of panels
Durable acrylic/ABS construction
Trim-to-Size sidewall design
Must be trimmed during installation
Specially designed to be installed over existing solid surface not directly against the studs
Shower Backwalls: Limited 1 (one) year manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Visions Collection
Specifications
| Width | 60 in. |
| Height | 76.75 in. |
| Product Weight | 197 lbs. |
| Depth | 30 in. |
| Drain Connection | 3.25 in. |
| Nominal Width | 60 in. |
| Quantity | 4 |
| Glass Thickness | .25 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Door Width | 26 in. |
| Panel Width | 12.75 in. |
| Shower Door Width | 26 in. |
| Thermostat | Modern |
| Material | Acrylic, Aluminum, Tempered Glass |
| Insulation Type | Three Wall Alcove |
| Number Of Shelves | 2 |
| Drain Placement | Right |
| Shape | Rectangular |
| Glass Features | Clear Glass |
| Configuration | Shower Enclosure |
| Frame Type | Framed |
| Door Type | Sliding |
| Number Of Doors | 2 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Slip Resistant | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | China |
| Collection | Visions |
| Certifications | UPC, ANSI |
| Commercial Warranty | 1 Year Limited |
| Base Included | Yes |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Shower Walls Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
