DreamLine DL-6119C-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Infinity-Z Shower Door, 36″ x 60″ Single Threshold Shower Base and QWALL-5 Shower Backwall Kit
Overall Kit Dimensions: 36″ D x 60″ W x 76-3/4″ H
Infinity-Z Shower Door:
56 – 60″ W x 72″ H

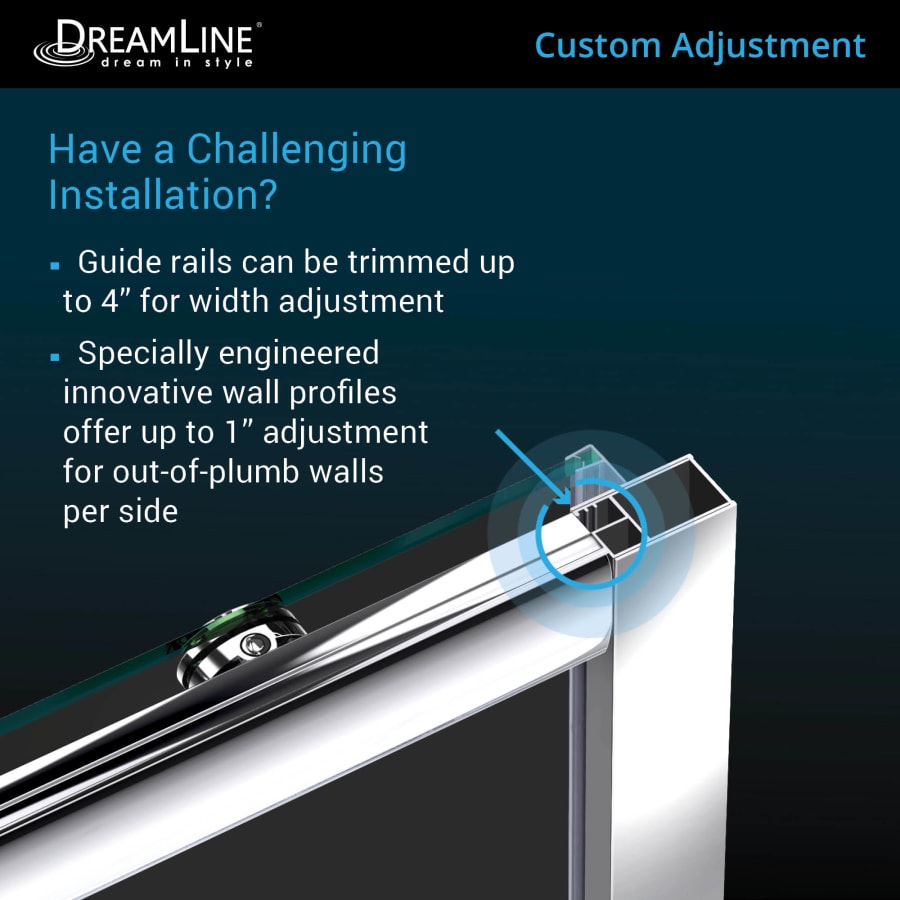

Anodized aluminum wall profiles provide up to 1″ width (horizontal) or out-of-plumb (vertical) adjustment
Frameless glass design
Model consists of single sliding panel and one stationary inline panel

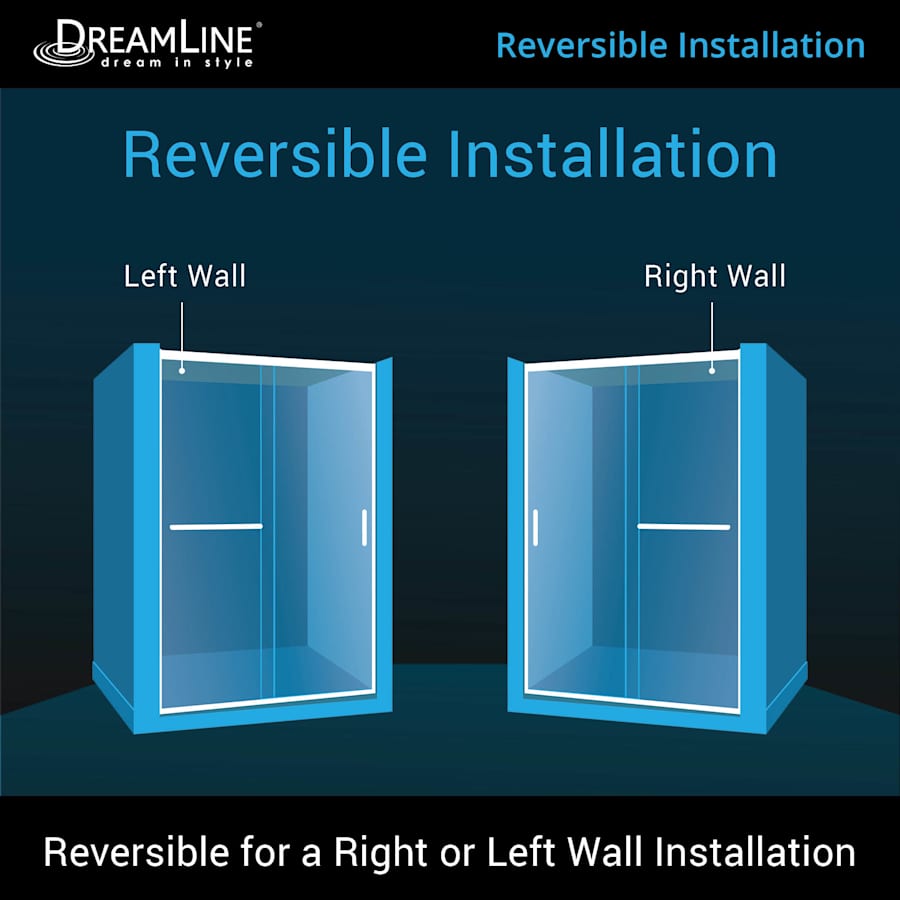

Reversible for right or left door opening installation
1/4″ (6mm) thick clear tempered glass
Door Walk-In: 21-3/8 – 25-3/8″
Stationary Panel: 27″

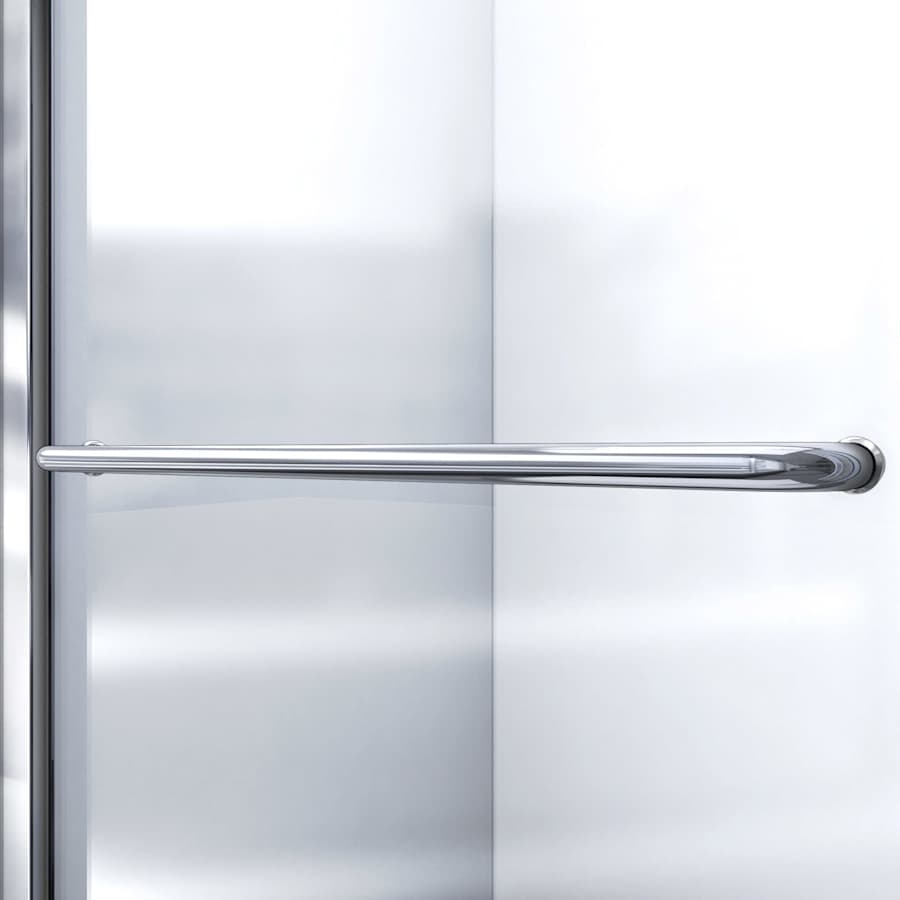

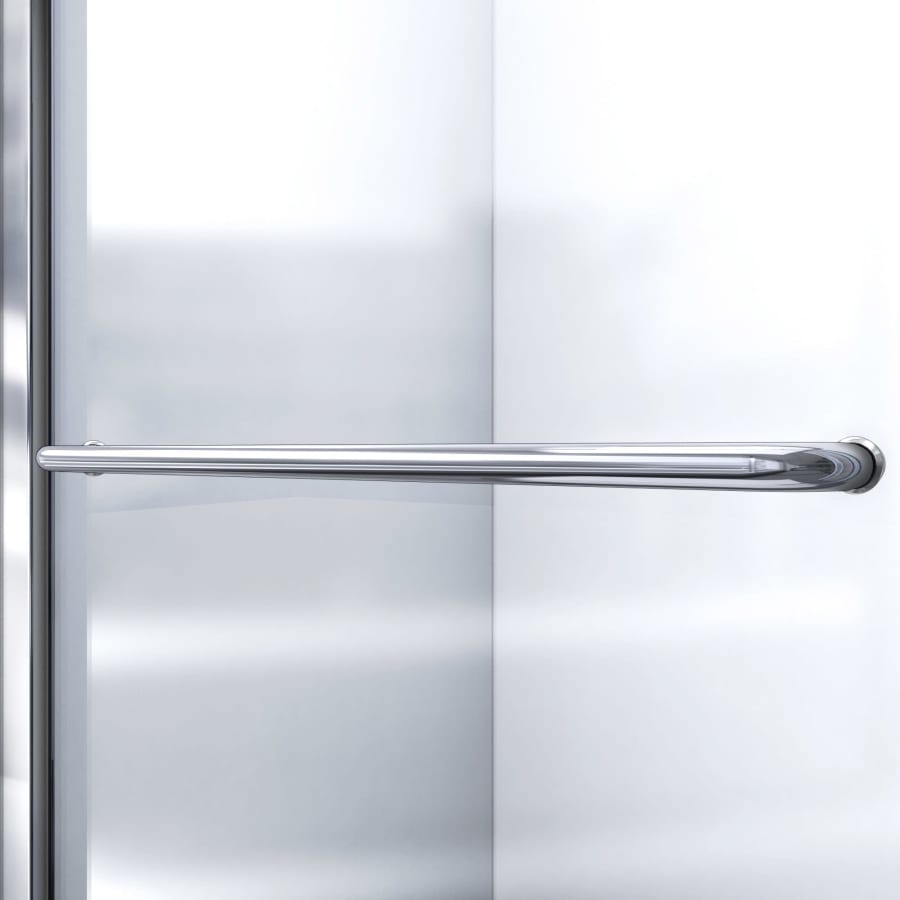

Convenient towel bar on stationary panel
Professional installation required

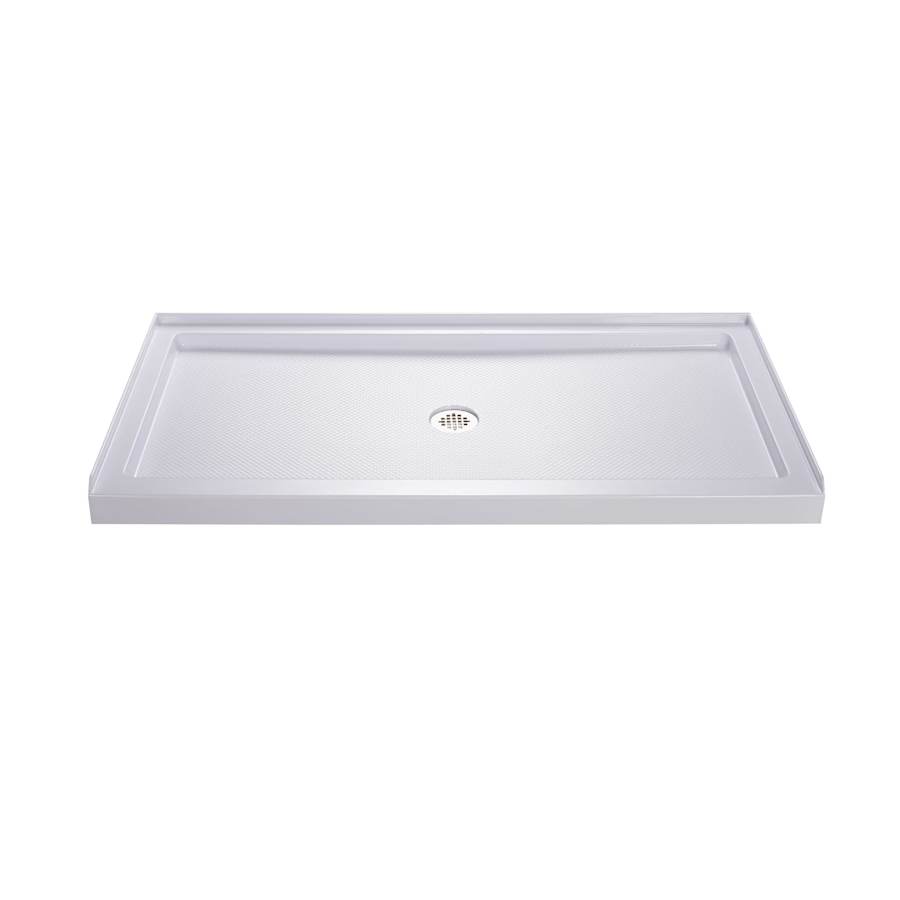

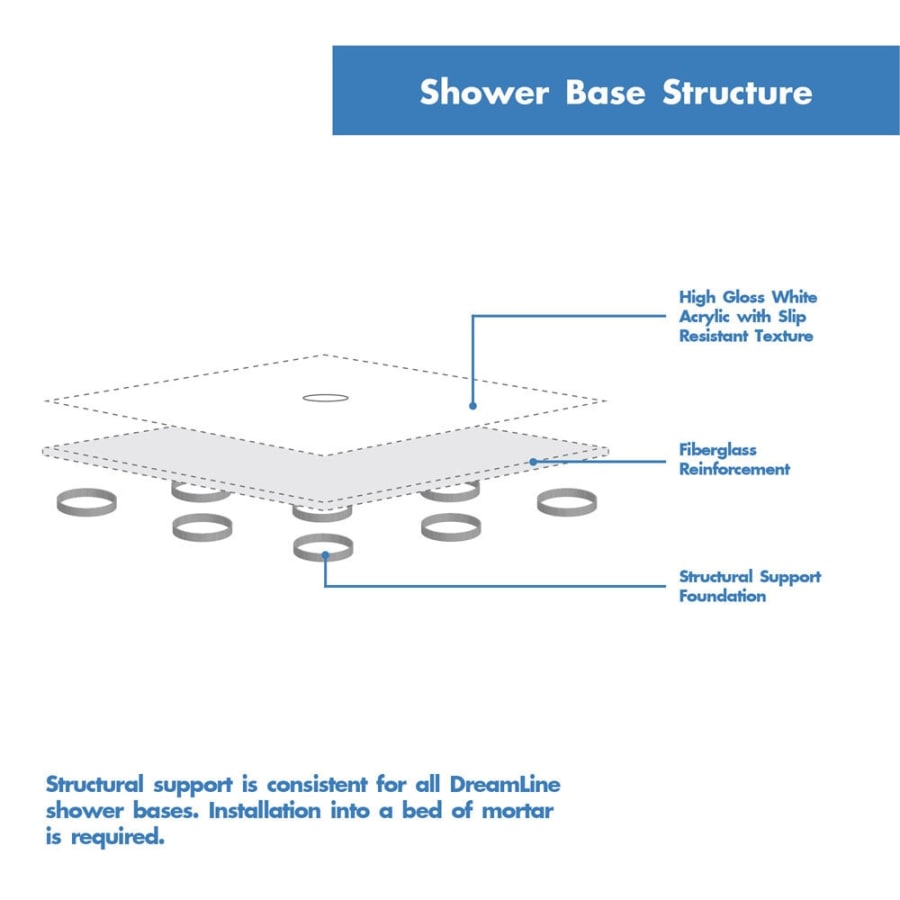

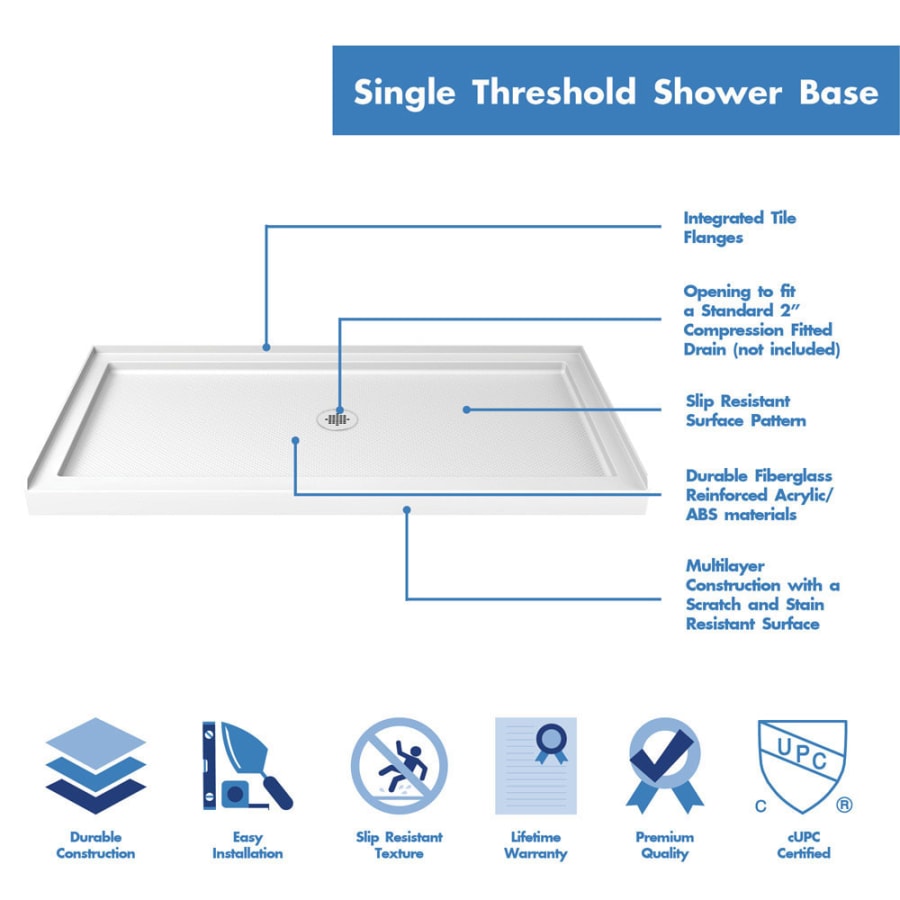

36″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic
Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

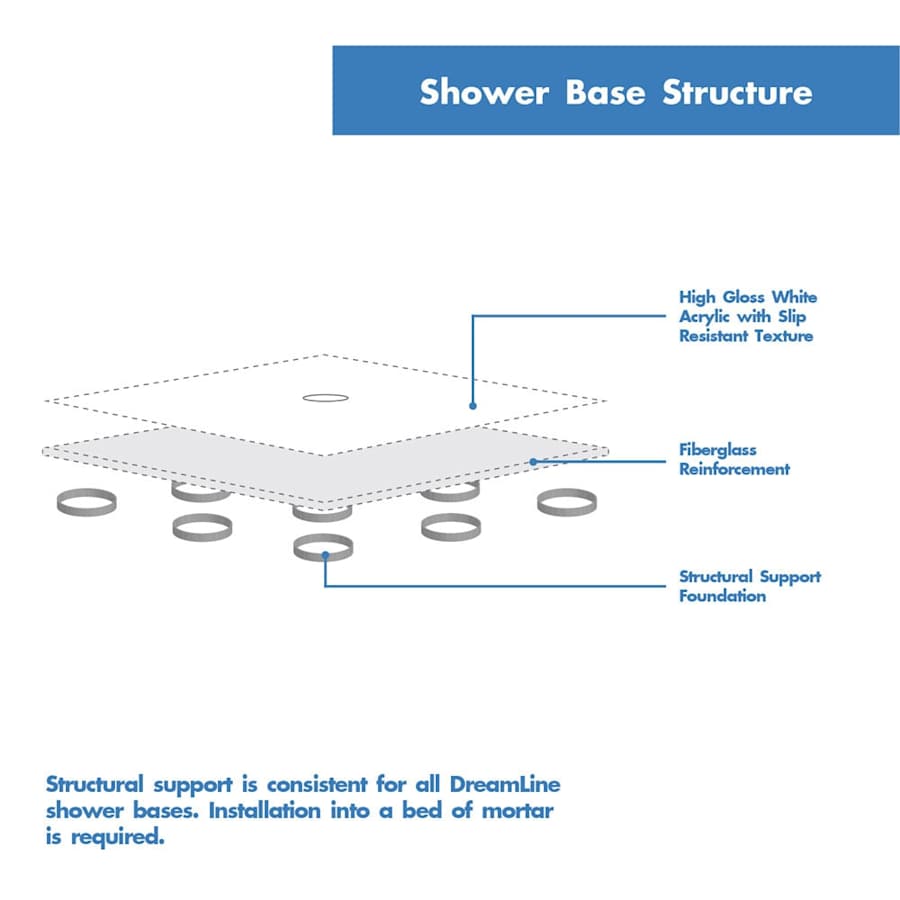

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

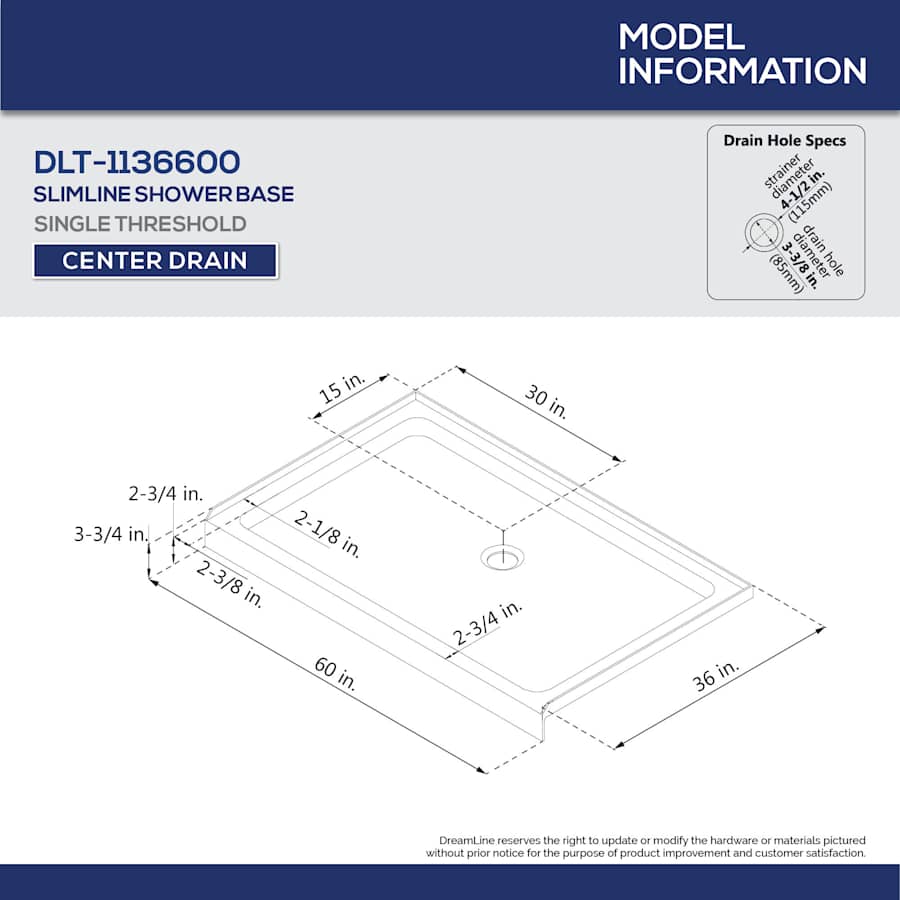

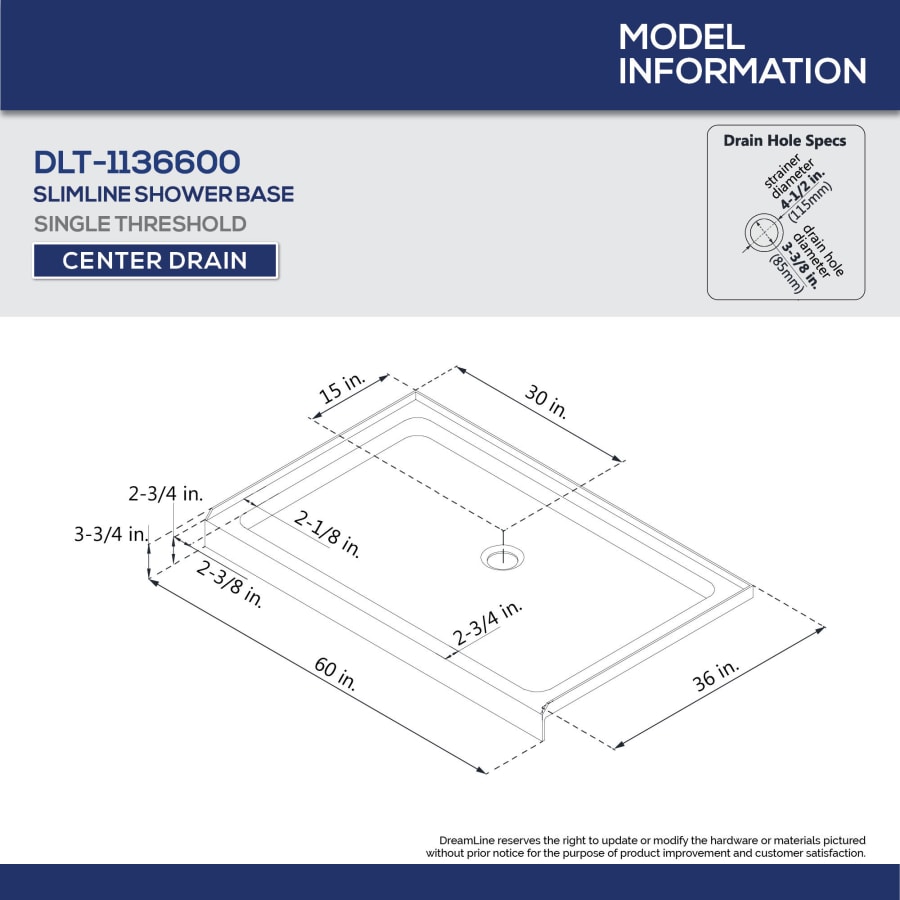

Center drain configuration. Please review the technical drawing for exact drain location

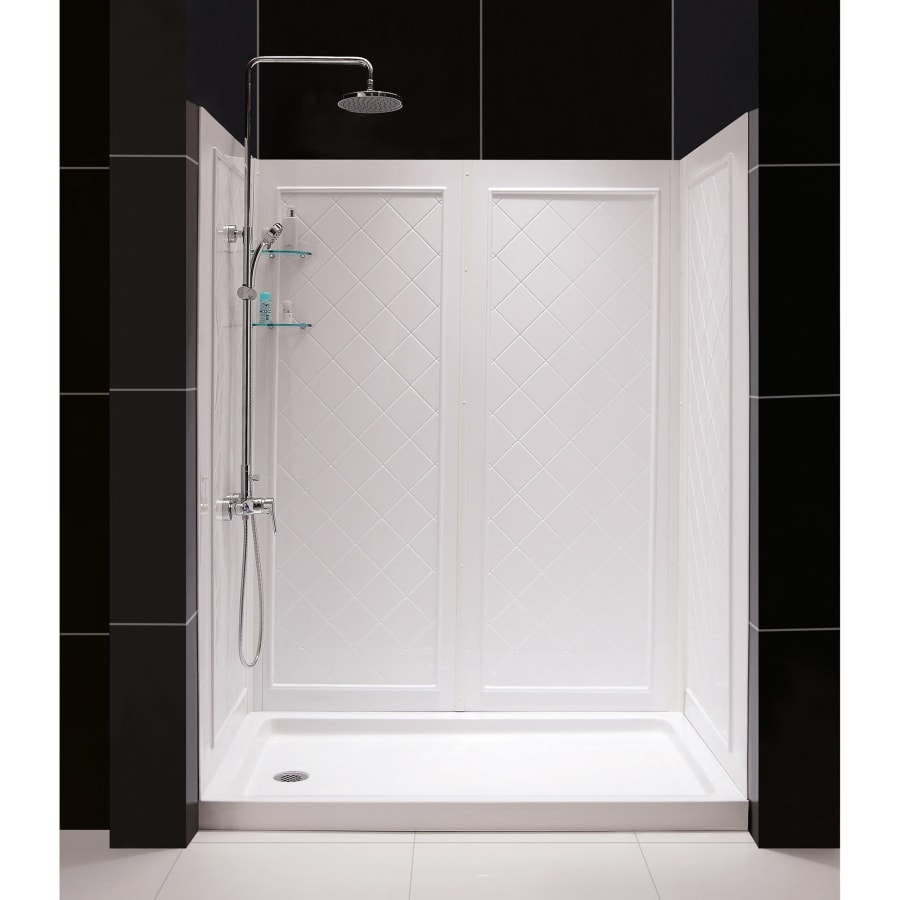

QWALL-5 Shower Backwall Kit:
Color: White
Assembly required

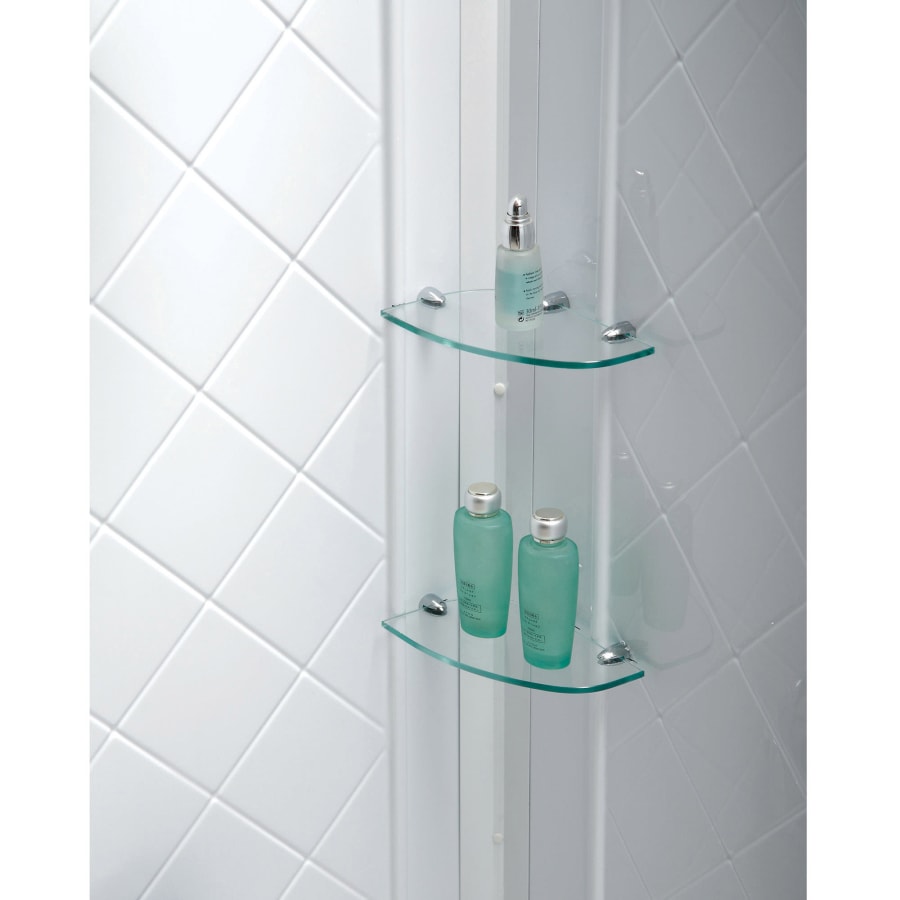

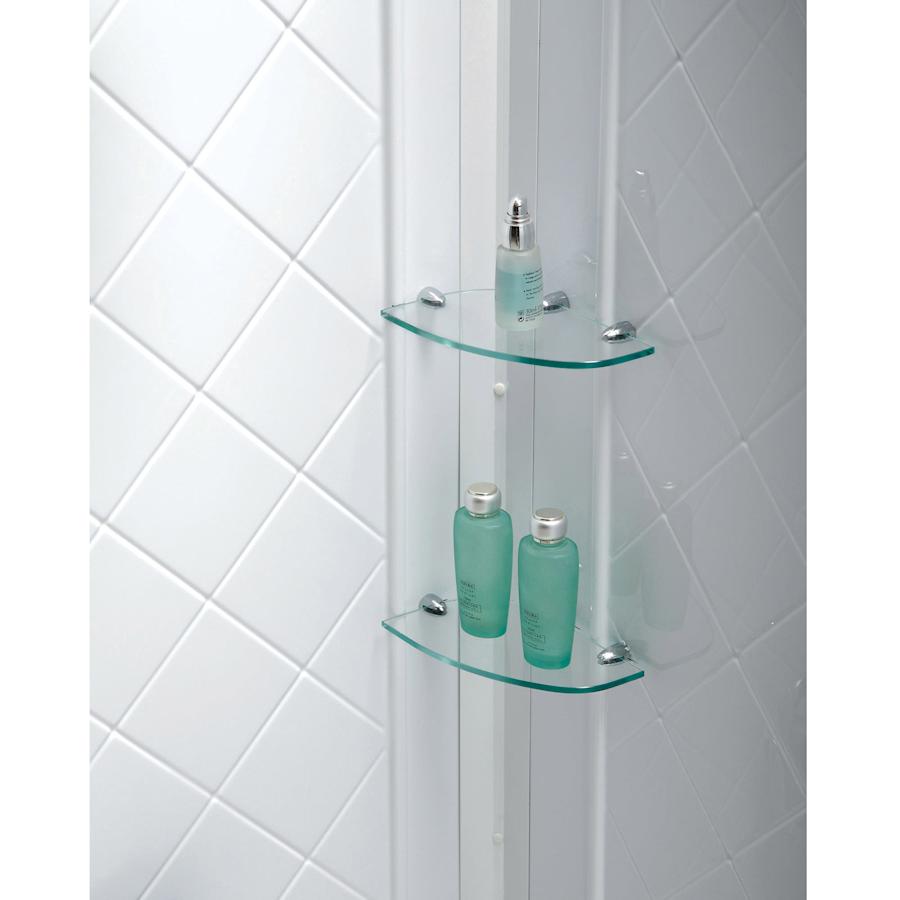

Includes 2 glass corner shelves
Attractive tile pattern
Unique water tight connection of panels
Durable acrylic/ABS construction
Trim-to-Size sidewall design
Must be trimmed during installation
Specially designed to be installed over existing solid surface not directly against the studs
Limited lifetime manufacturer warranty
Shower Backwalls: Limited 1 (one) year manufacturer warranty
About Collection:

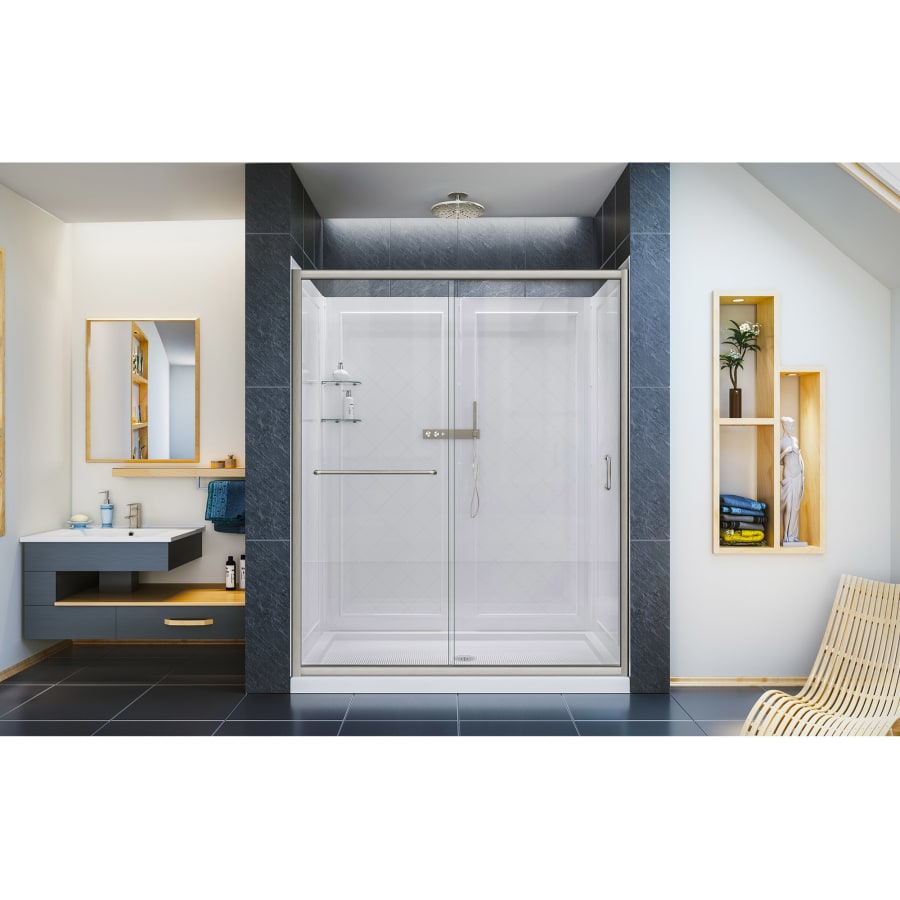

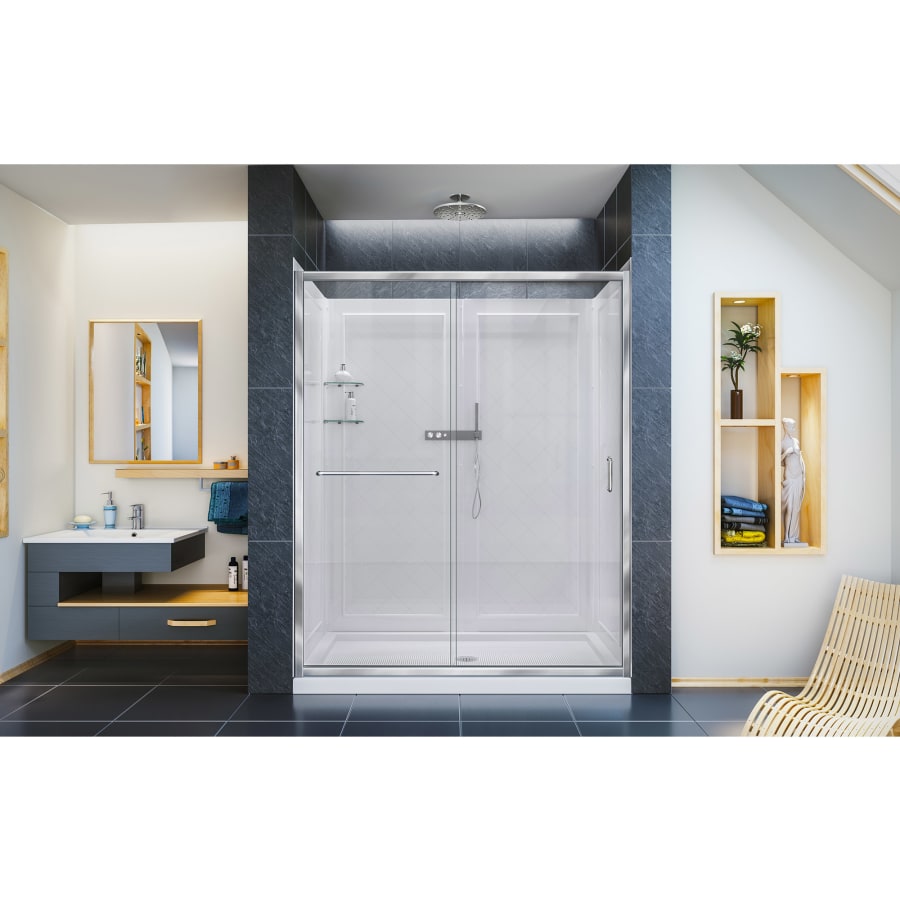

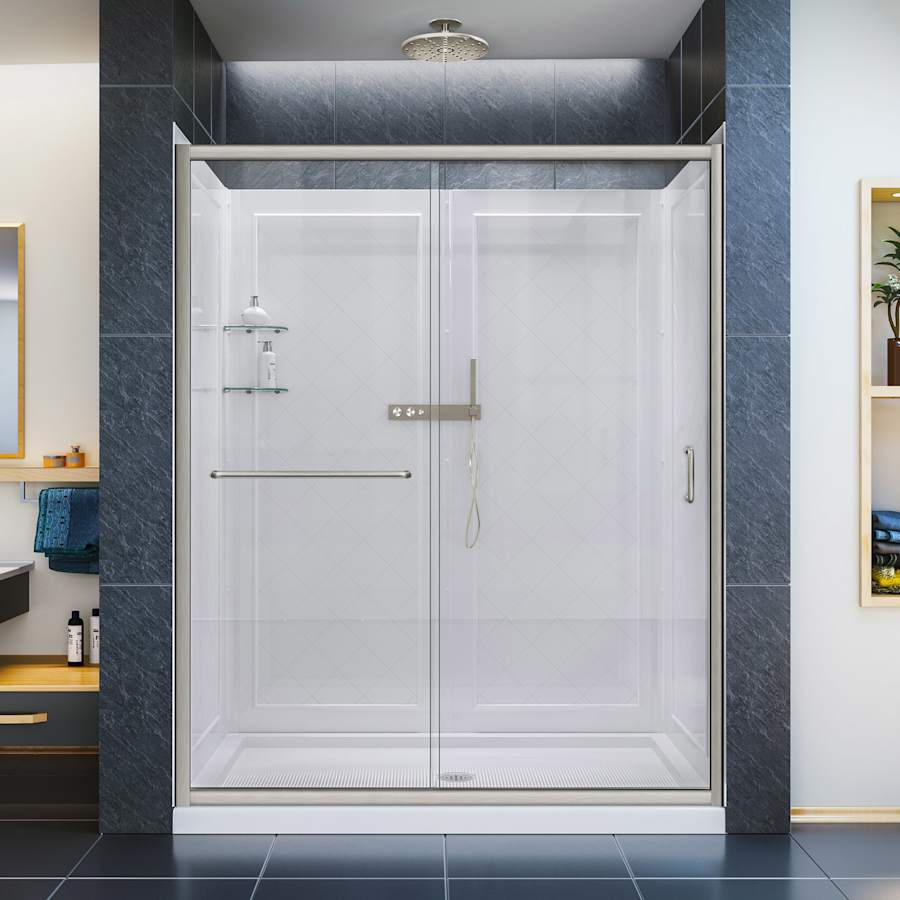

This kit combines the INFINITY-Z™ shower door, universal shower backwall panels and a coordinating SlimLine™ shower base to completely transform a shower space. The INFINITY-Z sliding shower door is matched with a stationary glass panel to provide a wide bath entry. The stationary panel is fitted with a convenient towel bar that doubles as a handle. The SlimLine shower base incorporates a low profile design for a sleek modern look, while the shower backwall panels have a tile pattern. This smart kit offers the perfect solution for a bathroom remodel or tub-to-shower conversion project.
About DreamLine™:
DreamLine™ is a leading global manufacturer and distributor of high quality shower doors, tub doors, shower enclosures and acrylics shower bases. DreamLine is passionate about smart and visionary design delivering affordable luxury bathroom solutions to the bath and shower marketplace. DreamLine has achieved worldwide accolades for off-the-shelf and custom shower door solutions with sleek modern style and impressive value. DreamLine structures their company`s philosophy to ensure customer satisfaction, exceptional quality and overall excellence in their products and team members. DreamLine has “The Ultimate Shower Door” for any bathroom project.
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Infinity-Z Collection
Specifications
| Width | 60 in. |
| Height | 76.75 in. |
| Product Weight | 203 lbs. |
| Depth | 36 in. |
| Drain Connection | 3.25 in. |
| Nominal Width | 56, 57, 58, 59, 60 in. |
| Quantity | 4 |
| Glass Thickness | .25 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Door Width | 25.375 in. |
| Panel Width | 27 in. |
| Shower Door Width | 25.375 in. |
| Thermostat | Modern |
| Material | Acrylic, Aluminum, Glass |
| Insulation Type | Three Wall Alcove |
| Number Of Shelves | 2 |
| Drain Placement | Center |
| Shape | Rectangular |
| Glass Features | Clear Glass |
| Configuration | Shower Door |
| Frame Type | Framed |
| Door Swing | Reversible, Left, Right |
| Door Type | Sliding |
| Number Of Doors | 1 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Slip Resistant | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Infinity-Z |
| Certifications | UPC, ANSI |
| Towel Bar Included | Yes |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Shower Walls Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
