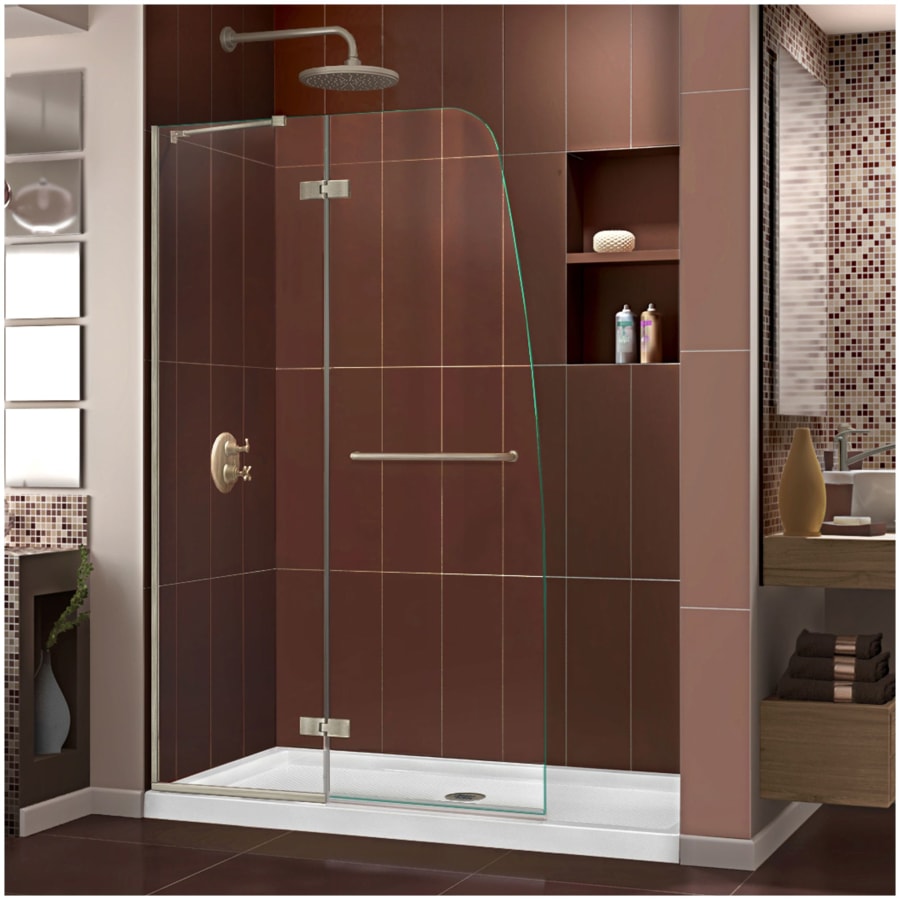

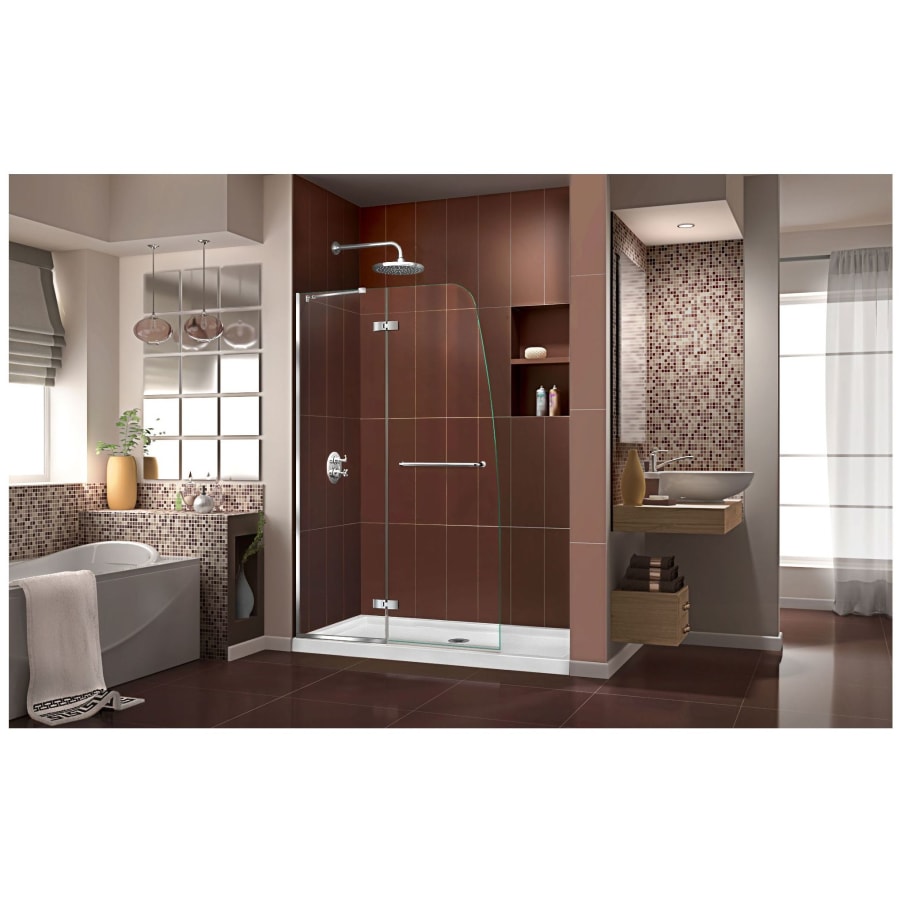

The DreamLine Aqua Ultra is a frameless shower or tub screen with European appeal and modern architectural design. With a stunning curved silhouette that creates an open, inviting feel, the Aqua Ultra will transform your bathroom with elegant style to match its functionality. A SlimLine shower base completes the transformation with a modern low profile design. DreamLine shower kits provide the perfect solution for a bathroom remodel or tub-to-shower conversion project.
DreamLine DL-6523C-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Aqua Ultra Shower Door and 36″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 36″ D x 60″ W x 74-3/4″ H
Note: To minimize possible water escaping outside the bathing area, position the shower head opposite of the door opening aimed at the tiled walls, fixed glass panel or straight down towards the shower floor

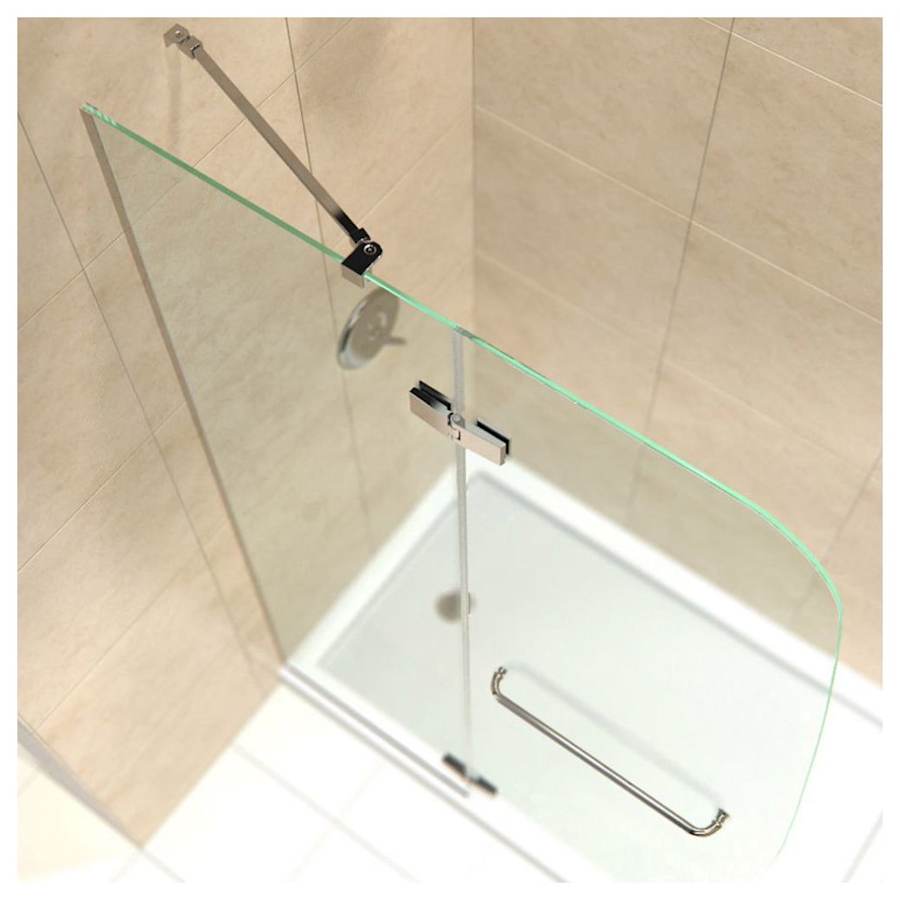

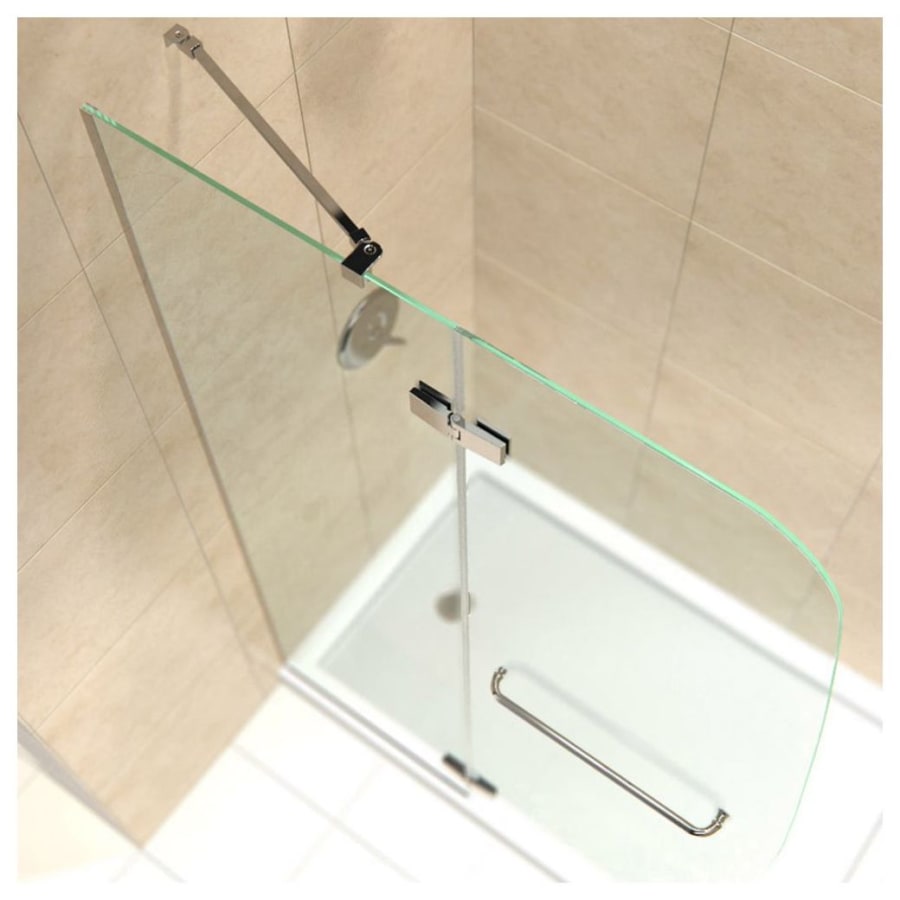

Aqua Ultra Shower Door:
45″ W x 72″ H
Frameless glass design

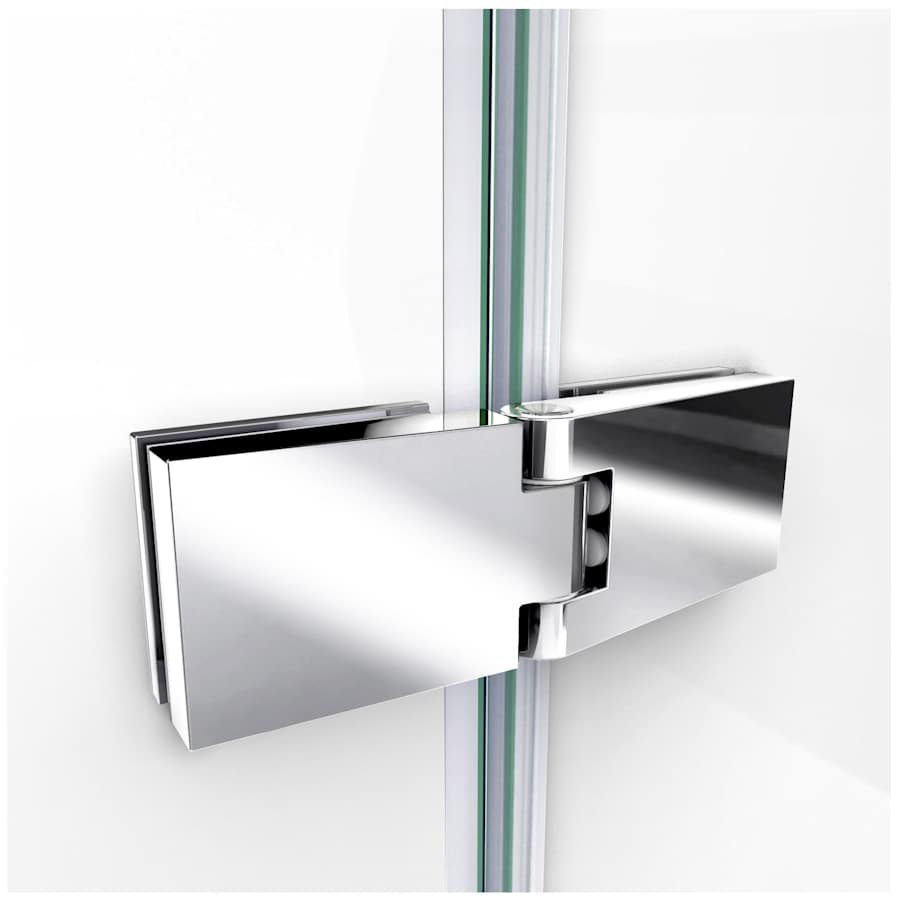

Model consists of one hinged door and stationary side glass panel

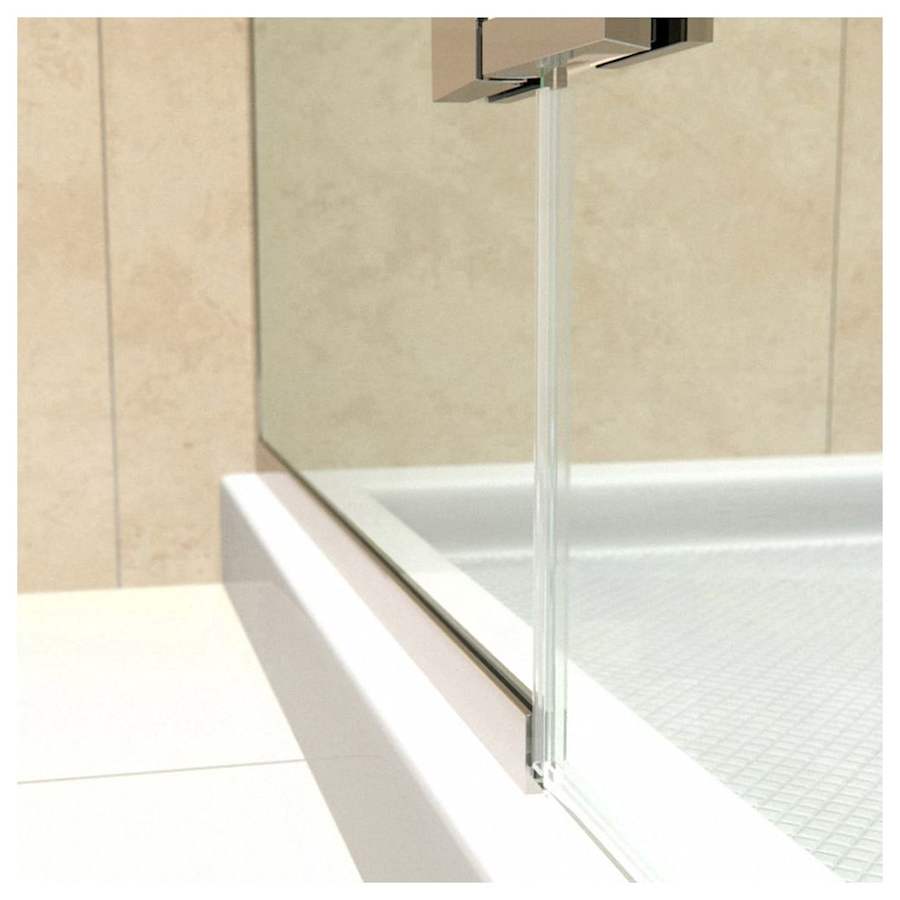

Anodized aluminum U shaped wall profile allows 1/4″ out-of-plumb (vertical) adjustment

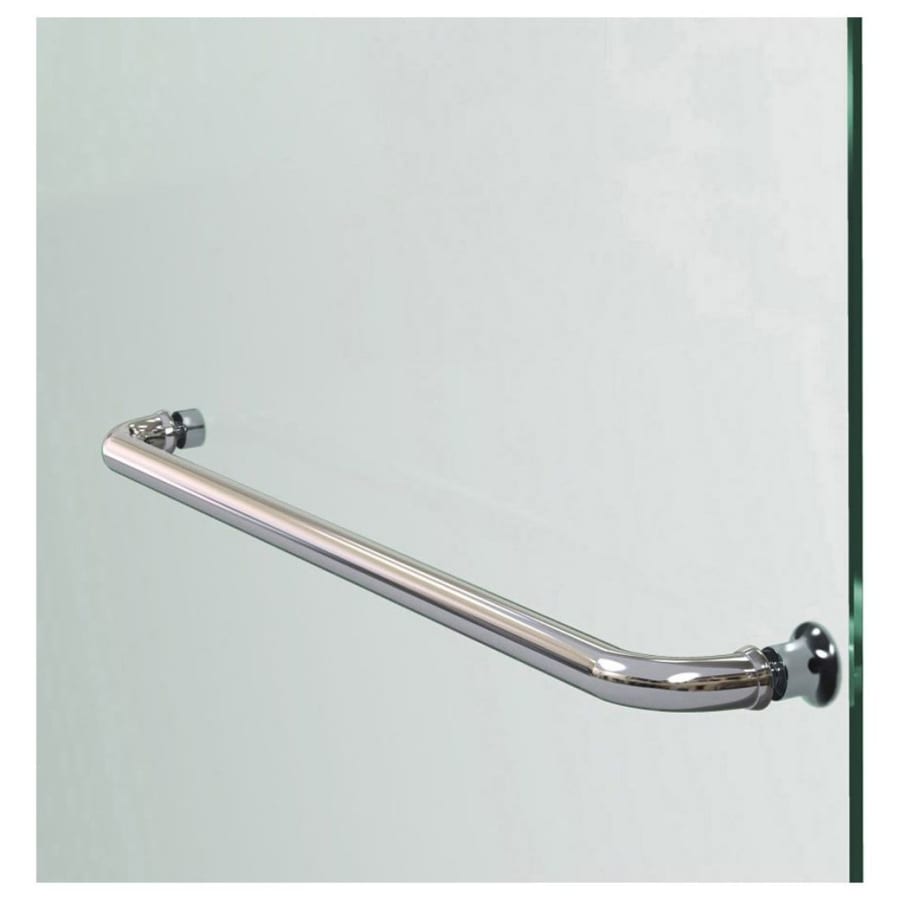

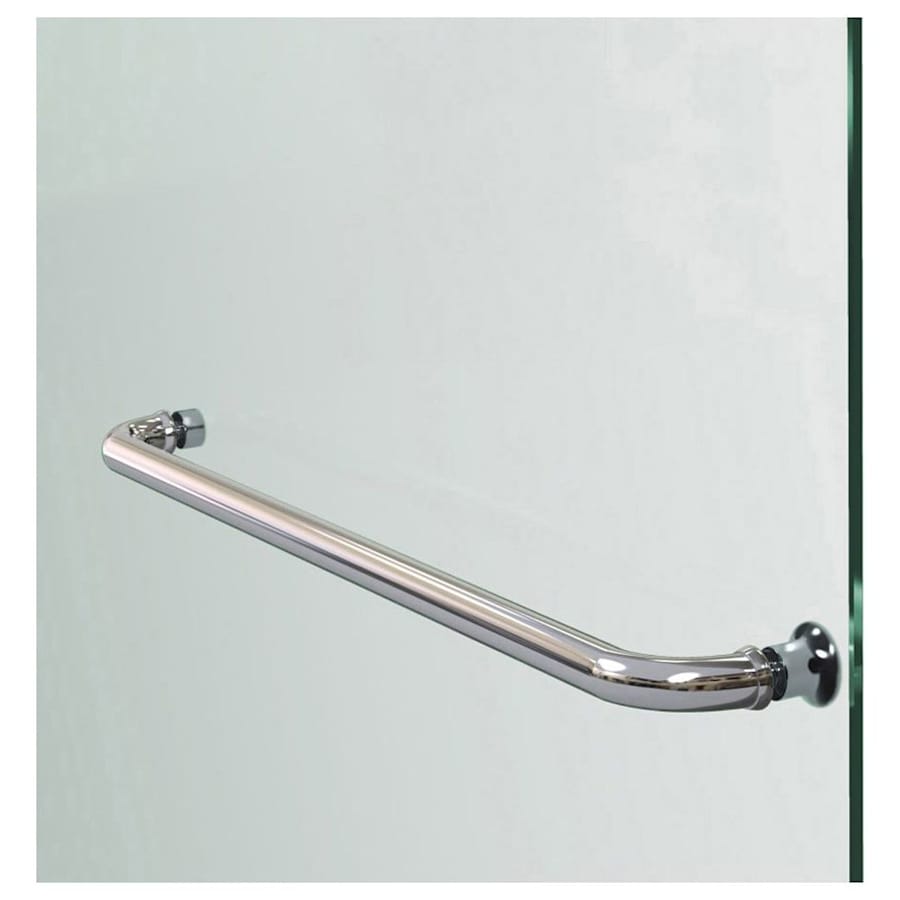

Reversible for a right or left door opening (door has a convenient towel bar)
Quality 5/16″ (8mm) thick clear tempered glass
Stationary Panel: 20 11/16″
Professional installation recommended

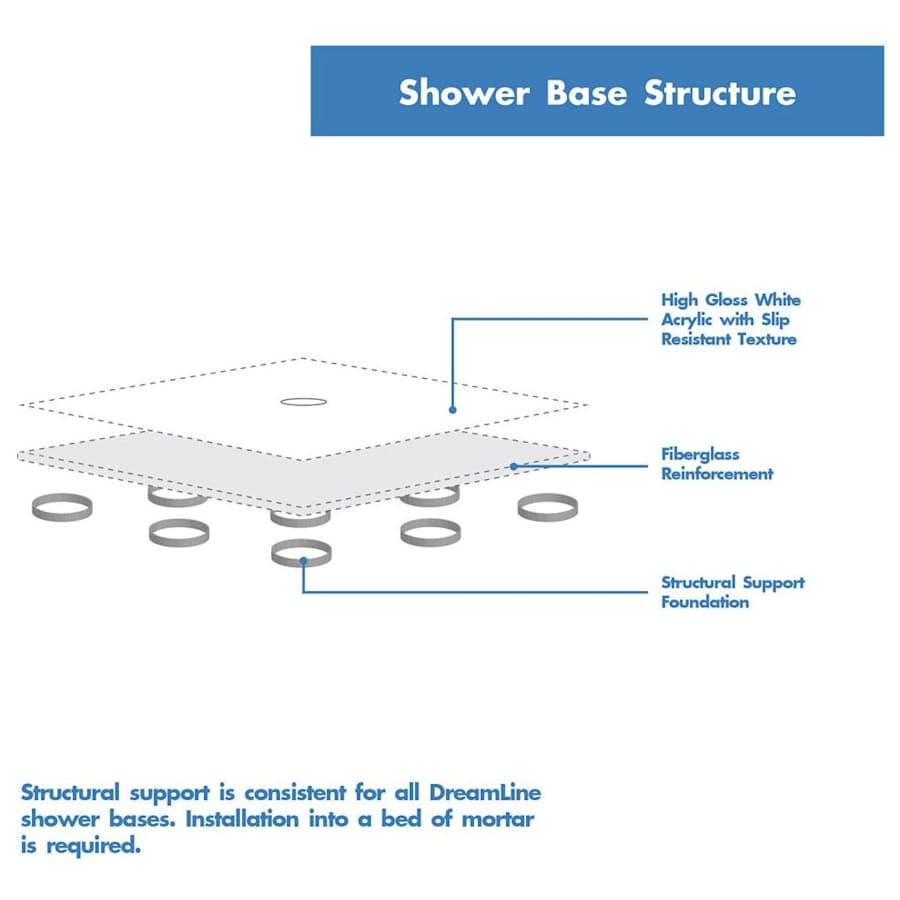

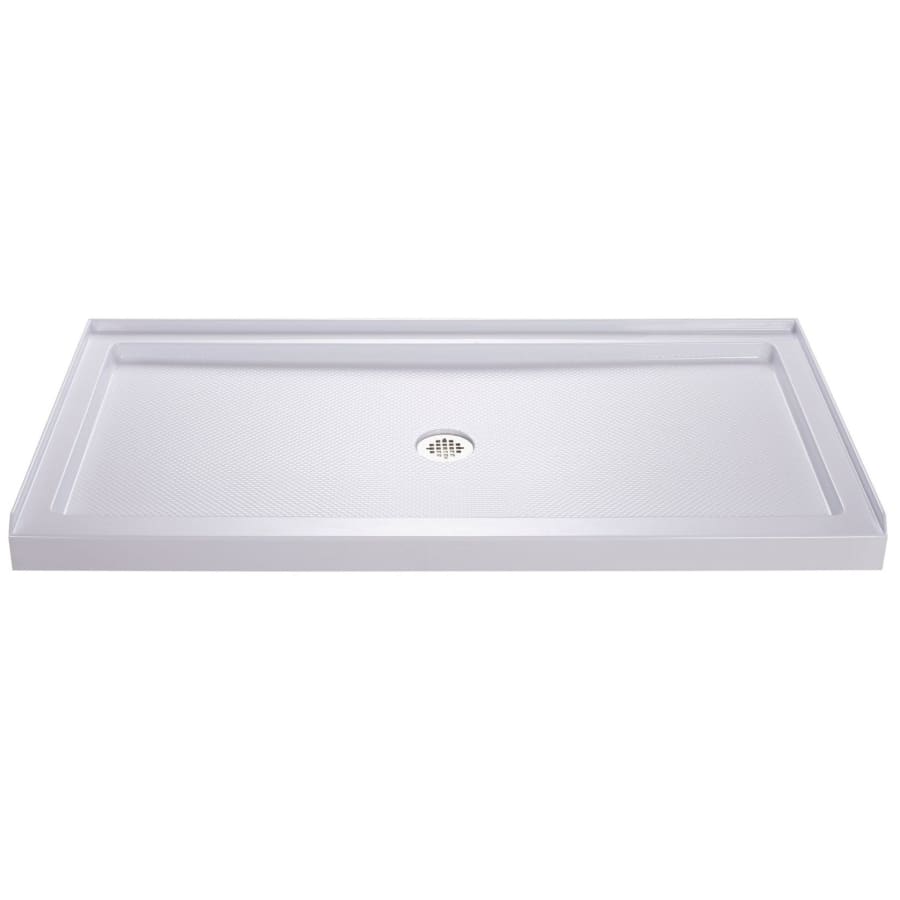

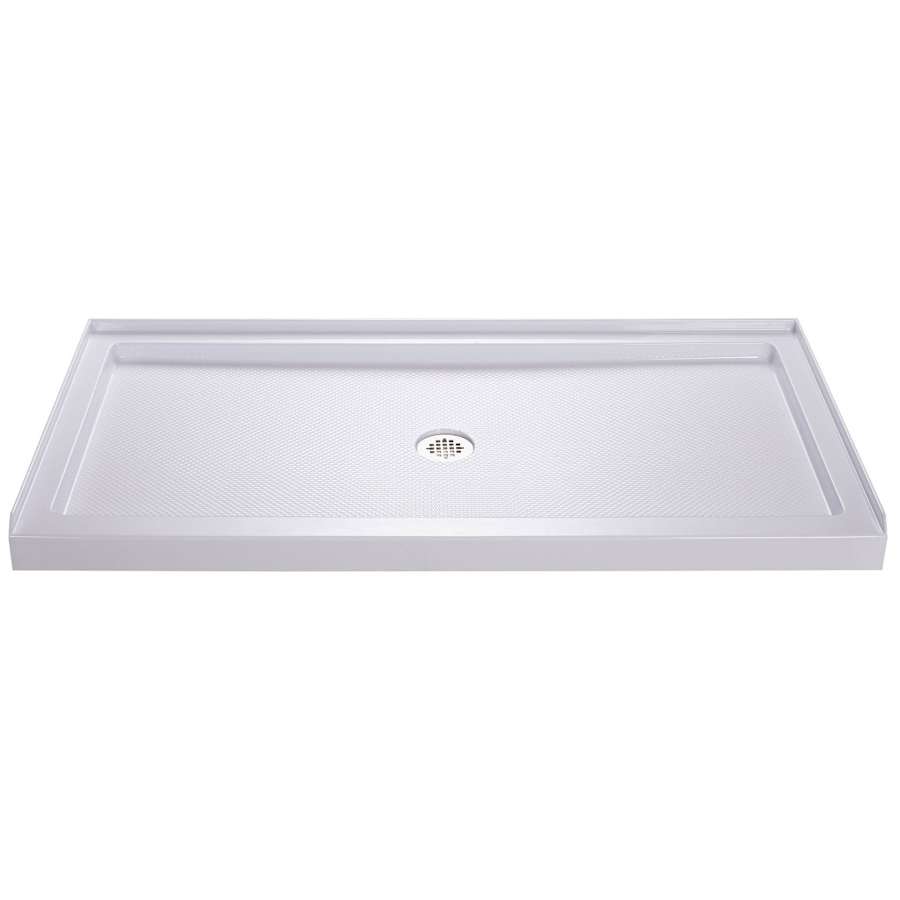

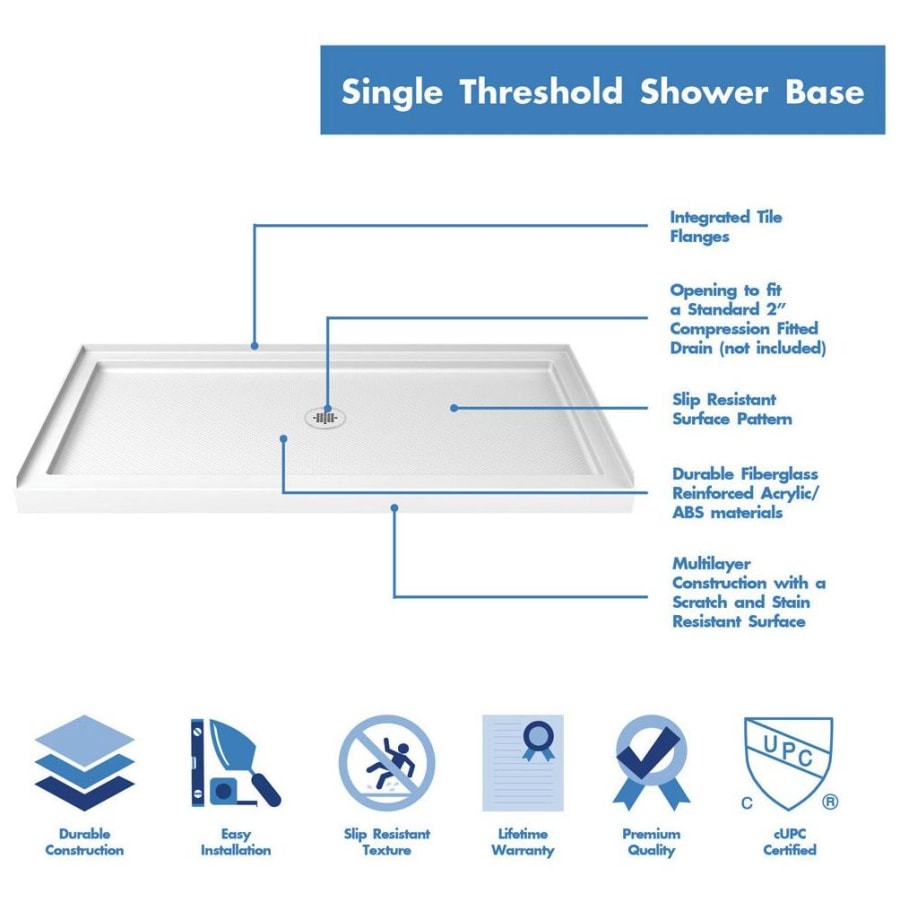

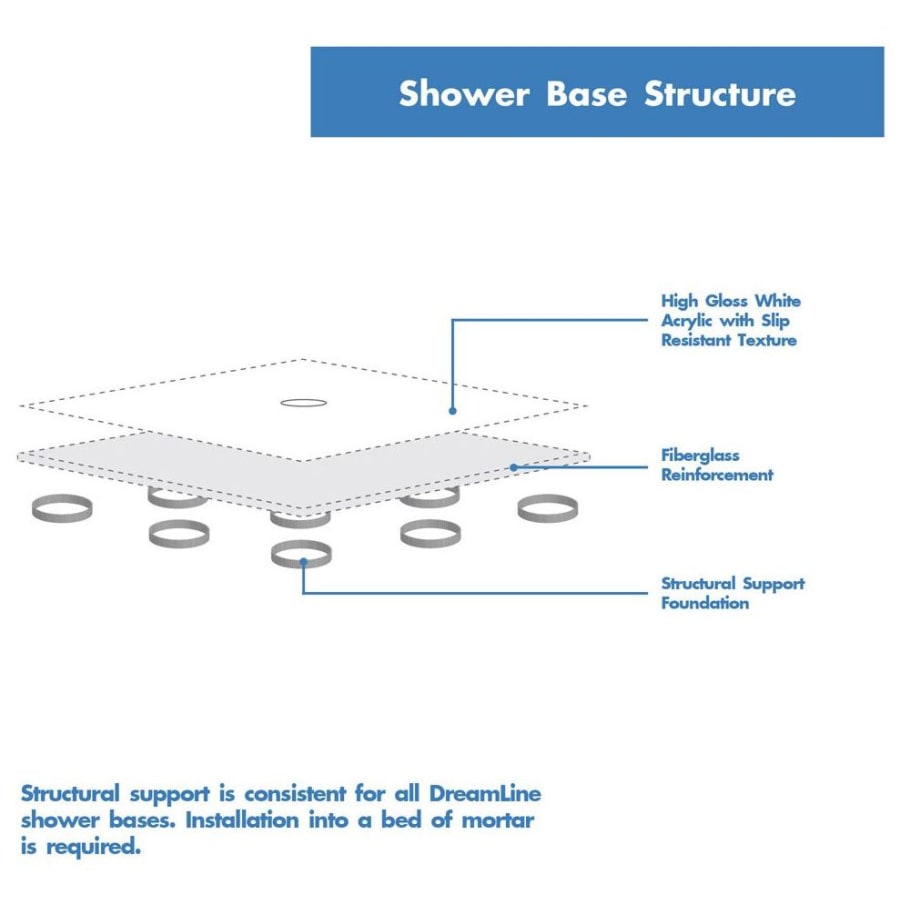

36″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

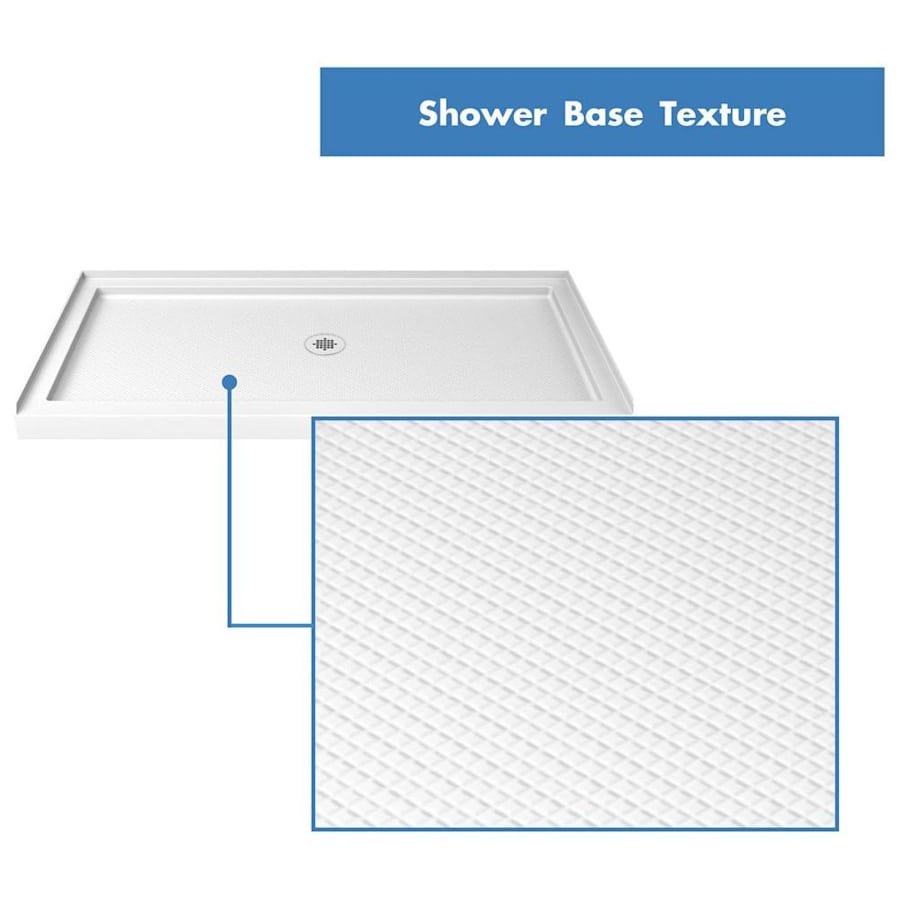

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

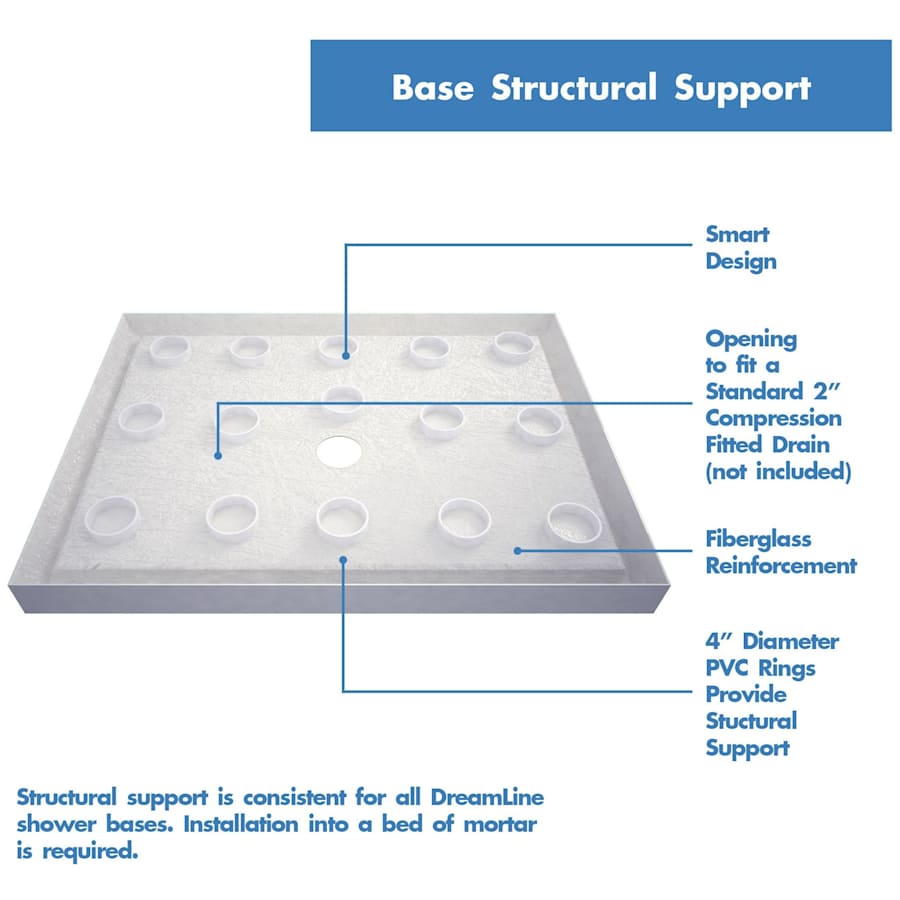

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

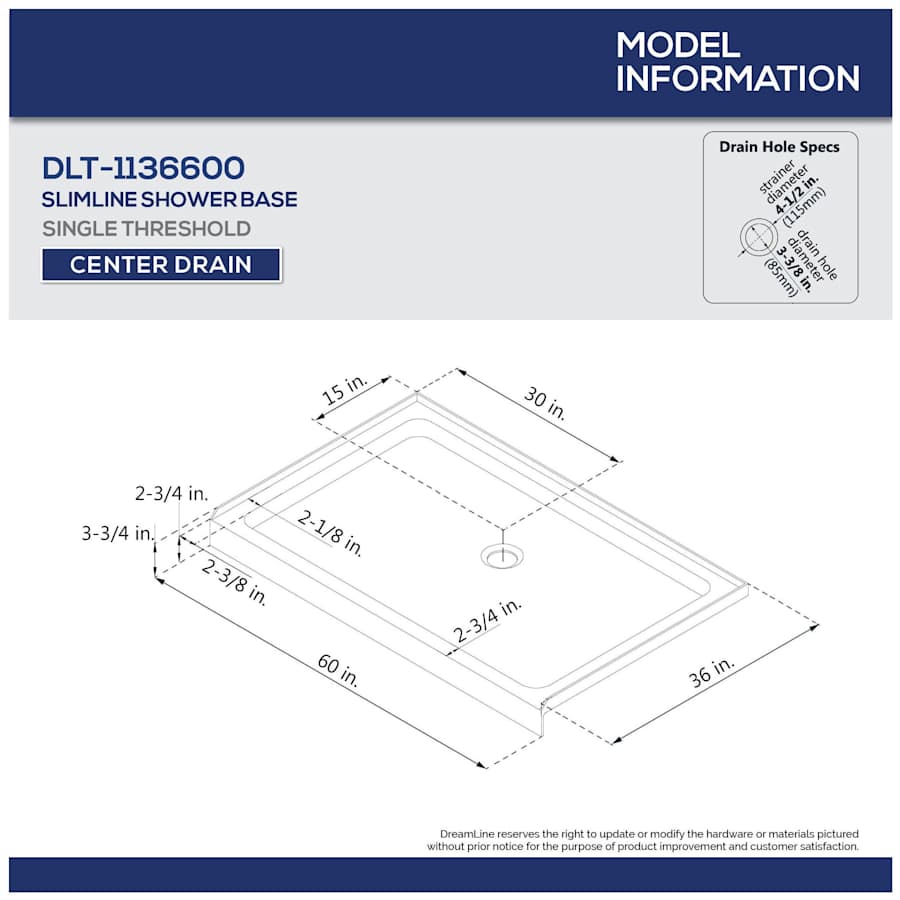

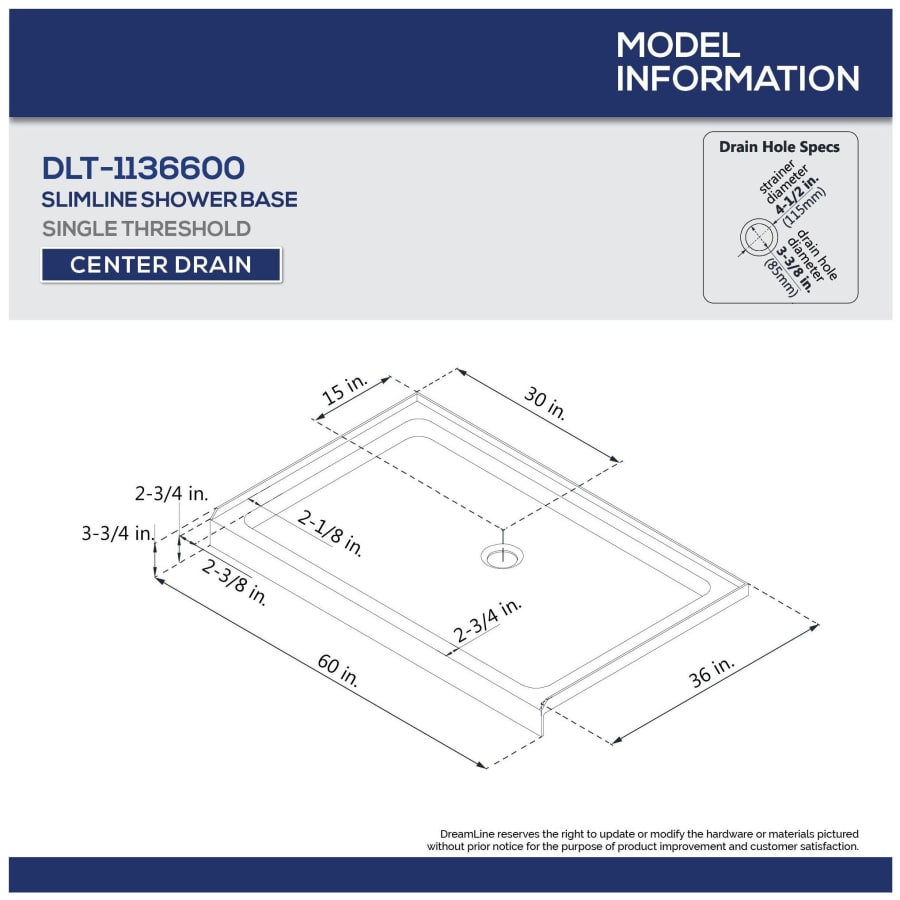

Center drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Aqua Ultra Collection
Specifications
| Height | 74.75 in. |
| Product Weight | 143 lbs. |
| Depth | 36 in. |
| Width | 60 in. |
| Nominal Width | 60 in. |
| Base Width | 36 in. |
| Drain Connection | 3.25 in. |
| Glass Thickness | .3125 in. |
| Bar Length | 60 in. |
| Door Width | 45 in. |
| Panel Width | 20.6875 in. |
| Shower Door Width | 45 in. |
| Insulation Type | Three Wall Alcove |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Shape | Rectangular |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Frame Type | Frameless |
| Door Swing | Right, Left, Reversible |
| Number Of Doors | 1 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Drain Placement | Center |
| Configuration | Shower Door |
| Slip Resistant | Yes |
| Door Type | Hinged |
| Number of Tile Flanges | 3 |
| Approved for Commercial Use | Yes |
| Collection | Aqua Ultra |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UPC, ANSI |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
