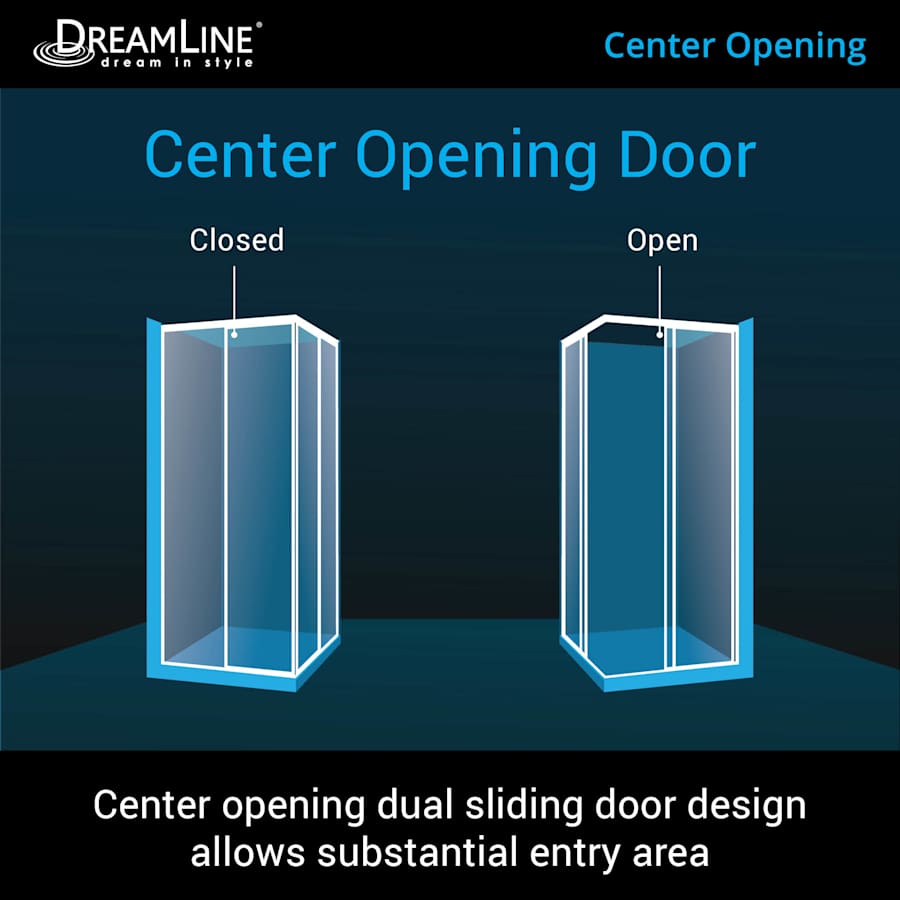

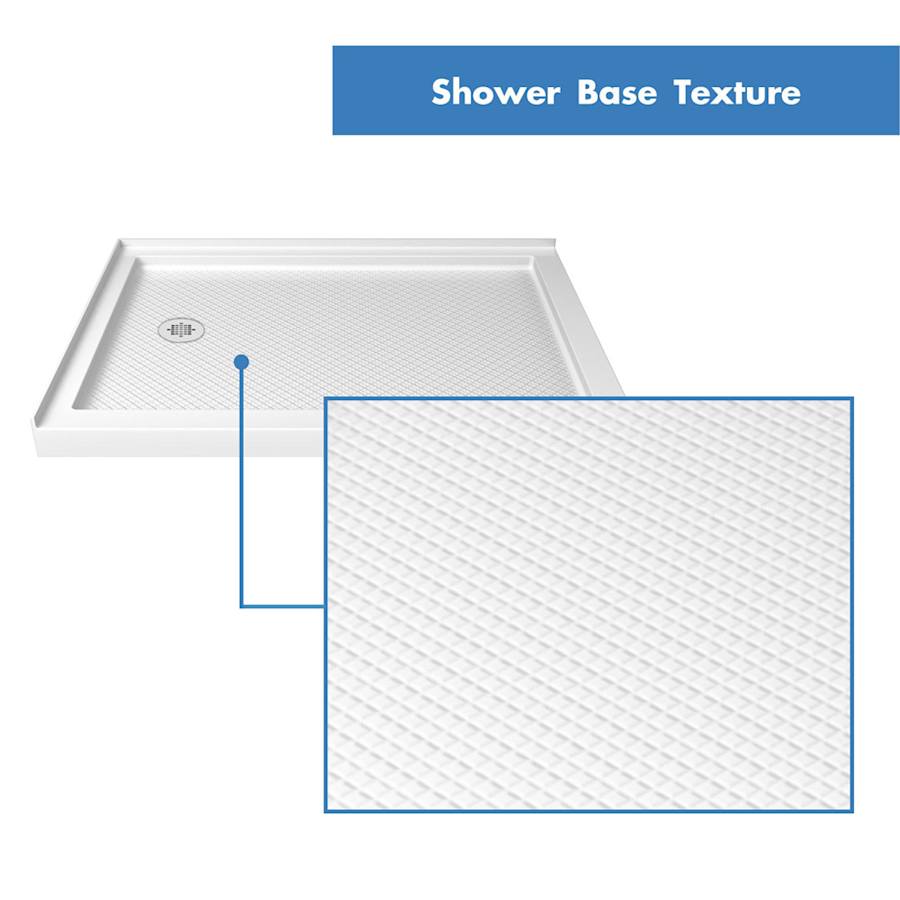

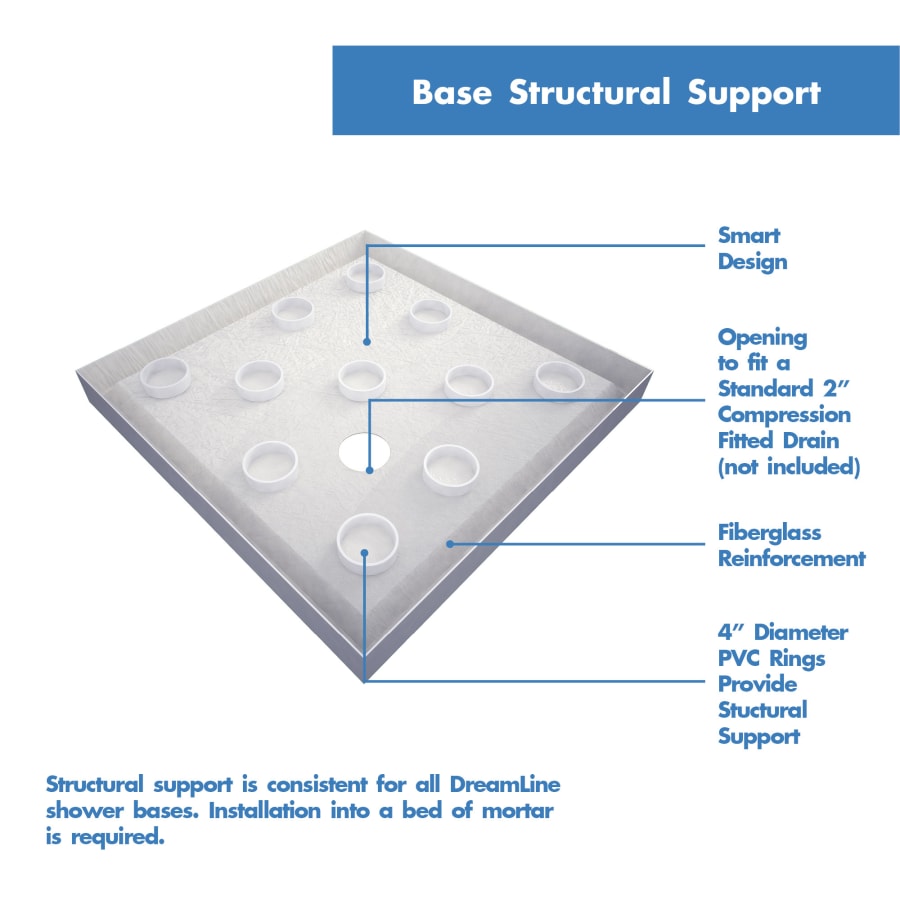

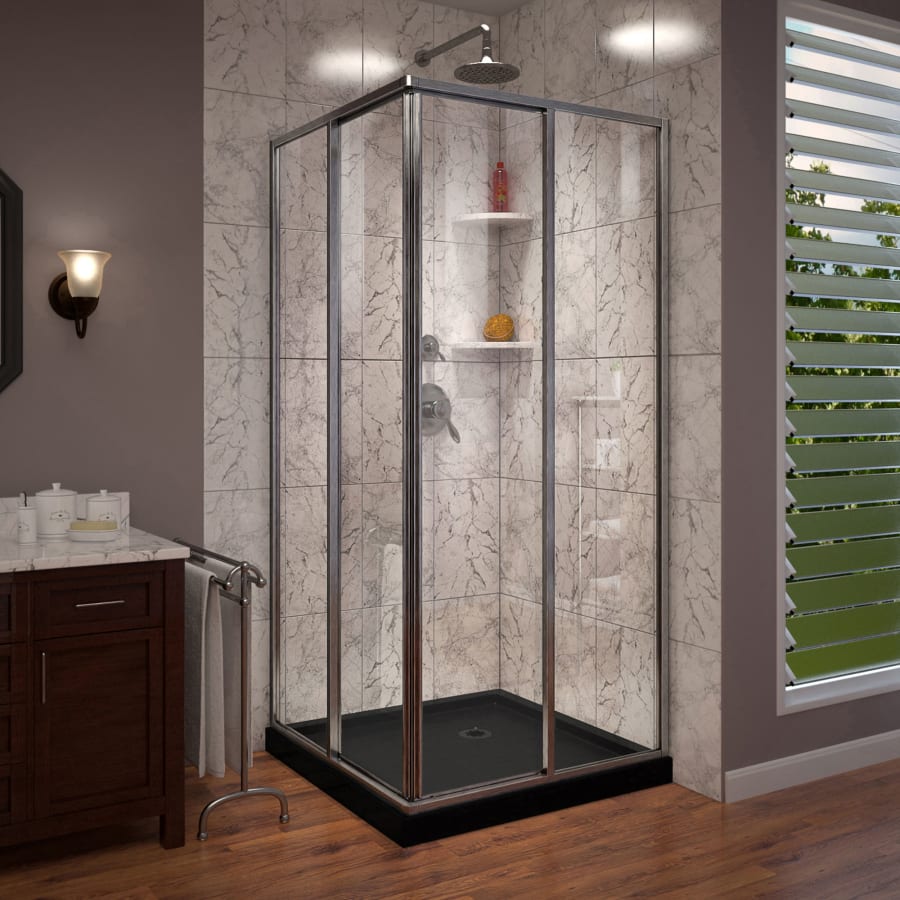

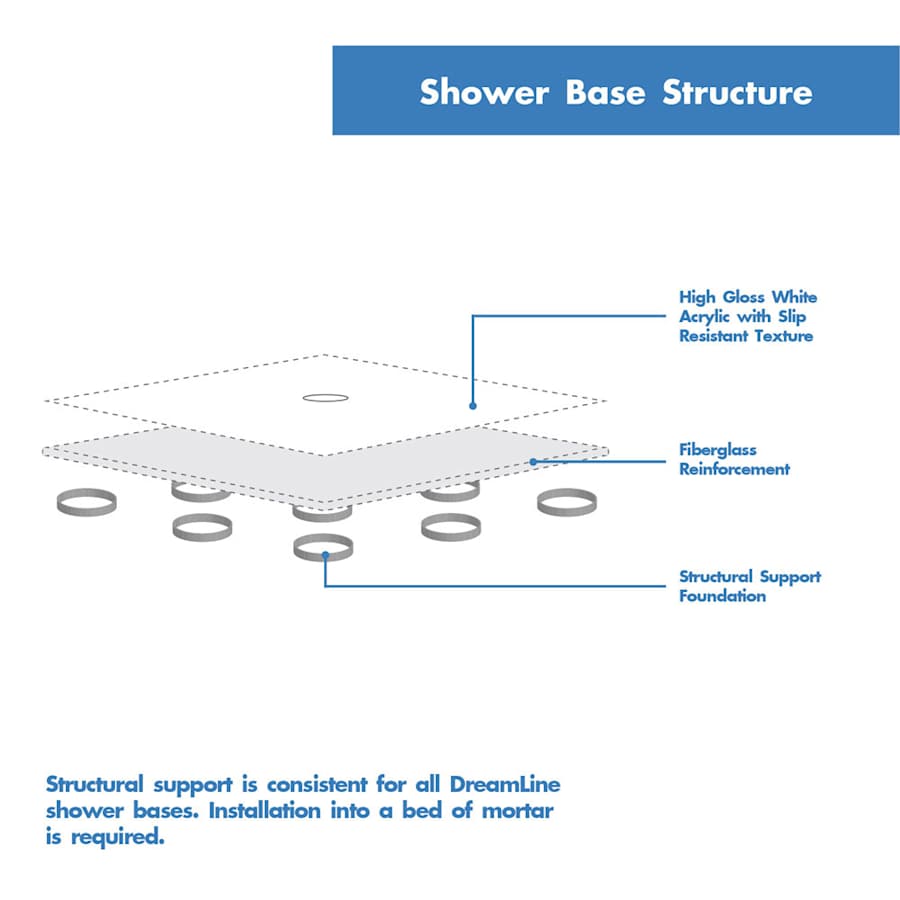

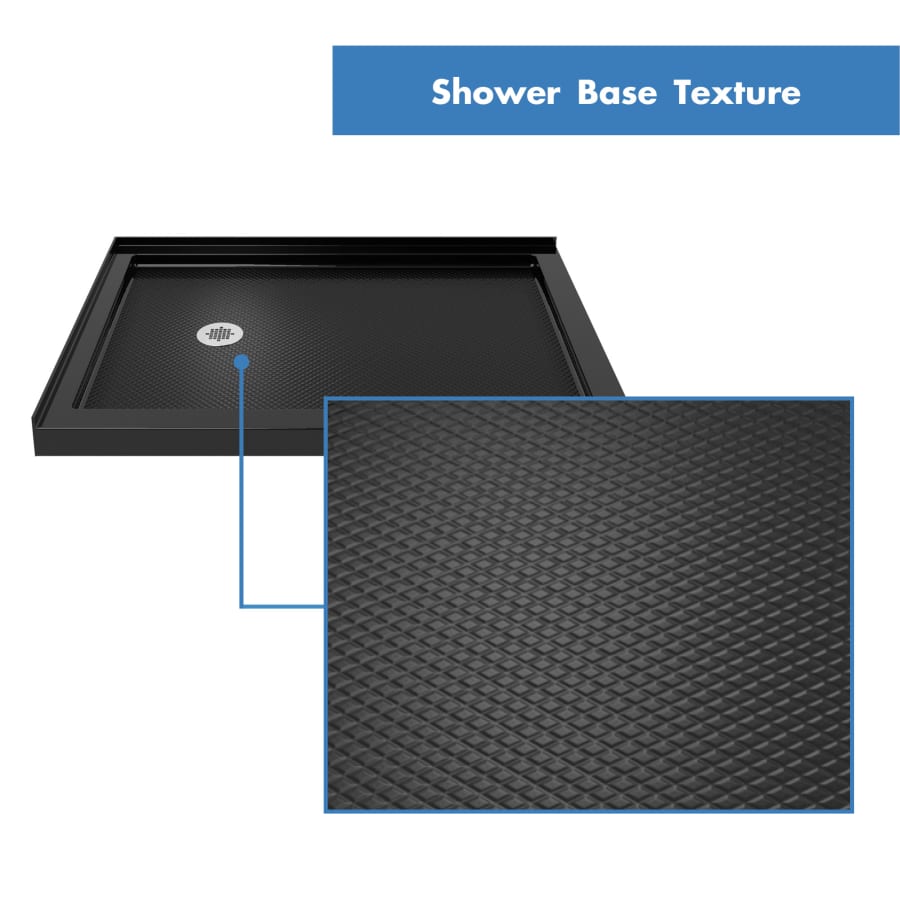

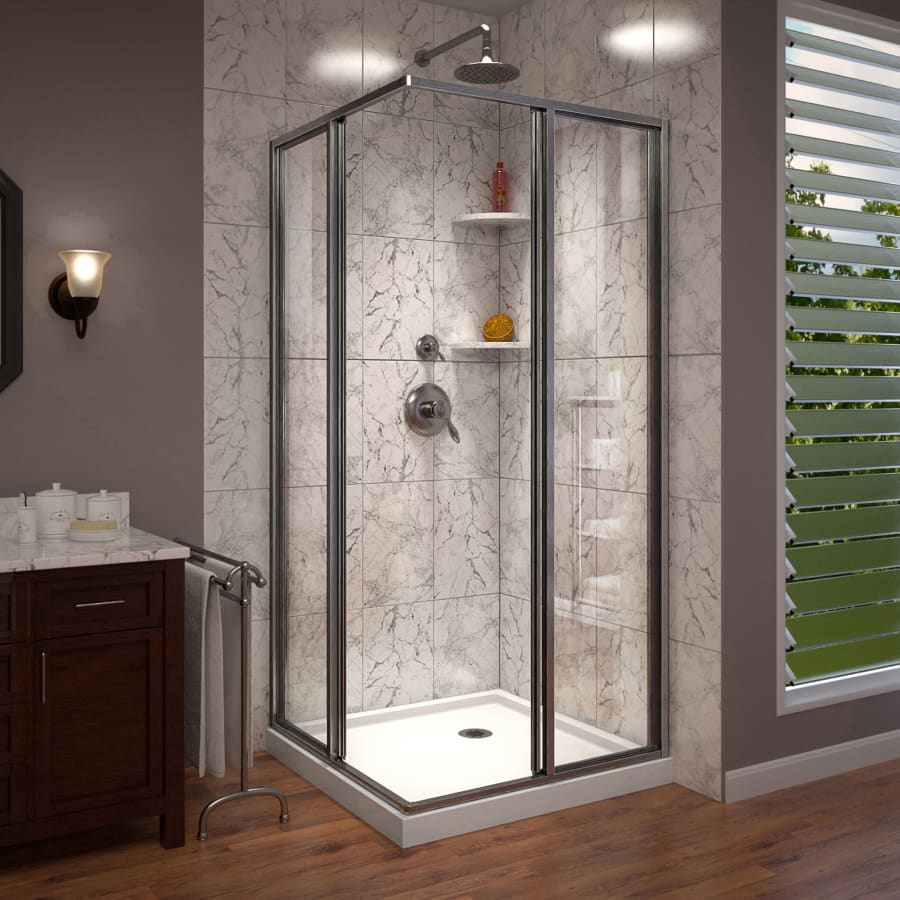

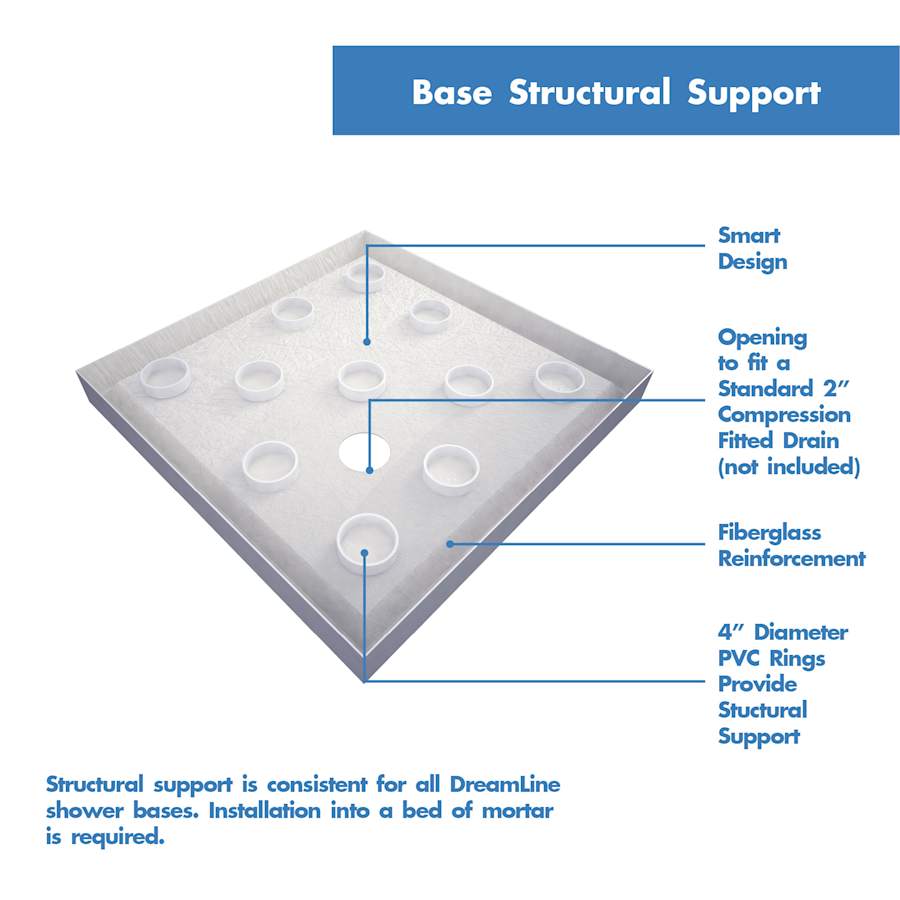

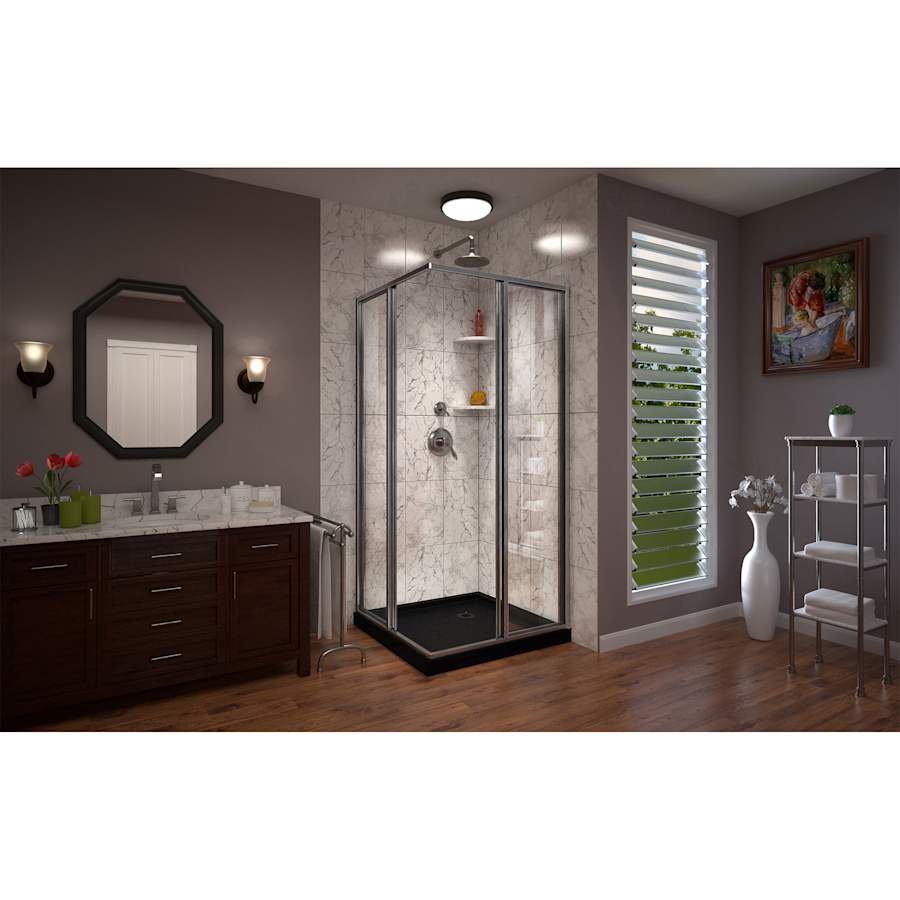

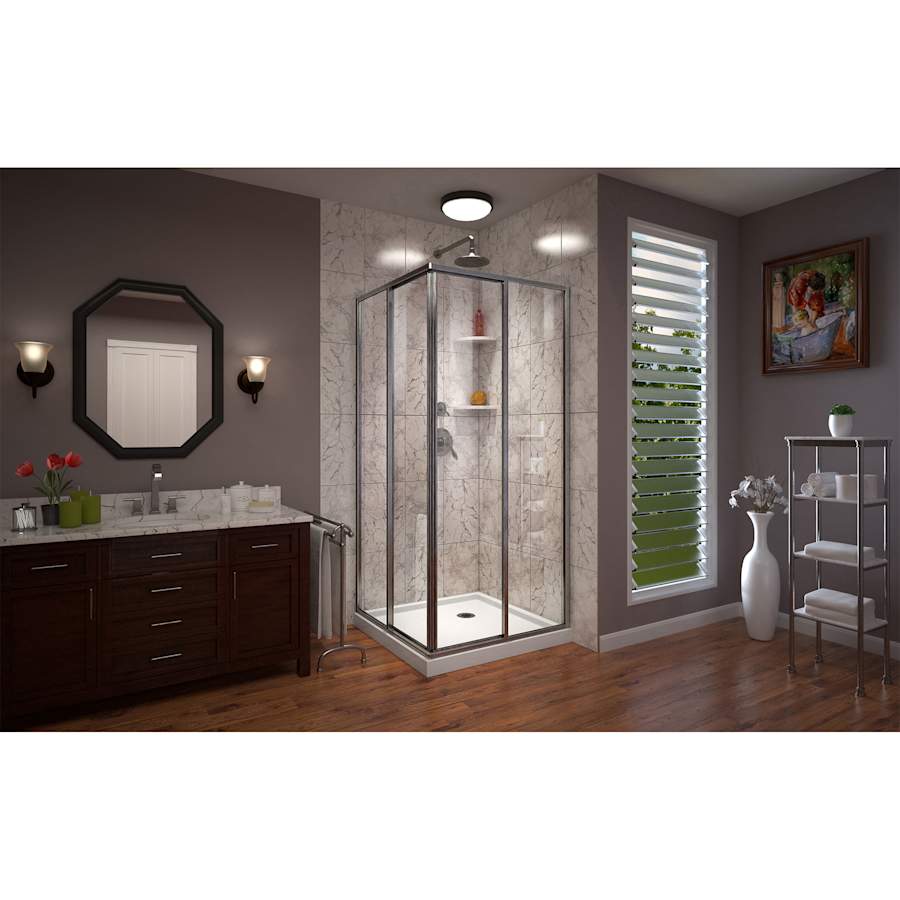

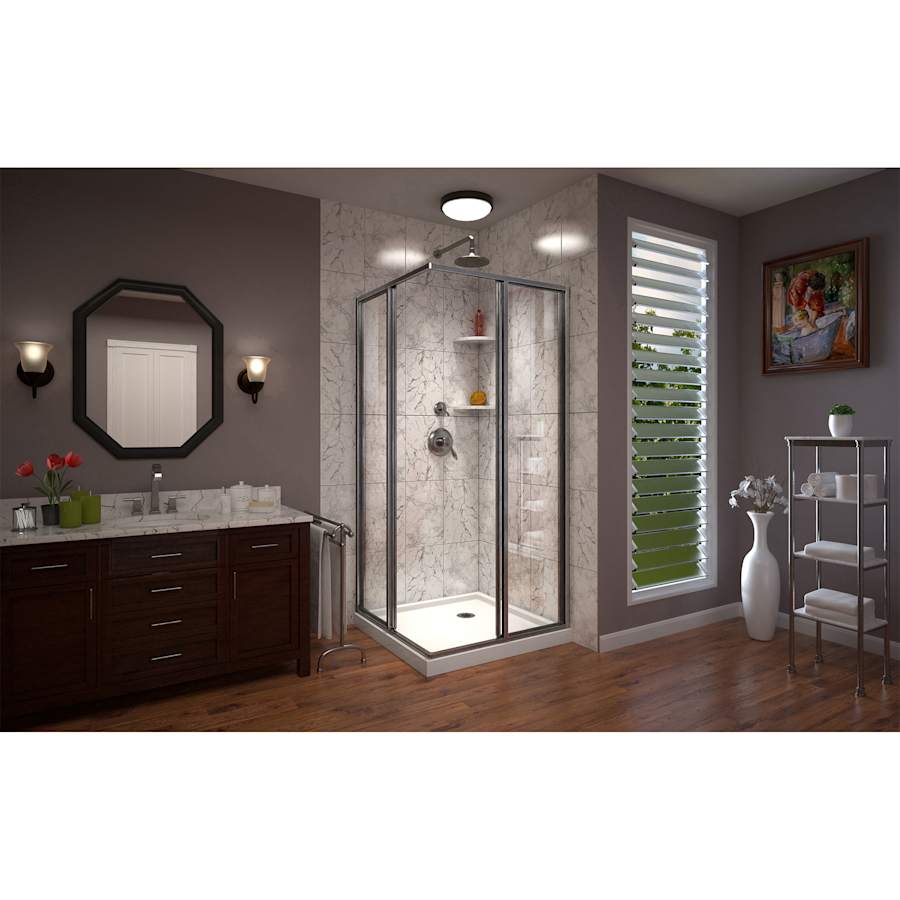

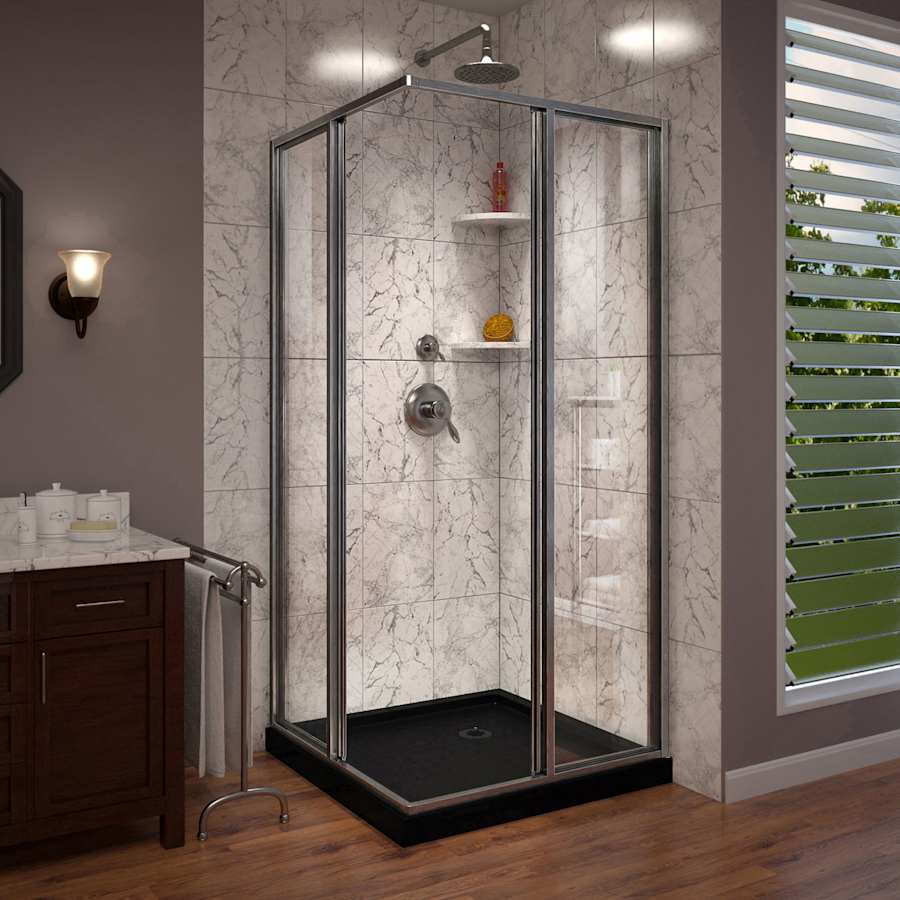

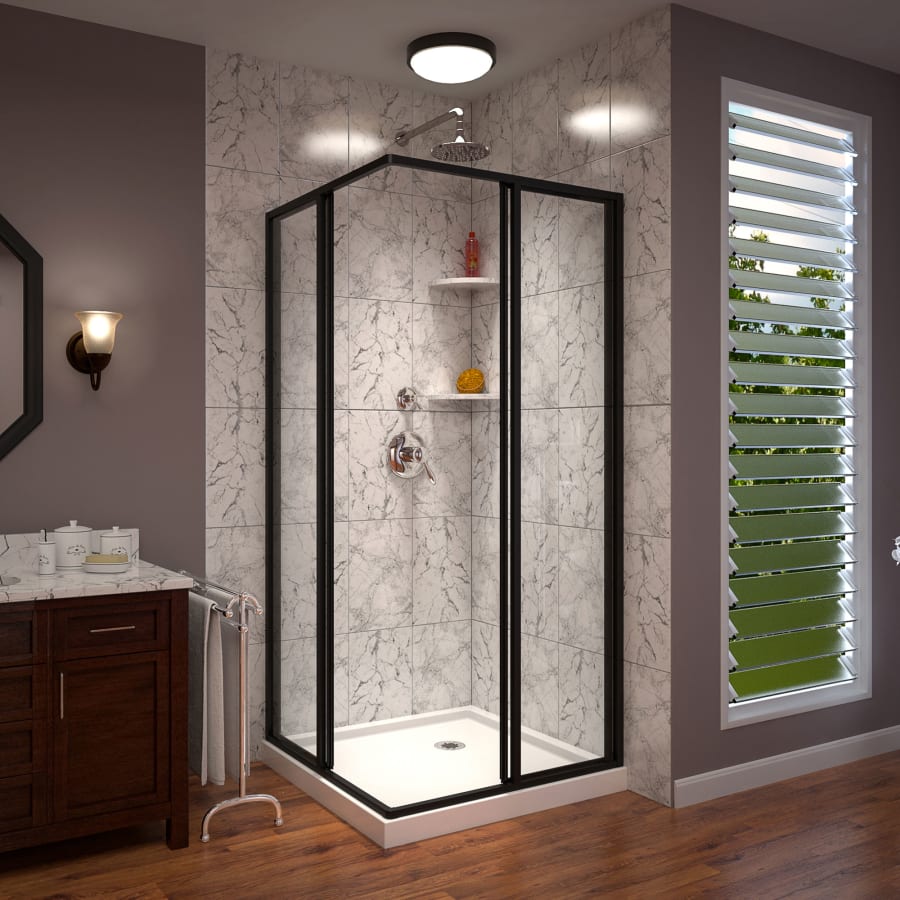

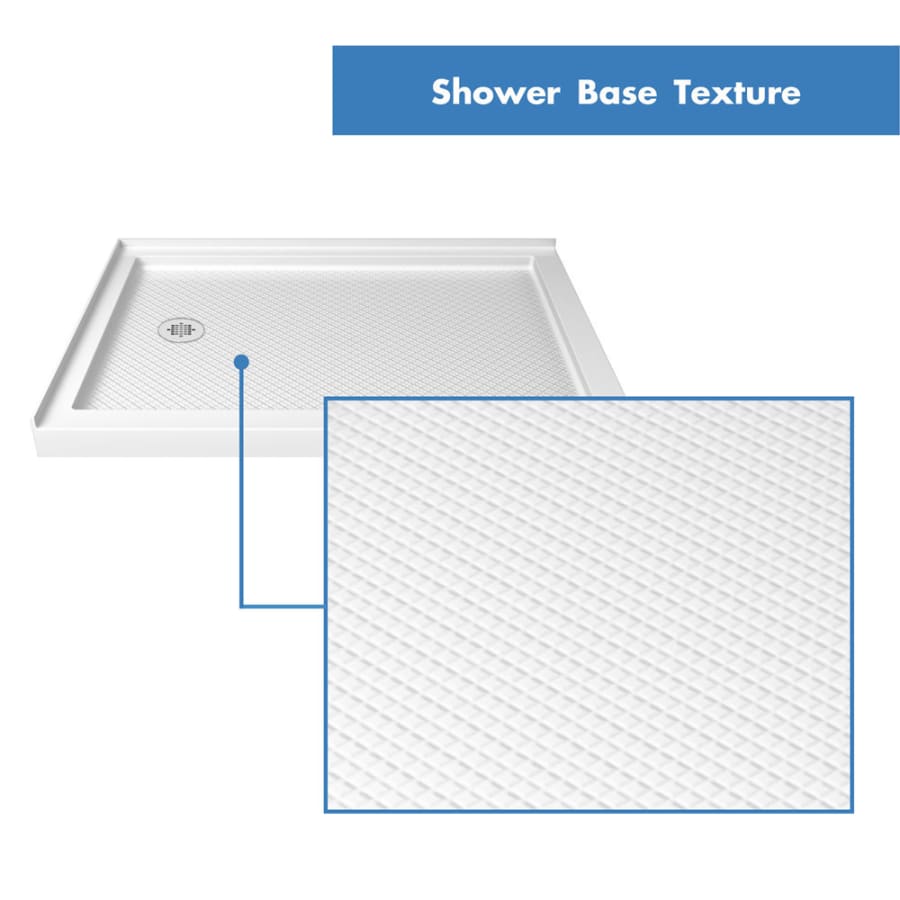

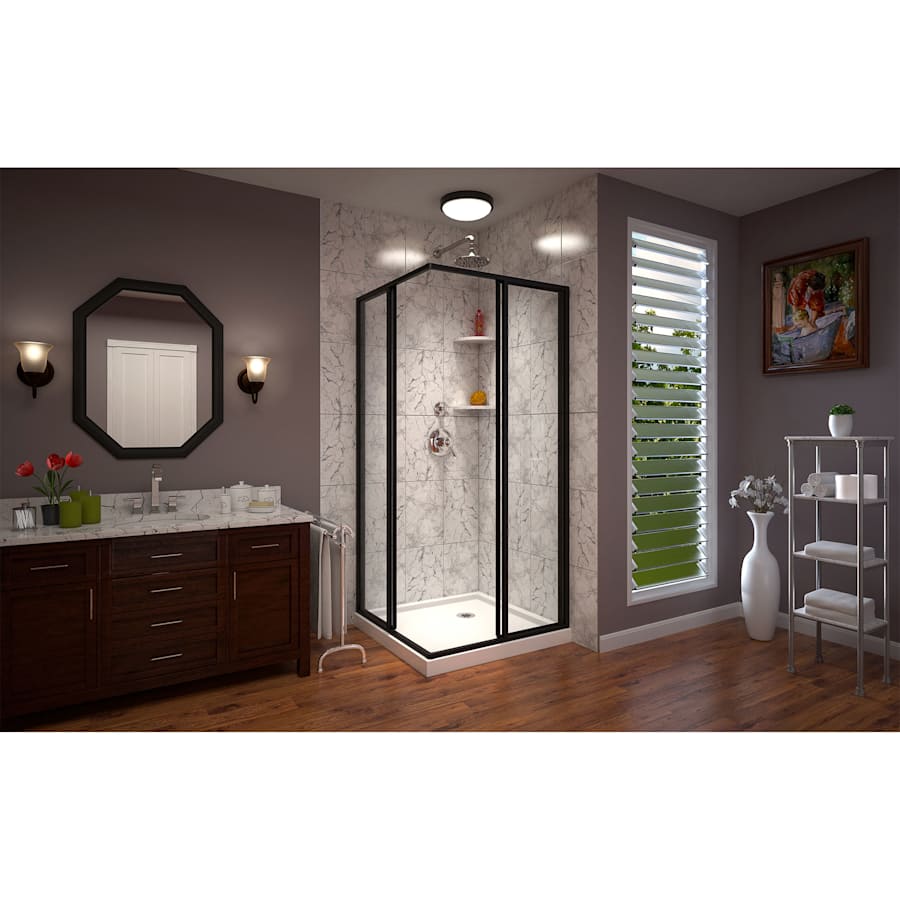

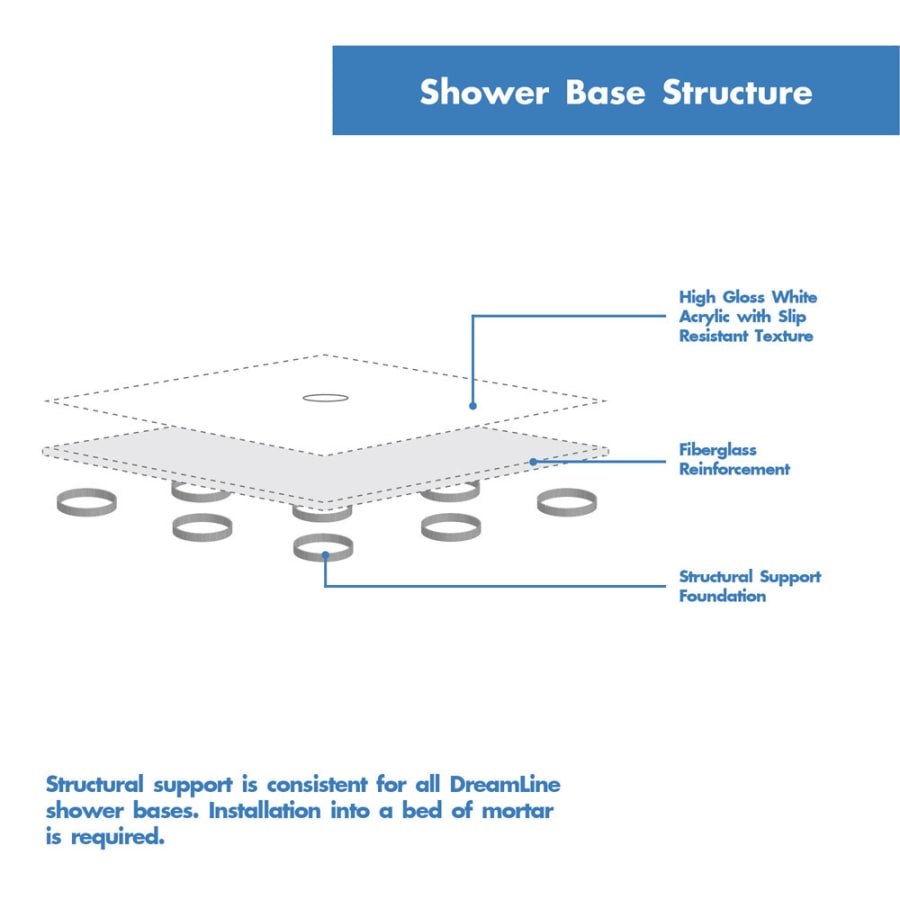

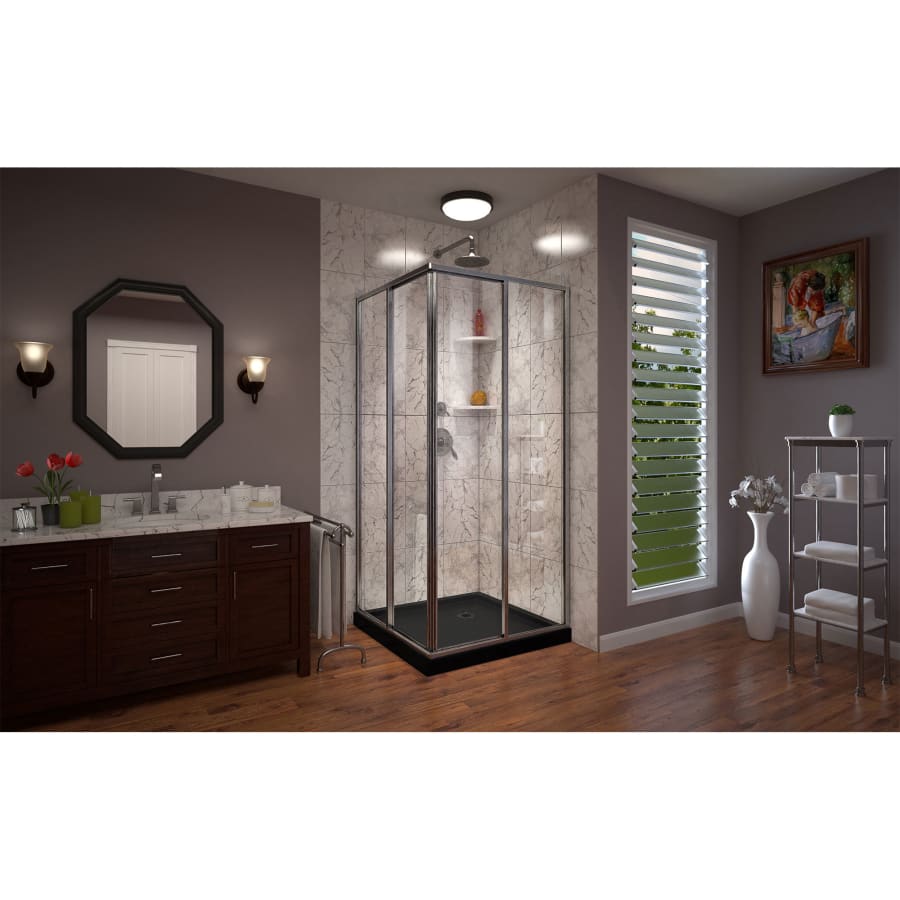

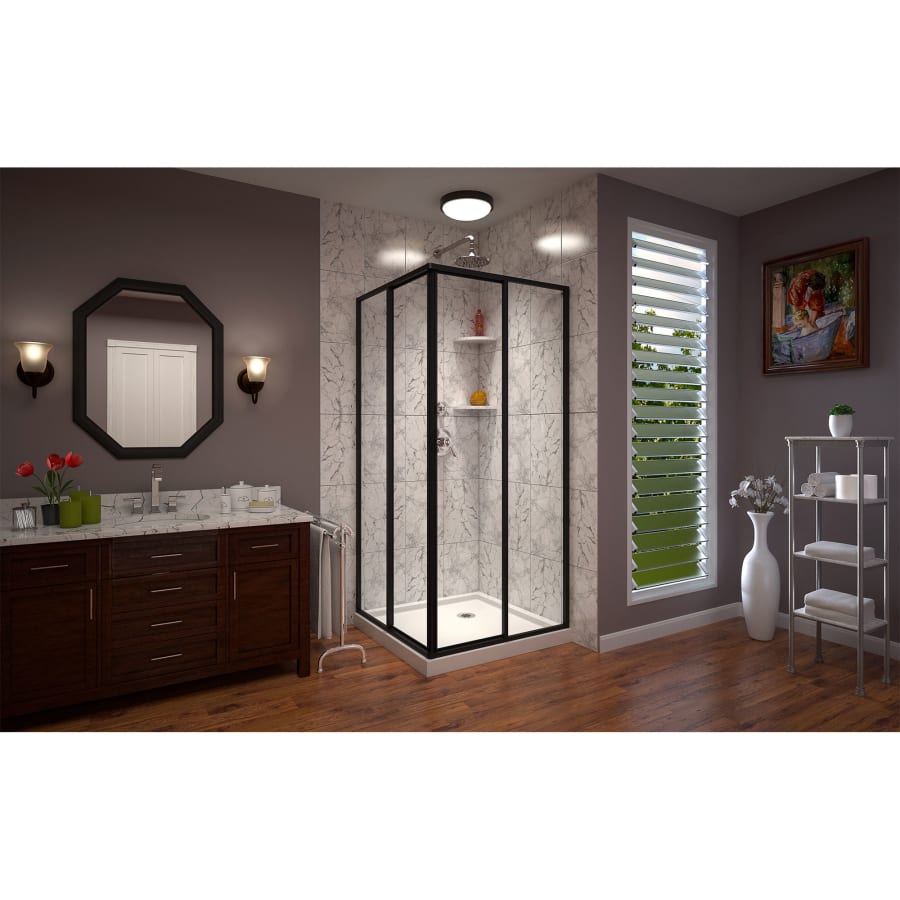

The DreamLine Cornerview sliding shower enclosure provides a modern solution to maximize space with a corner installation and center opening design. The Cornerview has a straight edged style that provides a comfortable showering space. The Cornerview can fit into virtually any corner, making it perfect for smaller bathrooms. Instantly upgrade the look and feel of your bath space with the Cornerview sliding shower enclosure. Shower Base has a glossy acrylic finish that is scratch, slip, and stain resistant for safe showering, and is reinforced with fiberglass for durability. Drain opening fits any standard 2 in. compression fitted drain (not included)
DreamLine DL-6709 Features:

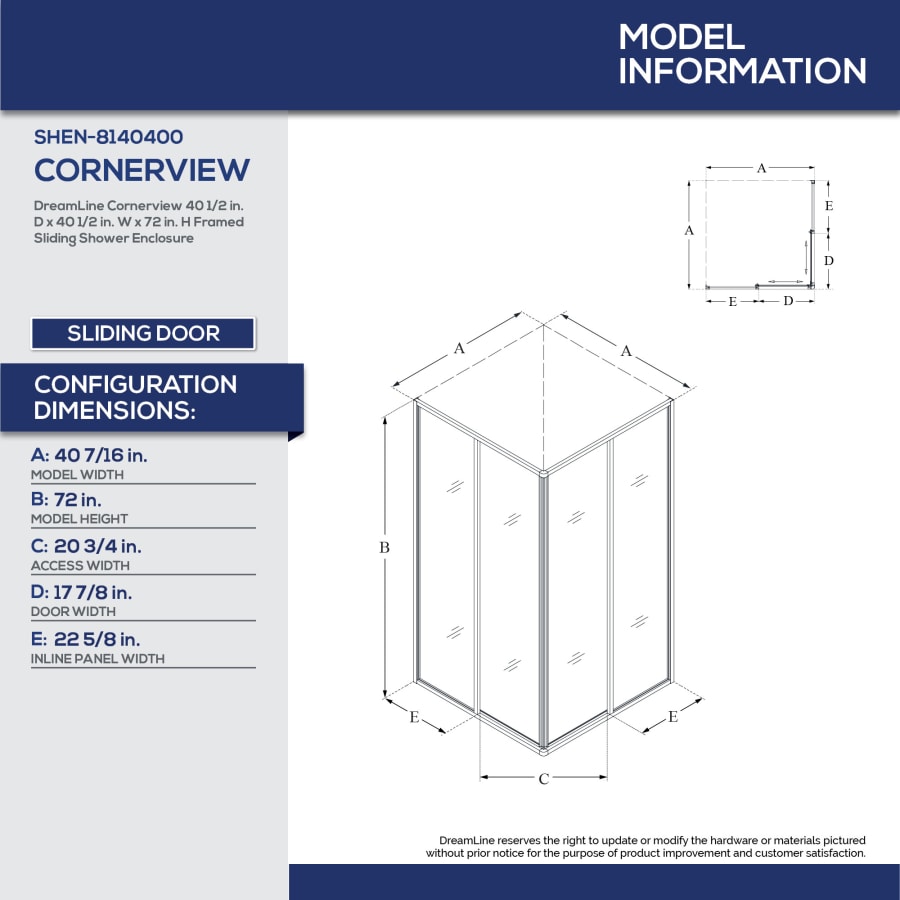

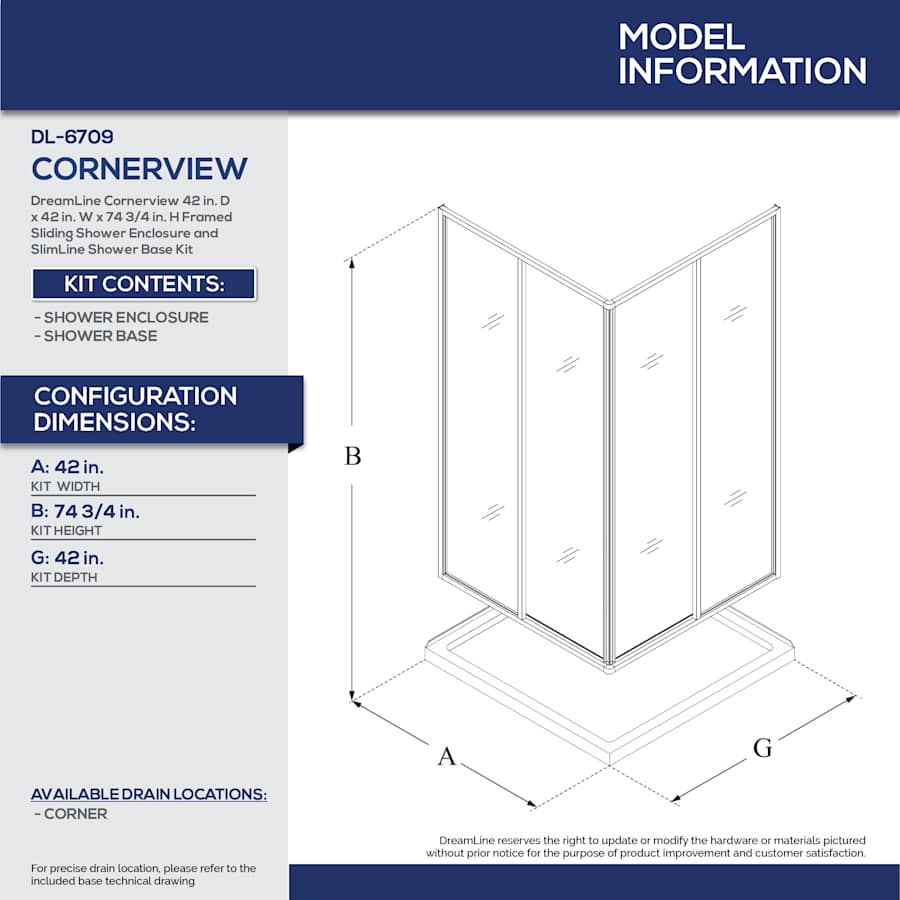

Kit Includes: Cornerview Enclosure and SlimLine Shower Base; Kit Size: 42 in. D x 42 in. W x 74 3/4 in. H; Walk-in Opening: 20 3/4 in.
5/32 in. (4 mm) certified clear tempered glass; Hardware Finish: Brushed Nickel; Base Color: White

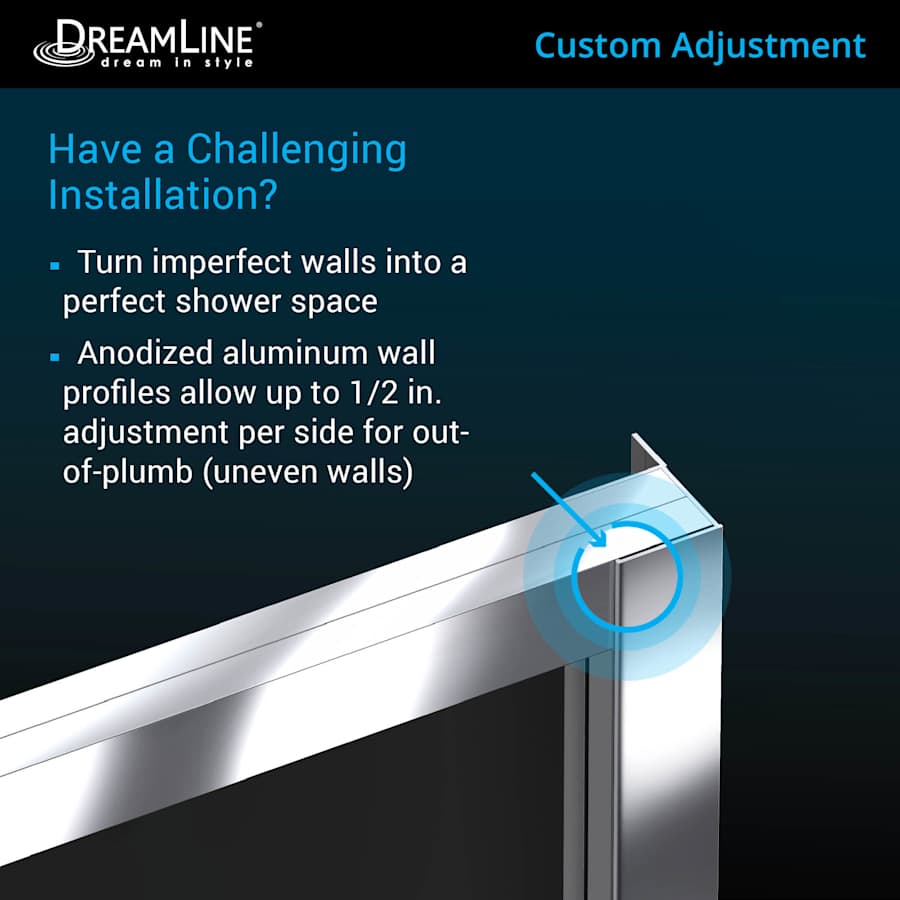

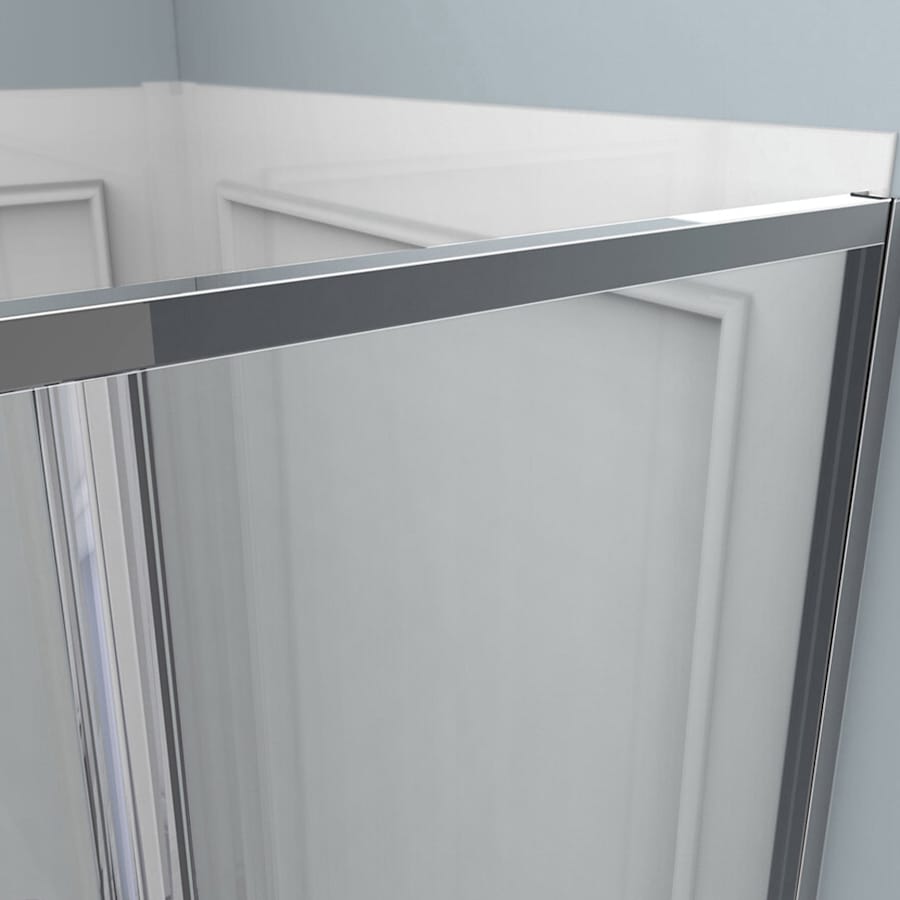

Anodized aluminum wall profiles allow up to 1/2 in. adjustment per side for out-of-plumb; Limited Lifetime Manufacturer Warranty

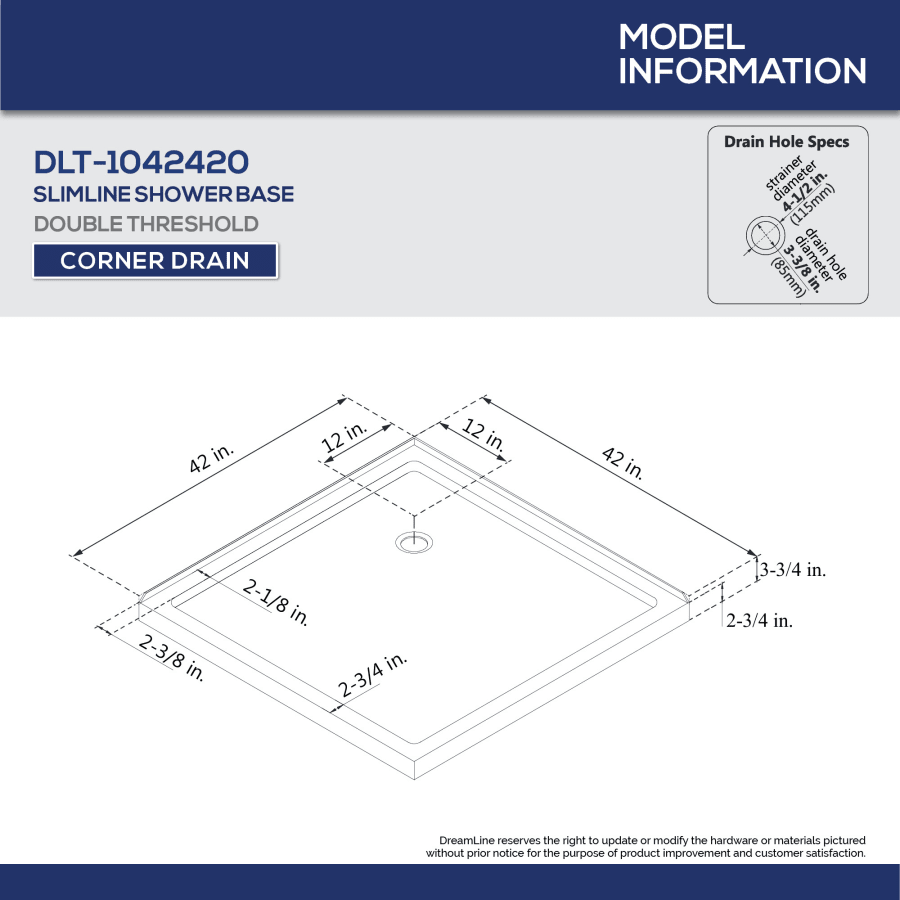

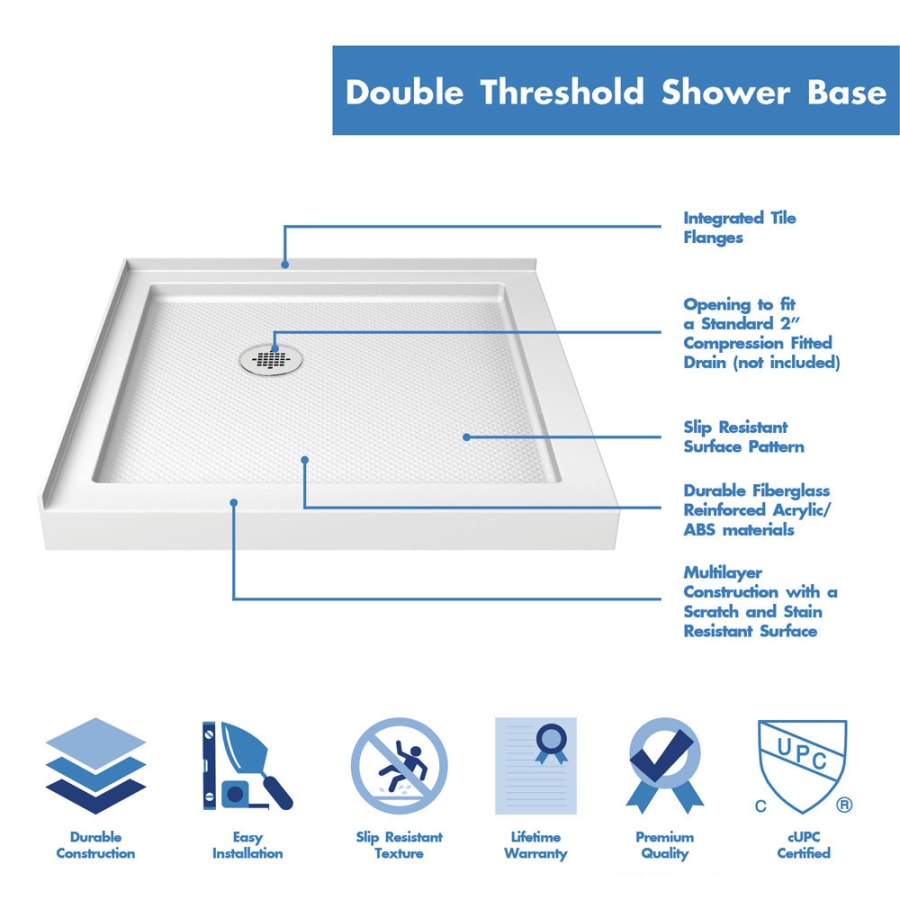

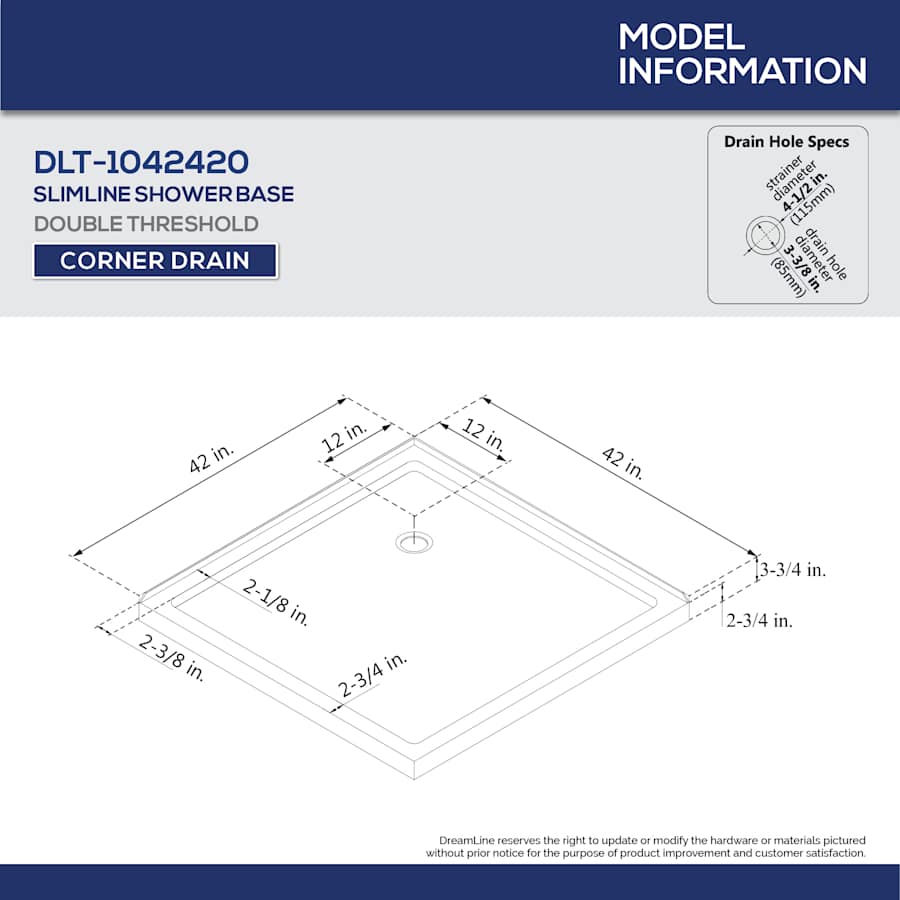

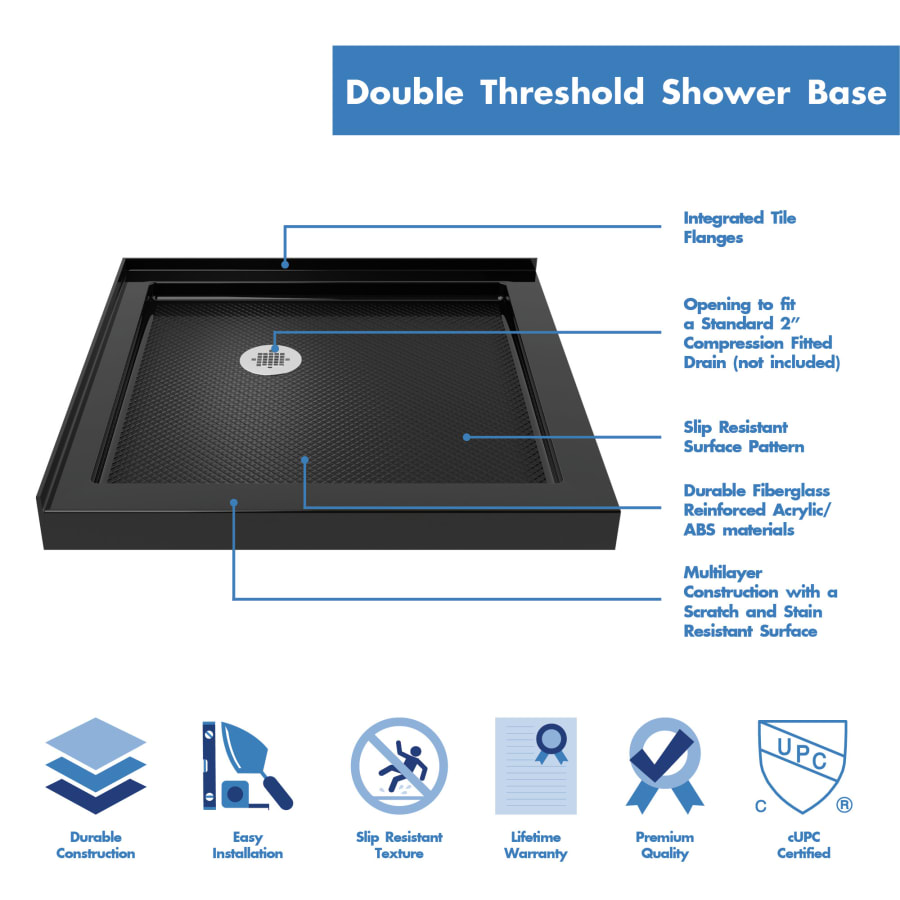

SlimLine Double Threshold Base: Low profile threshold; Integrated tile flange for leak prevention; cUPC certified; Direct to stud installation
Plumbing codes vary by state; DreamLine is not responsible for code compliance; Professional installation recommended; Limited Lifetime Warranty
DreamLine DL-6709 Specifications:

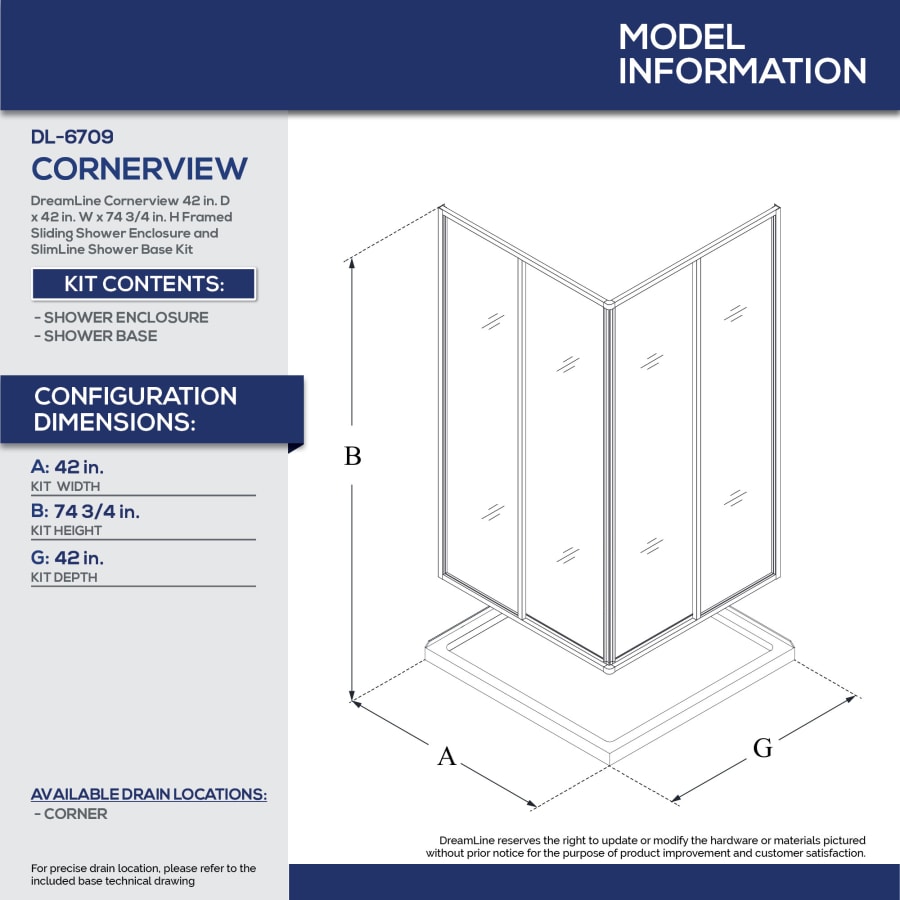

Overall Height: 74-3/4″ (top to bottom of enclosure)
Overall Width: 42″ (left to right of enclosure)
Installation Type: Corner
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Cornerview Collection
Specifications
| Product Weight | 139.11 lbs. |
| Height | 74.75 in. |
| Width | 42 in. |
| Depth | 42 in. |
| Nominal Width | 42 in. |
| Quantity | 2 |
| Drain Connection | 2 in. |
| Door Width | 20.75 in. |
| Glass Thickness | 0.15625 in. |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Cornerview |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| ADA | No |
| Commercial Warranty | 1 Year Limited |
| Insulation Type | Corner |
| Material | Acrylic |
| Glass Features | Clear Glass |
| Thermostat | Modern |
| Shape | Square |
| Drain Placement | Rear |
| Slip Resistant | Yes |
| Door Type | Sliding |
| Configuration | Shower Enclosure |
| Frame Type | Framed |
| Number Of Doors | 2 |
| Curb Location | Left, Right |
| Number of Thresholds | 2 |
| Drain Assembly Included | No |
| Grab Bars | No |
| Base Included | Yes |
| Soap Holder | No |
| Tub Included | No |
| Color | Brushed Nickel with Black Base |
| Color Tone | Nickel Tones |
